Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset microSHIFT M26 -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
157cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
182cm - 195cm
XXL
193cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
Suspension Fork
Suntour NEX-E25, 63mm, coil, custom crown
Drivetrain
Rear Derailleur
microSHIFT M26L
Front Derailleur
microSHIFT Dual Pull Compact, Band Clamp
Shift Levers
microSHIFT, 3x7-speed
Cassette
Sunrace, 14-34, 7-speed
Crank
Prowheel, 48/38/28
Bottom Bracket
Cartridge, square taper
Chain
KMC Z7, 7-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Alloy, Sealed, QR
Rear Hub
Alloy, Sealed, QR
Rims
DC 4.0, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Dry, 700x40c, reflective strip
Brakes
Brakes
Promax mechanical disc, 160/160mm rotors
Brake Levers
Promax
Cockpit
Stem
6061 Alloy, 31.8, 8°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm
Grips
Cannondale Dual-Density
Headset
Semi-Integrated, Tapered
Seat
Saddle
Cannondale Fitness Ergo Double Density
Seatpost
6061 Alloy, 27.2x350mm
Fit data

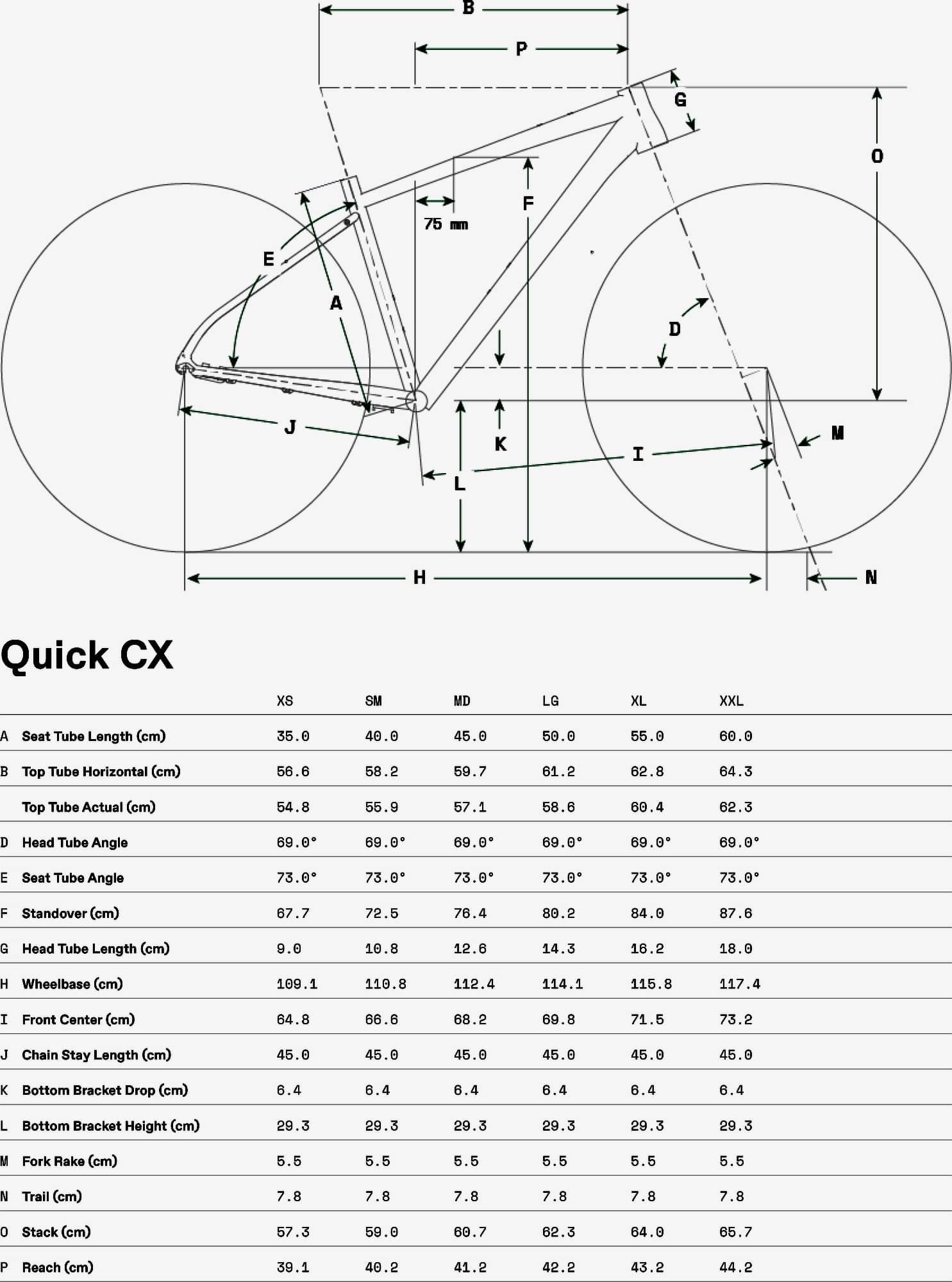

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 175 cm | 182 cm | 193 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 195 cm | 205 cm |
