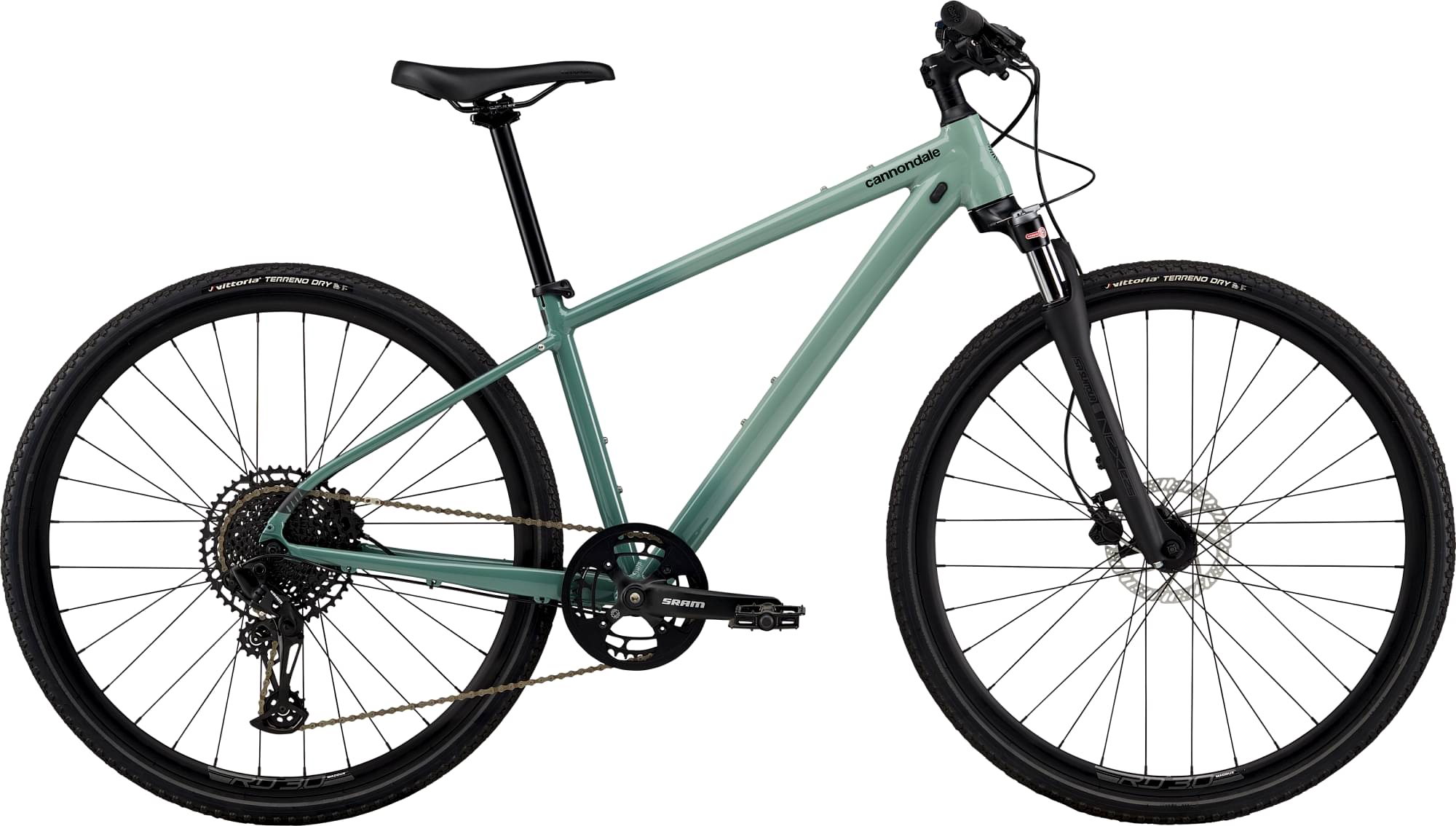

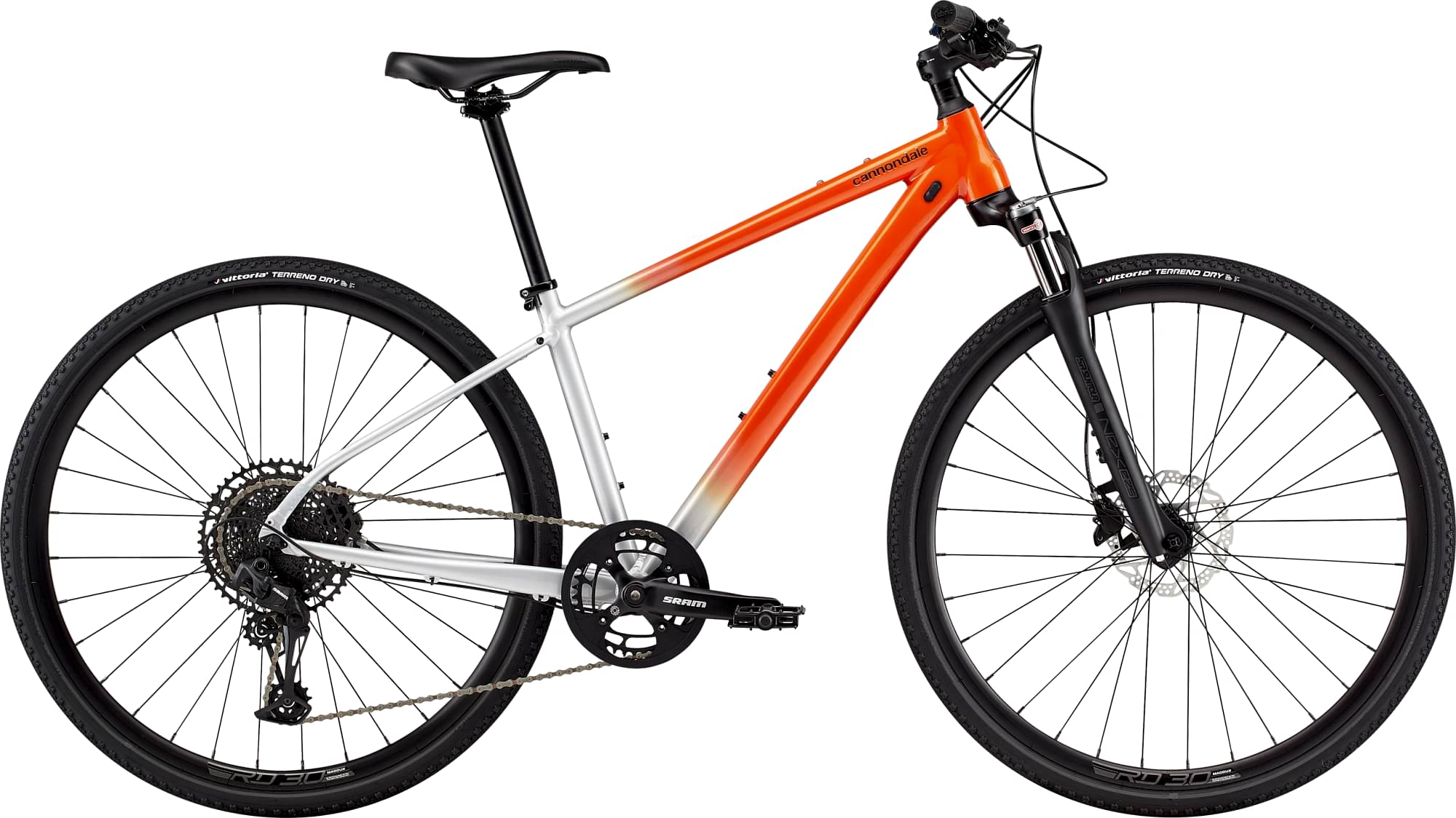

Cannondale Quick CX Women’s 1 2024
2024 Urban
Estimate price |
1,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 160cm
SM
157cm - 170cm
MD
165cm - 177cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
Suspension Fork
Suntour NEX-E25, 63mm, tapered alloy steerer, coil, remote lockout, custom crown
Drivetrain
Rear Derailleur
SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle, 11-50, 12-speed
Crank
SRAM SX Eagle Power Spline, 38T
Bottom Bracket
Truvativ Power Spline
Chain
SRAM SX Eagle, 12-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Sealed Alloy Disc, QR
Rear Hub
Sealed Alloy Disc, QR
Rims
RD 3.0, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Dry, 700x40c, reflective strip
Brakes
Brakes
(F) Tektro HD-T275 hydraulic disc, 160mm rotor / (R) Tektro HD-R280 hydraulic disc, 160mm rotor
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale 3, 6061 Alloy Double-butted, 20mm rise, 9° back, 660mm
Grips
Fabric FunGuy
Headset
Semi-Integrated, Tapered
Seat
Saddle
Cannondale Fitness Ergo Double Density
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Fit data

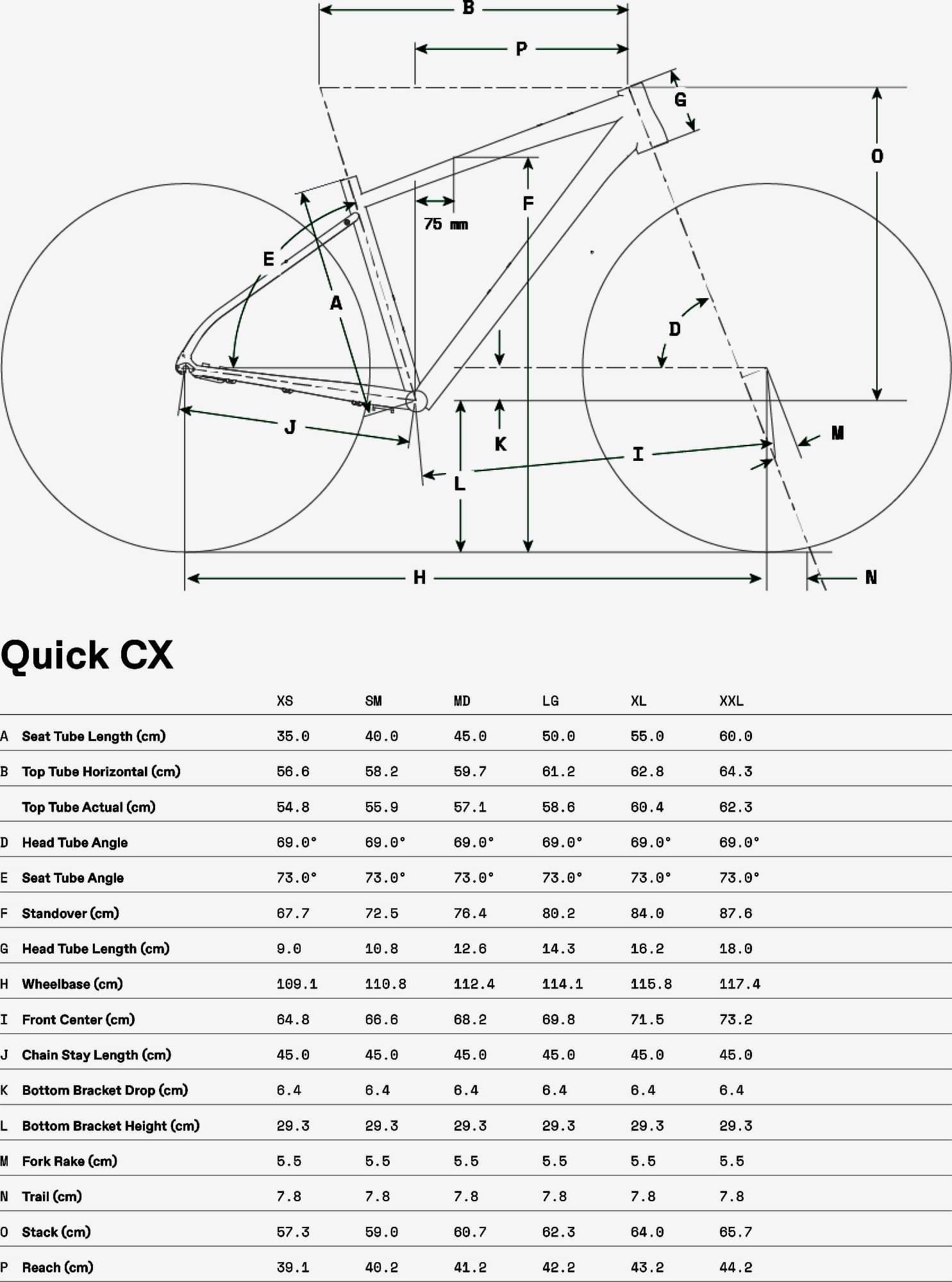

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 157 cm | 165 cm |
| Rider Max Height | 160 cm | 170 cm | 177 cm |
