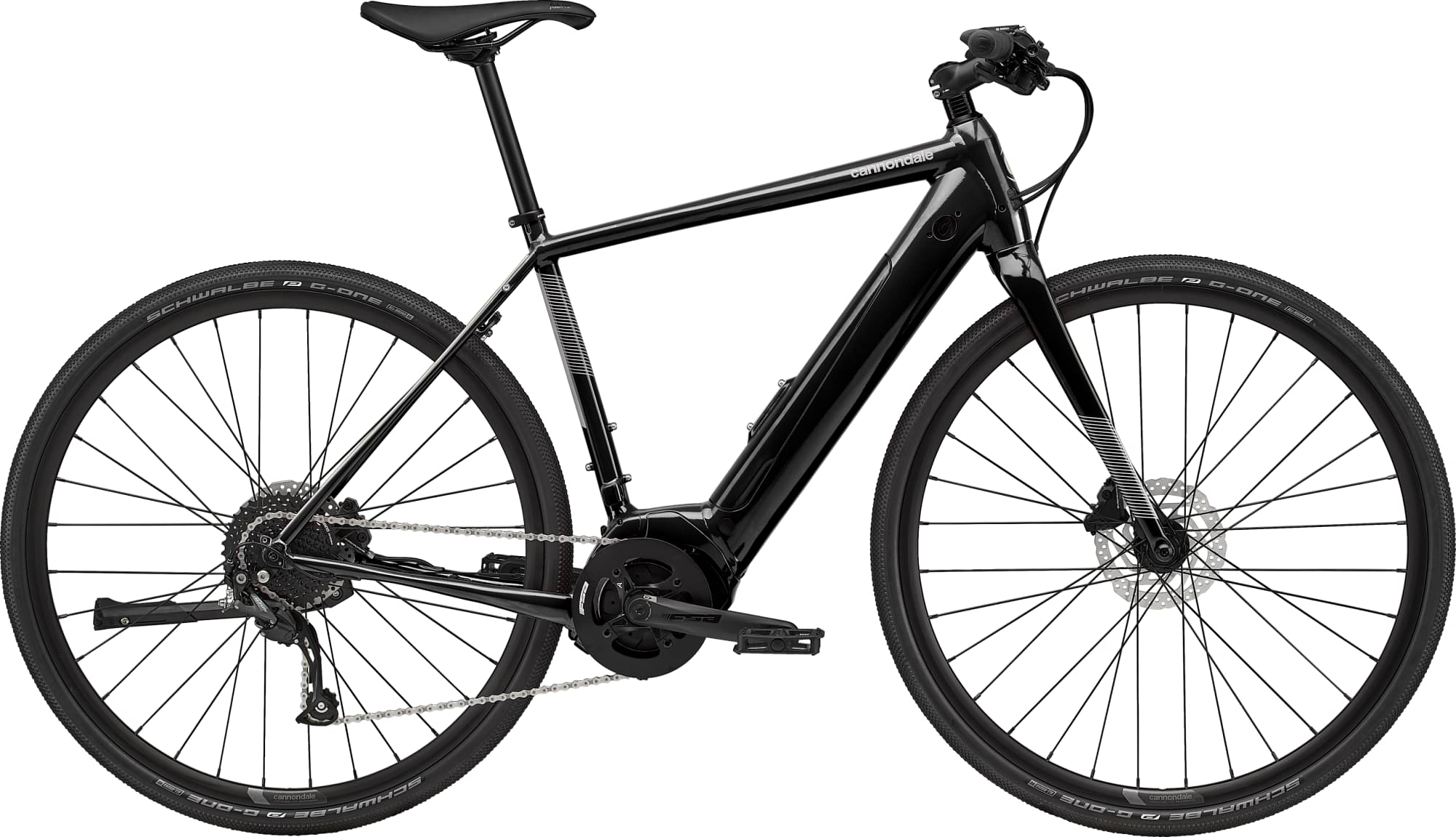

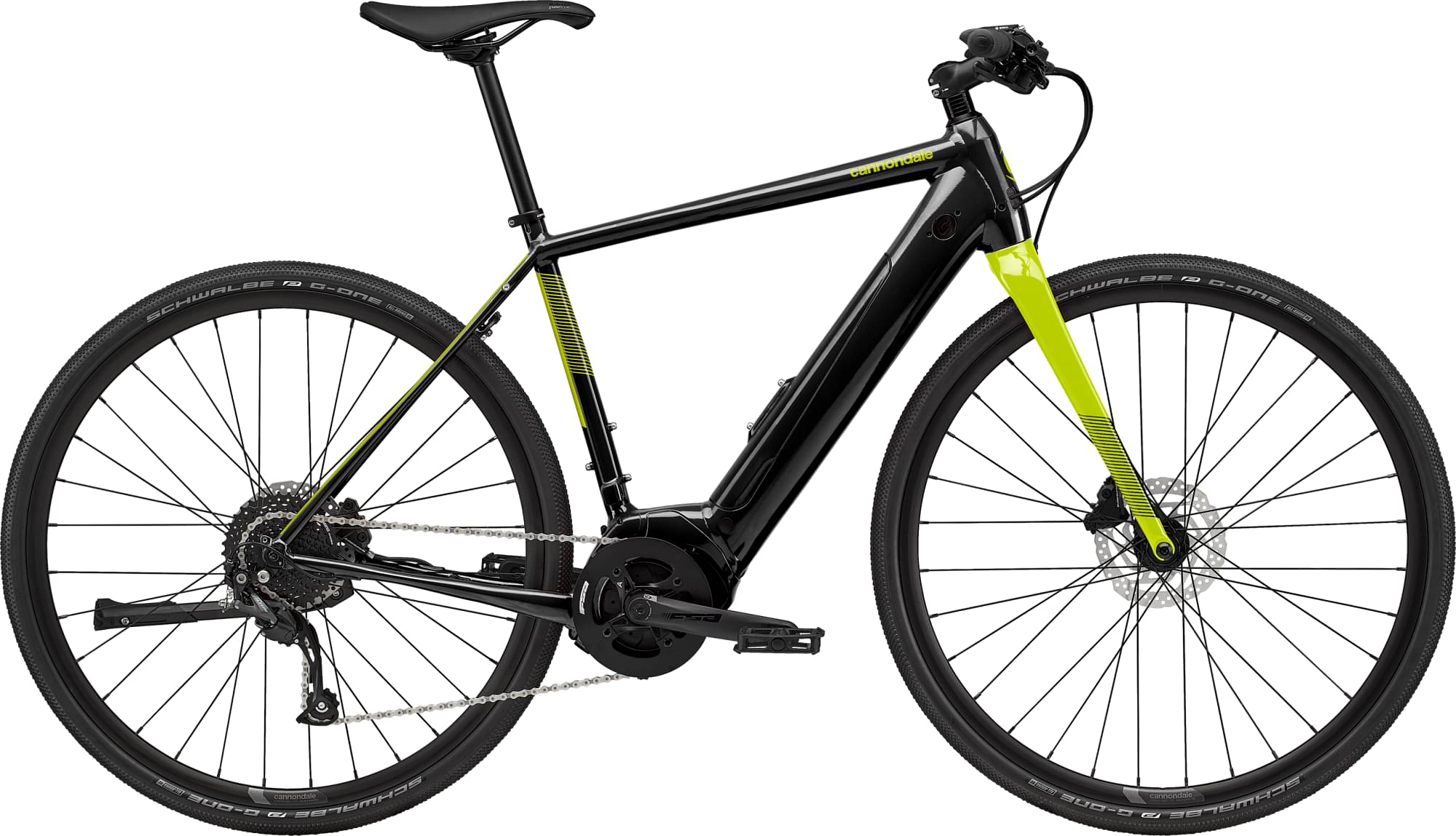

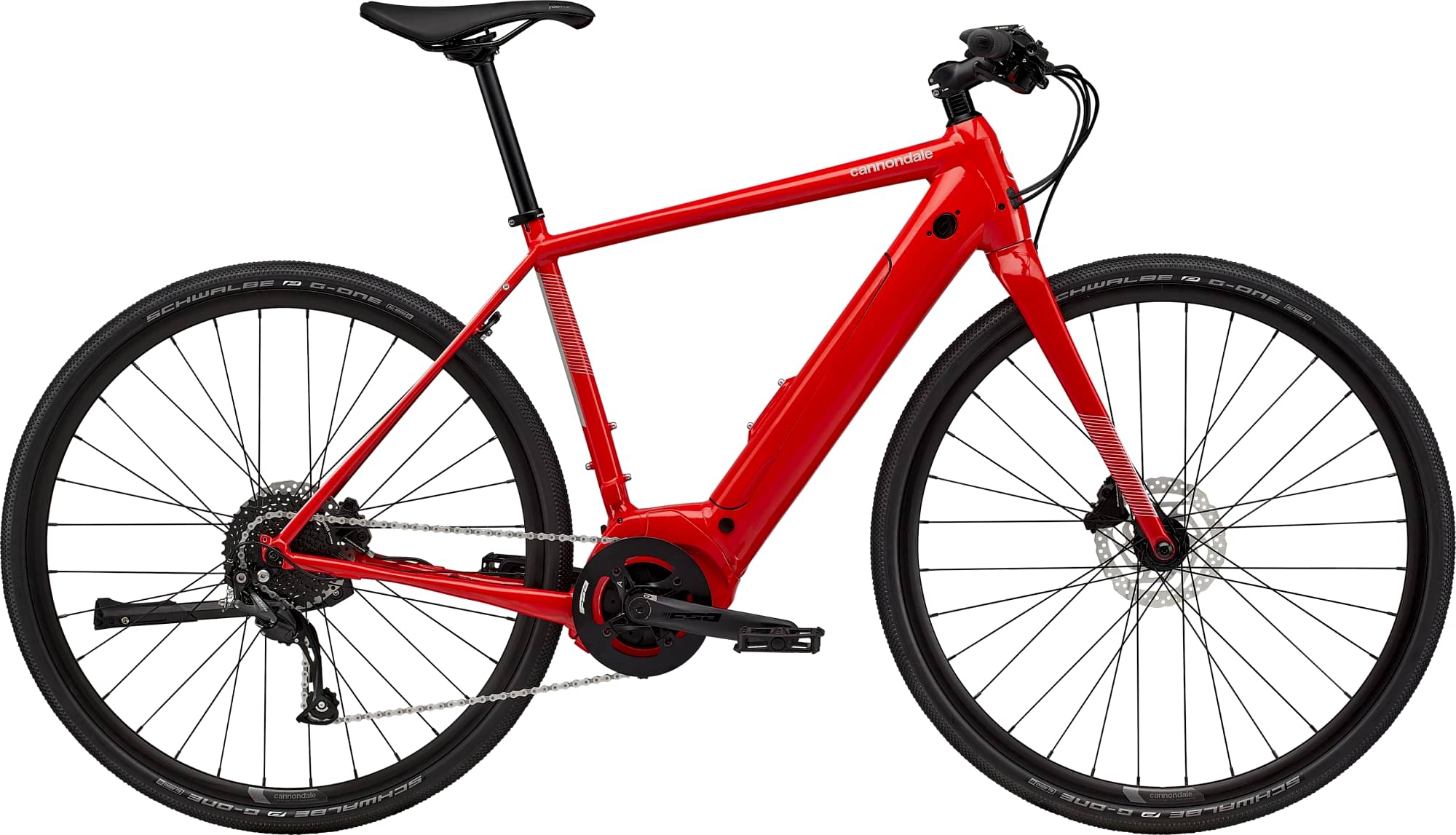

Cannondale Quick Neo 2024
2024 E-bike
Estimate price |
2,564$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
162cm - 175cm
LG
170cm - 182cm
XL
175cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, SAVE, Ai, flat mount brake, 142x12 thru-axle
Suspension Fork
Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount, 12x100 thru axle
Drivetrain
Rear Derailleur
Shimano Altus
Shift Levers
Shimano Altus, 9-speed
Cassette
Shimano HG200 11-36, 9-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 38T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano HG93, 9-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
Formula, 12x100mm
Rear Hub
Formula DC-142, 12x142mm
Rims
Cannondale 2, 32h, double wall
Spokes
Stainless Steel, 14g
Tires
Schwalbe G-One Allround Performance, 700x35c, RaceGuard, tubeless ready
Brakes
Brakes
Shimano MT200 hydraulic disc, 160mm rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Handlebar
Cannondale 3 Flat, 6061 double-butted Alloy, 8° sweep, 720mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-On
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 25.4, 350mm (S-M), 400mm (L-XL)
Motor & Battery
Motor
Bosch Active Line Plus 250W w/Cannondale ACR software
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.658 mm | 1.637 mm | 1.615 mm | 1.598 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 625 mm | 644 mm | 666 mm | 688 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 605 mm | 622 mm | 638 mm | 655 mm |
| Reach | 365 mm | 380 mm | 395 mm | 410 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 123 mm | 141 mm | 158 mm | 176 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1086 mm | 1107 mm | 1129 mm | 1150 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 766 mm | 803 mm | 838 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 175 cm |
| Rider Max Height | 167 cm | 175 cm | 182 cm | 198 cm |
