Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 160cm
SM
157cm - 170cm
MD
165cm - 177cm
LG
175cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
Suspension Fork
Steel blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts
Drivetrain
Rear Derailleur
microSHIFT Advent
Shift Levers
microSHIFT Advent, 9-speed
Cassette
microSHIFT, 11-42, 9-speed
Crank
Prowheel, 38T
Bottom Bracket
Cartridge, square taper
Chain
KMC Z9, 9-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
Sealed Alloy Disc, QR
Rear Hub
Sealed Alloy Disc, QR
Rims
Cannondale Disc, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Schwalbe Spicer, 700x35c, K-Guard, reflective strip
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm
Grips
Cannondale Ergo Fitness Dual Density, lock-on
Headset
FSA Sealed Bearing, integrated, 1-1/4"
Seat
Saddle
Cannondale Fitness Ergo Double Density
Seatpost
6061 Alloy, 27.2x350mm
Fit data

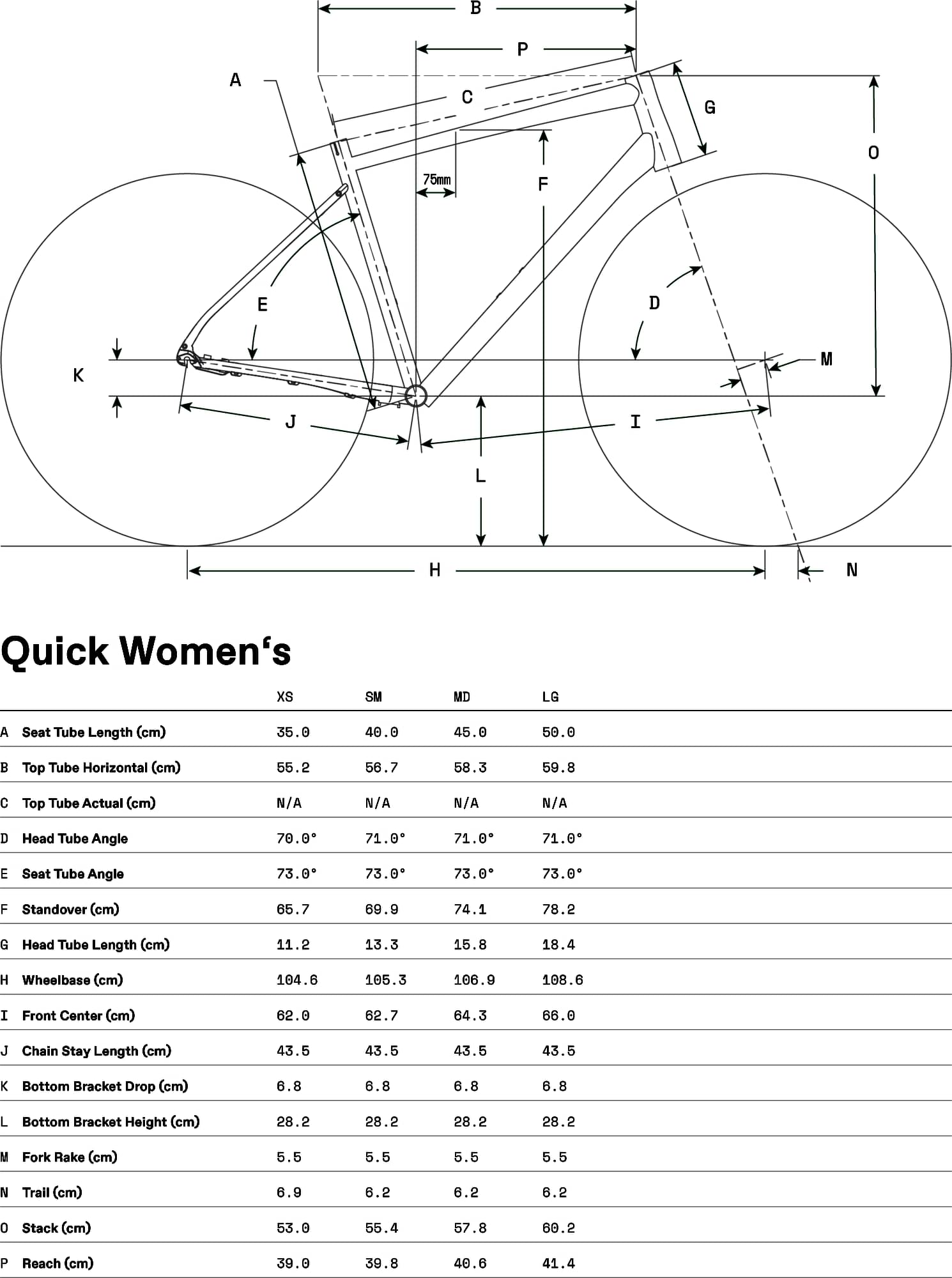

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 157 cm | 165 cm | 175 cm |
| Rider Max Height | 160 cm | 170 cm | 177 cm | 188 cm |
