Bike details
Overview
Key information split into simple groups.

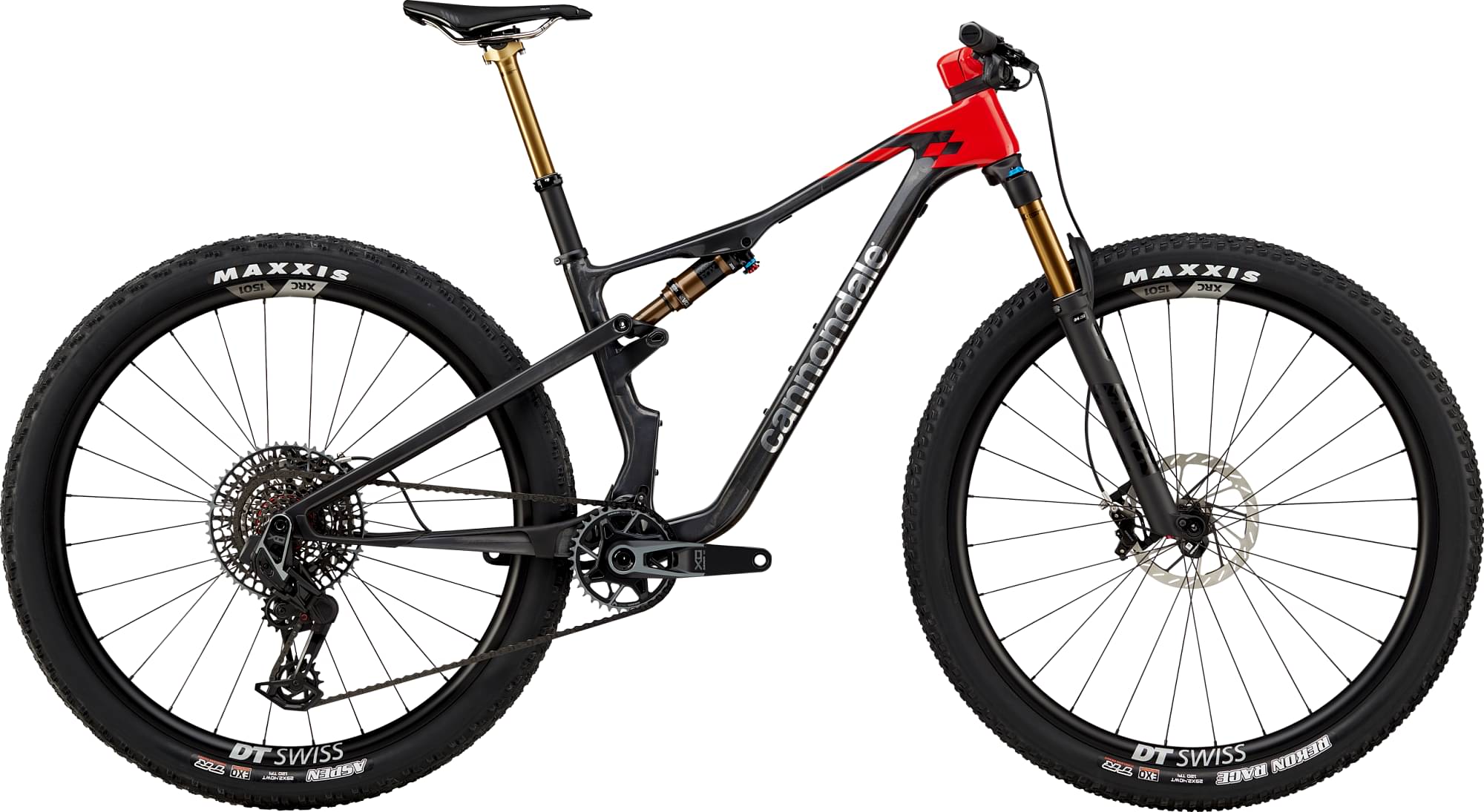

Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
Suspension Fork
Fox Float Factory 34 SC, Kashima, 120mm, 15x110mm thru-axle, tapered steerer, 44mm offset
Rear Shock
Fox Float SL Factory EVOL SV, Kashima, 190x45, custom tune
Drivetrain
Rear Derailleur
SRAM XO Eagle AXS, T-Type
Shift Levers
SRAM AXS T-Type Pod Controller
Cassette
SRAM XO Eagle, 10-52, T-Type, 12-speed
Crank
SRAM XO T-Type, 34T
Bottom Bracket
SRAM DUB BSA 73mm MTB Wide
Chain
SRAM XO, T-Type, 12-speed
Pedals
Not Included
Wheels
Front Hub
DT Swiss 240 15x110, 6-bolt (F) / 240 Ratchet EXP 36, 6-bolt, XD driver (R)
Rear Hub
DT Swiss 240 15x110, 6-bolt (F) / 240 Ratchet EXP 36, 6-bolt, XD driver (R)
Rims
DT Swiss XRC 1501 SPLINE ONE, carbon, 30mm inner width, hookless, TSS tubeless ready
Spokes
DT Competition Race, straight pull
Tires
(F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready
Brakes
Brakes
SRAM Level Silver Stealth, 4-piston hydraulic disc, SRAM HS2 180/160mm rotors
Brake Levers
SRAM Level Silver Stealth
Cockpit
Stem
SystemBar XC-One Flat, carbon integrated bar/stem
Handlebar
SystemBar XC-One Flat, carbon, integrated bar/stem, internal cable routing, 5° upsweep, 8° backsweep, 760mm width, -6° stem, 1-1/8" clamp
Grips
Cannondale XC Silicone
Headset
Acros ICR
Seat
Saddle
Prologo Dimension NDR, Tirox rails
Seatpost
Fox Transfer SL Factory, Kashima, 31.6, 125mm (S), 150mm (M-XL)
Fit data

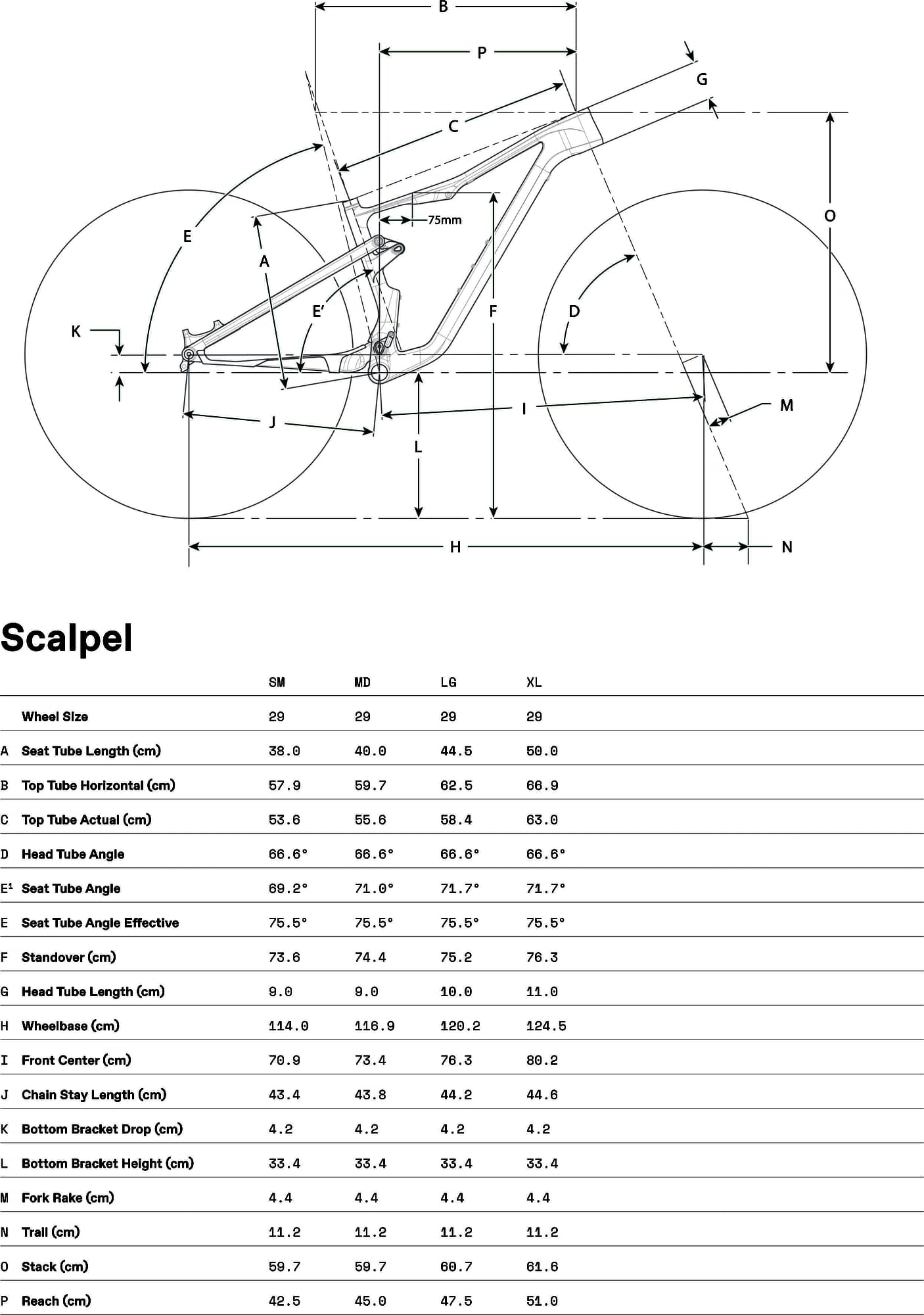

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
