Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Select+
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel, Series 1 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
Suspension Fork
RockShox SID Select+ RL, 120mm, DebonAir, 15x110mm thru-axle, tapered steerer, 44mm offset
Rear Shock
RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS, T-Type
Shift Levers
SRAM AXS T-Type Pod Controller
Cassette
SRAM GX Eagle, 10-52, T-Type, 12-speed
Crank
SRAM GX Eagle T-Type, 34T
Bottom Bracket
SRAM DUB BSA 73mm MTB Wide
Chain
SRAM GX Eagle T-Type, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) HollowGram, 15x110mm thru-axle / (R) HollowGram w/DT Swiss 350 internals, 12x148mm
Rear Hub
(F) HollowGram, 15x110mm thru-axle / (R) HollowGram w/DT Swiss 350 internals, 12x148mm
Rims
HollowGram XC-S 27, lightweight, high-impact carbon, 27mm inner width, 28h, tubeless ready
Spokes
Gran Forza, straight-pull
Tires
(F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready
Brakes
Brakes
SRAM Level Bronze Stealth, 4-piston hydraulic disc, SRAM HS2 180/160mm rotors
Brake Levers
SRAM Level Bronze Stealth
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebar
Cannondale 1 Flat, Carbon, 31.8mm, 9° back, 760mm
Grips
Cannondale XC Silicone
Headset
Acros ICR
Seat
Saddle
Prologo Dimension NDR, STN rails
Seatpost
Fox Transfer SL Performance Elite, 31.6, 125mm (S), 150mm (M-XL)
Fit data

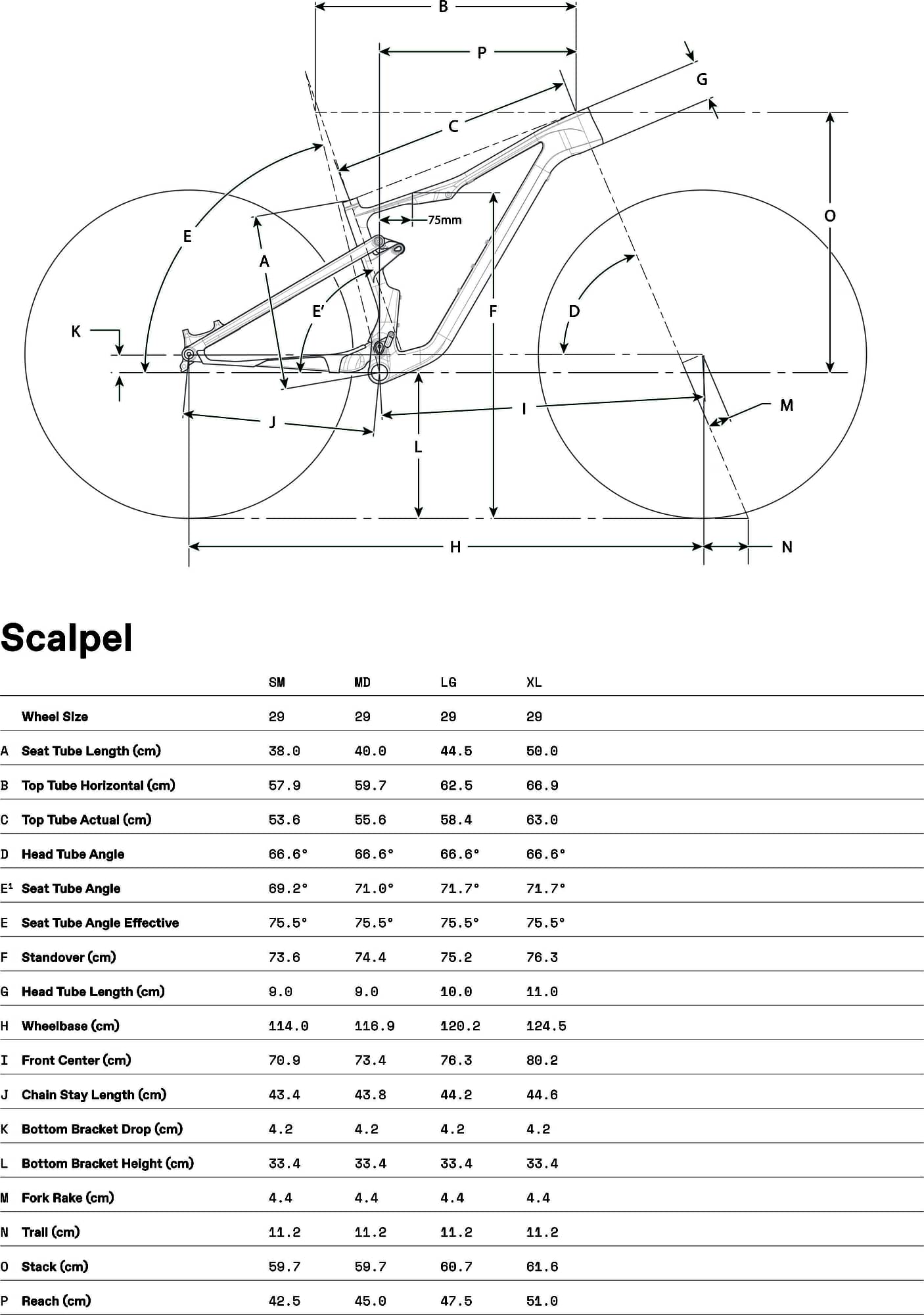

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
