Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Select
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel, lightweight carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
Suspension Fork
RockShox SID Select, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset
Rear Shock
RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound, 190x45
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano XT, 12-speed
Cassette
Shimano XT, 10-51, 12-speed
Crank
Shimano Deore M6120, 32T
Bottom Bracket
Shimano BSA 73mm
Chain
Shimano SLX M7100, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) Shimano TC-500, 15x110mm thru-axle / (R) Shimano TC-500, 12x148mm thru-axle
Rear Hub
(F) Shimano TC-500, 15x110mm thru-axle / (R) Shimano TC-500, 12x148mm thru-axle
Rims
Stan's NoTubes Crest MK4, 28h, tubeless ready
Spokes
DT Swiss Competition Race
Tires
(F) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready
Brakes
Brakes
Shimano Deore M6100, 180/160mm RT54 rotors
Brake Levers
Shimano Deore M6100
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Cannondale XC Silicone
Headset
Acros ICR
Seat
Saddle
Prologo Dimension NDR, STN rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
Fit data

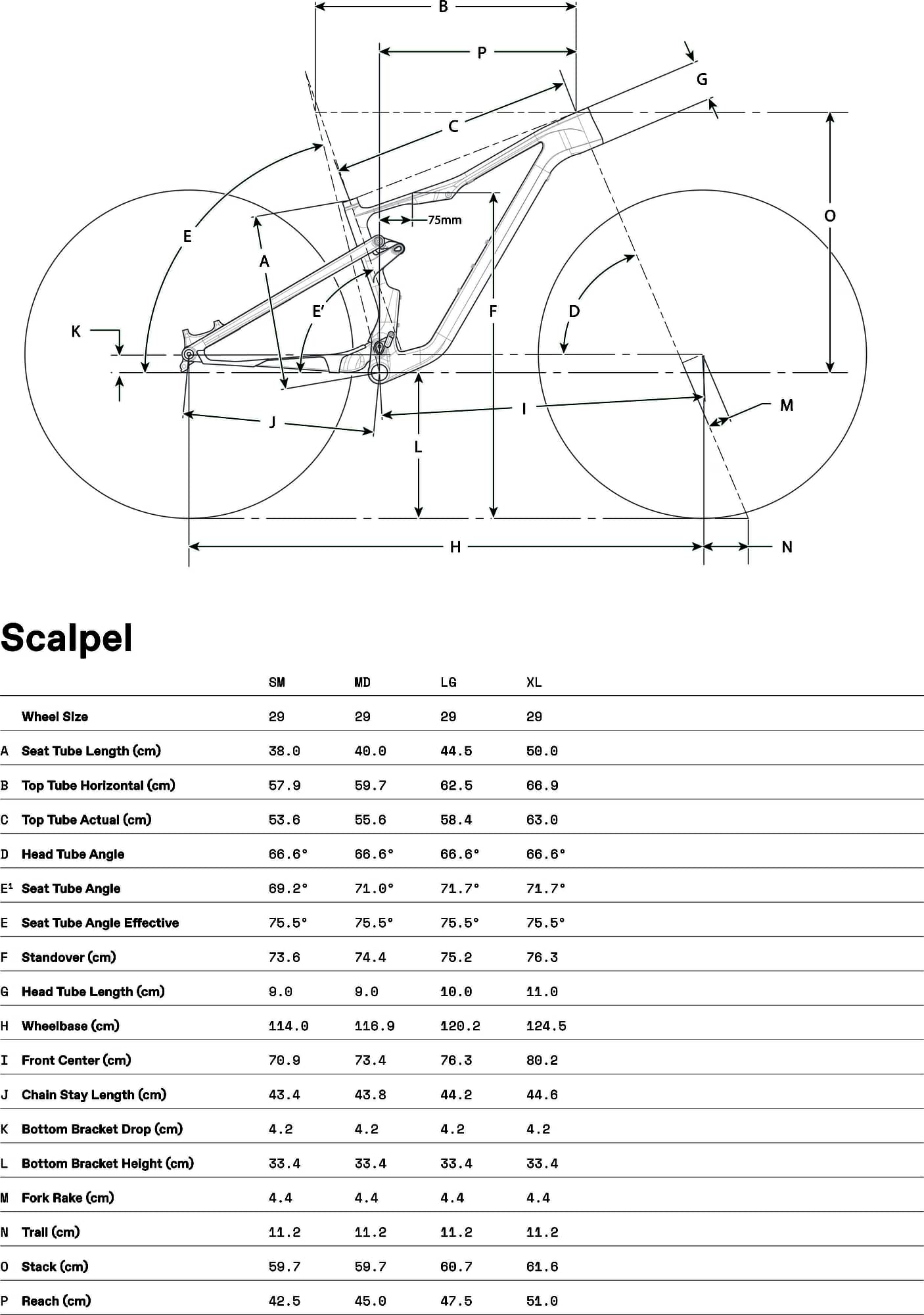

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
