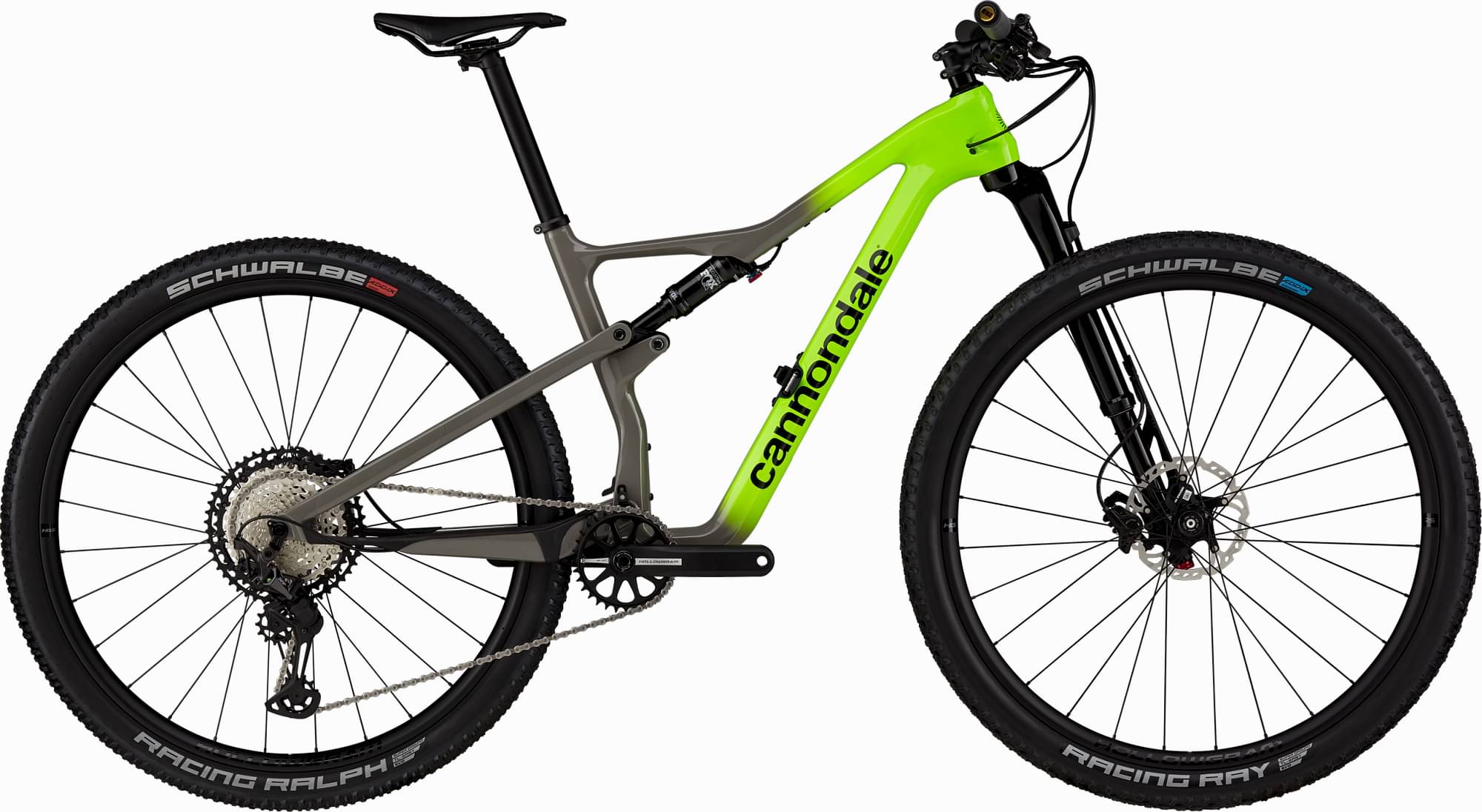

Cannondale Scalpel Carbon 2 2024
2024 Mountain
Estimate price |
6,165$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Cannondale Lefty Ocho
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
167cm - 175cm
LG
172cm - 182cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai Offset, Stash compatible
Suspension Fork
Lefty Ocho, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offset
Rear Shock
Fox Float DPS Performance Elite EVOL, remote lockout, adjustable rebound
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano XT, 12-speed
Cassette
Shimano XT, 10-51, 12-speed
Crank
HollowGram, BB30a, OPI SpideRing, 34T, Ai offset
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano XT, 12-speed
Pedals
Not included
Wheels
Front Hub
Lefty 60
Rear Hub
DT Swiss, 12x148mm
Rims
HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm inner width, tubeless ready
Spokes
HollowGram, 2.0/1.8/2.0, straight-pull
Tires
(F) Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready
Brakes
Brakes
Shimano XT hydraulic disc, 160/160mm XT rotors
Brake Levers
Shimano XT hydraulic disc
Cockpit
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Cannondale XC Silicone
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Prologo Dimension NDR, STN rails
Seatpost
Cannondale 2, 7075 Alloy, 31.6x400mm
Fit data

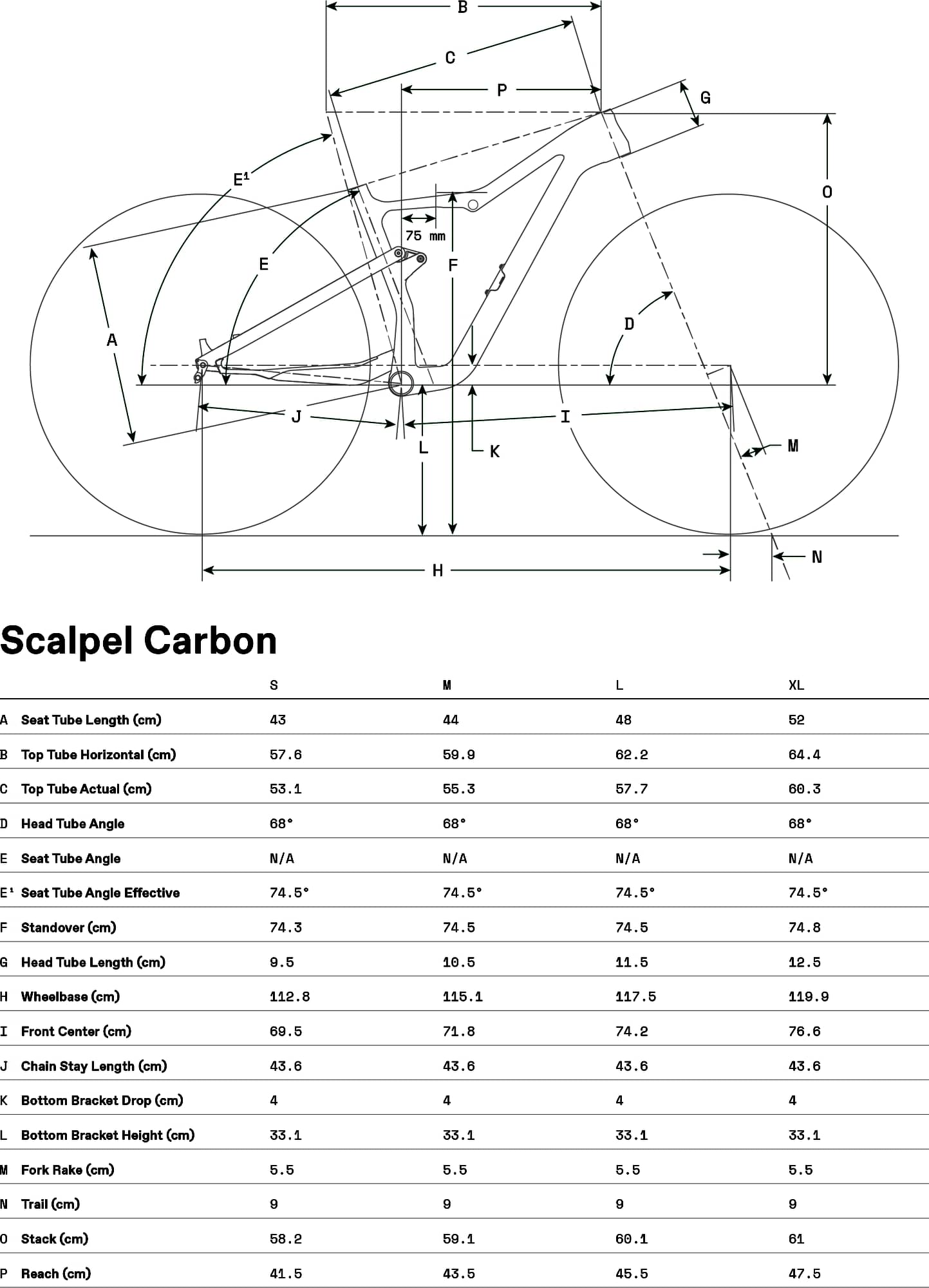

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 172 cm | 185 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
