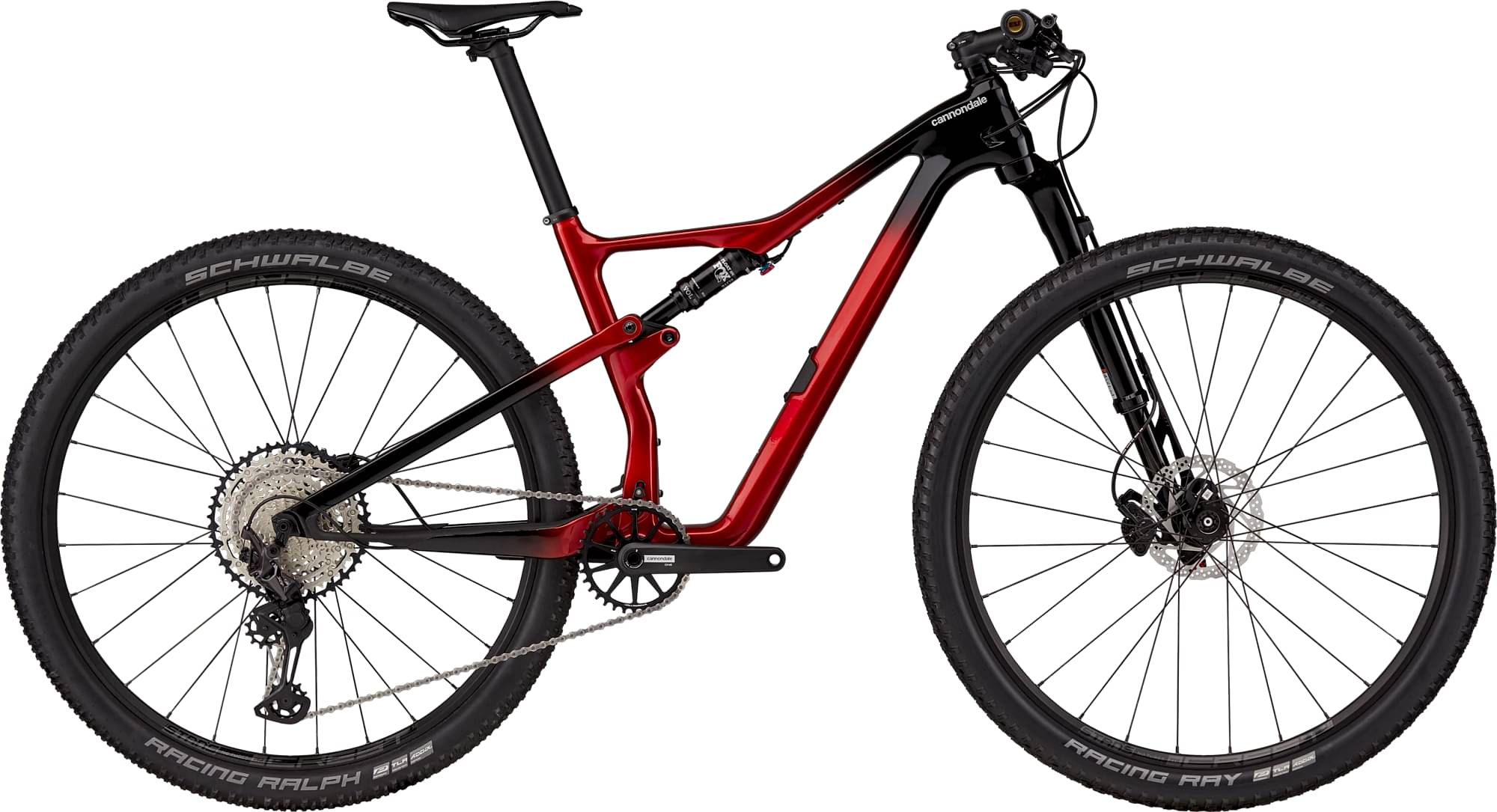

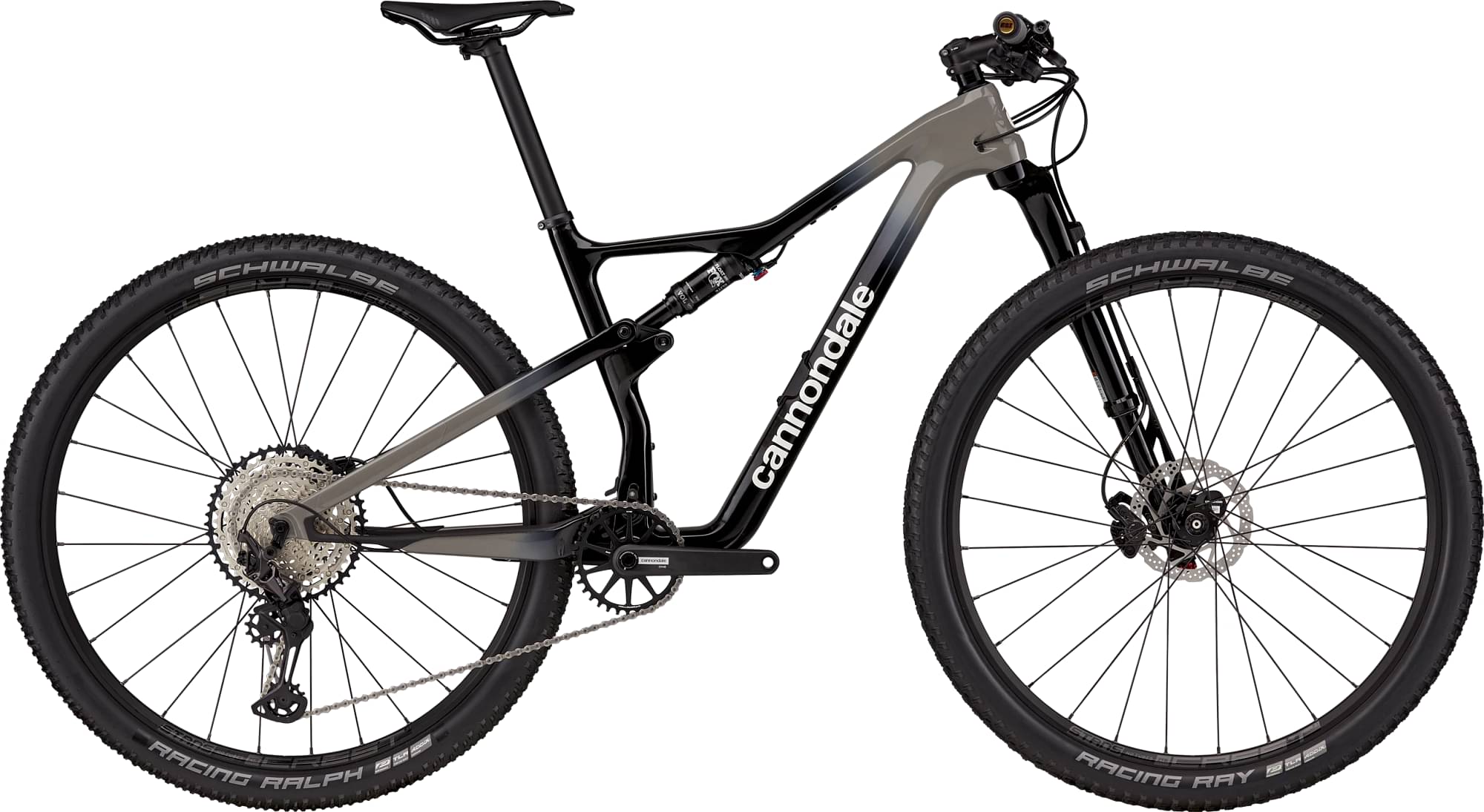

Cannondale Scalpel Carbon 3 2024
2024 Mountain
Estimate price |
6,097$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Cannondale Lefty Ocho
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 175cm
LG
172cm - 184cm
XL
181cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai Offset, Stash compatible
Suspension Fork
Lefty Ocho, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offset
Rear Shock
Fox Float DPS Performance Elite EVOL, remote lockout, adjustable rebound
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano SLX, 10-51, 12-speed
Crank
HollowGram, BB30a, OPI SpideRing, 34T, Ai offset
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano SLX, 12-speed
Pedals
Not included
Wheels
Front Hub
Lefty 60
Rear Hub
Shimano MT510, 12x148mm thru-axle
Rims
Stan's NoTubes Crest S1, 28h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Schwalbe Racing Ray Performance, 29x2.25", Addix Compound, tubeless ready, (R) Schwalbe Racing Ralph Performance, 29x2.25", Addix Compound, tubeless ready
Brakes
Brakes
Shimano Deore M6000 hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano Deore M6000 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Cannondale XC Silicone
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Prologo Dimension NRD, STN rails
Seatpost
Cannondale 2, 7075 Alloy, 31.6x400mm
Fit data

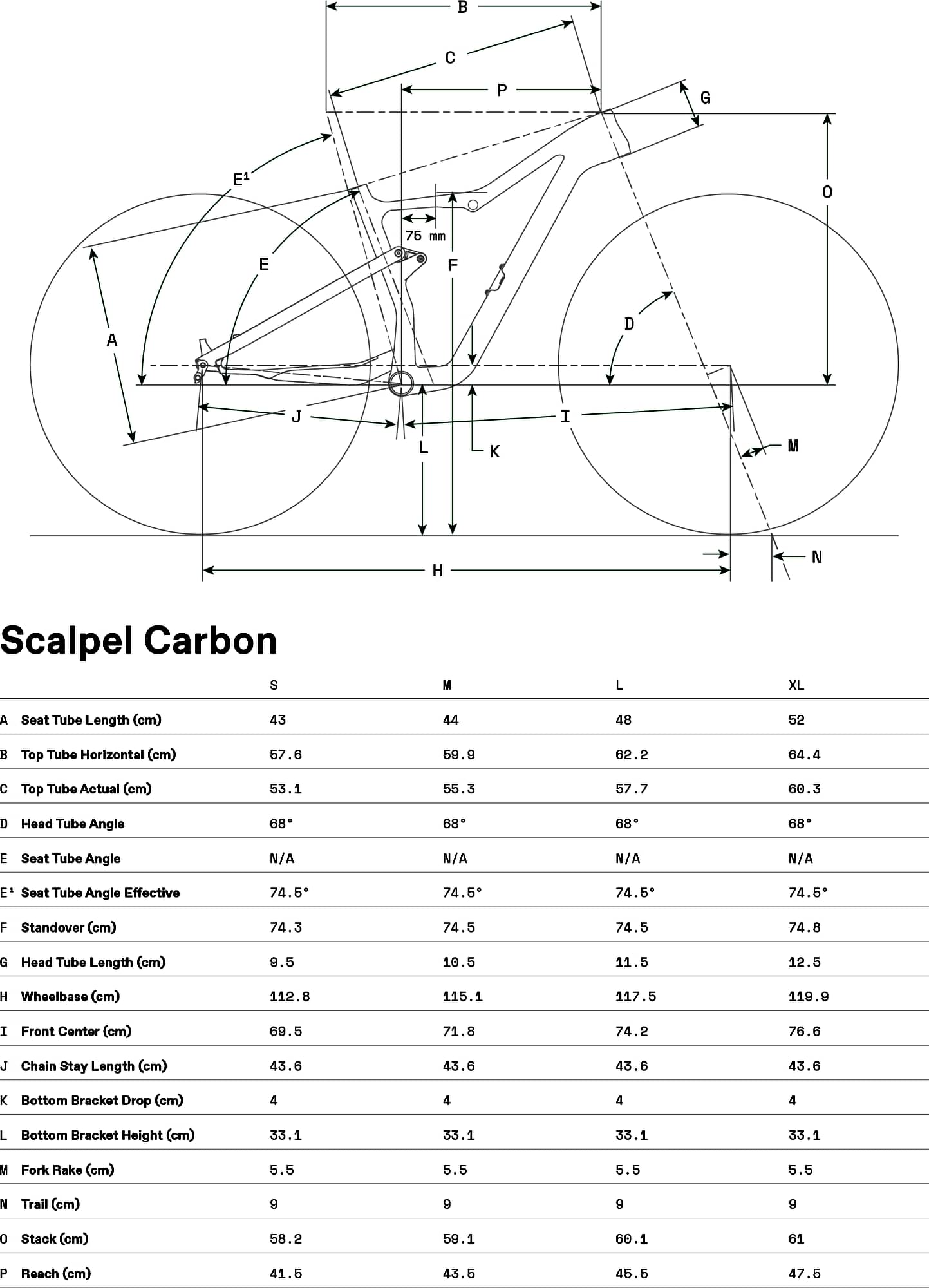

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 172 cm | 181 cm |
| Rider Max Height | 167 cm | 175 cm | 184 cm | 195 cm |
