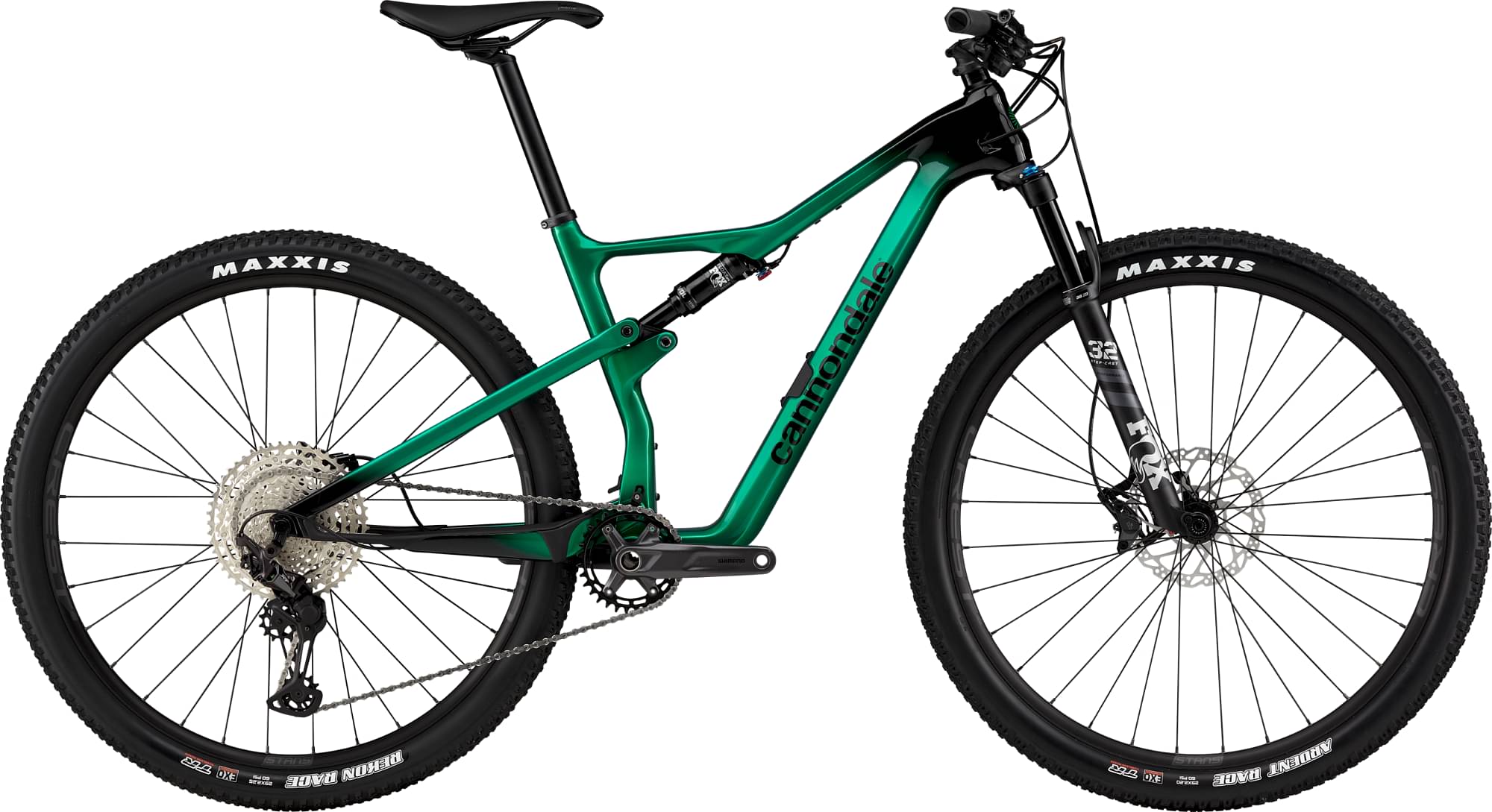

Cannondale Scalpel Carbon 4 2024
2024 Mountain
Estimate price |
4,587$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 32
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai Offset, Stash compatible
Suspension Fork
Fox Float Performance 32 SC, 100mm, 15x110mm thru-axle, tapered steerer, 51mm offset, remote-actuated
Rear Shock
Fox Float DPS Performance Elite EVOL, remote lockout, adjustable rebound
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 10-51, 12-speed
Crank
Cannondale 1, BB30a, OPI SpideRing, 32T, Ai Offset
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano Deore 6100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rear Hub
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rims
WTB STX i23 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
(F) Maxxis Ardent Race, 29x2.2", EXO Protection, tubeless ready, (R) Maxxis Recon Race, 29x2.2", EXO Protection, tubeless ready
Brakes
Brakes
Shimano Deore 6100 hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano Deore hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 35mm, 0°
Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Cannondale Locking Grips
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Scoop Shallow Sport, steel rails
Seatpost
Cannondale 2, 7075 Alloy, 31.6x400mm
Fit data

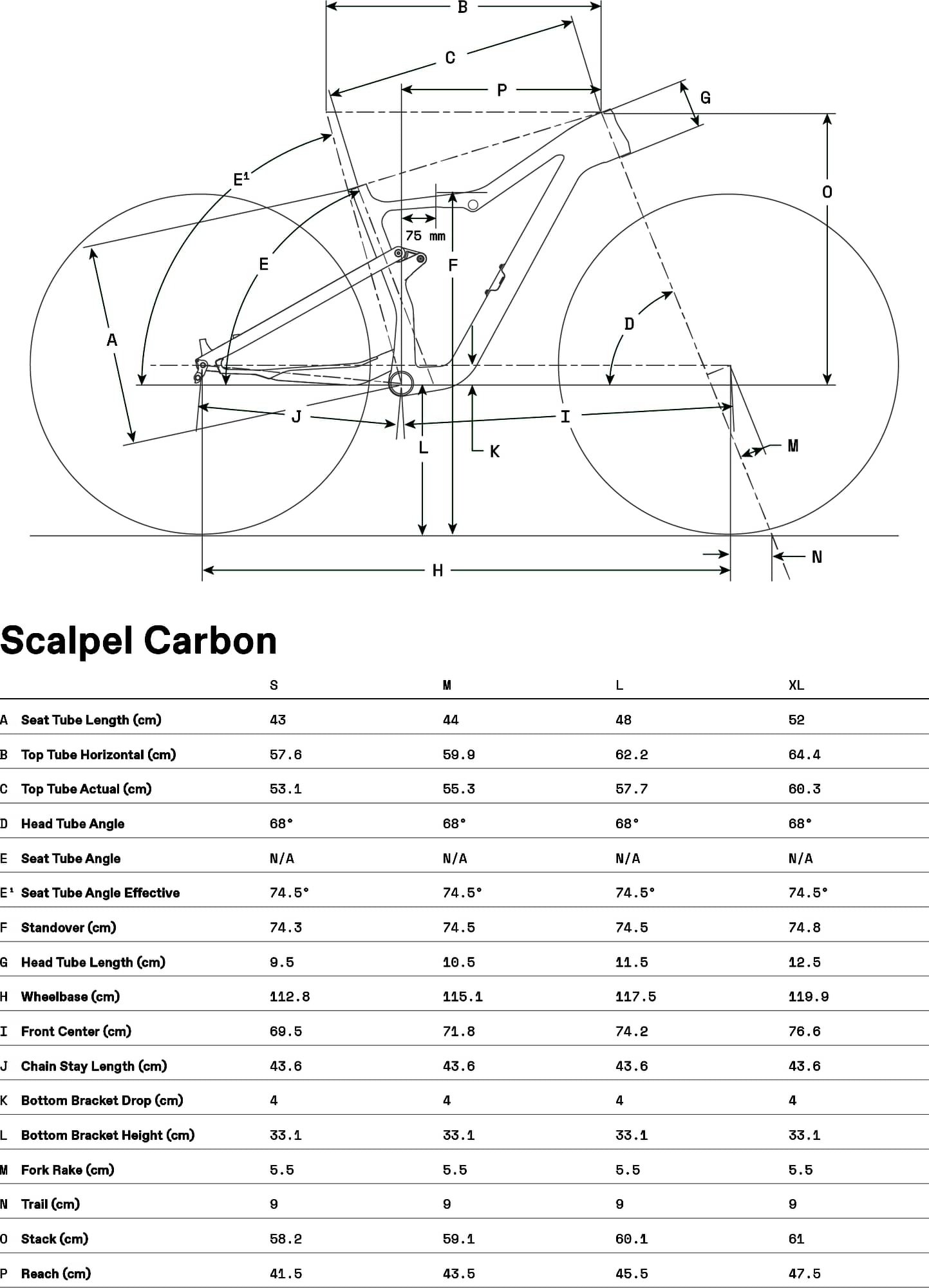

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
