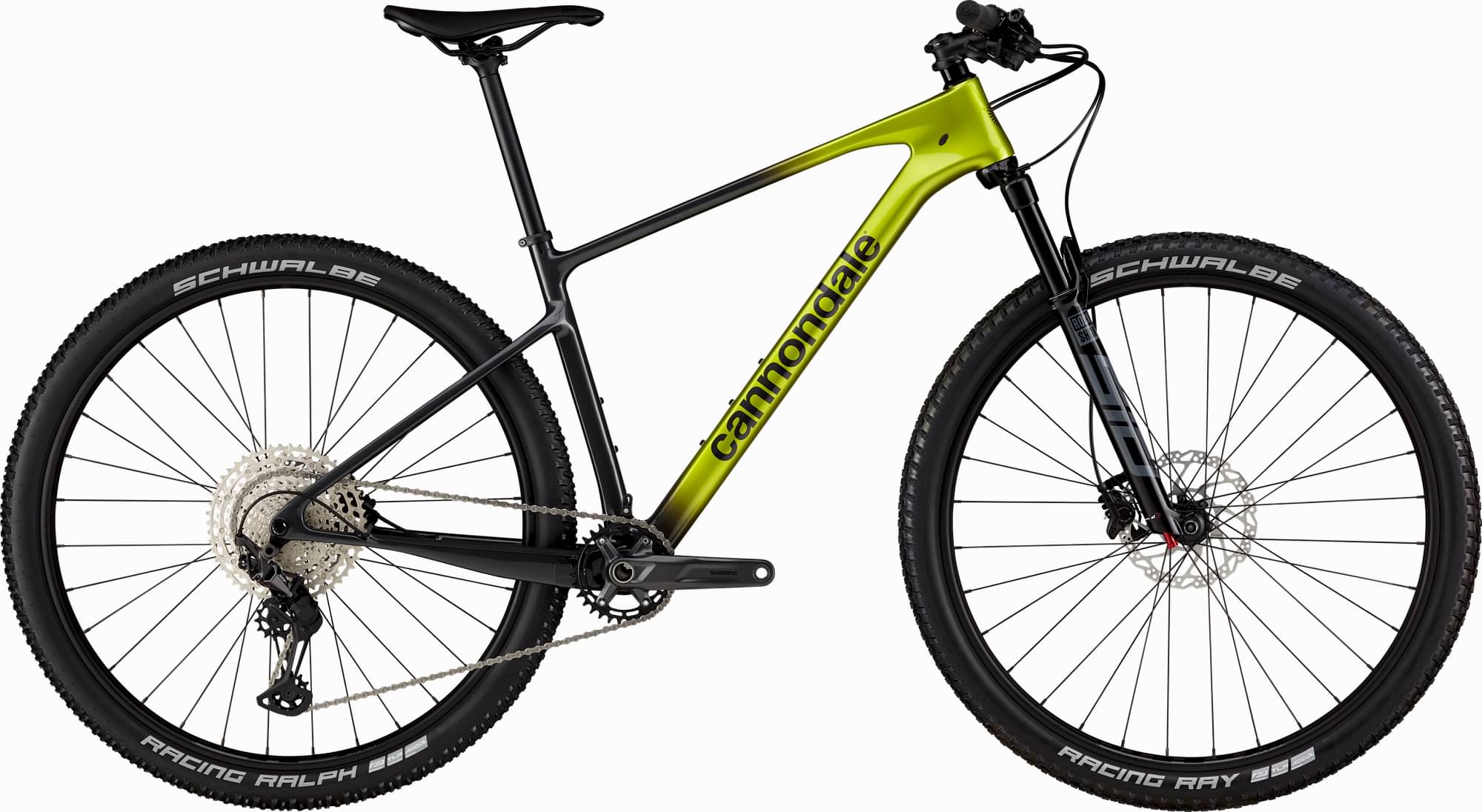

Cannondale Scalpel HT Carbon 4 2024
2024 Mountain
Estimate price |
2,675$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel HT Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
Suspension Fork
RockShox SID SL , 100mm, Debonair, remote lockout, 15x110mm thru-axle, tapered steerer, 44mm offset
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 10-51, 12-speed
Crank
Shimano M5121, 30T, 55mm chainline
Bottom Bracket
Cannondale Alloy PressFit 30 - 24mm
Chain
Shimano Deore, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rear Hub
(F) Shimano MT410, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rims
WTB STX i23, 32h, tubeless ready
Spokes
DT Swiss Champion 2.0
Tires
(F) Schwalbe Racing Ray EVO, 29x2.25", Twinskin, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix compound, tubeless ready
Brakes
Brakes
Shimano MT501 hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano MT500 hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Cannondale TrailShroom
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Cannondale Scoop Shallow Sport, steel rails
Seatpost
C3 Alloy, 27.2x400mm
Fit data

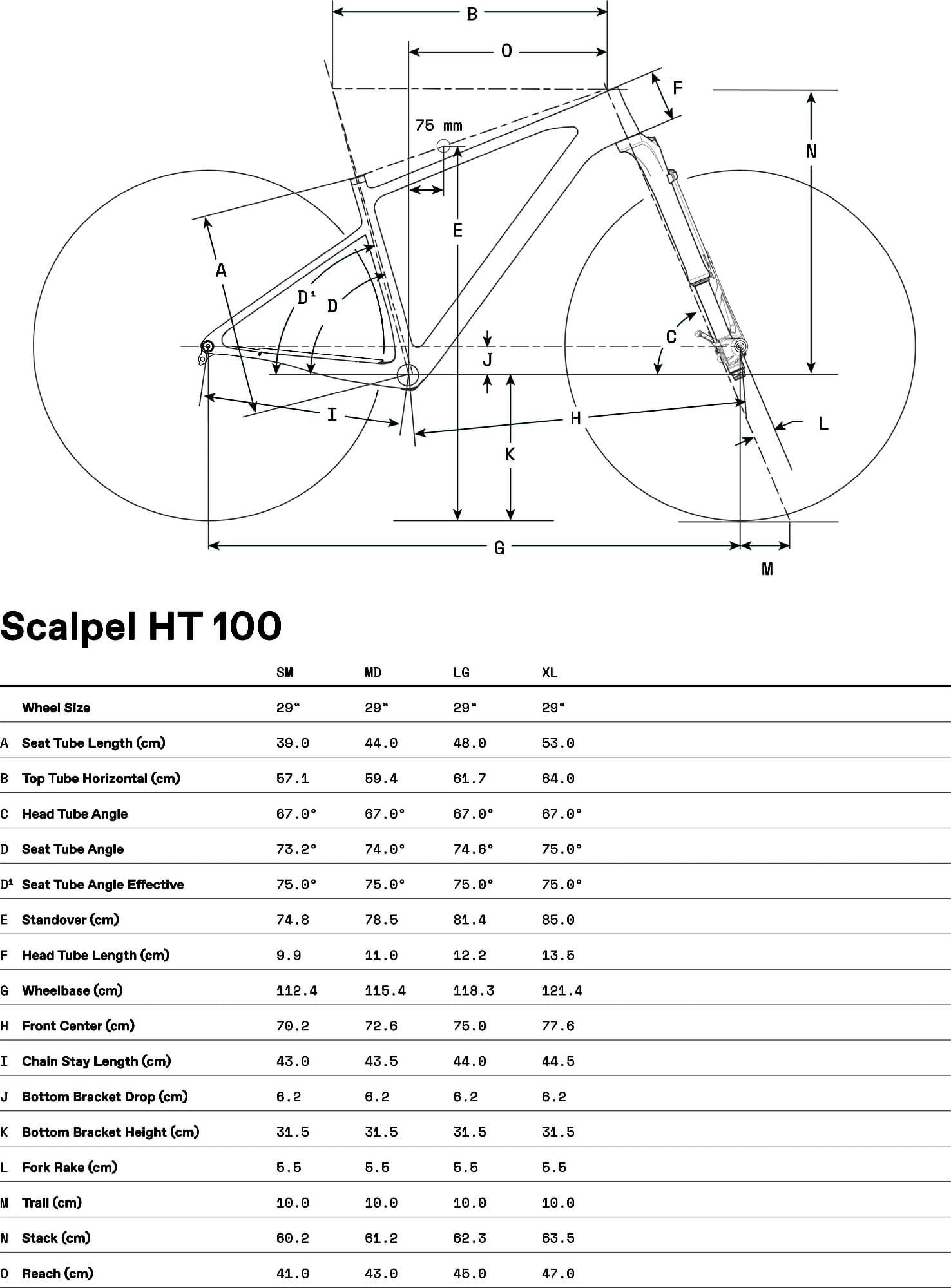

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
