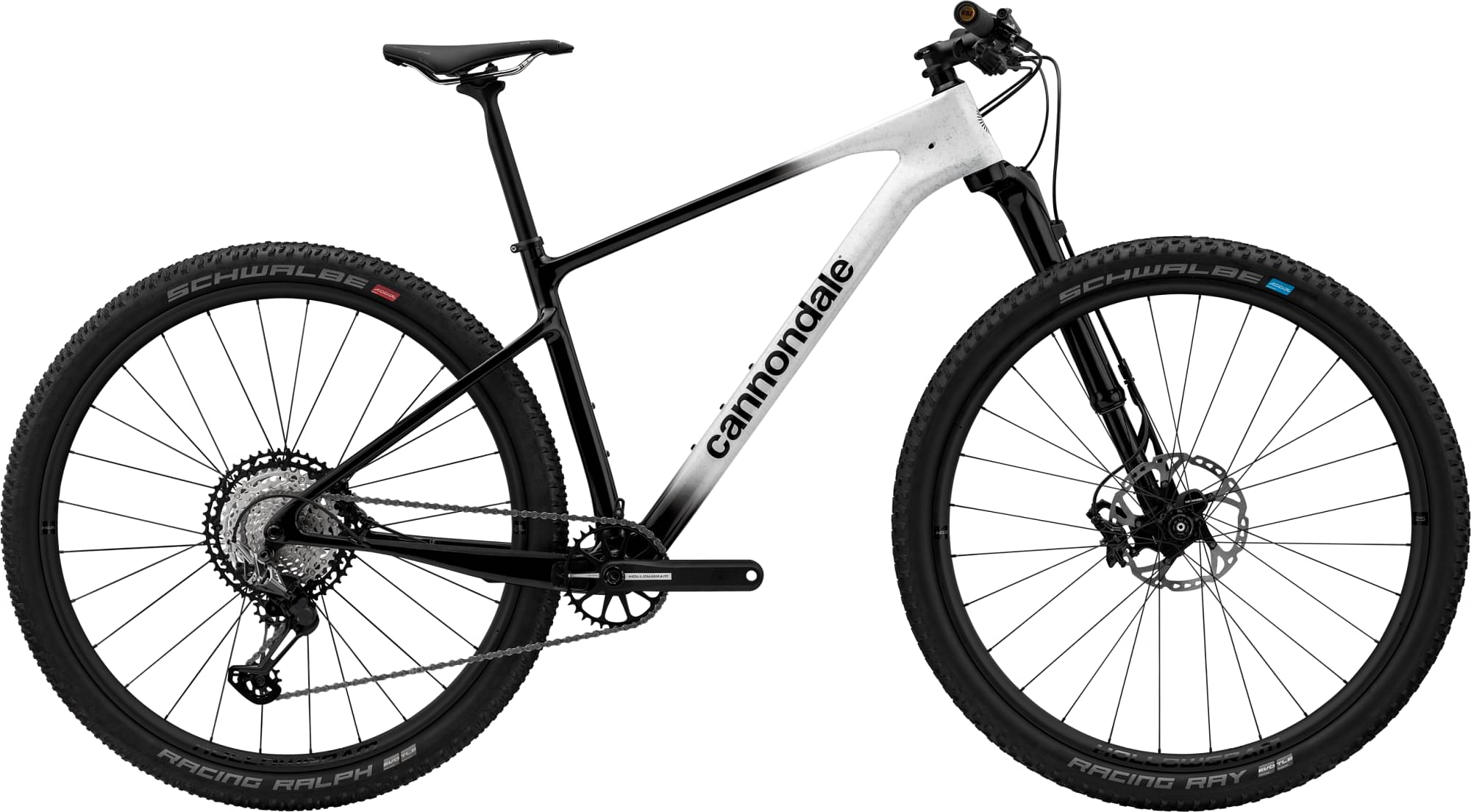

Cannondale Scalpel HT Hi-MOD 1 2024
2024 Mountain
Estimate price |
6,766$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Fork Cannondale Lefty Ocho Carbon
-
Groupset XTR, XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel HT Hi-MOD Carbon, Proportional Response Design, PF30-83, tapered head tube, 55mm chainline, Speed Release 12mm thru axle w/UDH hanger
Suspension Fork
Lefty Ocho 120 Carbon, 110mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 50mm offset
Drivetrain
Rear Derailleur
Shimano XTR
Shift Levers
Shimano XT, 12-speed
Cassette
Shimano XT, 10-51, 12-speed
Crank
HollowGram, BB30 83MTB, OPI SpideRing, 34T, 55mm chainline
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano XT, 12-speed
Pedals
Not Included
Wheels
Front Hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm
Rear Hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm
Rims
HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm inner width, tubeless ready
Spokes
DT Swiss Competition Race, straight-pull
Tires
(F) Schwalbe Racing Ray EVO, 29x2.25", SnakeSkin, Addix Speedgrip, tubeless ready, (R) Schwalbe Racing Ralph EVO, 29x2.25", SnakeSkin, Addix Speed, tubeless ready
Brakes
Brakes
Shimano XT hydraulic disc, 180/160mm XT rotors
Brake Levers
Shimano XT hydraulic disc
Cockpit
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
Grips
Cannondale XC Silicone
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings
Seat
Saddle
Prologo Dimension NDR, Tirox rails
Seatpost
Cannondale C1 Carbon, 27.2x400mm
Fit data

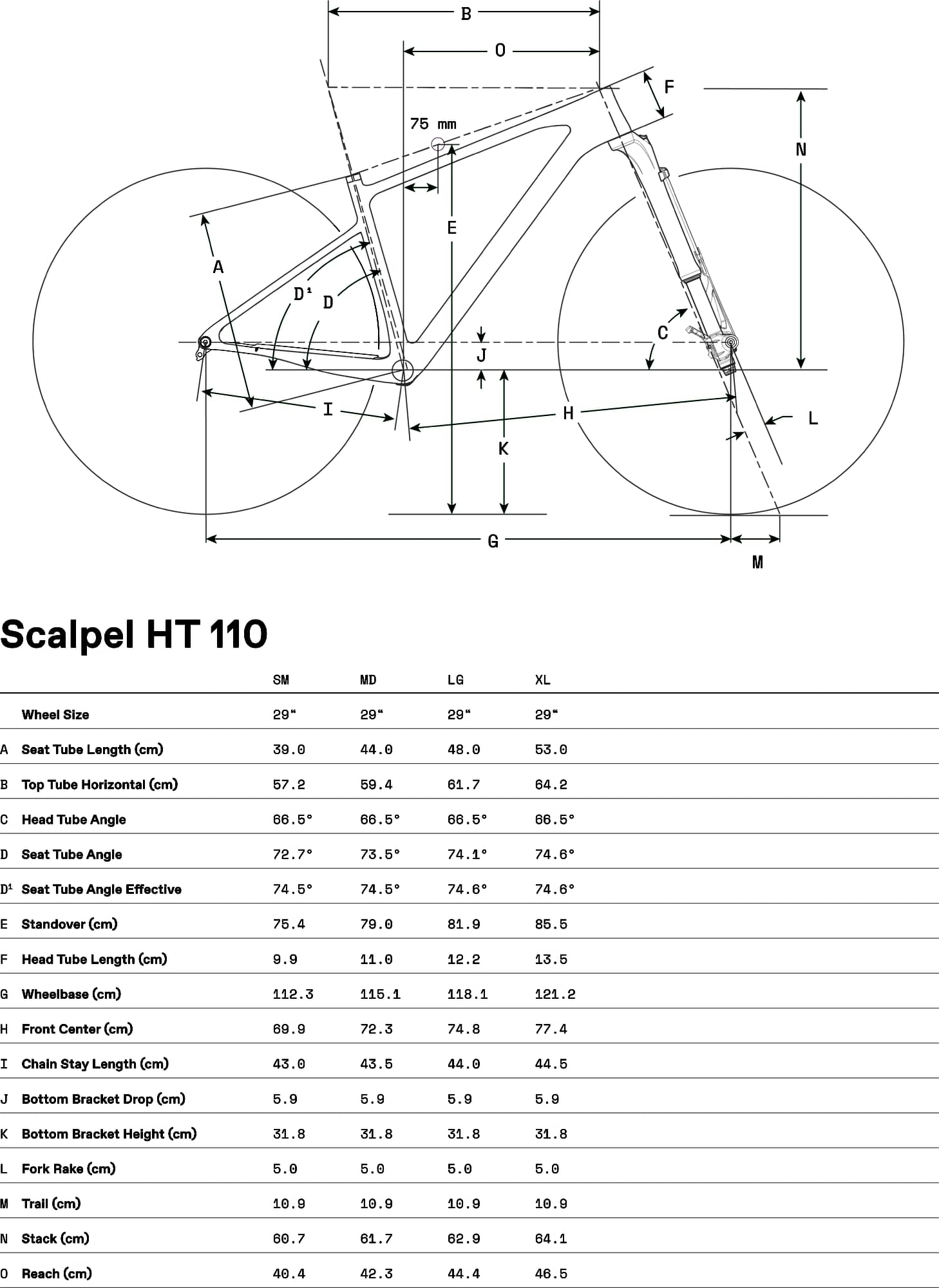

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
