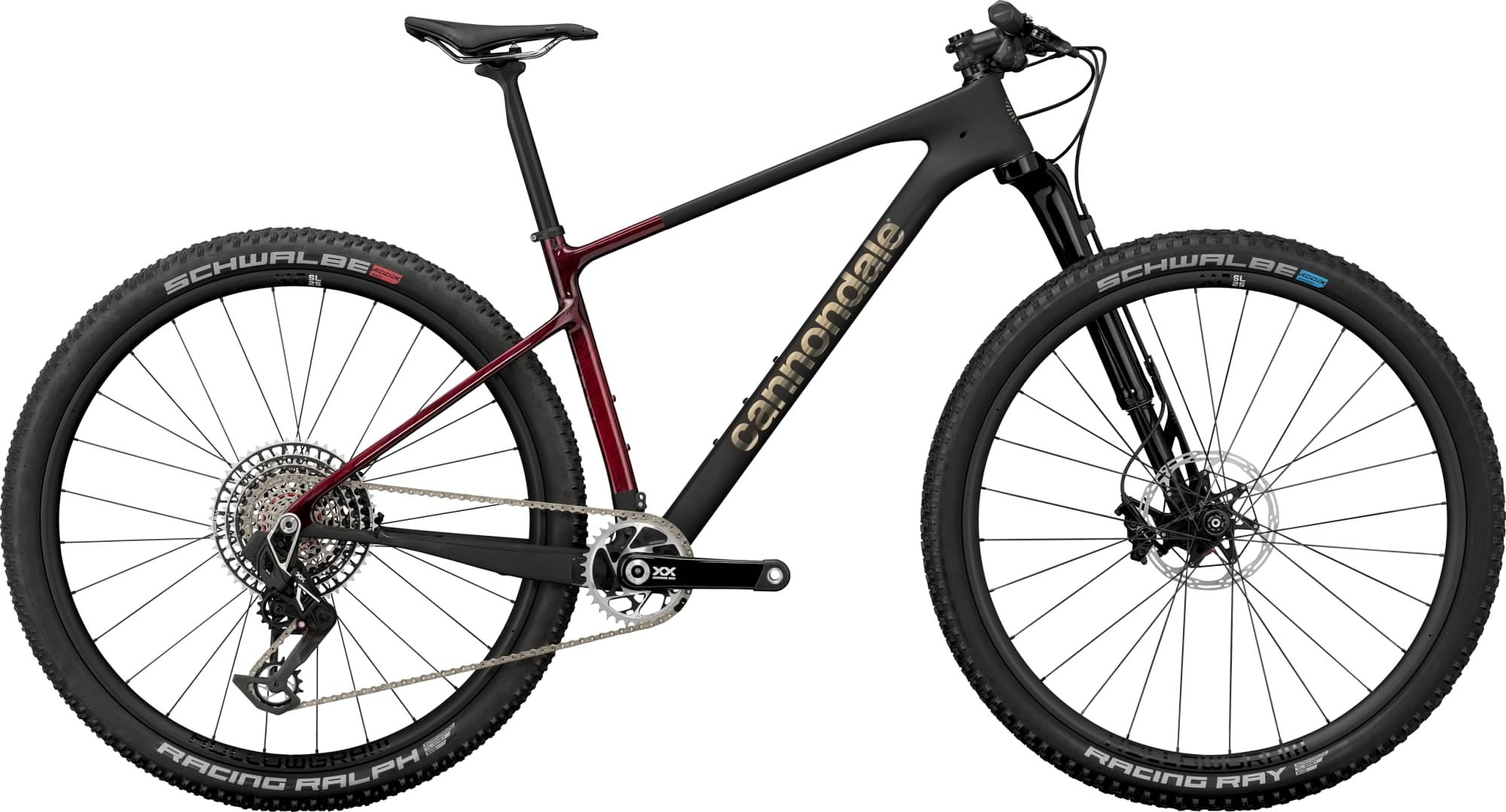

Cannondale Scalpel HT LAB71 2024
2024 Mountain
Estimate price |
12,042$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Fork Cannondale Lefty Ocho Carbon
-
Groupset XX SL Eagle Transmission, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scalpel HT Lab71, Series 0 Carbon construction, Proportional Response Design, PF30-83, tapered head tube, Speed Release 12mm thru axle w/UDH hanger
Suspension Fork
Lefty Ocho 120 Carbon, 110mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 50mm offset
Drivetrain
Rear Derailleur
SRAM XX SL Eagle AXS, T-Type
Shift Levers
SRAM AXS T-Type Pod Ultimate Controller
Cassette
SRAM XX SL Eagle, 10-52, T-Type, 12-speed
Crank
SRAM XX SL T-Type, 34T
Bottom Bracket
SRAM PF30 MTB83, Ceramic
Chain
SRAM XX SL, T-Type, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm thru-axle
Rear Hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mm thru-axle
Rims
HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm inner width, tubeless ready
Spokes
DT Swiss Competition Race, straight-pull
Tires
(F) Maxxis Rekon Race WT 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT 29x2.4", EXO Protection, tubeless ready
Brakes
Brakes
SRAM Level Ultimate hydraulic disc, 180/160mm CenterLine rotors
Brake Levers
SRAM Level Ultimate, carbon levers
Cockpit
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
Grips
Cannondale XC Silicone
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Prologo Dimension NDR, Tirox rails
Seatpost
C1 Carbon, 27.2x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
