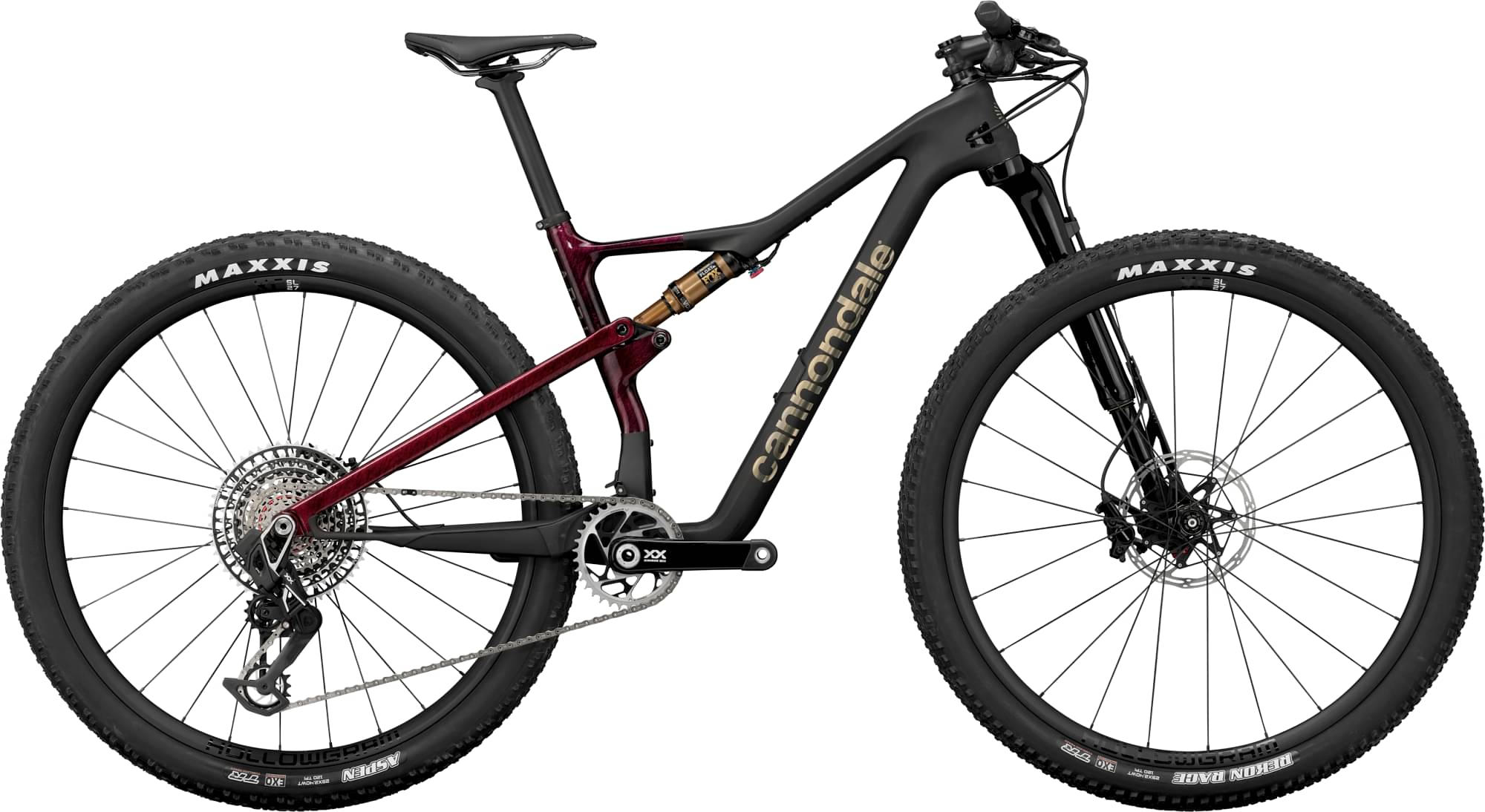

Cannondale Scalpel LAB71 2024
2024 Mountain
Estimate price |
13,959$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 100mm -
Fork Cannondale Lefty Ocho Carbon
-
Groupset XX SL Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lab71 Edition Hi-MOD Carbon, 100mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube,Speed Release 12mm thru axle, SRAM UDH, Stash compatible
Suspension Fork
Lefty Ocho Carbon 120, 110mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 50mm offset
Rear Shock
Fox Float SL Factory EVOL SV, Kashima, 190x42.5, custom tune, remote lockout
Drivetrain
Rear Derailleur
SRAM XX-SL Eagle AXS T-Type
Shift Levers
SRAM AXS T-Type Ultimate Pod Controller
Cassette
SRAM XX T-Type EAGLE AXS, 10-52, 12-speed
Crank
SRAM XX-SL Eagle T-Type, X-Sync, 34t
Bottom Bracket
SRAM DUB PF30 MTB83
Chain
SRAM XX-SL Eagle T-Type, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss 240 EXP Star Ratchet internals, 12x148mm thru-axle
Rear Hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss 240 EXP Star Ratchet internals, 12x148mm thru-axle
Rims
HollowGram XC-SL 27, Superlight Hi-Impact Carbon, 27mm inner width, 28h, tubeless ready
Spokes
DT Swiss Competition Race, straight-pull
Tires
(F) Maxxis Rekon Race WT 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT 29x2.4", EXO Protection, tubeless ready
Brakes
Brakes
SRAM Level Ultimate hydraulic disc, 180/160mm CenterLine rotors
Brake Levers
SRAM Level Ultimate hydraulic disc
Cockpit
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 1 Flat, Carbon, 31.8mm, 9° backsweep, 760mm
Grips
Cannondale XC Silicone
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Prologo Dimension NDR, Tirox rails
Seatpost
Cannondale C1 Carbon, 31.6x400mm
Fit data

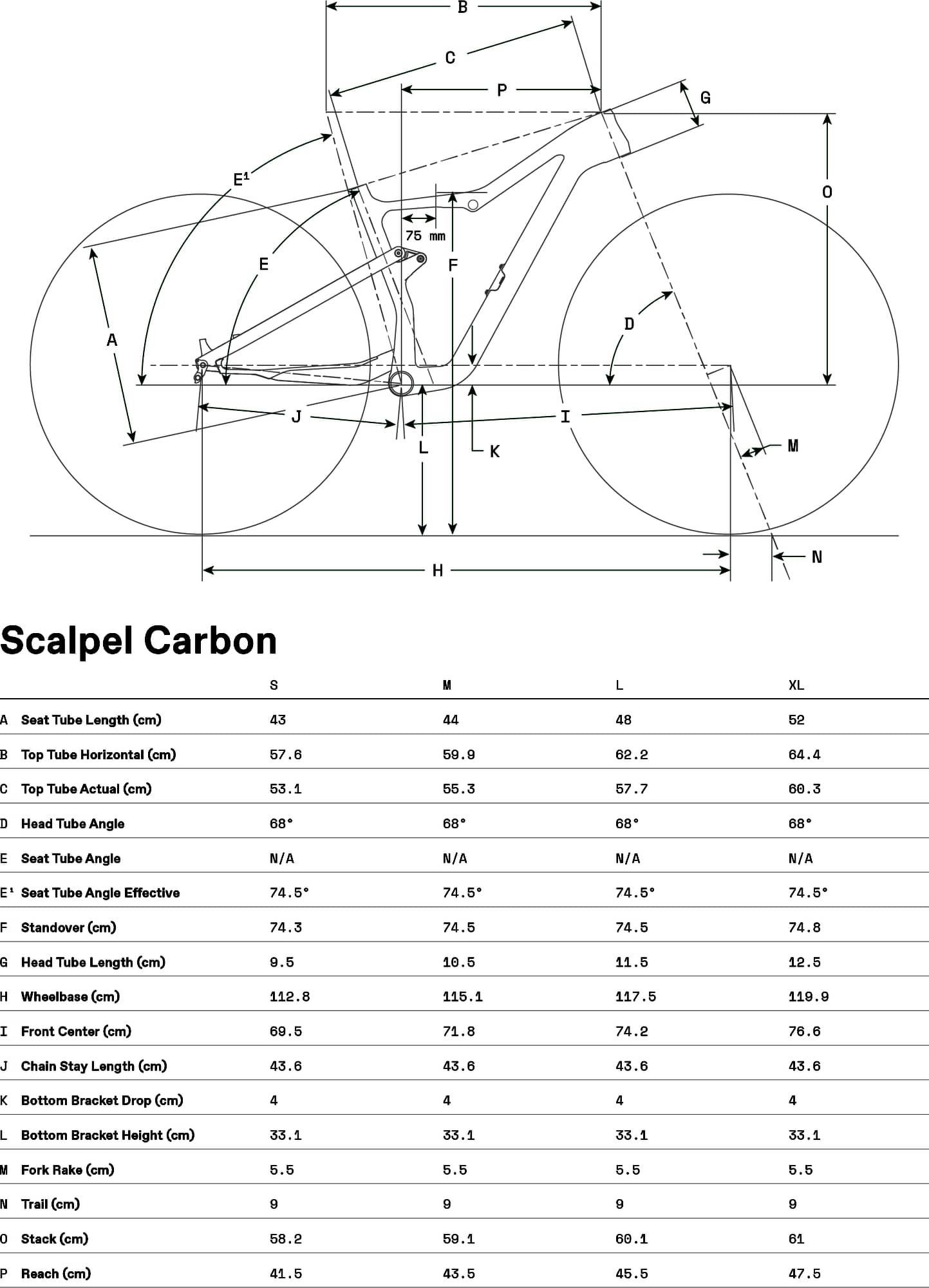

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
