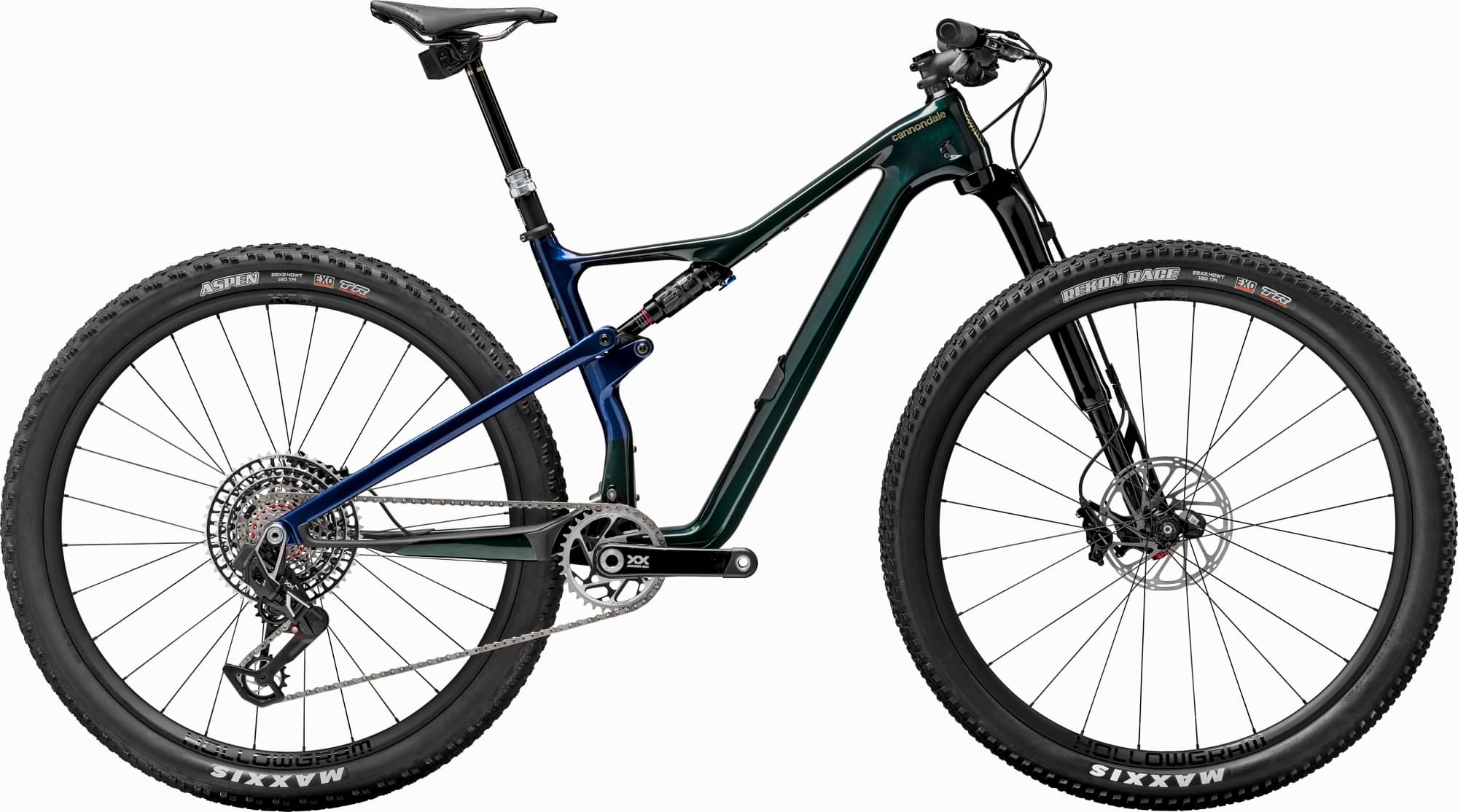

Cannondale Scalpel SE LAB71 2024
2024 Mountain
Estimate price |
13,762$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Cannondale Lefty Ocho Carbon
-
Groupset XX SL Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 165cm
MD
162cm - 175cm
LG
172cm - 182cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lab71 Edition Hi-MOD Carbon, 120mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube,Speed Release 12mm thru axle, SRAM UDH, Stash compatible
Suspension Fork
Lefty Ocho 120 Carbon, 120mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 50mm offset
Rear Shock
RockShox SIDLuxe Ultimate RL, adjustable rebound
Drivetrain
Rear Derailleur
SRAM XX-SL Eagle AXS T-Type
Shift Levers
SRAM AXS T-Type Ultimate Pod Controller
Cassette
SRAM XX SL Eagle, 10-52, T-Type, 12-speed
Crank
SRAM XX-SL Eagle T-Type, X-Sync, 34T
Bottom Bracket
SRAM DUB PF30 MTB83
Chain
SRAM XX, T-Type, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss 350 Star Ratchet internals, 12x148mm thru-axle
Rear Hub
(F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss 350 Star Ratchet internals, 12x148mm thru-axle
Rims
HollowGram XC-S 27, Lightweight, Hi-Impact Carbon, 27mm inner width, 28h, tubeless ready
Spokes
DT Swiss Competition Race, straight-pull
Tires
(F) Maxxis Rekon Race WT 29x2.4", EXO Protection, tubeless ready / (R) Maxxis Aspen WT 29x2.4", EXO Protection, tubeless ready
Brakes
Brakes
SRAM Level Ultimate hydraulic disc, SRAM Centerline 180/160mm rotors
Brake Levers
SRAM Level Ultimate
Cockpit
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 1 Riser, Carbon, 31.8mm, 9° sweep, 4° rise, 780mm
Grips
ESI Chunky Silicone, 32mm dia.
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Prologo Dimension NDR, Tirox rails
Seatpost
RockShox AXS Reverb Dropper, 31.6, 125mm (S), 150mm (M-L), 170mm (XL)
Fit data

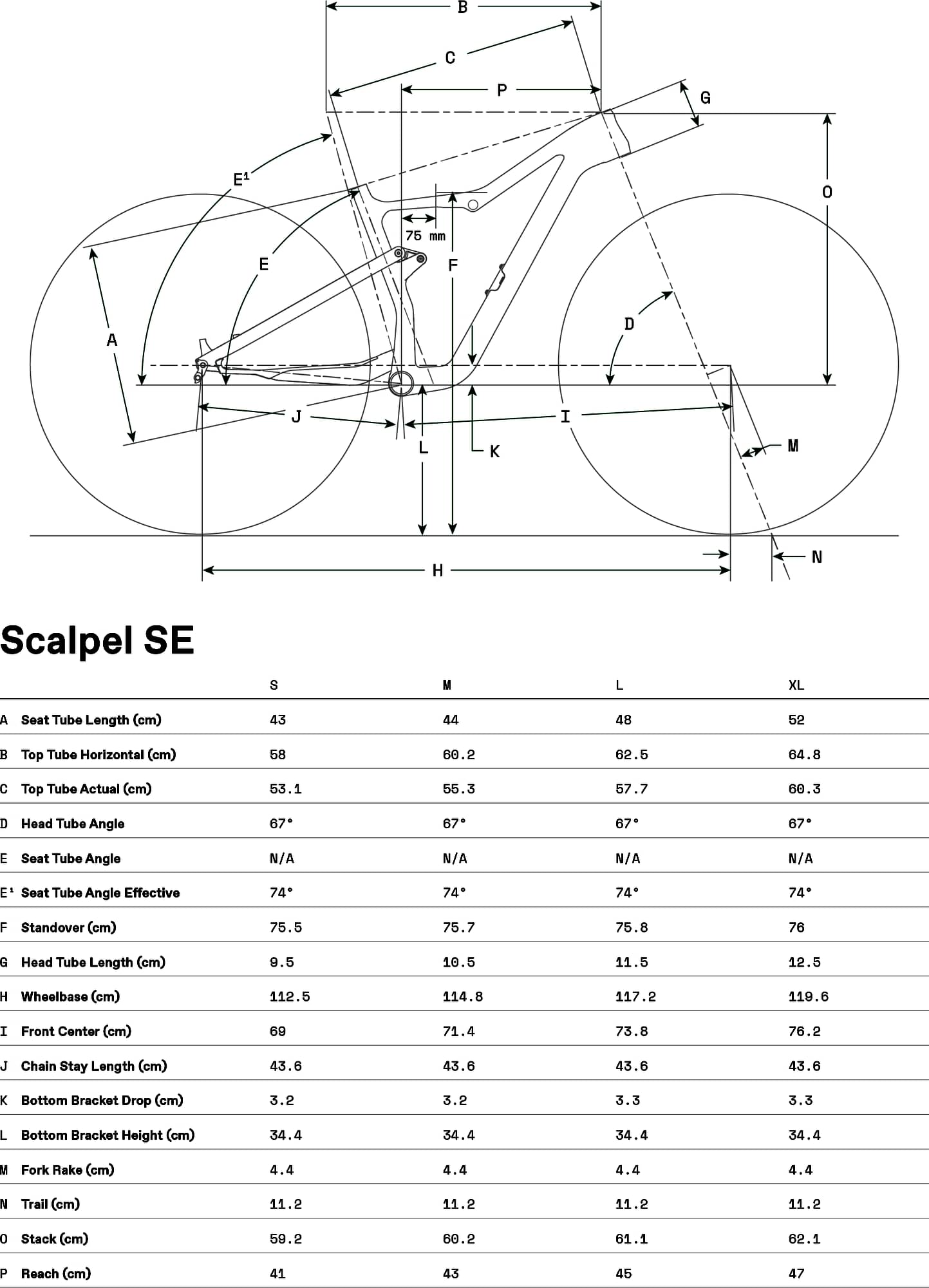

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 180 cm |
| Rider Max Height | 165 cm | 175 cm | 182 cm | 195 cm |
