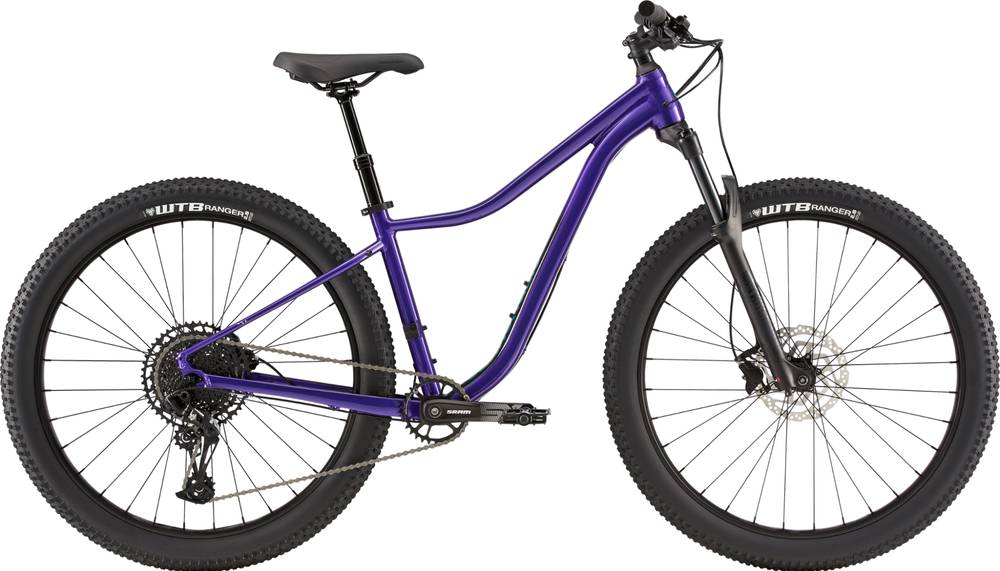

Cannondale Scarlet 1 2020
2020 Mountain
Estimate price |
1,350$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8" to 1.5" headtube, flat mount brake, StraightShot internal cable routing, BSA-73, SAVE, Boost spacing, Tapered 1-1/8" to 1.5" headtube, Flat mount brake, StraightShot internal cable routing, BSA-73
Suspension Fork
RockShox Judy Silver TK, 120mm, Solo Air, 15x110, tapered steerer, 51mm offset
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210, SX Eagle, 11-50, 12-speed
Crank
SRAM SX Eagle, 30T
Bottom Bracket
Truvativ Power Spline
Chain
SRAM SX Eagle, 12-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano MT400 15x110
Rear Hub
Shimano MT200, QR
Rims
WTB STX i35, 32h
Spokes
Stainless Steel, 14g
Tires
WTB Ranger Comp, 27.5 x 2.8", DNA Compound
Brakes
Brakes
Shimano MT200 hydro disc, 180/160mm RT10 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Low-Profile Locking Grips
Headset
Semi Integrated, 1-1/8" reducer
Seat
Saddle
Cannondale Stage 3 Women's Ergo
Seatpost
TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.73 mm | 1.63 mm | 1.61 mm | 1.52 mm | 1.49 mm | 1.42 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 639 mm | 663 mm | 687 mm | 711 mm | 732 mm | 756 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 633 mm | 633 mm | 651 mm | 651 mm | 665 mm | 665 mm |
| Reach | 365 mm | 389 mm | 405 mm | 429 mm | 445 mm | 469 mm |
| Top Tube Length | 553 mm | 577 mm | 599 mm | 623 mm | 643 mm | 667 mm |
| Seat Tube Angle | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 355 mm | 385 mm | 435 mm | 485 mm | 535 mm | 585 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 115 mm | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1080 mm | 1104 mm | 1128 mm | 1152 mm | 1173 mm | 1197 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 736 mm | 752 mm | 791 mm | 822 mm | 858 mm | 888 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
Scarlet 1 completes the Cannondale Scarlet model. Cannondale launched 7 bikes of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1350$. Comparing this to the average Trail bike price, we see that the price is 104.59% smaller.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 14.6 kg (32.19 lbs), Cannondale bike is considerably heavier than average. In conclusion, the average Trail bike weighs 12.48% less than Scarlet 1.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This bike has the RockShox Judy Silver TK fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Cannondale Scarlet 1 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Scarlet 1 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Cannondale Scarlet 1 bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Scarlet 1. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
