Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
137cm - 157cm
SM
154cm - 164cm
MD
161cm - 172cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8" to 1.5" headtube, flat mount brake, StraightShot internal cable routing, BSA-73
Suspension Fork
RockShox Judy Silver TK, 120mm, Solo Air, 15x110, tapered steerer, 51mm offset
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210, SX Eagle, 11-50, 12-speed
Crank
SRAM SX Eagle, 30T
Bottom Bracket
Truvativ Power Spline
Chain
SRAM SX Eagle, 12-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano MT400 15x110
Rear Hub
Shimano MT200, QR
Rims
WTB STX i35, 32h
Spokes
Stainless Steel, 14g
Tires
WTB Ranger Comp, 27.5 x 2.8", DNA Compound
Brakes
Brakes
Shimano MT200 hydro disc, 180/160mm RT10 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Grips
Cannondale Low-Profile Locking Grips
Headset
Semi Integrated, 1-1/8" reducer
Seat
Saddle
Cannondale Stage 3 Women's Ergo
Seatpost
TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M-XL)
Fit data

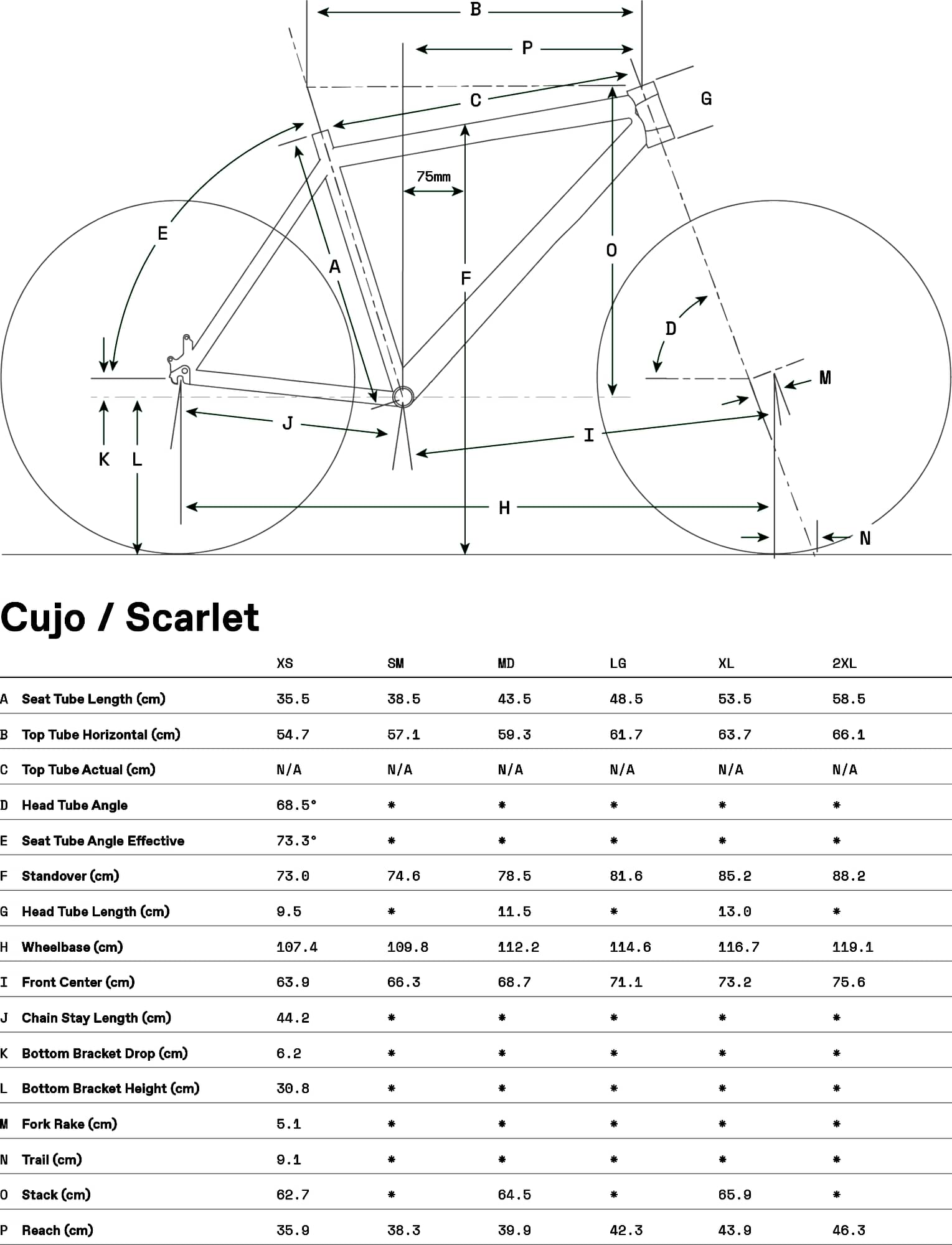

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.73 mm | 1.63 mm | 1.61 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm |
| Front Center | 639 mm | 663 mm | 687 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 633 mm | 633 mm | 651 mm |
| Reach | 365 mm | 389 mm | 405 mm |
| Top Tube Length | 553 mm | 577 mm | 599 mm |
| Seat Tube Angle | 73.3 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 355 mm | 385 mm | 435 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1080 mm | 1104 mm | 1128 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 736 mm | 752 mm | 791 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 137 cm | 154 cm | 161 cm |
| Rider Max Height | 157 cm | 164 cm | 172 cm |

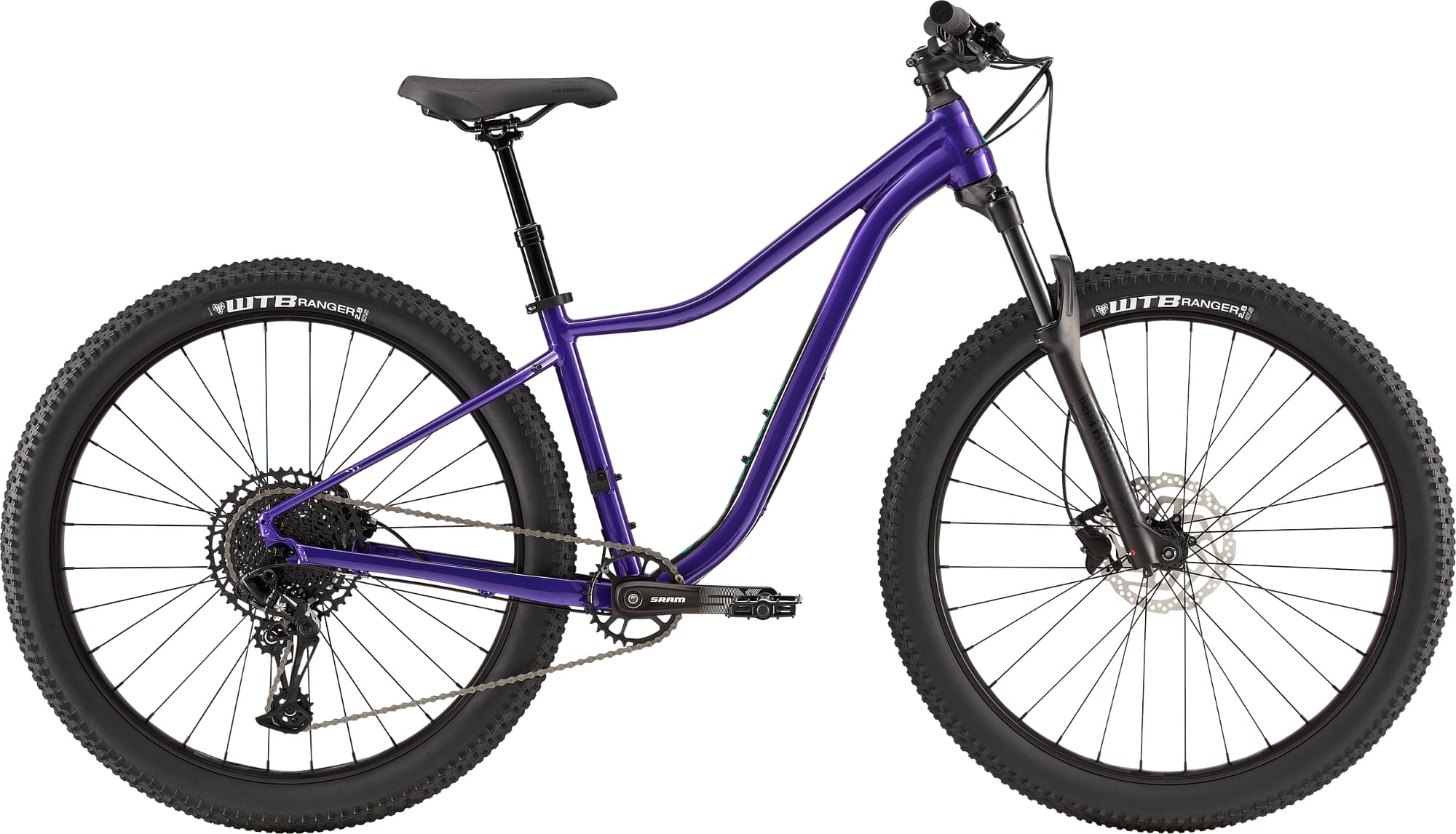

Model Overview
Scarlet 1 completes the Cannondale Scarlet model. There are 7 bikes that carry this model name.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Cannondale Scarlet 1 2022 bike is equipped with the RockShox Judy Silver TK fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Scarlet 1 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Scarlet 1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Scarlet 1 comes in 3 sizes, that range from 137 cm – 172 cm (4.49 ft – 5.64 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Cannondale Scarlet 1 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
