Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM Force Hydraulic Disc
Sizing
Recommended size guide.
44cm
154cm - 165cm
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

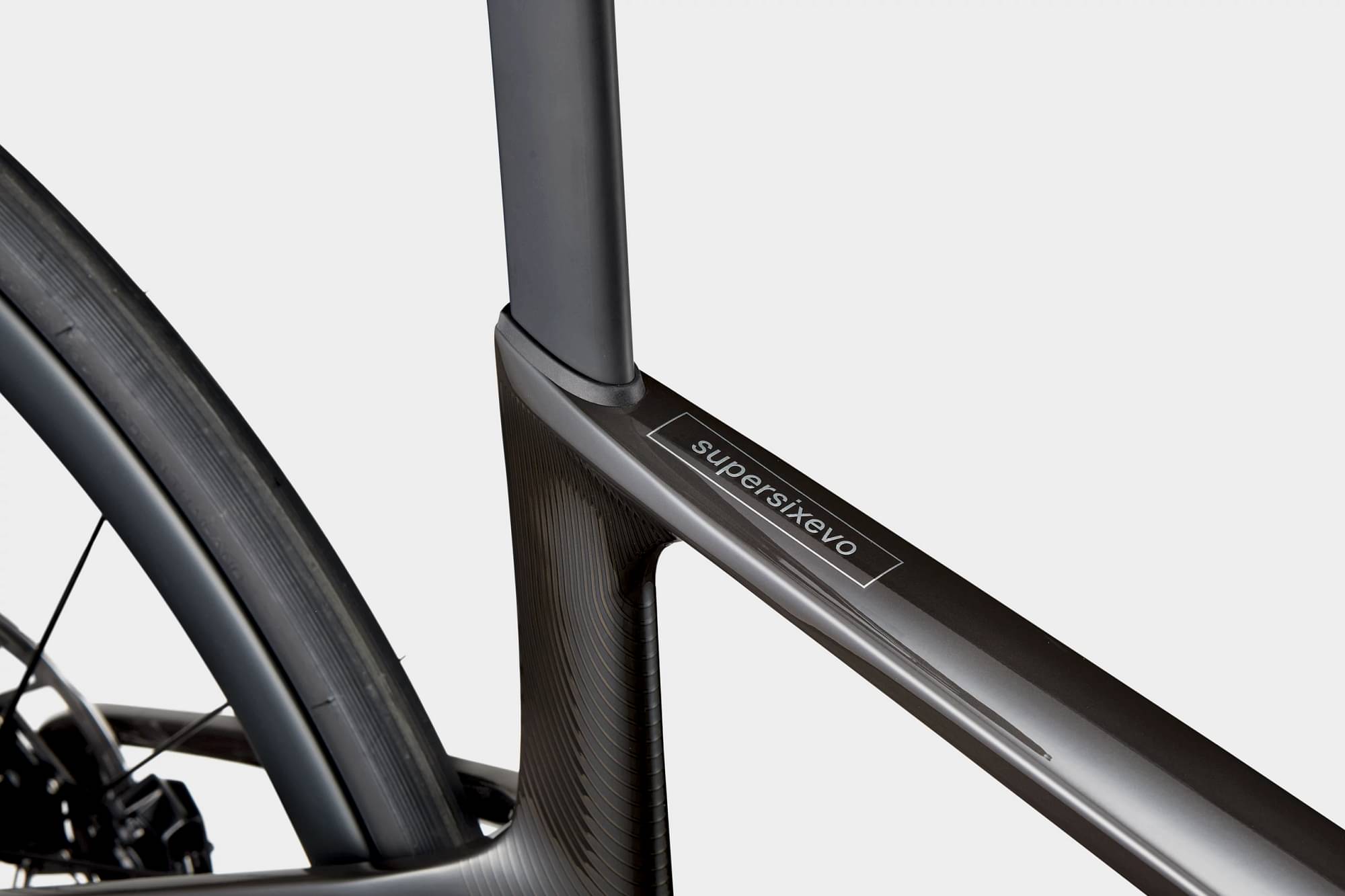

SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Suspension Fork
SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Drivetrain

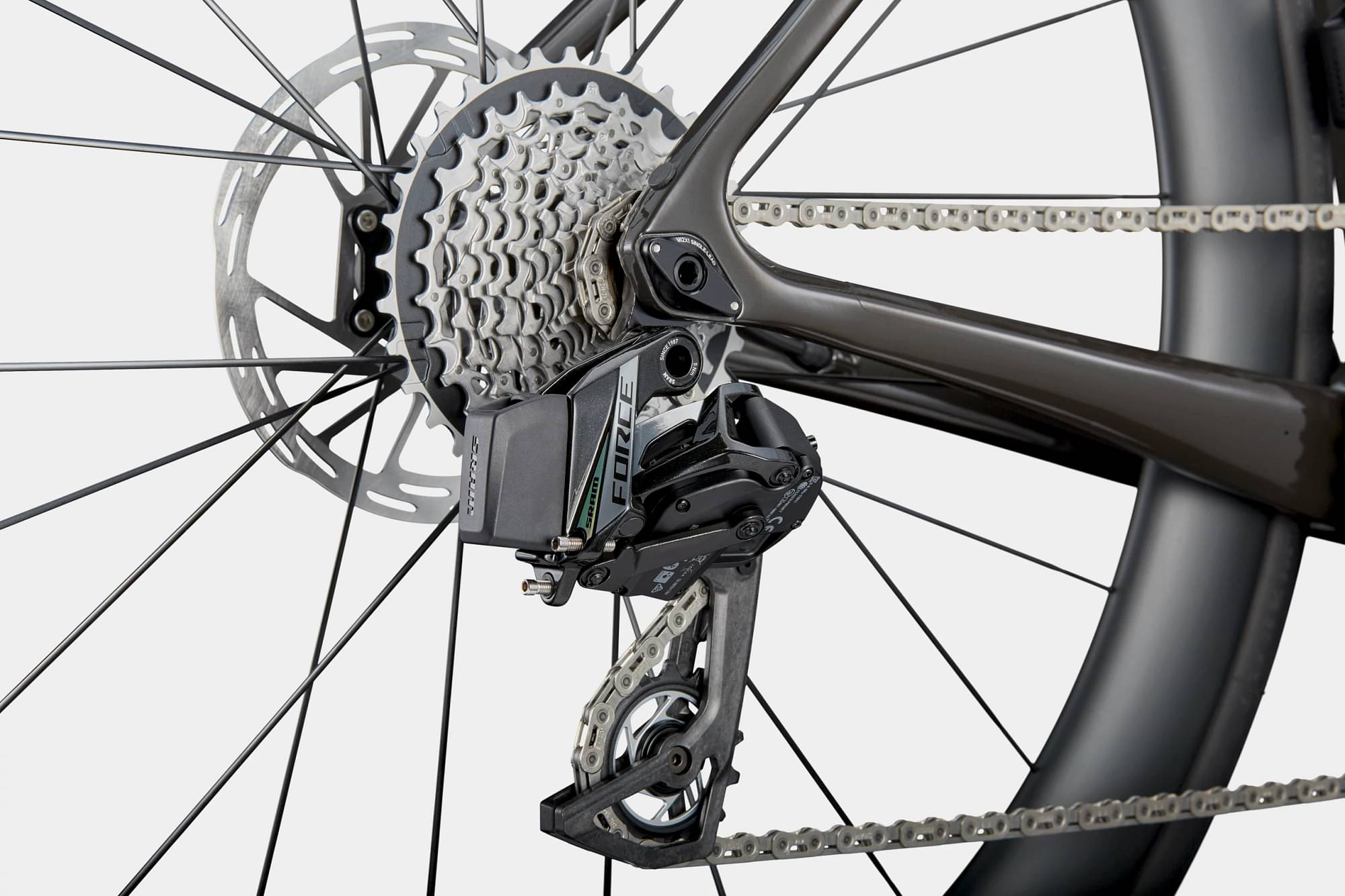

Rear Derailleur
SRAM Force AXS
Front Derailleur
SRAM Force AXS, braze-on
Shift Levers
SRAM Force AXS, 12-speed
Cassette
SRAM Force XG-1270, 10-33, 12-speed

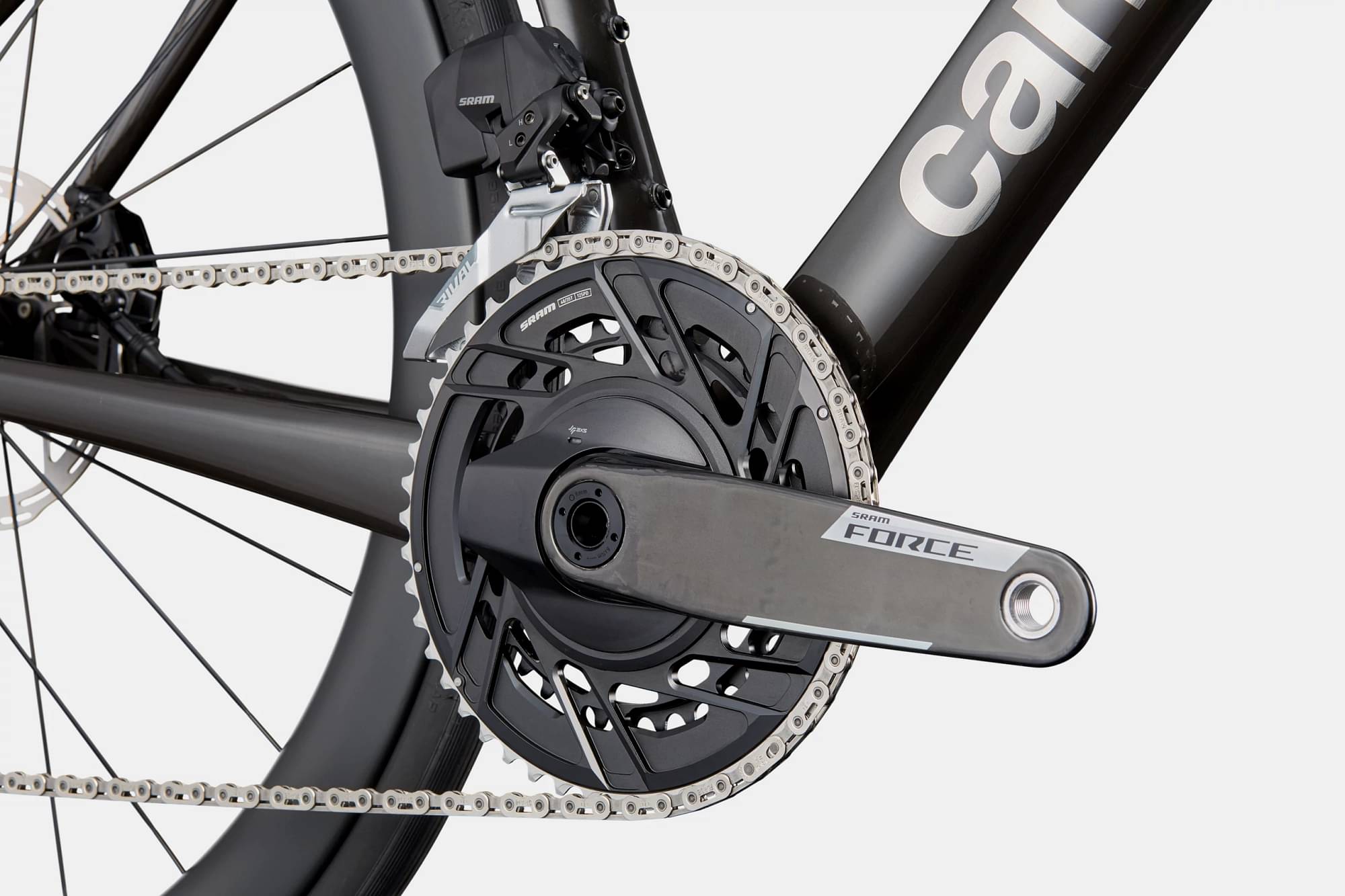

Crank
SRAM Force AXS Power Meter, 48/35
Bottom Bracket
SRAM DUB BSA
Chain
SRAM Force, 12-speed
Pedals
Not included
Wheels
Front Hub
HollowGram, sealed bearing 12x100mm centerlock
Rear Hub
HollowGram, 12x142mm centerlock w/ DT Swiss 240 internals
Rims
HollowGram R-S 50, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready
Spokes
Formula Grand Forza, Double Butted, straight pull
Tires
Vittoria Corsa N.EXT, 700x28c, tubeless ready
Brakes
Brakes
SRAM Force AXS hydraulic disc, 160/160mm PaceLine centerlock rotors

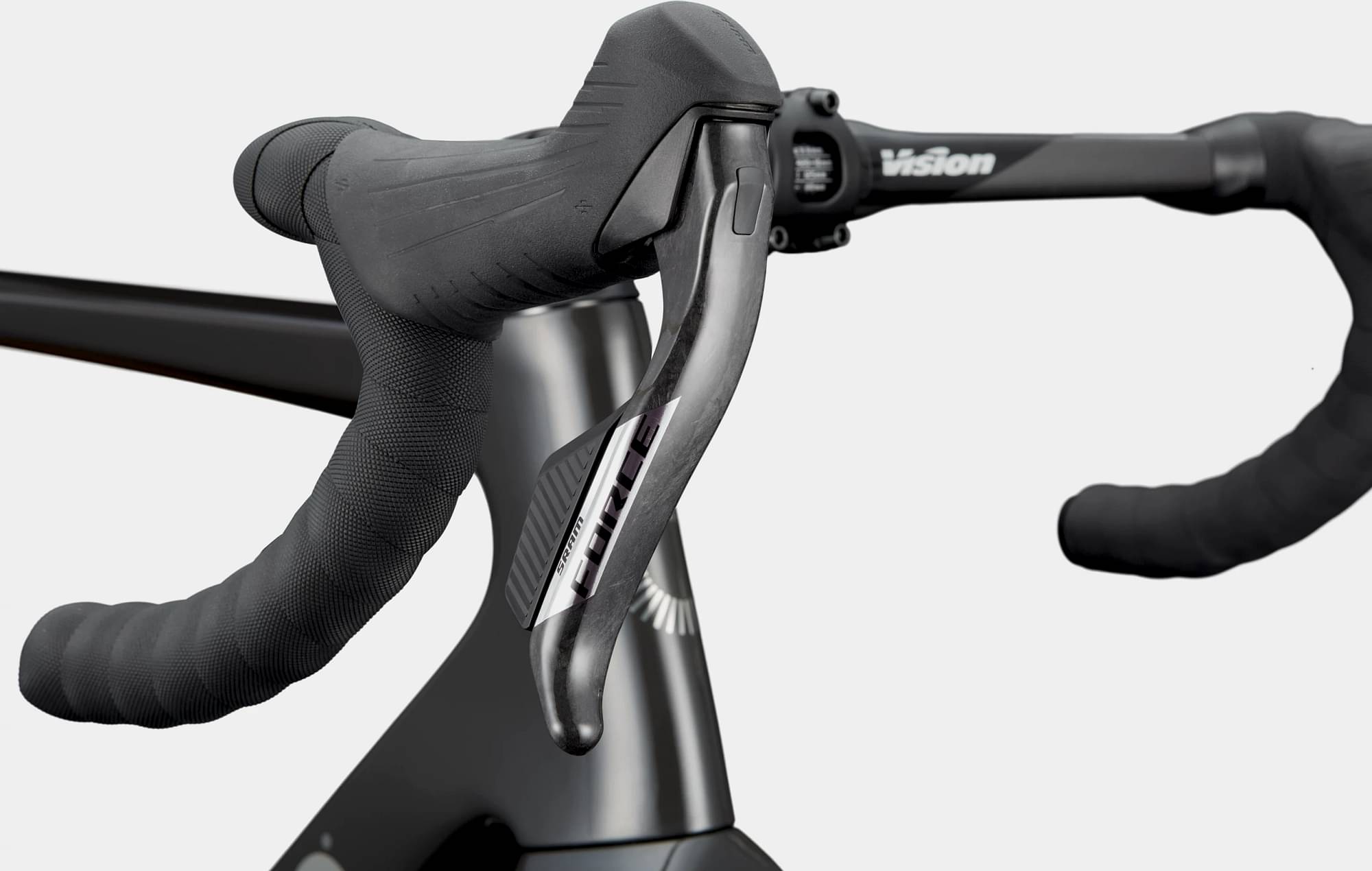

Brake Levers
SRAM Force AXS hydraulic disc
Cockpit

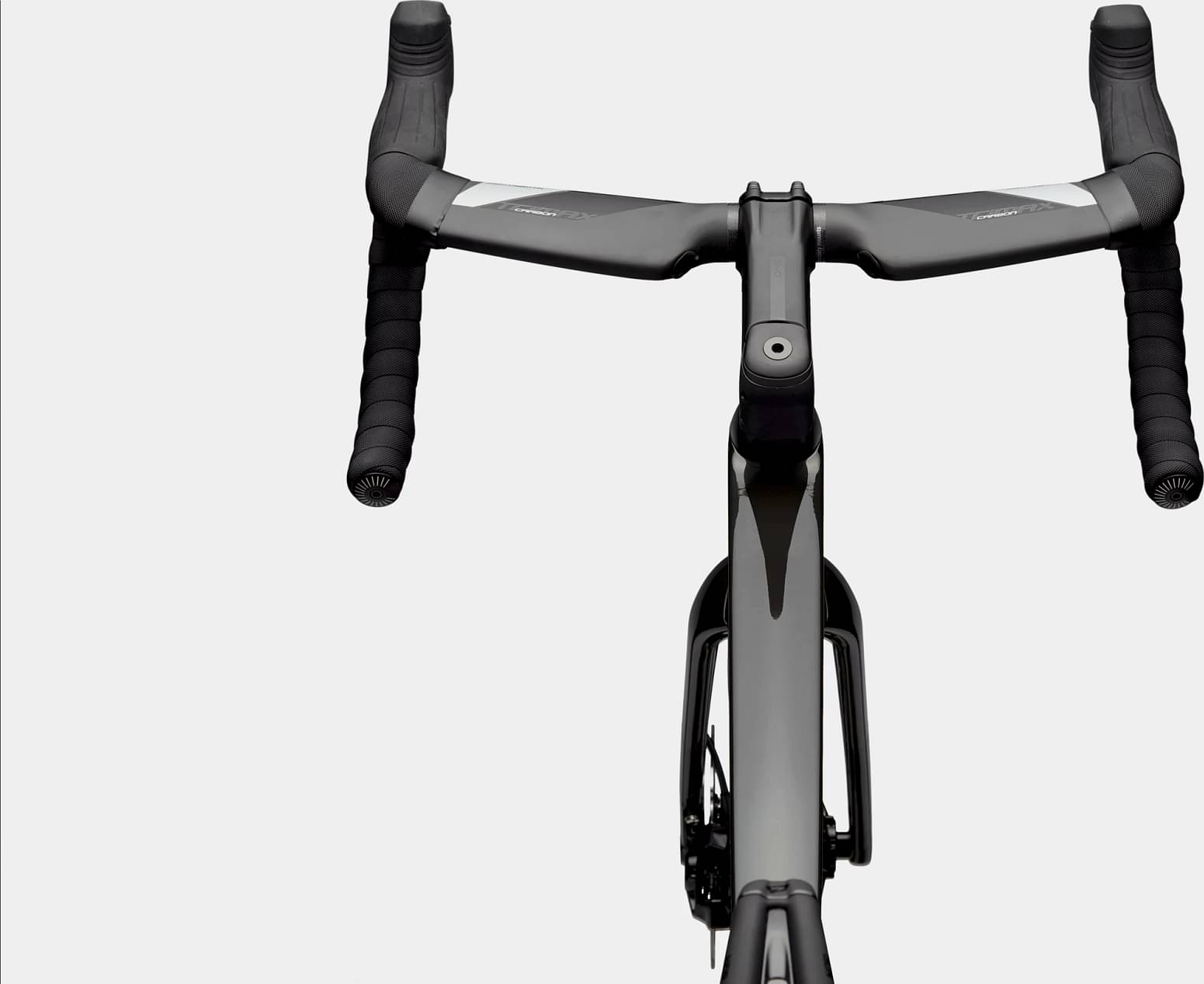

Stem

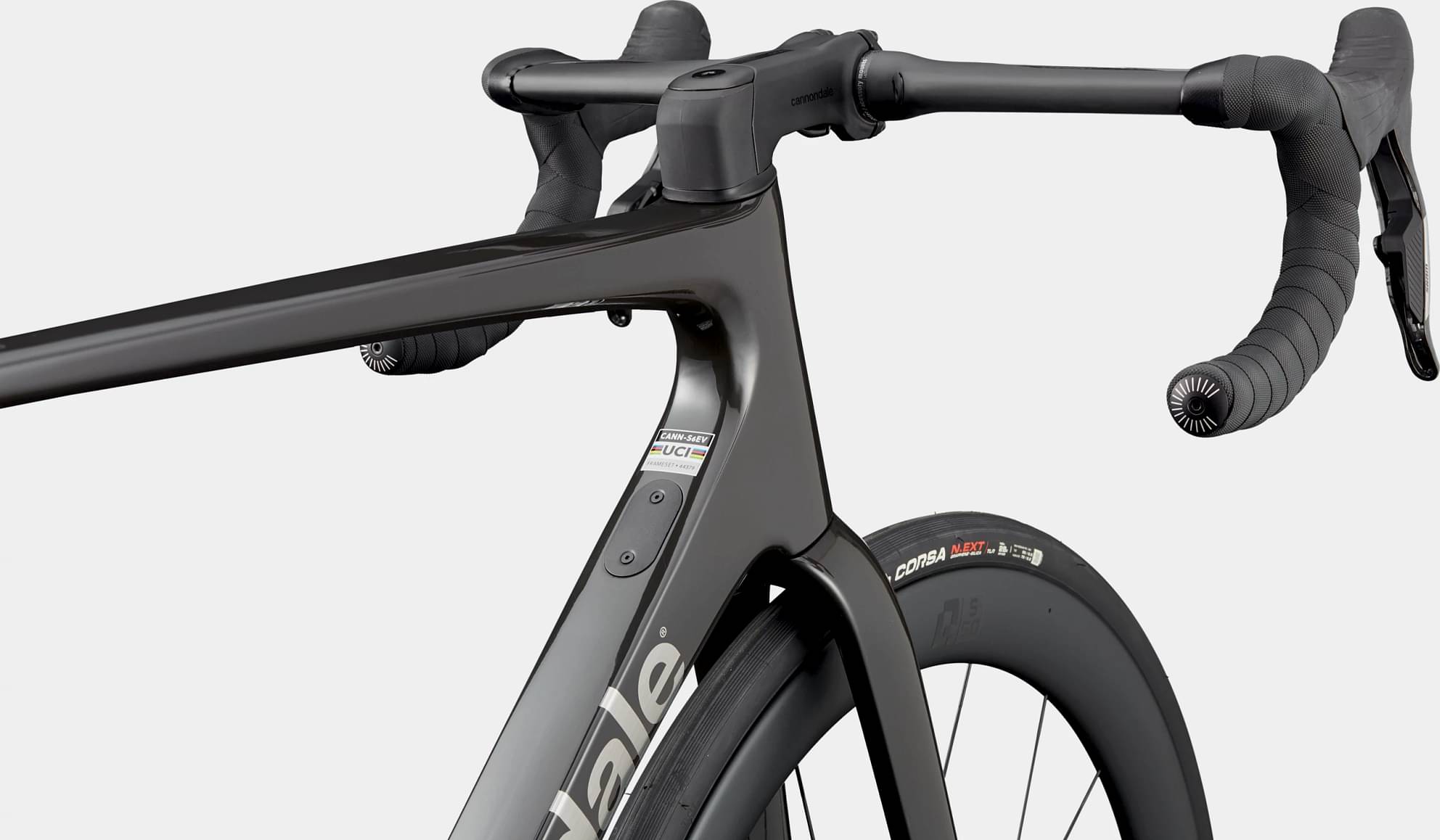

Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebar
Vision Trimax Carbon Aero
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4"
Seat
Saddle
Prologo Dimension TiRox NDR
Seatpost
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
Fit data

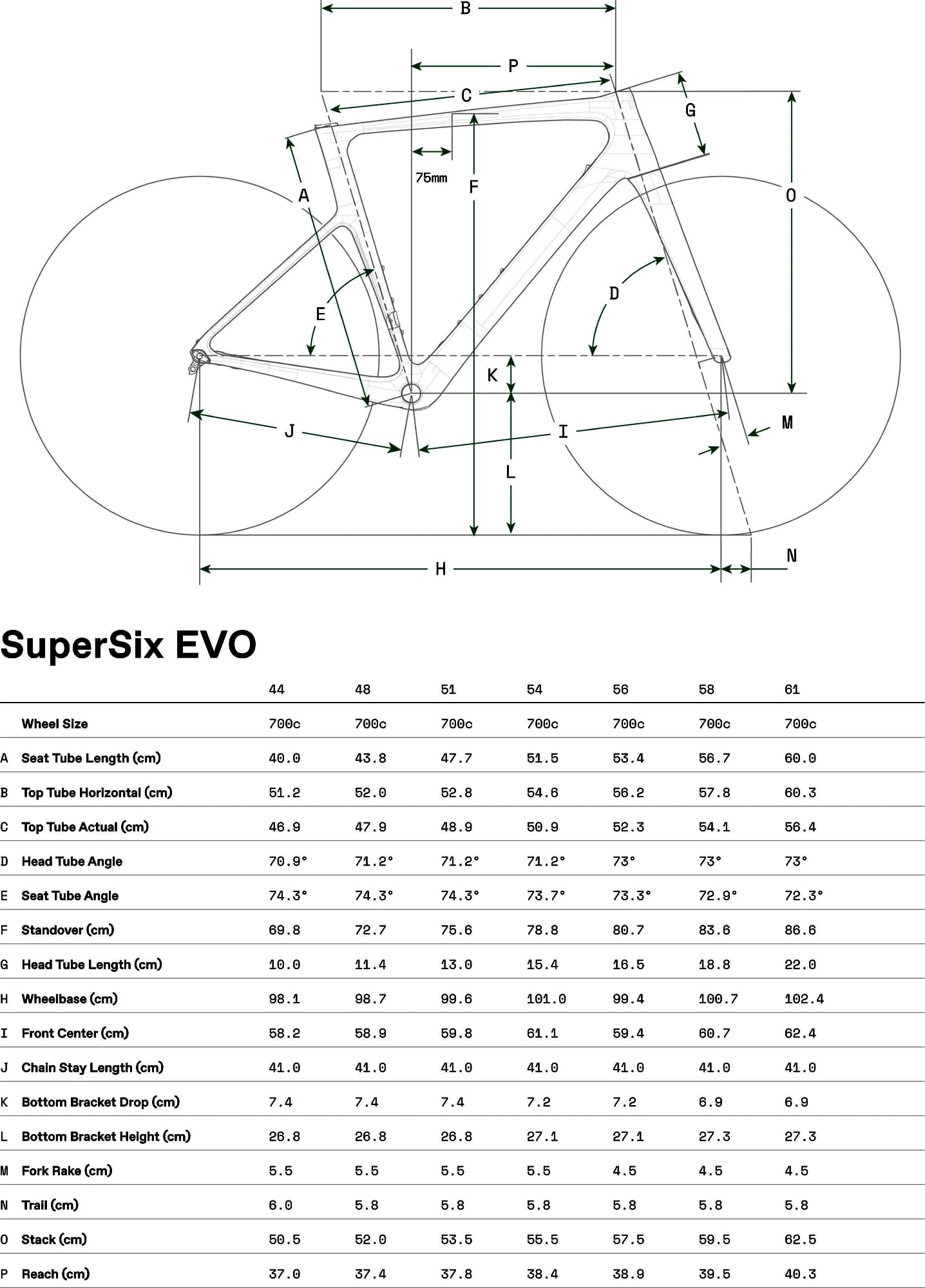

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 190 cm |
| Rider Max Height | 165 cm | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 200 cm |
