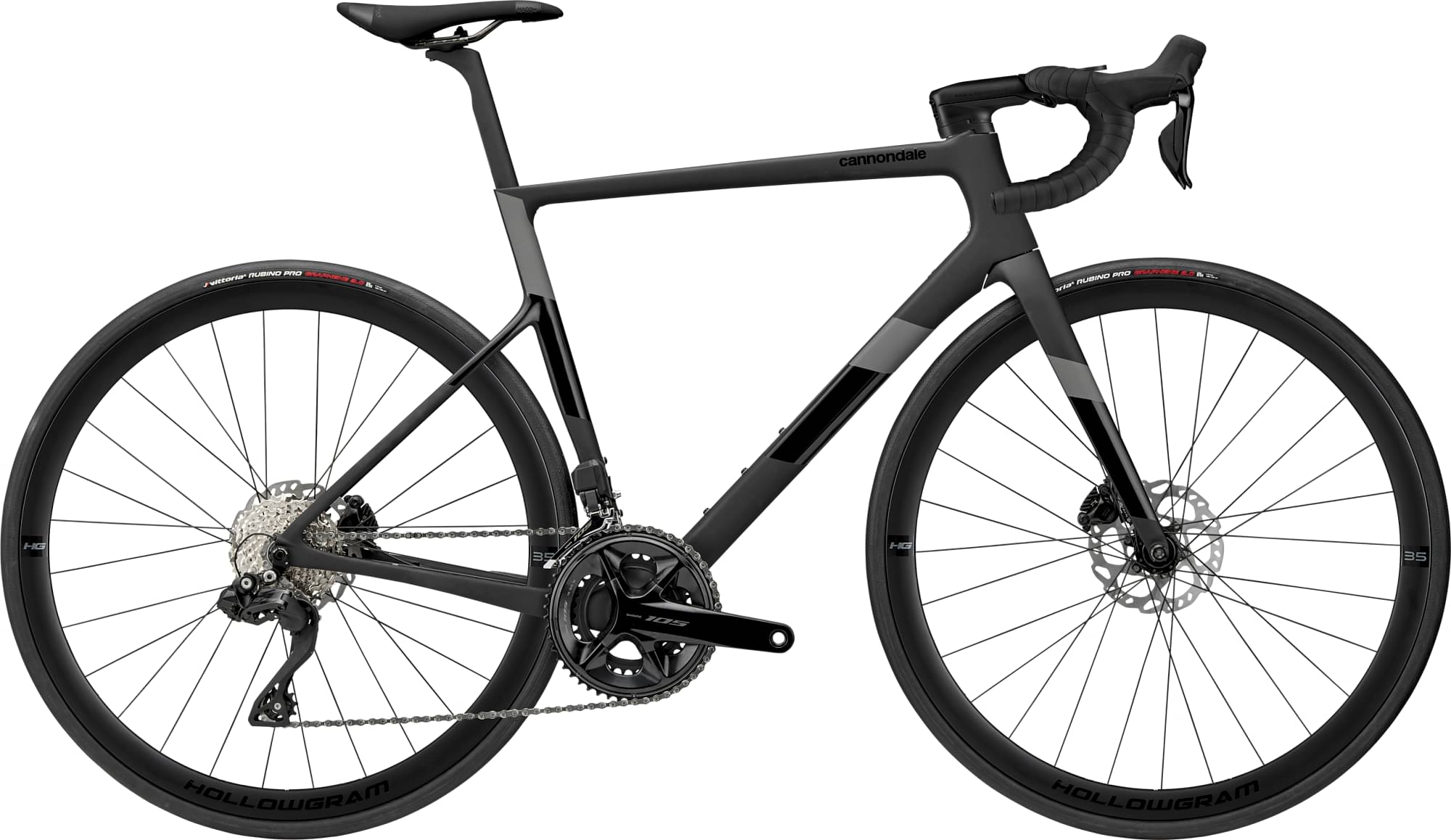

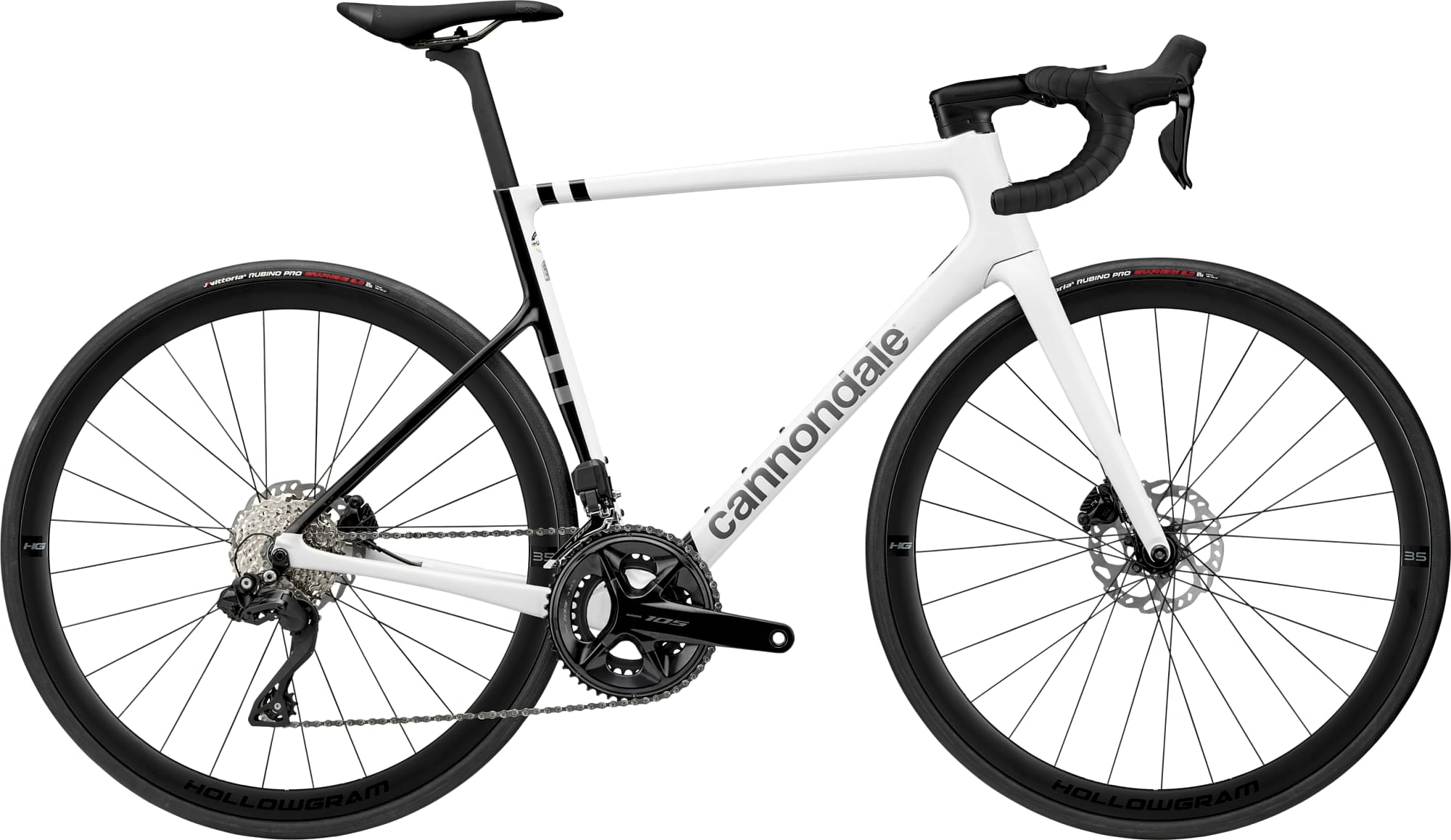

Cannondale SuperSix EVO Carbon Disc 105 Di2 2024
2024 Road
Estimate price |
5,734$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
157cm - 165cm
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
62cm
195cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SuperSix Evo Carbon, integrated cable routing w/ Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
Suspension Fork
SuperSix Evo Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1-1/8" to 1-3/8” steerer and 45mm offset (56-62cm)
Drivetrain
Rear Derailleur
Shimano 105 Di2 7150
Front Derailleur
Shimano 105 Di2 7150, braze-on
Shift Levers
Shimano 105 Di2 7170, hydraulic disc, 12-speed
Cassette
Shimano 105 7100, 12-speed, 11-34
Crank
Shimano 105 7100, BSA, 50/34
Bottom Bracket
FSA PF30a BB for 24mm
Chain
Shimano 105 7100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x142mm centerlock
Rear Hub
(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x142mm centerlock
Rims
HollowGram 35, Carbon, 24h front, 28h rear, 35mm deep, 19mm inner width, tubeless ready
Spokes
HollowGram, 2.0/1.8/2.0, straight-pull
Tires
Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
Brakes
Brakes
Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
Brake Levers
Shimano 105 Di2 7170 hydraulic disc
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -6°
Handlebar
HollowGram SAVE SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4" (44-54cm), 1-1/8" - 1-3/8" (56-62cm)
Seat
Saddle
Prologo Nago RS STN
Seatpost
HollowGram 27 SL, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm)
Fit data

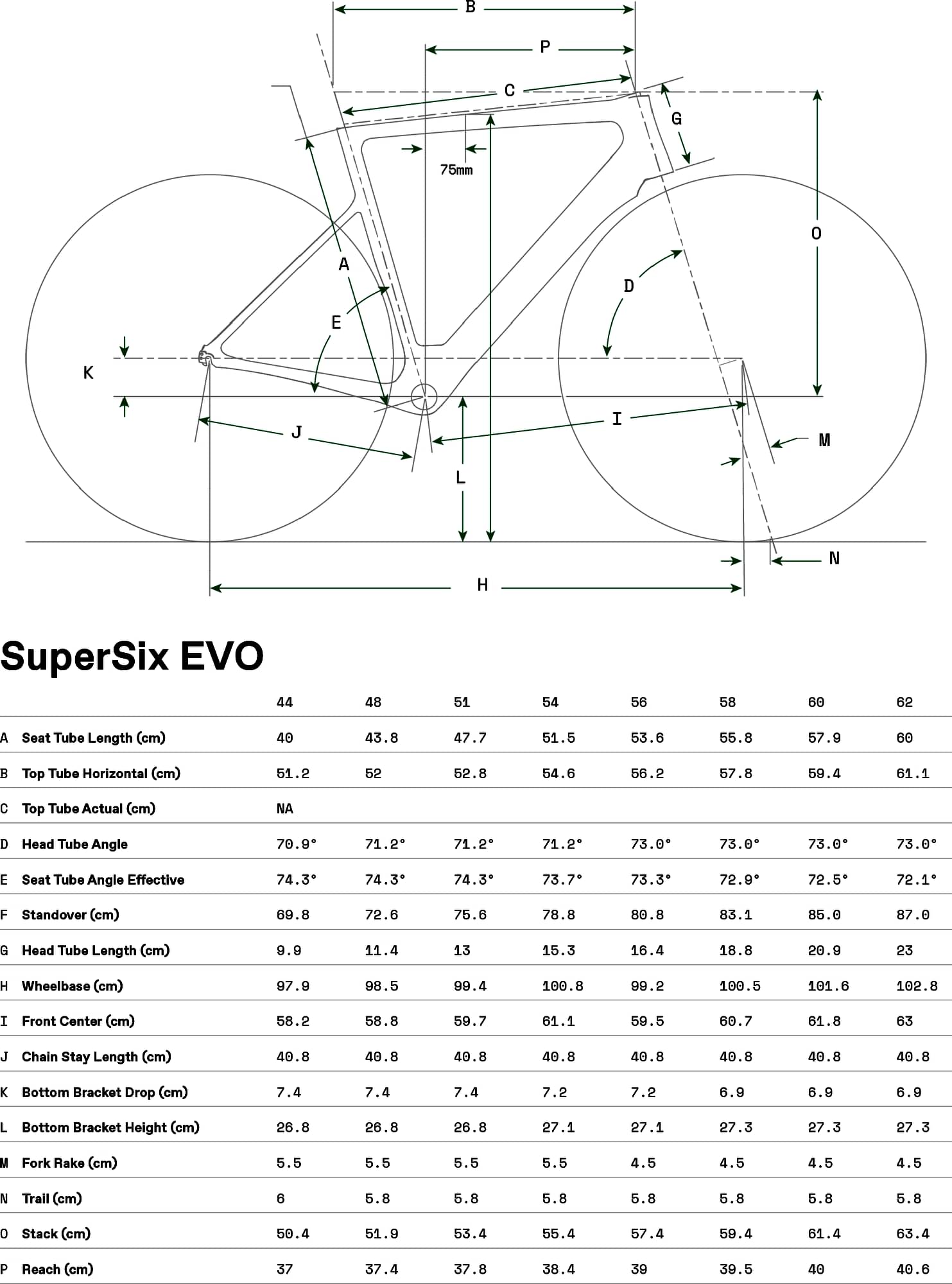

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm | 195 cm |
| Rider Max Height | 165 cm | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm | 205 cm |
