Bike details
Overview
Key information split into simple groups.

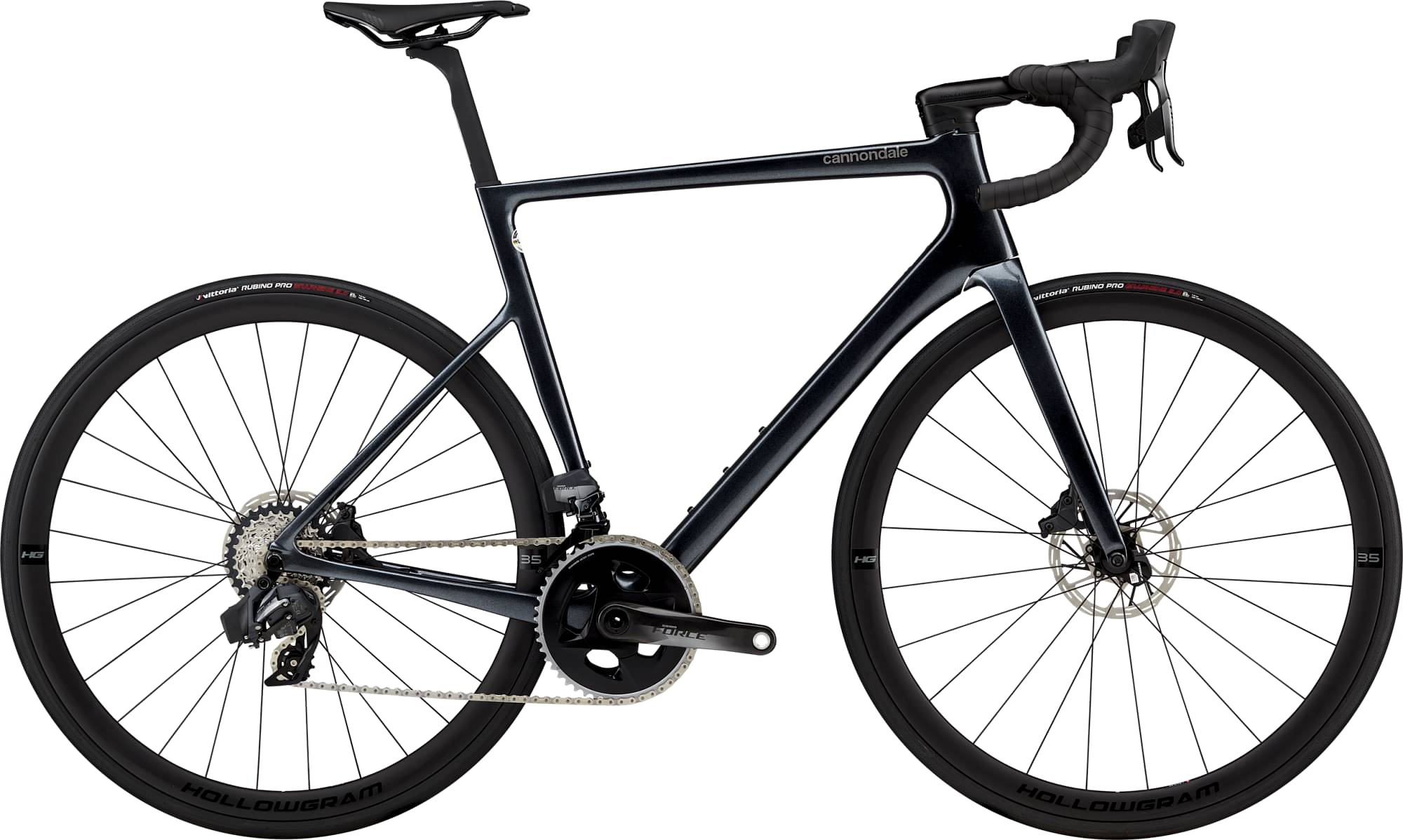

Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SuperSix Evo Carbon, integrated cable routing w/ Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
Suspension Fork
SuperSix Evo Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1-1/8" to 1-3/8” steerer and 45mm offset (56-62cm)
Drivetrain
Rear Derailleur
SRAM Force AXS
Front Derailleur
SRAM Force AXS, braze-on
Shift Levers
SRAM Force AXS, 12-speed
Cassette
SRAM XG-1270, 10-33, 12-speed
Crank
SRAM Force, DUB, 48/35
Bottom Bracket
SRAM DUB PF30 ROAD73-A
Chain
SRAM Force, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x142mm centerlock
Rear Hub
(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x142mm centerlock
Rims
HollowGram 35, Carbon, 24h front, 28h rear, 35mm deep, 19mm inner width, tubeless ready
Spokes
HollowGram, 2.0/1.8/2.0, straight-pull
Tires
Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
Brakes
Brakes
SRAM Force Hydraulic Disc, 160/160 PaceLine Rotors
Brake Levers
SRAM Force AXS
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -6°
Handlebar
HollowGram SAVE SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4" (44-54cm), 1-1/8" - 1-3/8" (56-62cm)
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm)
Fit data

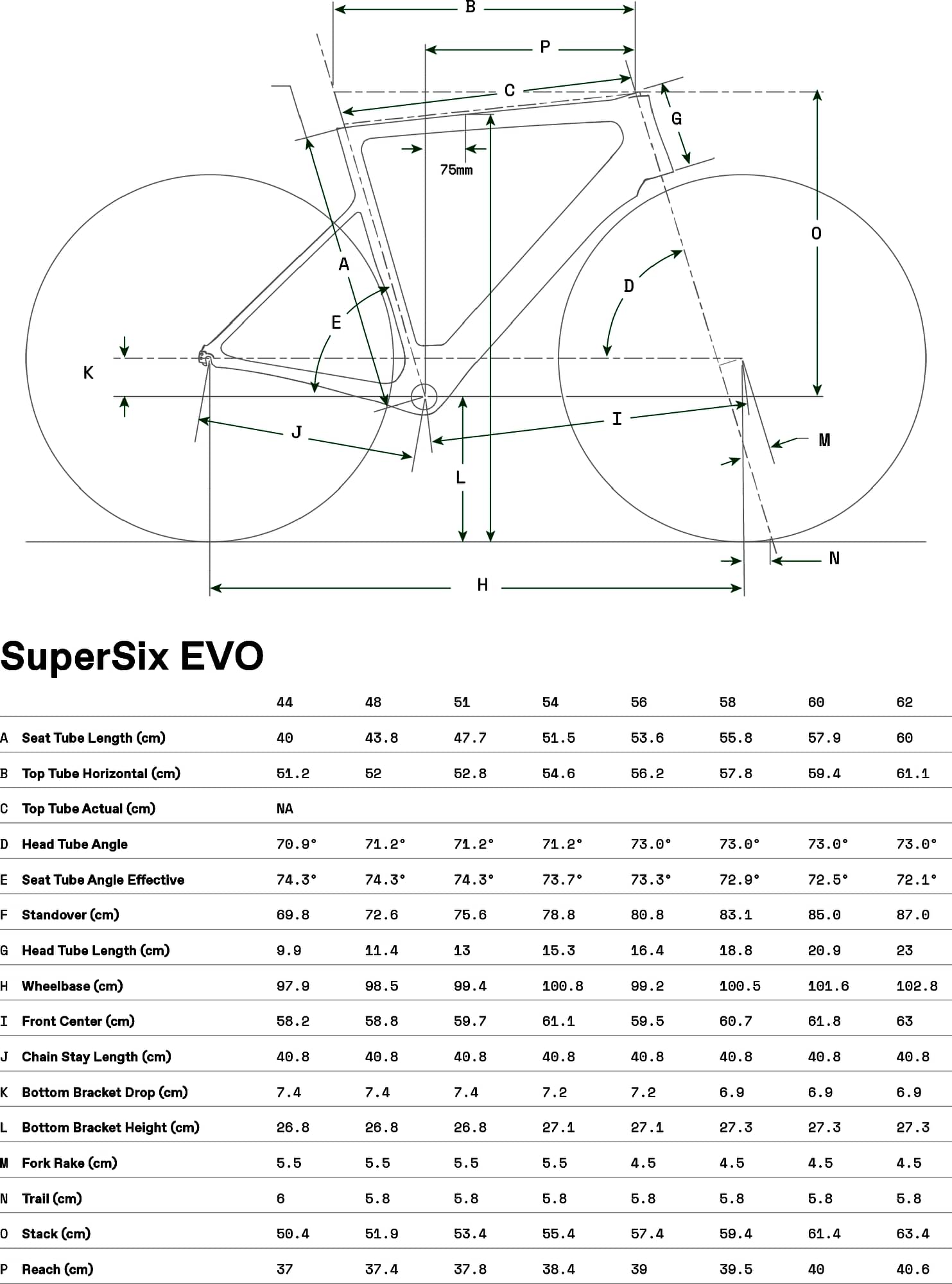

Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.388 mm | 1.413 mm | 1.443 mm | 1.472 mm | 1.504 mm | 1.535 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 271 mm | 271 mm | 273 mm | 273 mm |
| Front Center | 588 mm | 597 mm | 611 mm | 595 mm | 607 mm | 618 mm |
| Rake | 55 mm | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 519 mm | 534 mm | 554 mm | 574 mm | 594 mm | 614 mm |
| Reach | 374 mm | 378 mm | 384 mm | 390 mm | 395 mm | 400 mm |
| Top Tube Length | 520 mm | 528 mm | 546 mm | 562 mm | 578 mm | 594 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 438 mm | 477 mm | 515 mm | 536 mm | 558 mm | 579 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 114 mm | 130 mm | 153 mm | 164 mm | 188 mm | 209 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 985 mm | 994 mm | 1000 mm | 992 mm | 1005 mm | 1016 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm |
| Rider Max Height | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm |
