Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Apex XPLR -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SuperSix EVO CX Carbon, internal cable routing w/ Switchplate, 12x142mm Speed Release thru-axle, PF30-83 Ai, flat mount disc, integrated seatpost binder
Suspension Fork
SuperSix EVO CX Carbon, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Drivetrain
Rear Derailleur
SRAM Apex XPLR
Front Derailleur
N/A (Braze-on compatible)
Shift Levers
SRAM Apex, hydraulic disc, 12-speed
Cassette
SRAM PG-1251 XPLR, 10-44, 12-speed
Crank
SRAM Apex 1 Ai Direct Mount, X-Sync, 42T
Bottom Bracket
SRAM DUB PF30 83-A Road Ai
Chain
SRAM Apex, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-4005, 12x142mm centerlock
Rear Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-4005, 12x142mm centerlock
Rims
DT Swiss R470 db, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Mix TNT, 700x33c, tubeless ready
Brakes
Brakes
SRAM Apex hydraulic disc, 160/140mm PaceLine rotors
Brake Levers
SRAM Apex hydraulic disc
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebar
Vision Trimax Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Prologo Dimension NDR STN, Stainless Steel Rails
Seatpost
HollowGram 27 SL, Carbon, 2 bolt clamp, 330mm, 0mm offset all sizes
Fit data

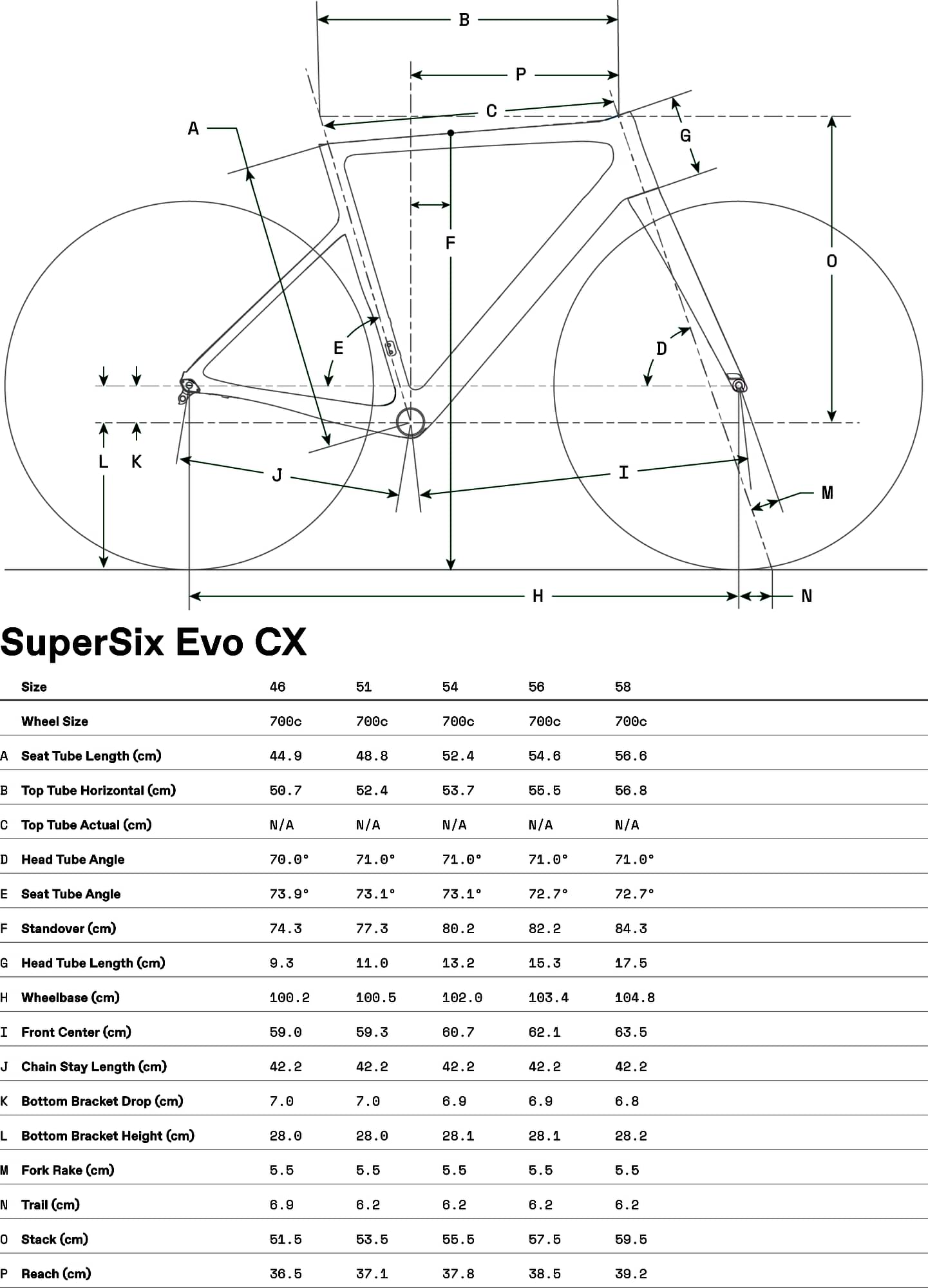

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
