Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Hi-MOD Carbon, integrated cable routing w/ Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
Suspension Fork
BallisTec Hi-MOD Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1-1/8" to 1-3/8” steerer and 45mm offset (56-62cm)
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2, braze-on
Shift Levers
Shimano Ultegra Di2, 11-speed
Cassette
Shimano Ultegra, 11-30, 11-speed
Crank
HollowGram, BB30a, OPI SpideRing, 52/36
Bottom Bracket
Cannondale Alloy PressFit30
Chain
Shimano HG701, 11-speed
Pedals
Not included
Wheels
Front Hub
Formula, 12x100mm
Rear Hub
Formula, 12x142mm
Rims
HollowGram 45 SL KNØT, Carbon, 20h front, 24h rear, 45mm deep, 21mm inner width, tubeless ready
Spokes
DT Swiss Aerolite, straight-pull
Tires
Vittoria Corsa, 700x25c
Brakes
Brakes
Shimano Ultegra Di2 hydraulic disc, 160/140mm RT800 rotors
Brake Levers
Shimano Ultegra Di2
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -6°
Handlebar
HollowGram SAVE SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4" (44-54cm), 1-1/8" - 1-3/8" (56-62cm)
Seat
Saddle
Fizik Tempo Argo R5, 150mm width, S-Alloy rails
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm)
Fit data

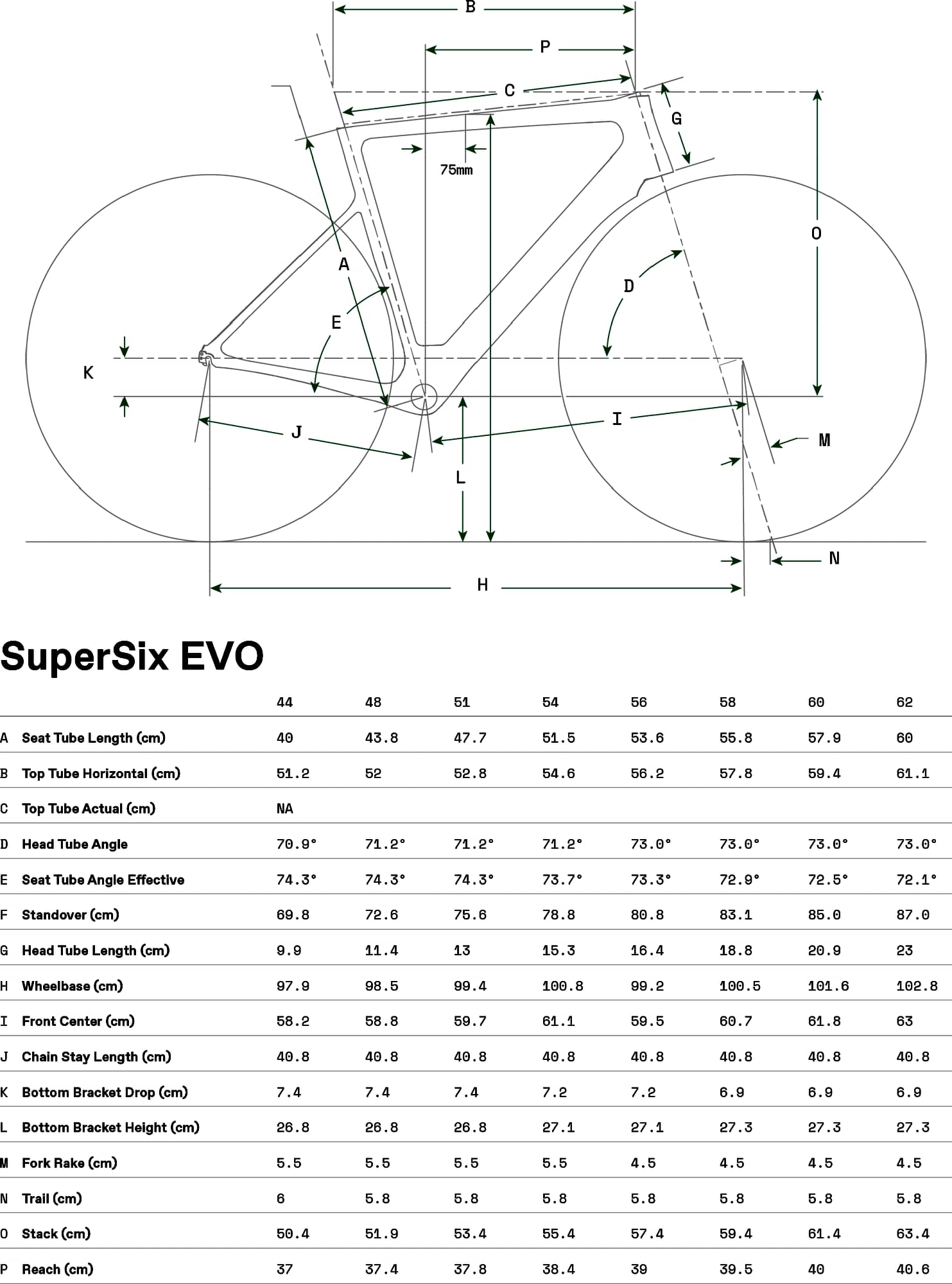

Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.413 mm | 1.443 mm | 1.472 mm | 1.504 mm | 1.535 mm |
| Bottom Bracket Height | 268 mm | 271 mm | 271 mm | 273 mm | 273 mm |
| Front Center | 597 mm | 611 mm | 595 mm | 607 mm | 618 mm |
| Rake | 55 mm | 55 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 534 mm | 554 mm | 574 mm | 594 mm | 614 mm |
| Reach | 378 mm | 384 mm | 390 mm | 395 mm | 400 mm |
| Top Tube Length | 528 mm | 546 mm | 562 mm | 578 mm | 594 mm |
| Seat Tube Angle | 74.3 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 477 mm | 515 mm | 536 mm | 558 mm | 579 mm |
| Head Tube Angle | 71.2 ° | 71.2 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 153 mm | 164 mm | 188 mm | 209 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 994 mm | 1000 mm | 992 mm | 1005 mm | 1016 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 193 cm | 198 cm |
