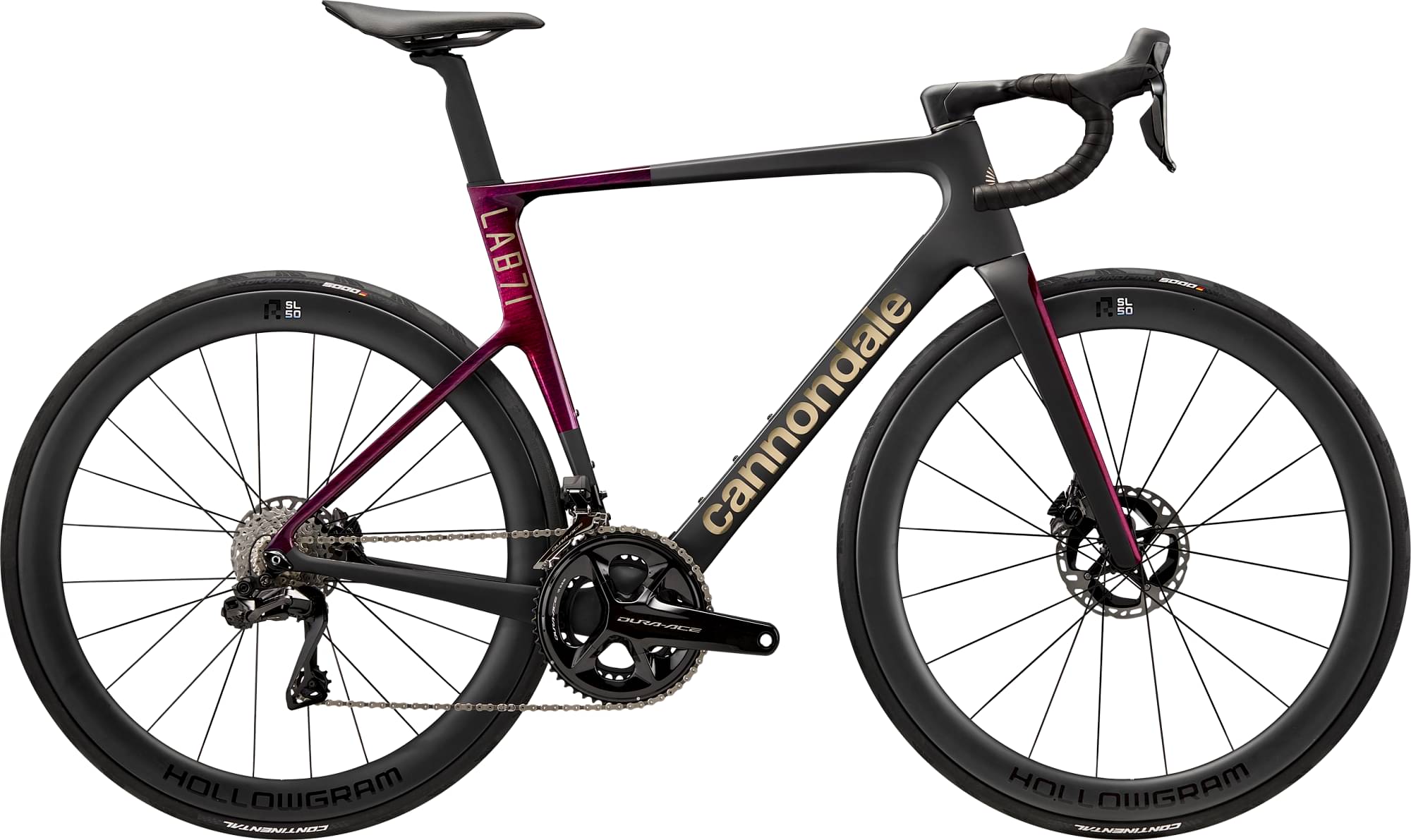

Cannondale SuperSix EVO LAB71 2024
2024 Road
Estimate price |
17,203$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
154cm - 165cm
48cm
160cm - 170cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LAB71 SuperSix EVO, Ultralight Series 0 Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Suspension Fork
LAB71 SuperSix EVO, Ultralight Series 0 Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250
Front Derailleur
Shimano Dura-Ace Di2 R9250
Shift Levers
Shimano Dura-Ace Di2 R9270, wireless, 2x12
Cassette
Shimano Dura-Ace R9200, 11-30, 12-speed
Crank
Shimano Dura-Ace R9200, 52/36
Bottom Bracket
CeramicSpeed BSA for Shimano Road, Coated Version
Chain
Shimano Dura-Ace, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram, 12x142mm centerlock w/ DT Swiss 240 internals
Rear Hub
(F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram, 12x142mm centerlock w/ DT Swiss 240 internals
Rims
HollowGram R-SL 50, Carbon, 20h front, 24h rear, 50mm deep, 21mm inner width, tubeless ready
Spokes
DT Swiss Aerolite, straight-pull
Tires
Continental Grand Prix 5000, 700x25c
Brakes
Brakes
Shimano Dura-Ace R9270, 160/140mm MT900 rotors
Brake Levers
Shimano Dura-Ace Di2 R9270 hydraulic disc
Cockpit
Stem
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Handlebar
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Grips
Fizik Tempo Bondcush Soft, 3mm
Headset
Integrated, 1-1/8" - 1-1/4"
Seat
Saddle
Fizik Vento Argo 00 Carbon
Seatpost
Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
Fit data

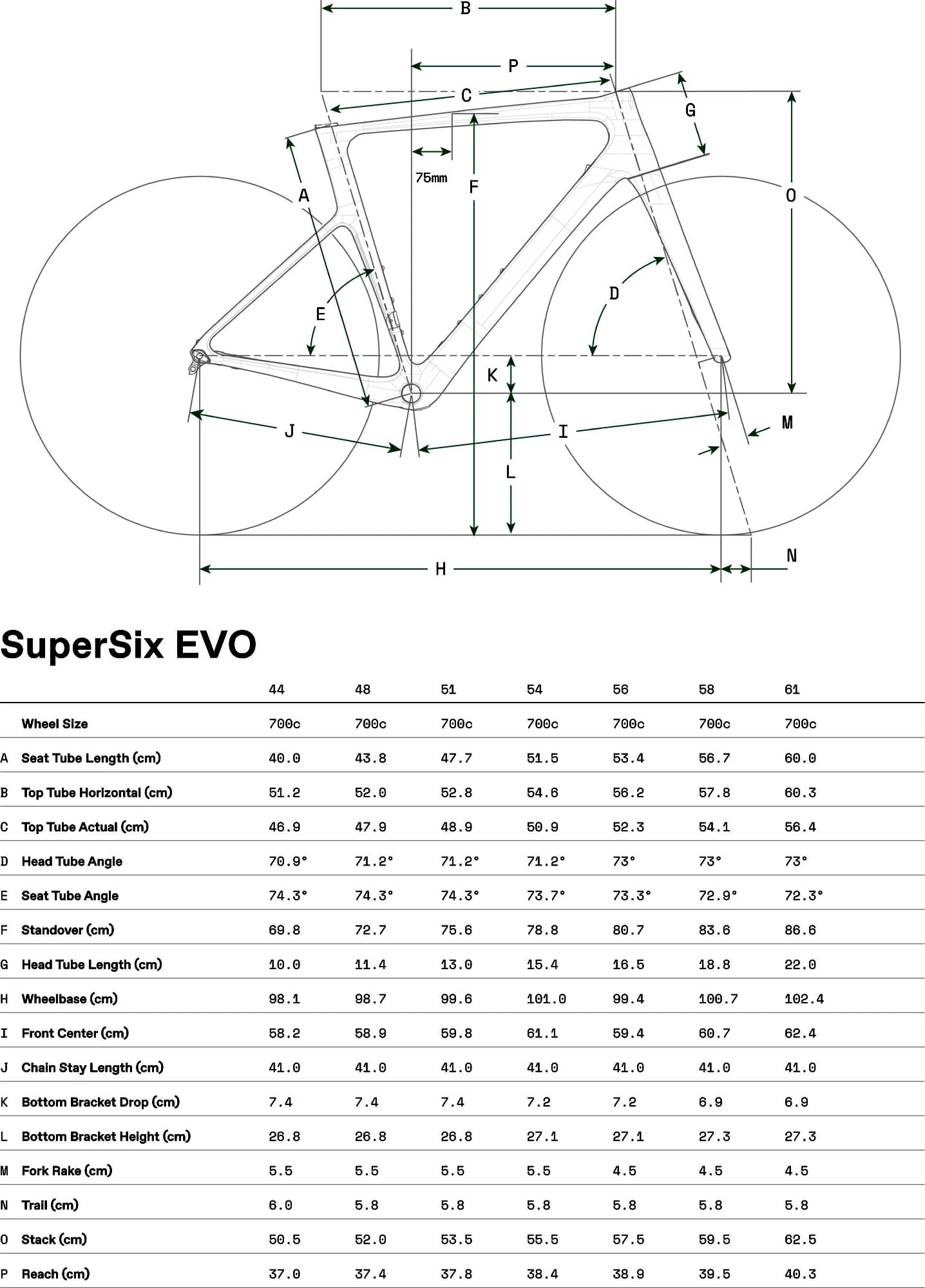

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 160 cm | 165 cm | 170 cm | 177 cm | 182 cm | 190 cm |
| Rider Max Height | 165 cm | 170 cm | 175 cm | 180 cm | 185 cm | 193 cm | 200 cm |
