Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

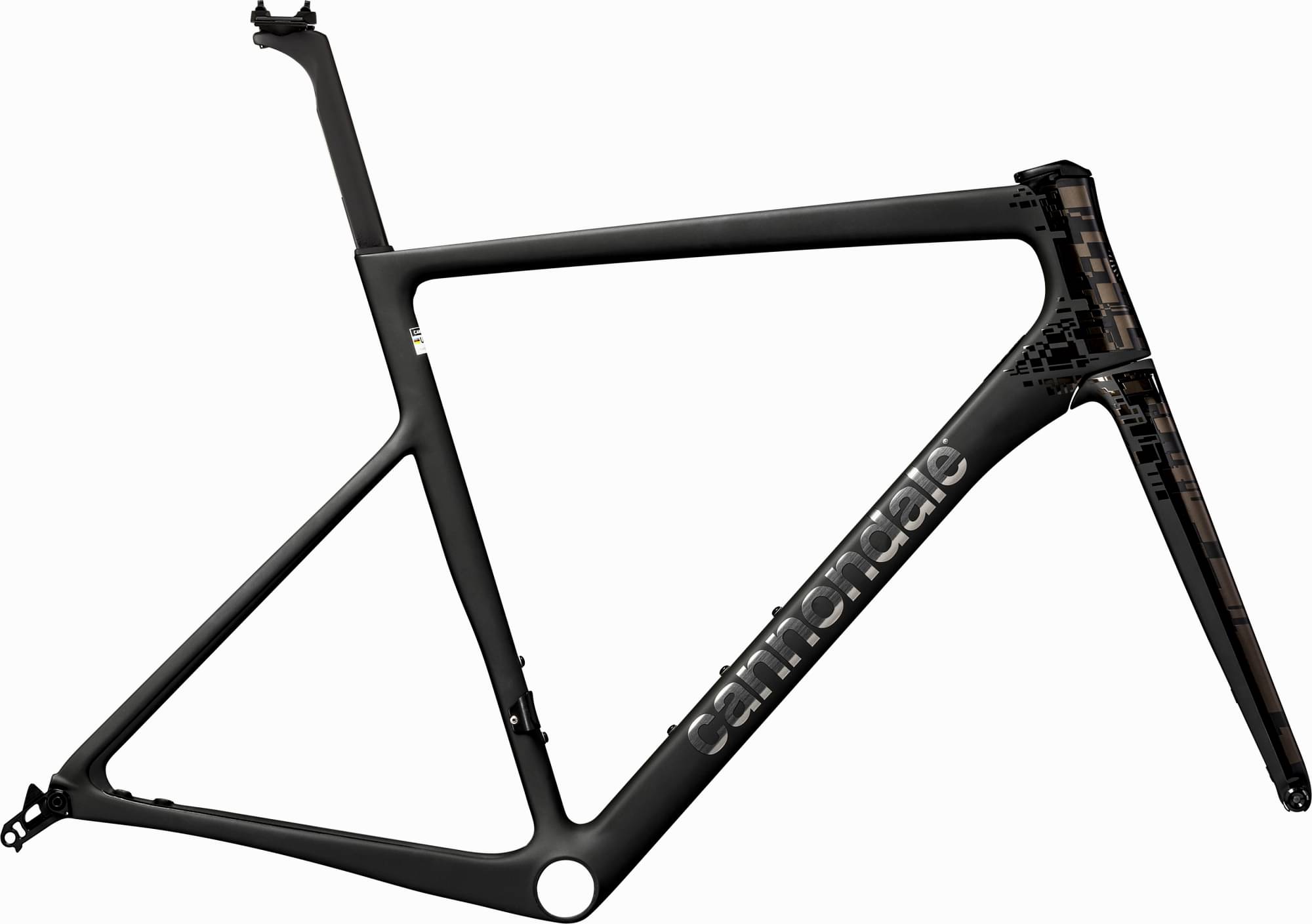

SuperSix EVO Leichtbau Carbon, integrated cable routing w/ Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
Suspension Fork
SuperSix EVO Leichtbau Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (51-54cm), 1-1/8" to 1-3/8” steerer and 45mm offset (56-58cm)
Drivetrain
Bottom Bracket
Cannondale Alloy PressFit30
Cockpit
Headset
Integrated, 1-1/8" - 1-1/4" (51-54cm), 1-1/8" - 1-3/8" (56-58cm)
Seat
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 193 cm |
