Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
46cm
152cm - 162cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SuperSix EVO CX Carbon, internal cable routing w/ Switchplate, 12x142mm Speed Release thru-axle, SAVE, PF30-83 Ai, flat mount disc, integrated seatpost binder
Suspension Fork
SuperSix EVO CX Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2", 55mm offset
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, braze-on
Shift Levers
SRAM Rival eTap AXS HRD
Cassette
SRAM Rival XG-1250, 12-speed 10-36
Crank
SRAM Rival DUB X-Range, 46/33
Bottom Bracket
SRAM DUB PF30A Road 83mm, Cannondale Ai
Chain
SRAM Rival, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock, Ai offset
Rear Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock, Ai offset
Rims
DT Swiss G540, 28h, 24mm IW, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Dry TNT, 700x40c, tubeless ready
Brakes
Brakes
SRAM Rival hydraulic disc, 160/160mm Paceline rotors
Brake Levers
SRAM Rival eTap AXS HRD
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 2, 6061 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Prologo Dimension AGX, Tirox
Seatpost
HollowGram 27 SL KNØT, Carbon, 2 bolt clamp, 330mm, 0mm offset (46cm), 15mm offset (51-58cm)
Fit data

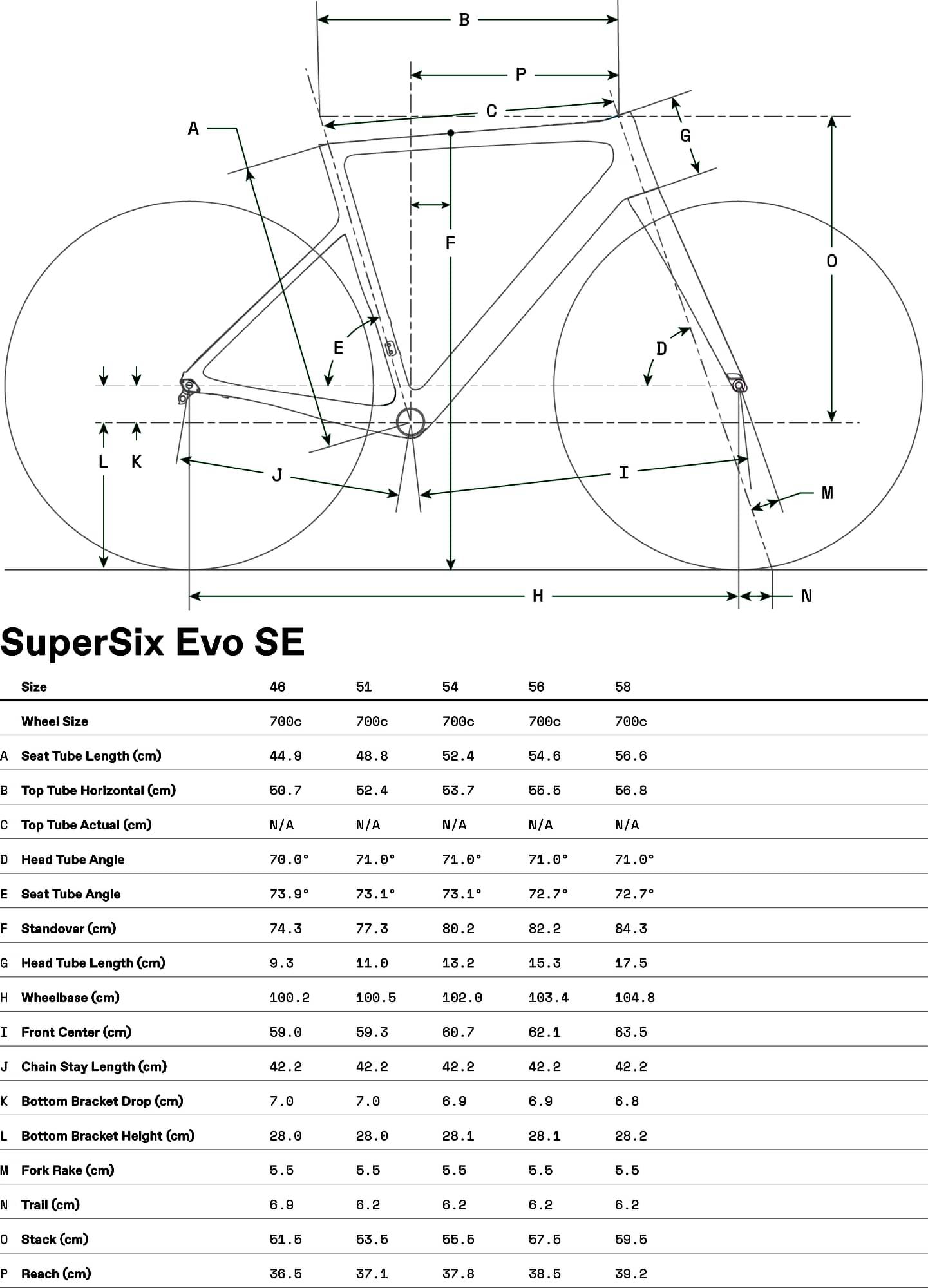

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 165 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 162 cm | 175 cm | 180 cm | 185 cm | 193 cm |
