Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force XPLR eTap -
Suspension Rigid -
Drivetrain 1 × 13 Electronic -
Brakes SRAM Force Hydraulic Disc
Sizing
Recommended size guide.
46cm
152cm - 162cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Suspension Fork
SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Drivetrain

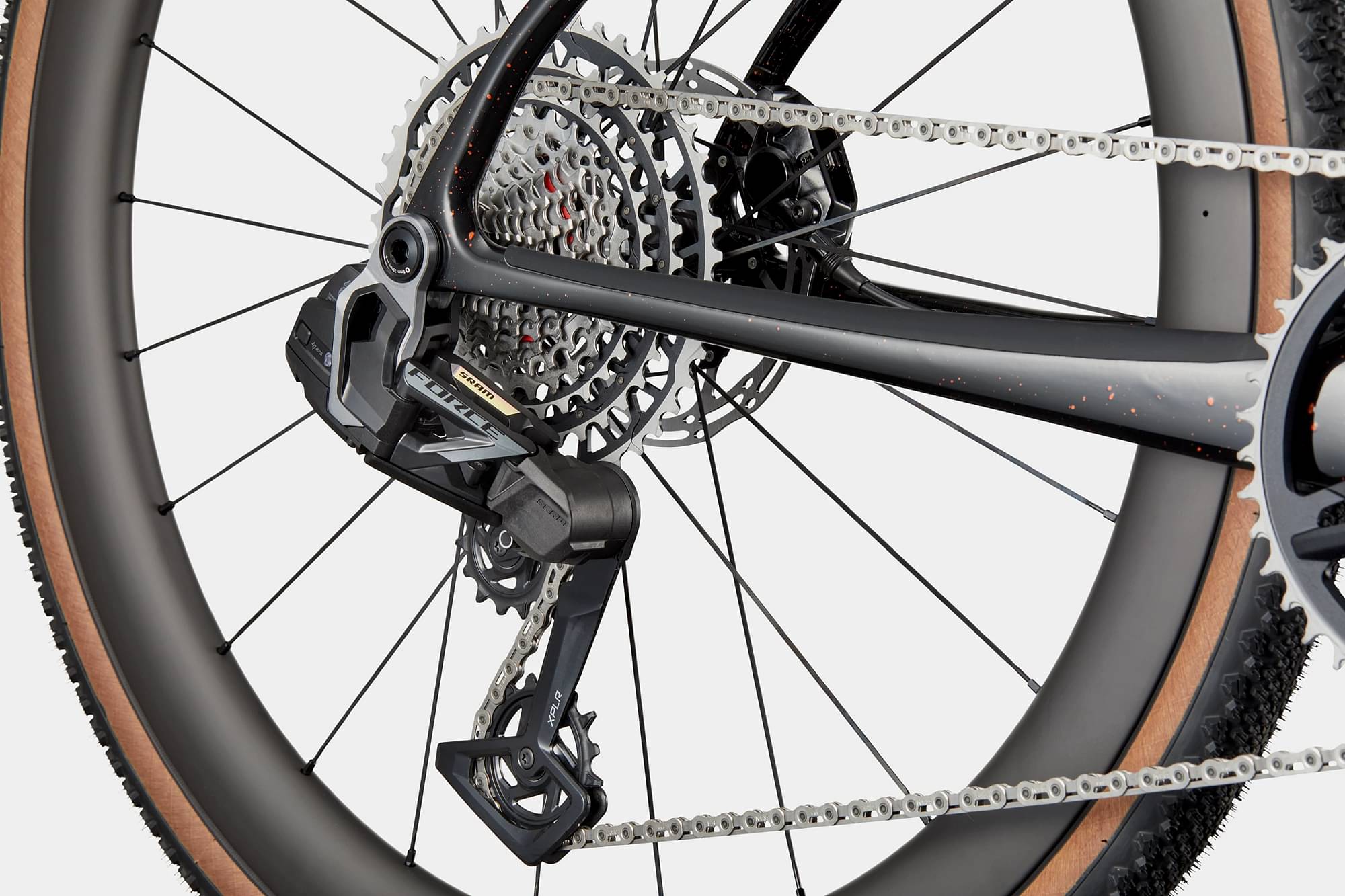

Rear Derailleur
SRAM Force XPLR AXS
Shift Levers
SRAM Force
Cassette
SRAM Force XPLR, XG-1371, 10-46, 13-speed

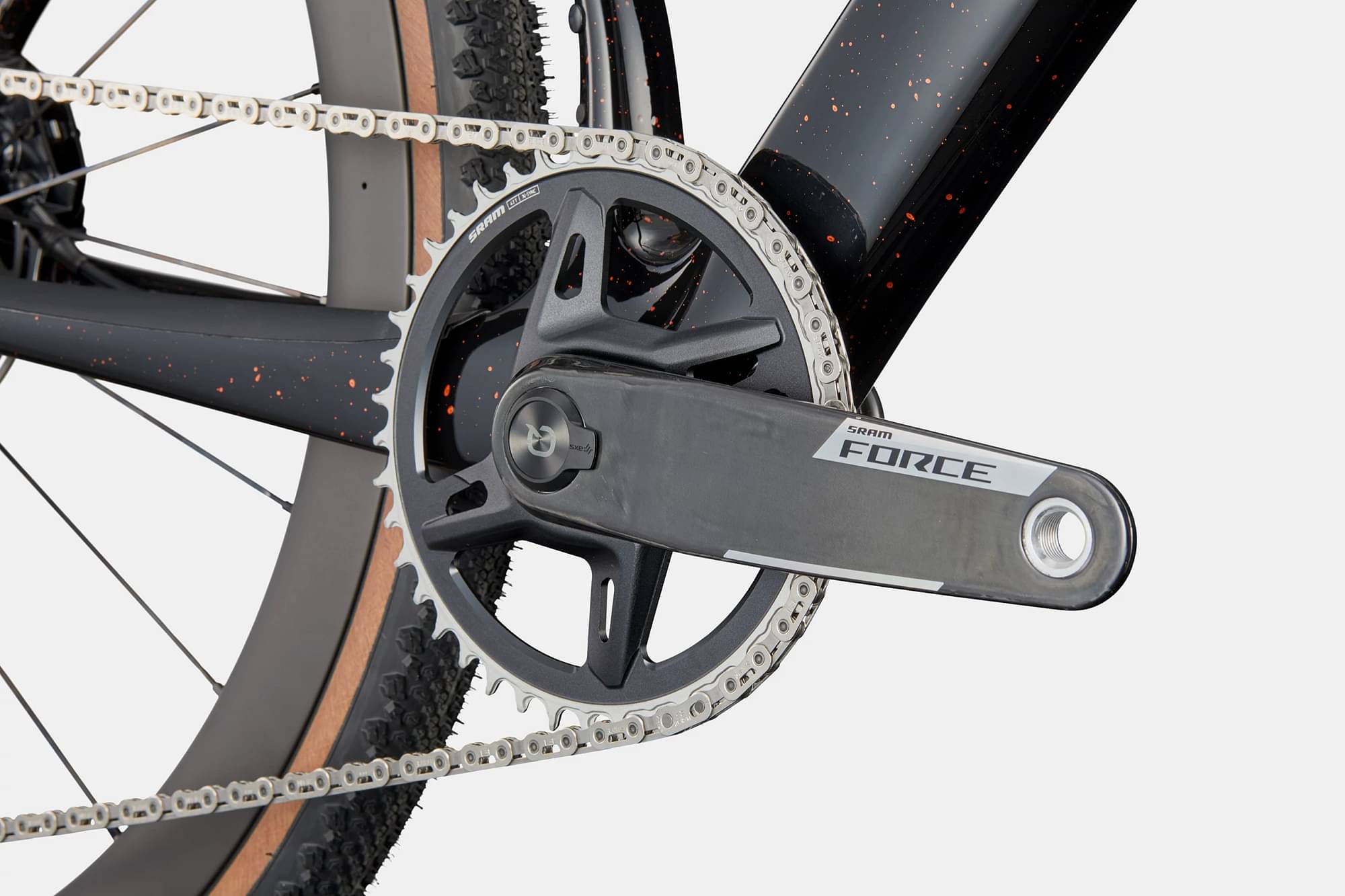

Crank
Force XPLR AXS 42 w/ Power Meter
Bottom Bracket
SRAM DUB BSA Road 68 Wide
Chain
SRAM Force
Pedals
Not included
Wheels
Front Hub
DT Swiss 350, 12x100mm centerlock
Rear Hub
DT Swiss 350, 12x142mm centerlock
Rims
Reserve 40|44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready
Spokes
Sapim CX-Ray Aero straight pull
Tires
Vittoria Terreno T50, 700x40c, tubeless ready
Brakes
Brakes
SRAM FORCE AXS, Centerline X 160/160mm centerlock rotors
Brake Levers
SRAM Force AXS hydraulic disc
Cockpit

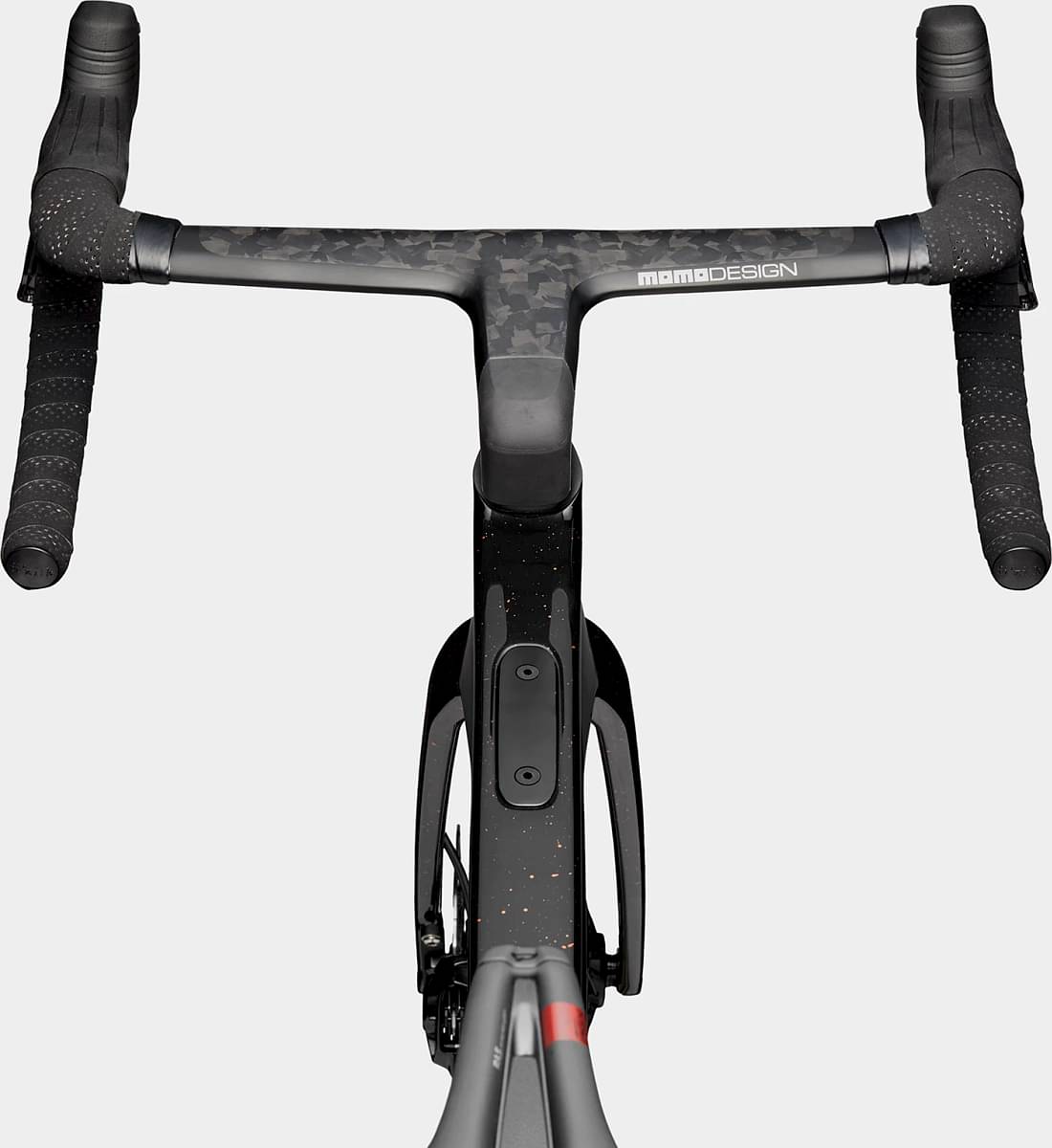

Stem
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Handlebar
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Prologo Dimension AGX Tirox
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
Fit data

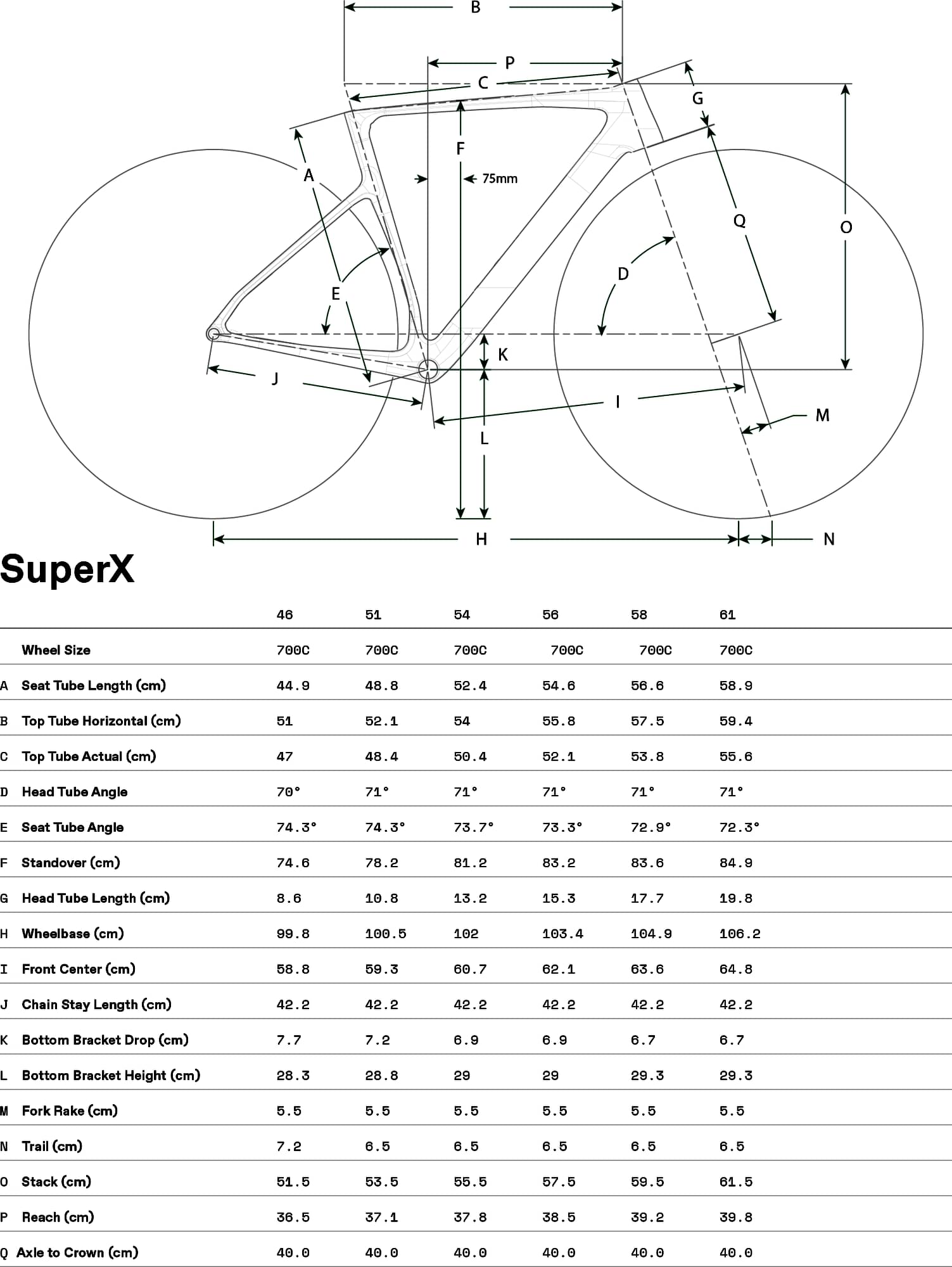

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 165 cm | 170 cm | 177 cm | 182 cm | 190 cm |
| Rider Max Height | 162 cm | 175 cm | 180 cm | 185 cm | 193 cm | 200 cm |
