Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Shimano GRX 800 Hydraulic Disc
Sizing
Recommended size guide.
46cm
152cm - 162cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Suspension Fork
SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Drivetrain

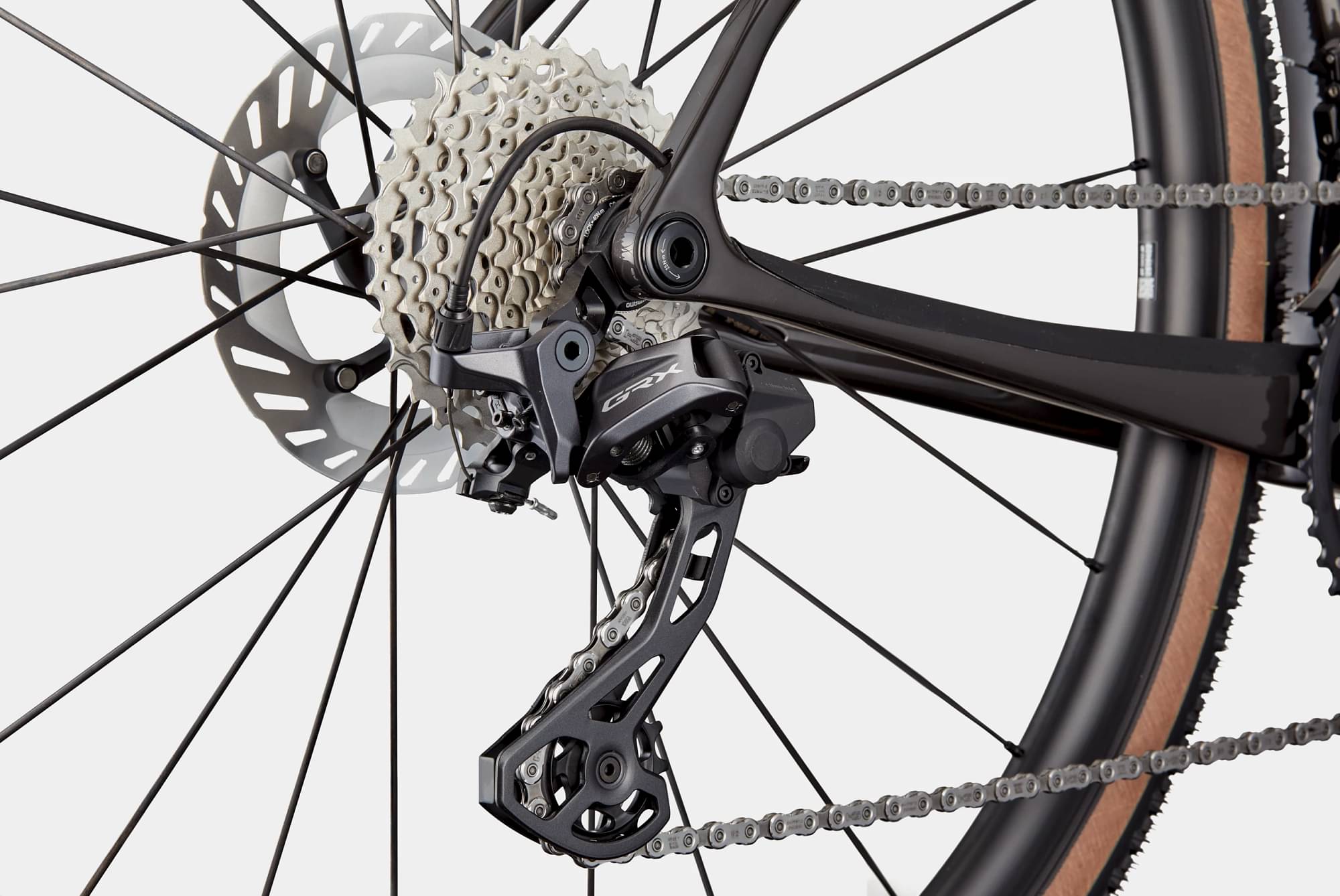

Rear Derailleur
Shimano GRX 820, Shadow RD+
Front Derailleur
Shimano GRX 820, braze-on
Shift Levers
Shimano GRX 820, 12-speed
Cassette
Shimano 105 7100, 11-36, 12-speed

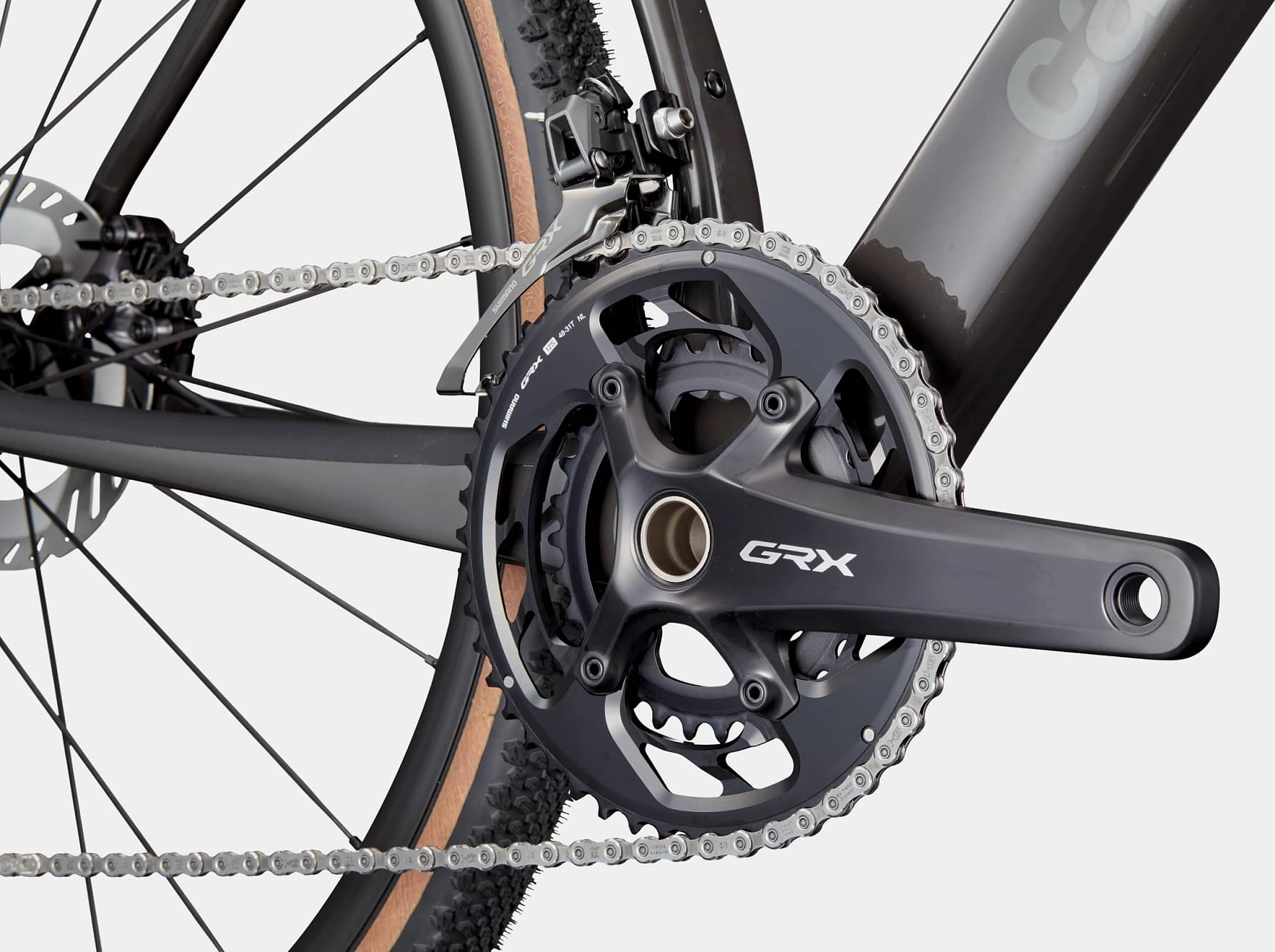

Crank
Shimano RX 820, 48/32
Bottom Bracket
Shimano BSA 68
Chain
Shimano M8100, 12-speed
Pedals
Not included
Wheels
Front Hub
DT Swiss 370, 12x100mm centerlock
Rear Hub
DT Swiss 370, 12x142mm centerlock
Rims
DT Swiss G1800 Spline 24mm inner width, 25mm depth, 24h, tubeless ready
Spokes
DT Swiss Aero Comp
Tires
Vittoria Terreno T50, 700x40c, tubeless ready
Brakes
Brakes
Shimano GRX 820, 160/160mm CL800 rotors
Brake Levers
Shimano GRX RX820 hydraulic disc

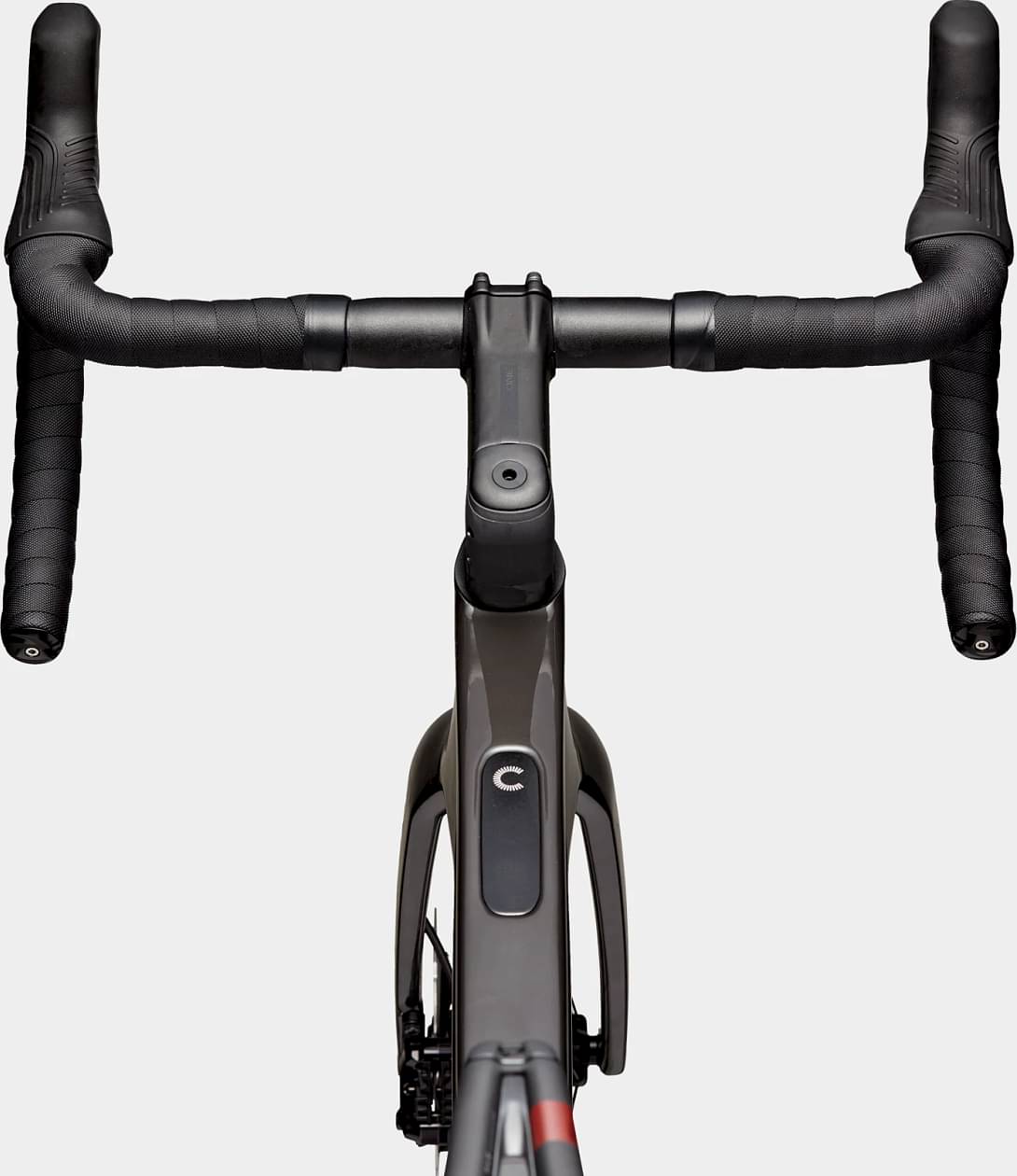

Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebar
Cannondale C2, 7050 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Prologo Dimension AGX STN
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
Fit data

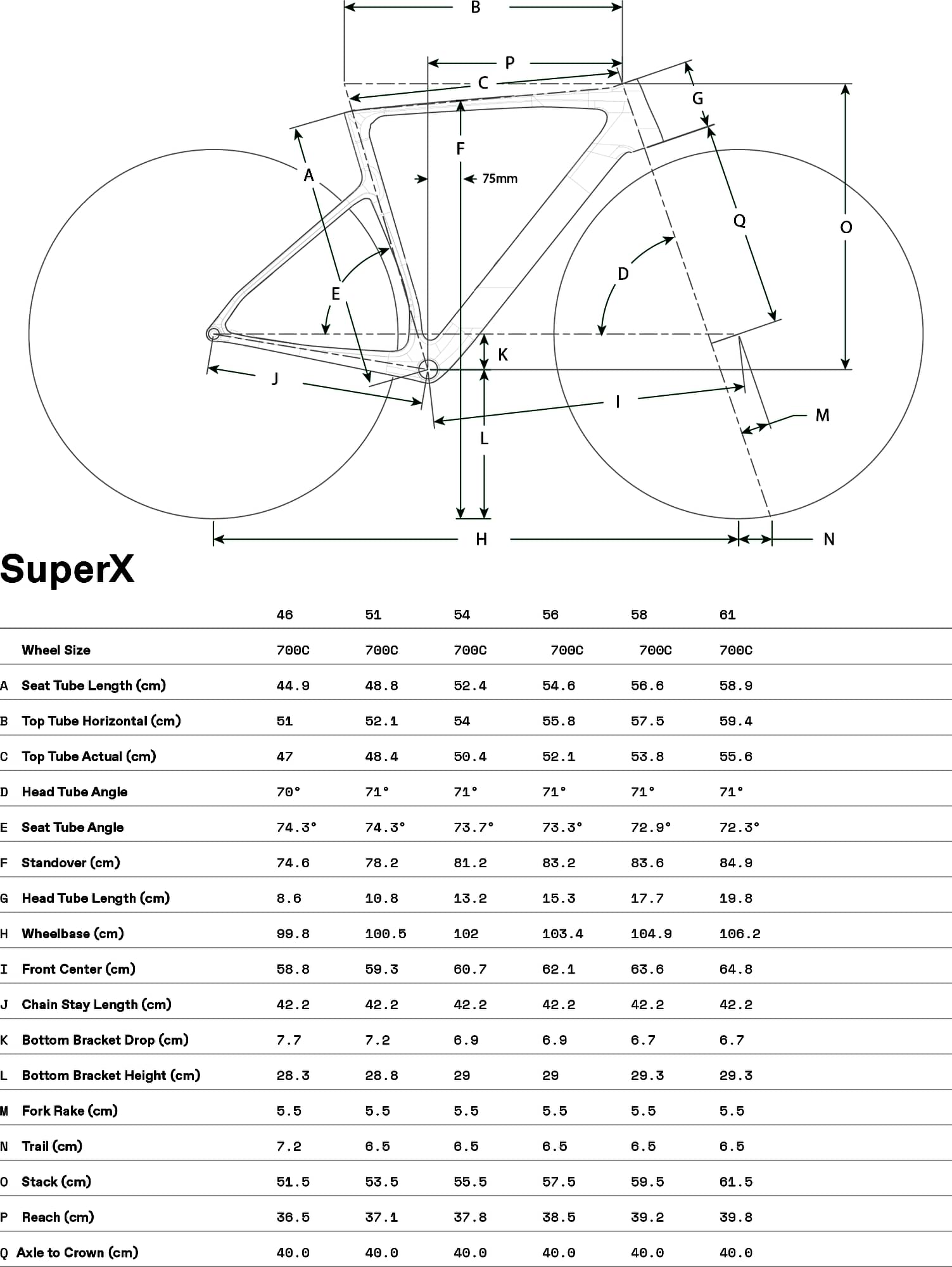

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 165 cm | 170 cm | 177 cm | 182 cm | 190 cm |
| Rider Max Height | 162 cm | 175 cm | 180 cm | 185 cm | 193 cm | 200 cm |
