Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Drivetrain 1 × 13 Electronic -
Brakes SRAM RED Hydraulic Disc
Sizing
Recommended size guide.
46cm
152cm - 162cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lab71 SuperX, Series 0 carbon construction, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Suspension Fork
Lab71 SuperX, Series 0 carbon construction, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Drivetrain

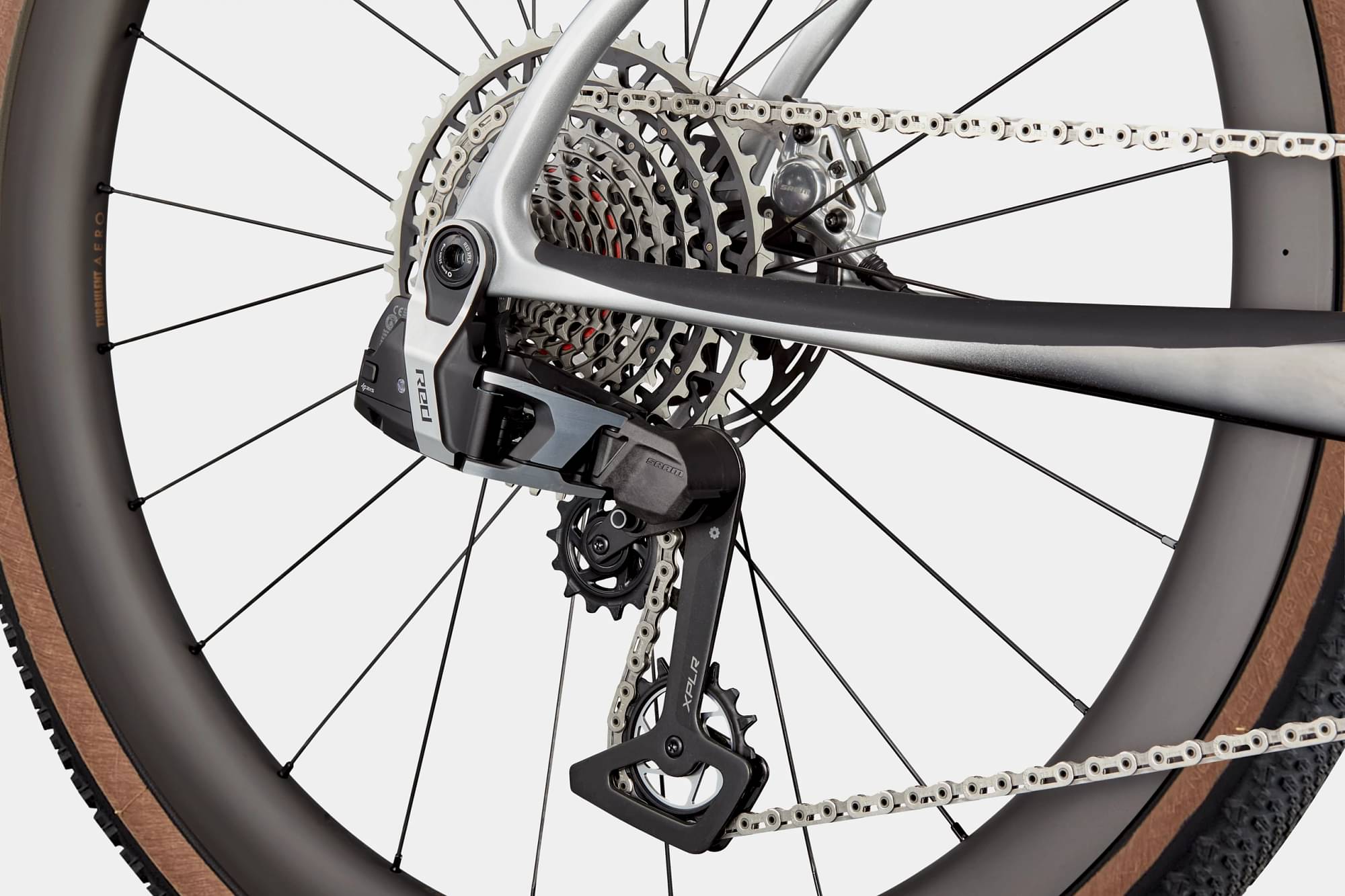

Rear Derailleur
SRAM RED XPLR AXS
Shift Levers
SRAM RED AXS, 13-speed
Cassette
SRAM RED XPLR, 10-46, 13-speed

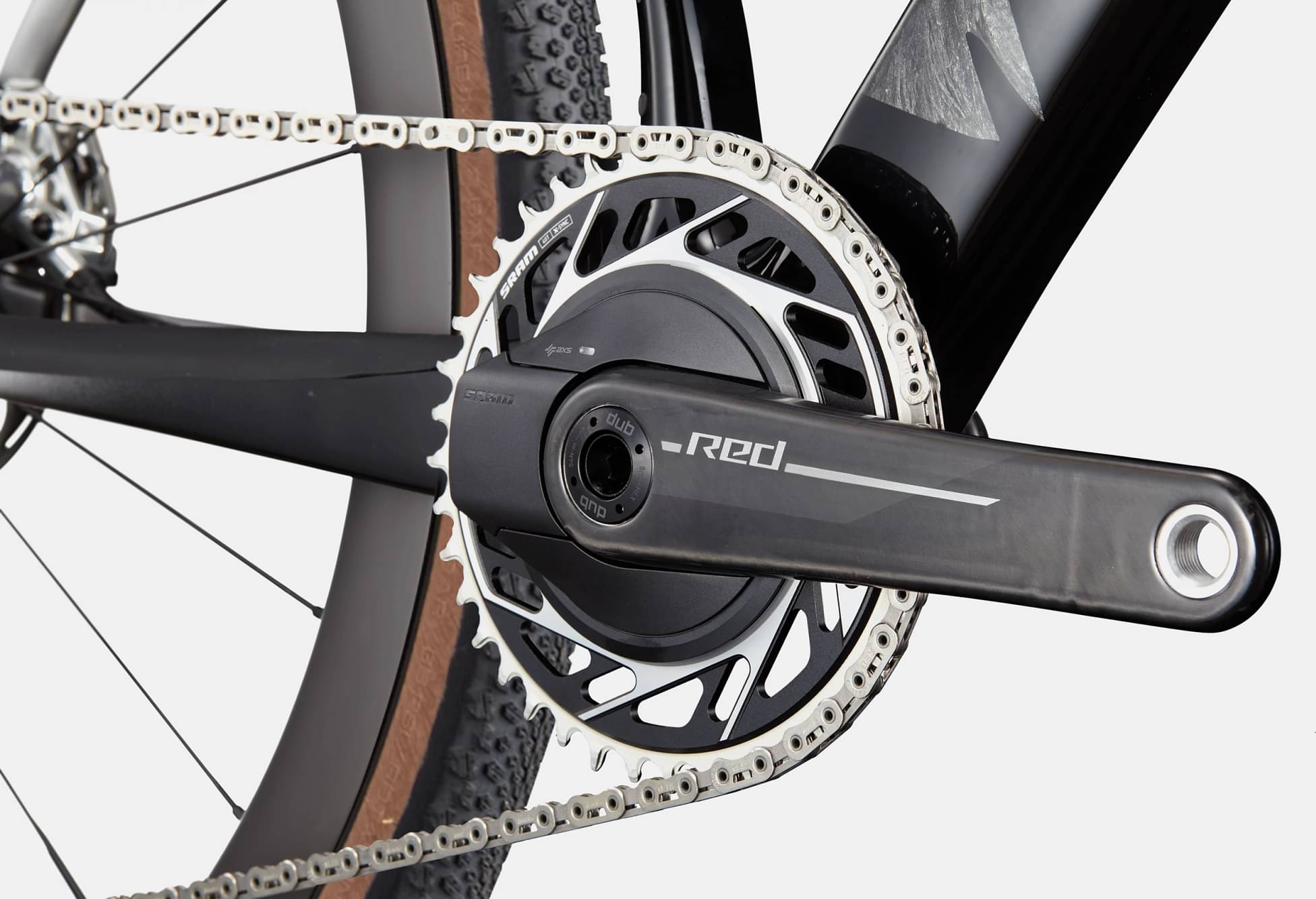

Crank
SRAM RED XPLR AXS Power Meter, 40T
Bottom Bracket
CeramicSpeed DUB BSA
Chain
SRAM RED, 13-speed
Pedals
Not included
Wheels
Front Hub
DT Swiss 180, 12x100mm centerlock
Rear Hub
DT Swiss 180, 12x142mm centerlock
Rims
Reserve 40|44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready
Spokes
Sapim CX-Ray Aero straight pull
Tires
Vittoria Terreno T50, 700x40c, tubeless ready
Brakes
Brakes
SRAM RED AXS, Paceline X 160/160mm rotors
Brake Levers
SRAM RED AXS hydraulic disc
Cockpit
Stem

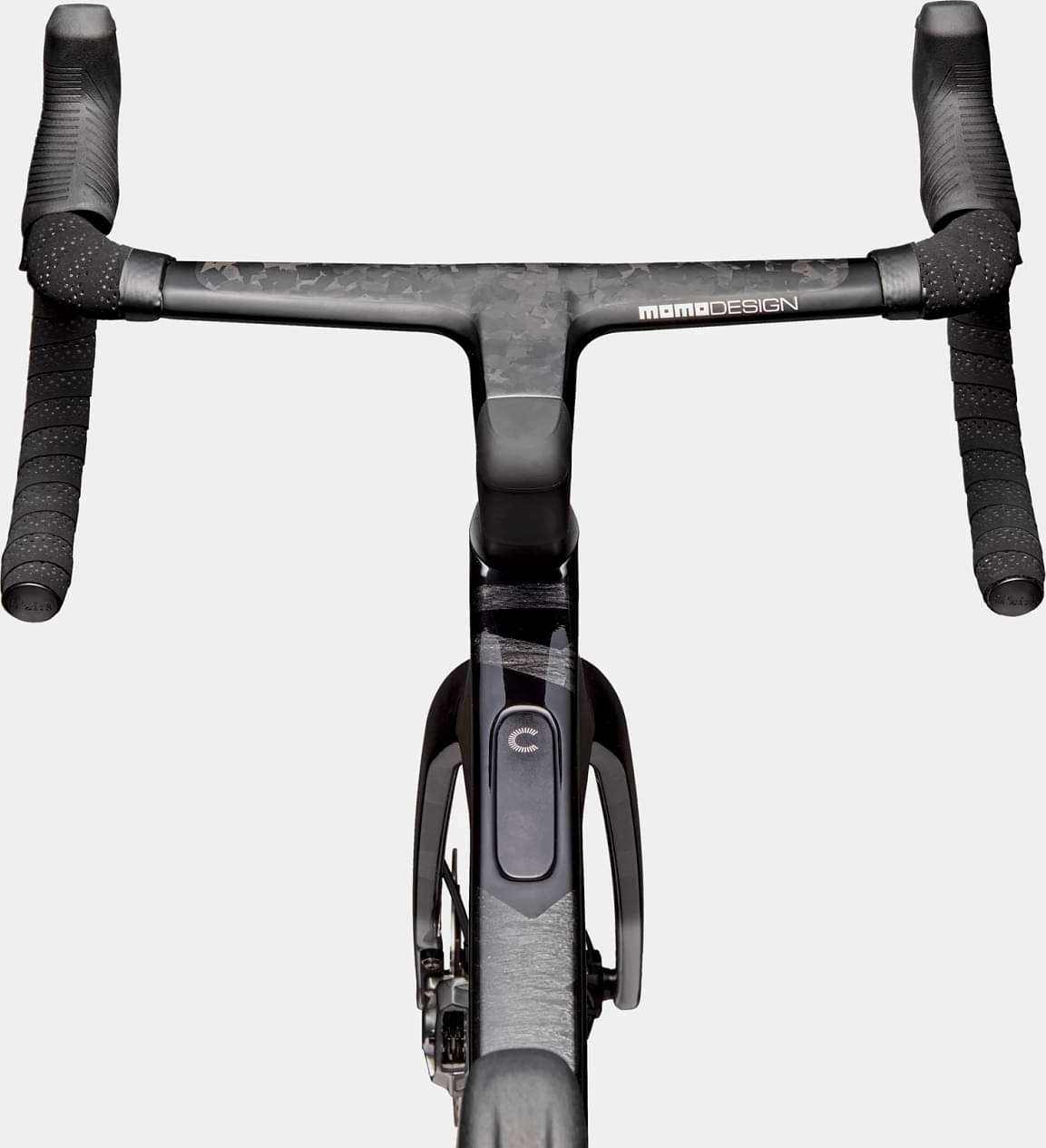

Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Handlebar
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Grips
Fizik Tempo Bondcush 3mm Soft
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Fizik Vento Antares 00, carbon rail, 140mm
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
Fit data

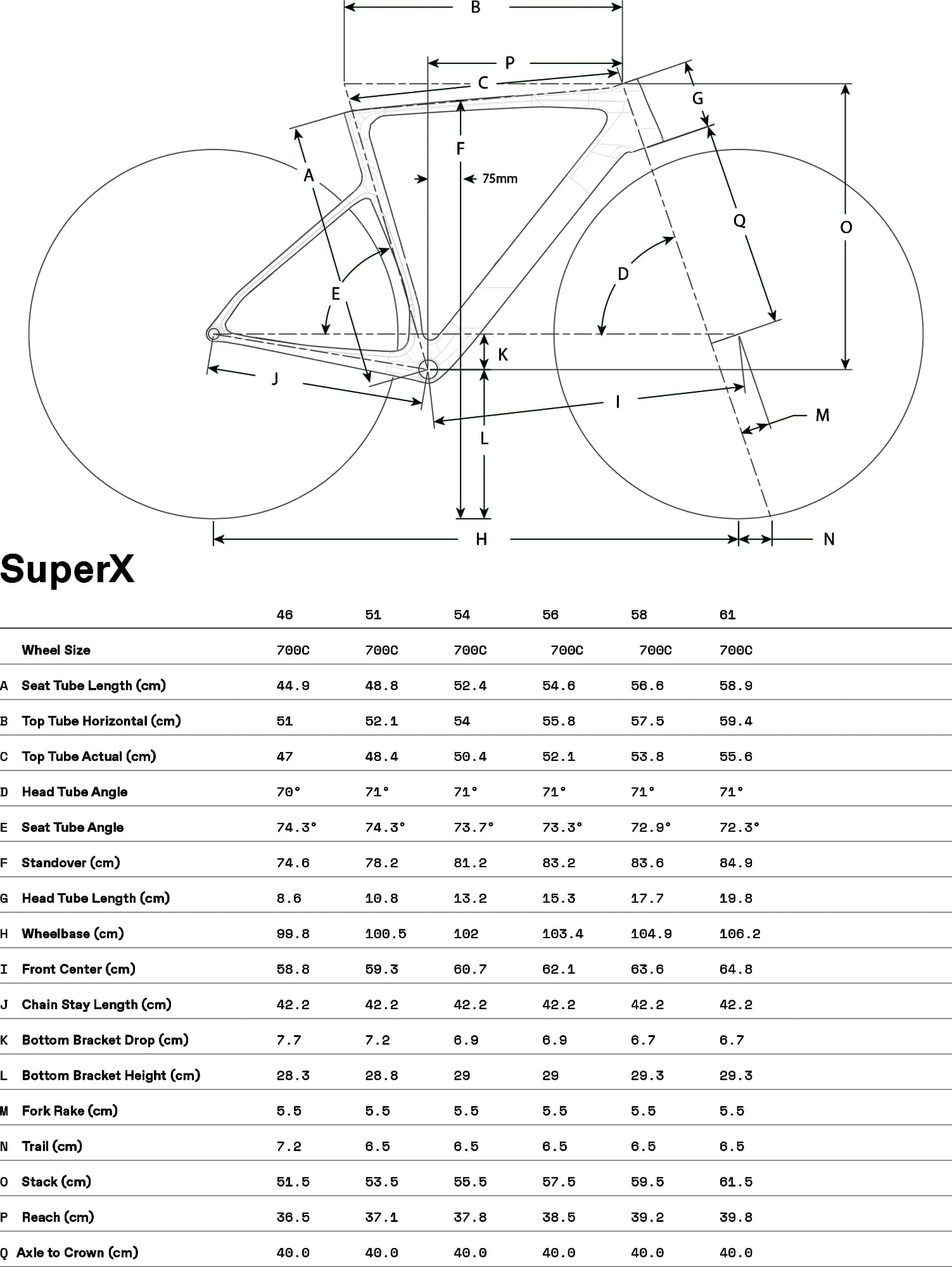

Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 165 cm | 170 cm | 177 cm | 182 cm | 190 cm |
| Rider Max Height | 162 cm | 175 cm | 180 cm | 185 cm | 193 cm | 200 cm |
