Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
44cm
152cm - 162cm
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight SmartForm C2 Alloy, SmartSense compatible, BSA threaded BB, internal cable routing, flat mount, 142x12 thru-axle, removable fender bridge, hidden rack/fender mounts
Suspension Fork
Synapse Carbon, integrated crown race, 12x100mm thru-axle, internal routing, flat mount brake, fender mounts
Drivetrain
Rear Derailleur
Shimano Sora GS
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora, 9-speed
Cassette
Shimano Sora, 11-34, 9-speed
Crank
FSA Vero Compact, 50/34
Bottom Bracket
FSA Cartridge
Chain
KMC Z9, 9-speed
Pedals
Wellgo w/ Clip and Strap
Wheels
Front Hub
(F) Formula RX-512, 12x100mm centerlock / (R) Formula RX-142, 12x142mm centerlock
Rear Hub
(F) Formula RX-512, 12x100mm centerlock / (R) Formula RX-142, 12x142mm centerlock
Rims
RD 3.1, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro, 700x30c
Brakes
Brakes
Promax Decoder R mechanical disc, 160/160mm rotors
Brake Levers
Shimano Sora
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 4, 6061 Alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4"
Seat
Saddle
Cannondale Stage CX
Seatpost
Cannondale 4, 6061 Alloy, 27.2x350mm
Fit data

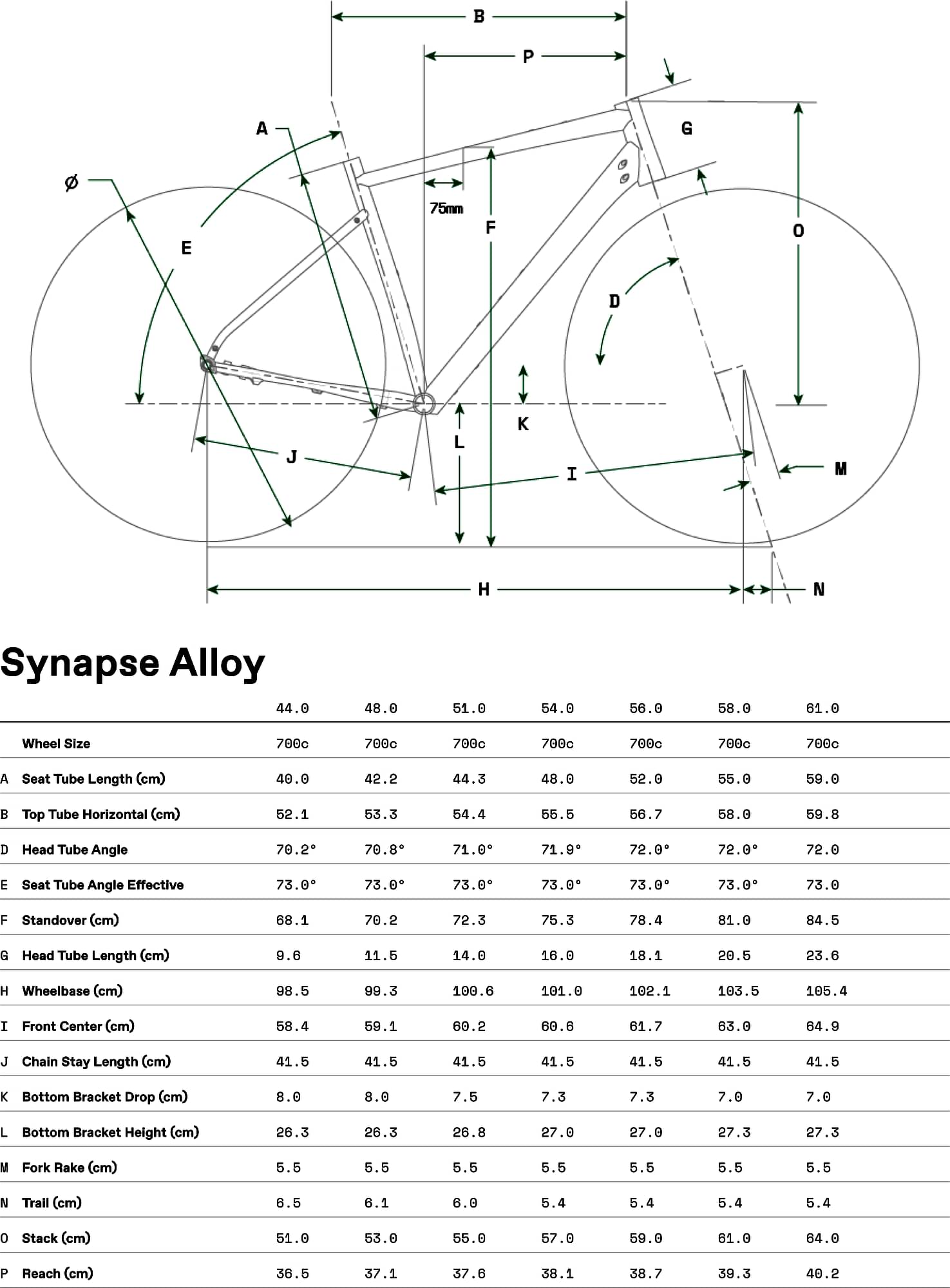

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 162 cm | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
