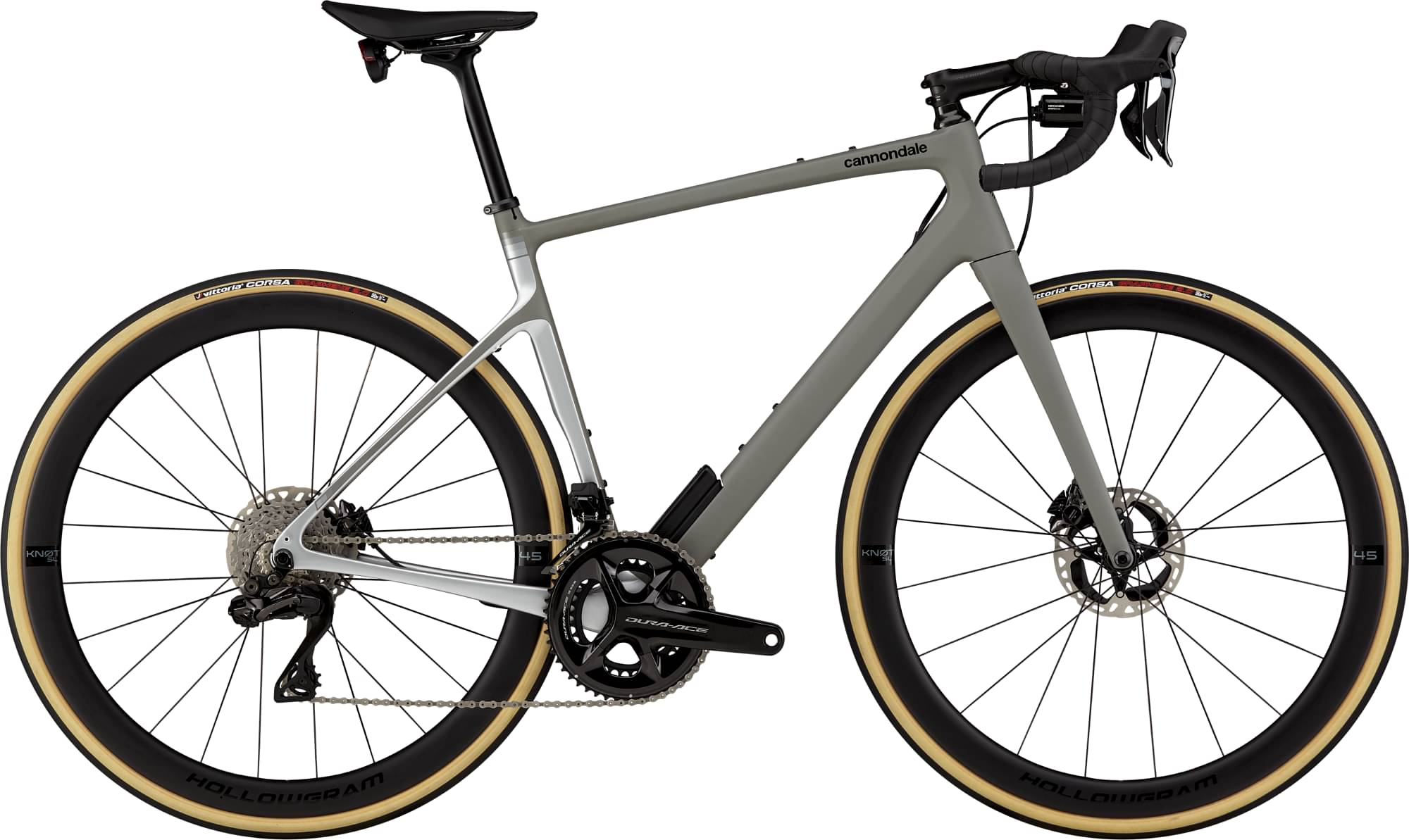

Cannondale Synapse Carbon 1 RLE 2024
2024 Road
Estimate price |
10,321$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Suspension Fork
Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250
Front Derailleur
Shimano Dura-Ace Di2 R9250, braze-on
Shift Levers
Shimano Dura-Ace Di2 R9270 hydraulic disc, wireless, 2x12
Cassette
Shimano Dura-Ace R9100, 11-34, 12-speed
Crank
Shimano Dura-Ace R9200, 50/34
Bottom Bracket
Shimano Dura-Ace R9100 BSA
Chain
Shimano Dura-Ace R9100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 240 internals
Rear Hub
(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 240 internals
Rims
HollowGram 45 SL KNØT, Carbon, 20h front, 24h rear, 45mm deep, 21mm inner width, tubeless ready
Spokes
DT Swiss Aerolite, straight-pull
Tires
Vittoria Corsa tan wall, 700x30c
Brakes
Brakes
Shimano Dura-Ace Di2 R9270 hydraulic disc, 160/160mm RT900 rotors
Brake Levers
Shimano Dura-Ace Di2 R9270 hydraulic disc
Cockpit
Stem
HollowGram SAVE, Alloy, -6°
Handlebar
HollowGram SAVE SystemBar, Carbon, 8 deg. pitch adjust
Grips
Fabric Knurl Bar Tape
Headset
Synapse Carbon Sealed Bearing, integrated, 1-1/4"-1-1/8"
Seat
Saddle
Fizik Tempo Argo R3, 150mm width, K:ium rails
Seatpost
HollowGram SAVE Carbon SmartSense, 27.2x350mm (48-56), 400mm (58-61)
Fit data

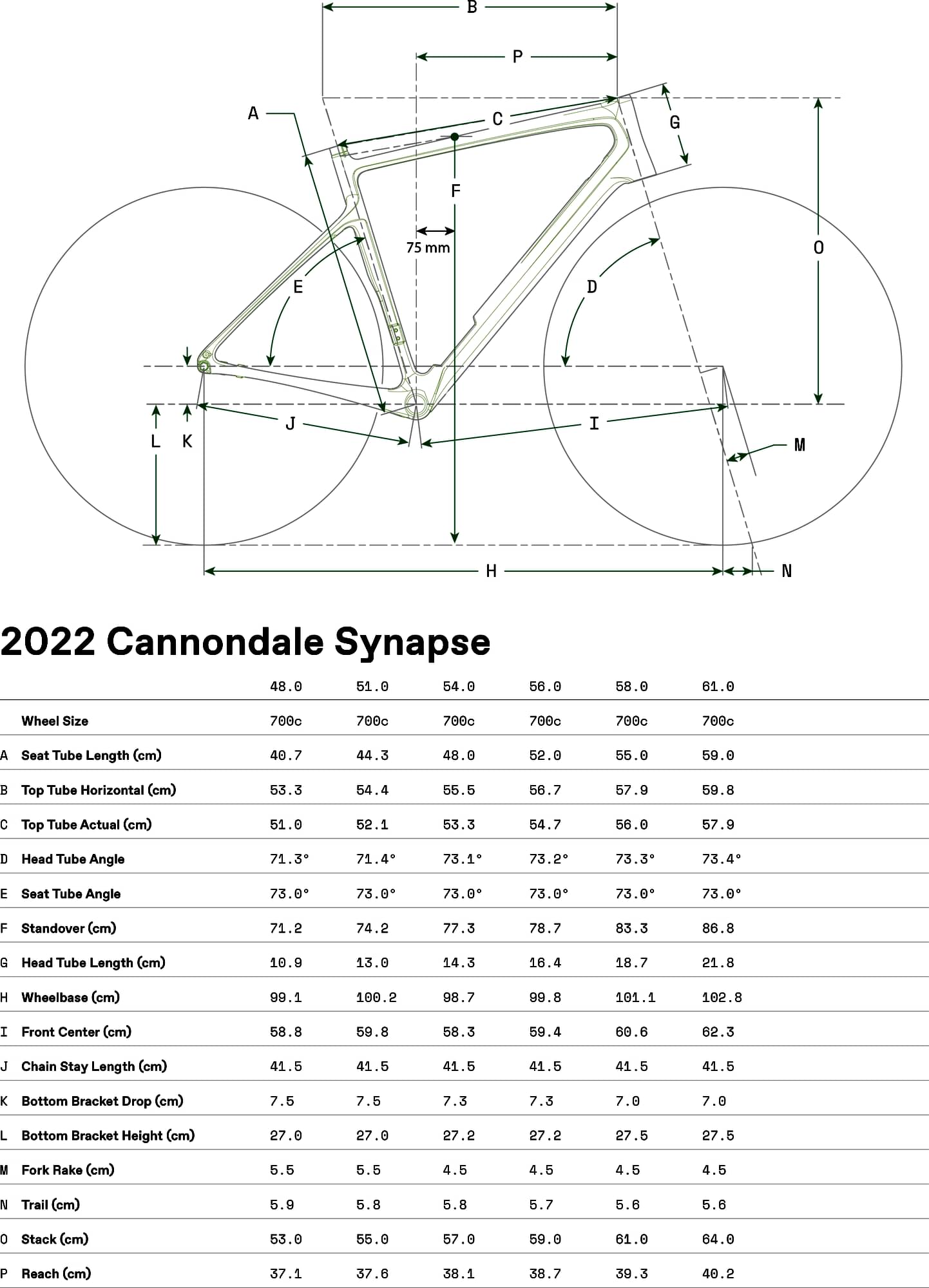

Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
