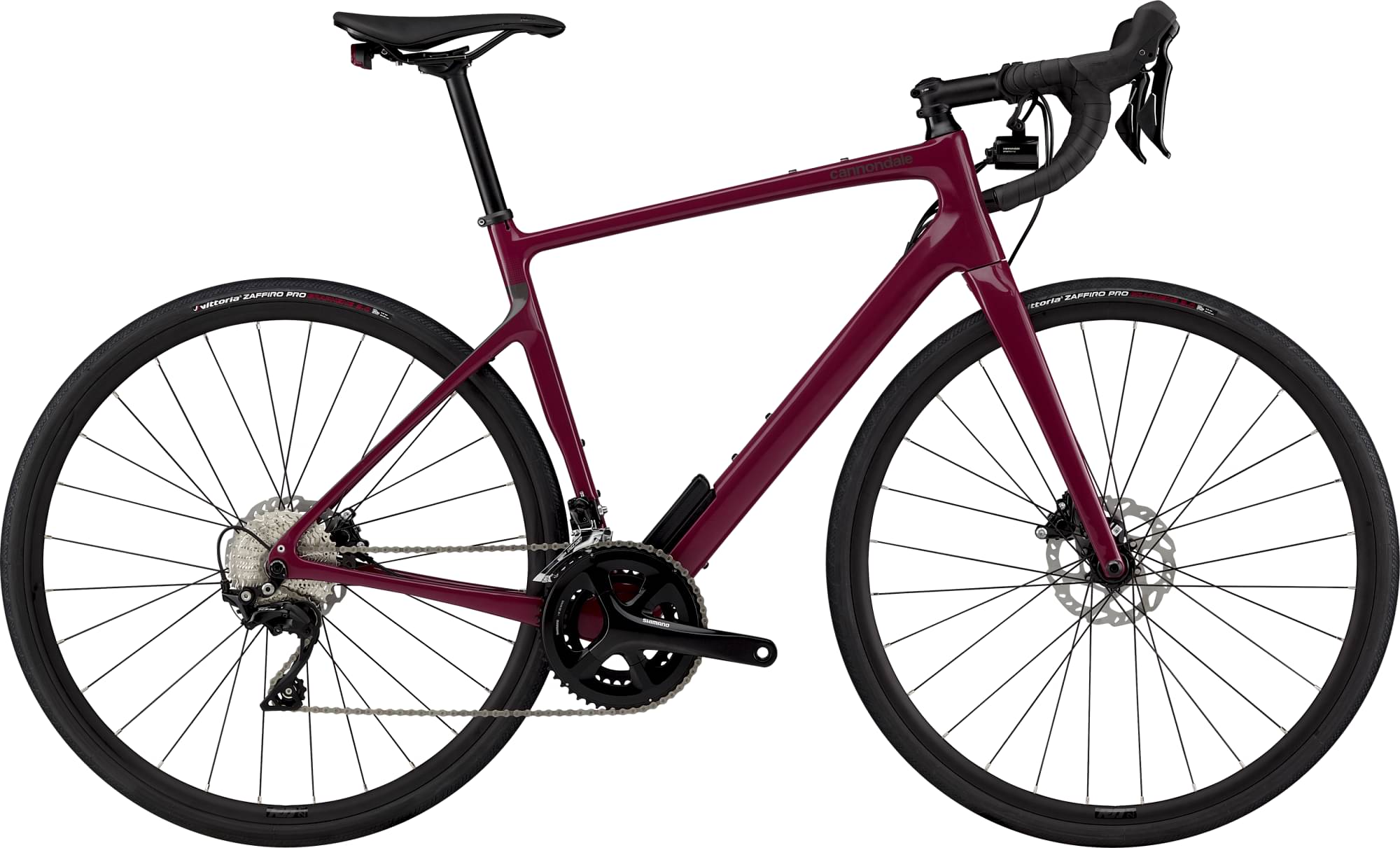

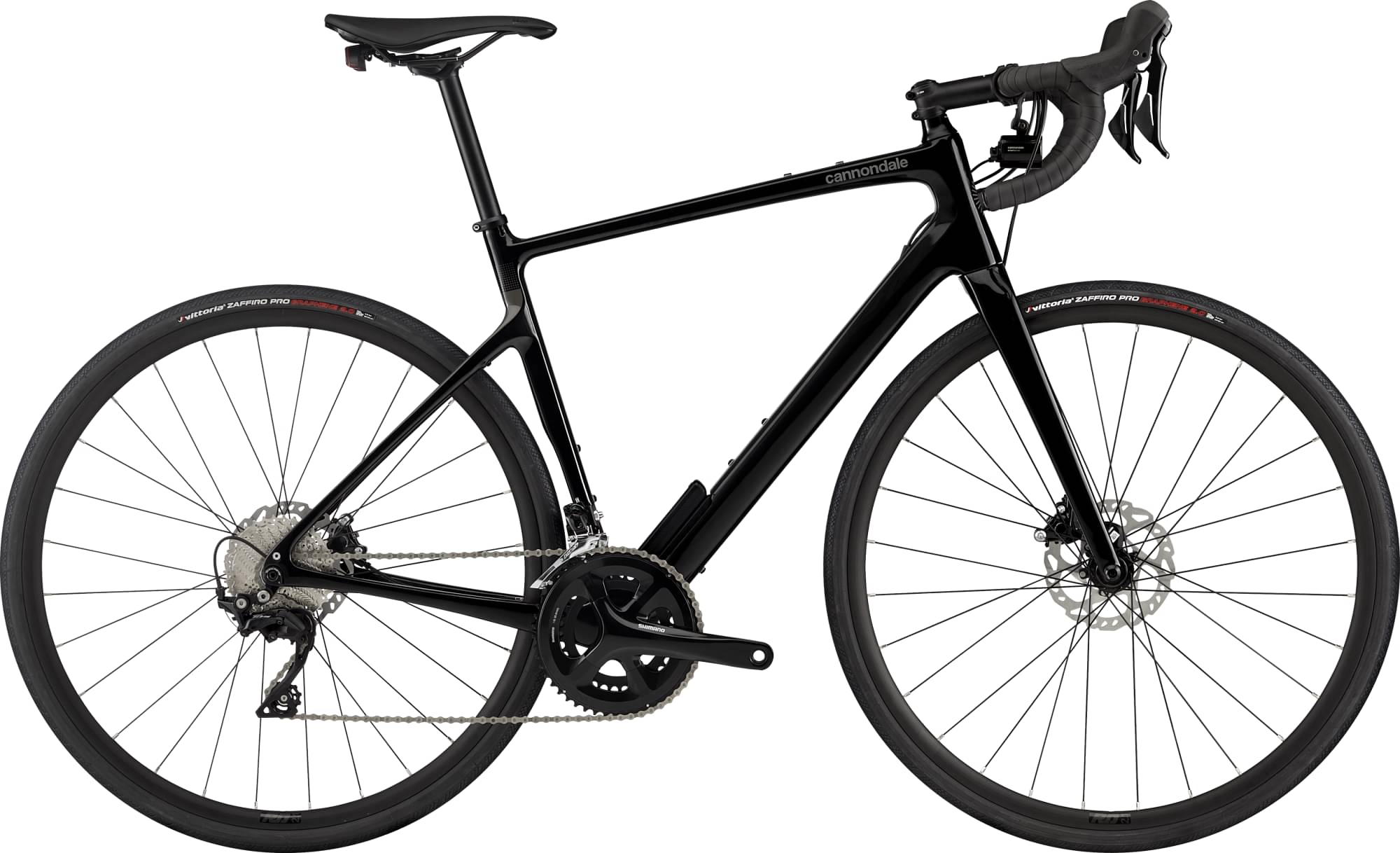

Cannondale Synapse Carbon 3 L 2024
2024 Road
Estimate price |
3,325$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Suspension Fork
Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105 hydraulic disc, 11-speed
Cassette
Shimano 105 11-34, 11-speed
Crank
Shimano RS510, BSA, 50/34
Bottom Bracket
Shimano BSA
Chain
Shimano HG701, 11-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Rear Hub
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Rims
RD 2.1, 28h, 21mm inner width
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro Pro Reflective, 700x30c
Brakes
Brakes
Shimano 105 hydraulic disc, 160/160mm RT70 rotors
Brake Levers
Shimano 105 hydraulic
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, 6061 Alloy, Compact
Grips
Fabric Knurl Bar Tape
Headset
Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3 SmartSense, 6061 Alloy, 27.2x350mm (48-56), 400mm (58-61)
Fit data

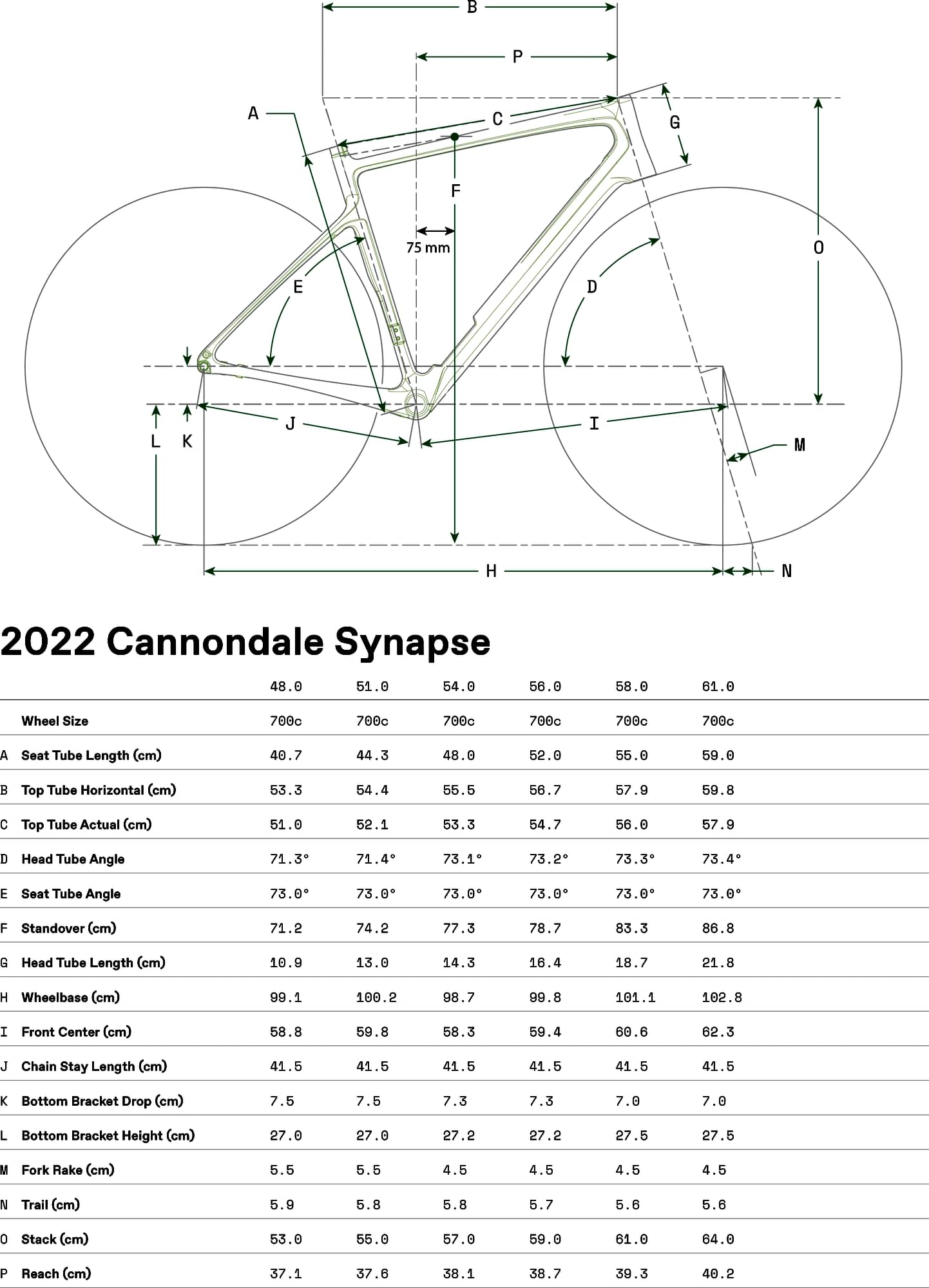

Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
