Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
44cm
152cm - 162cm
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

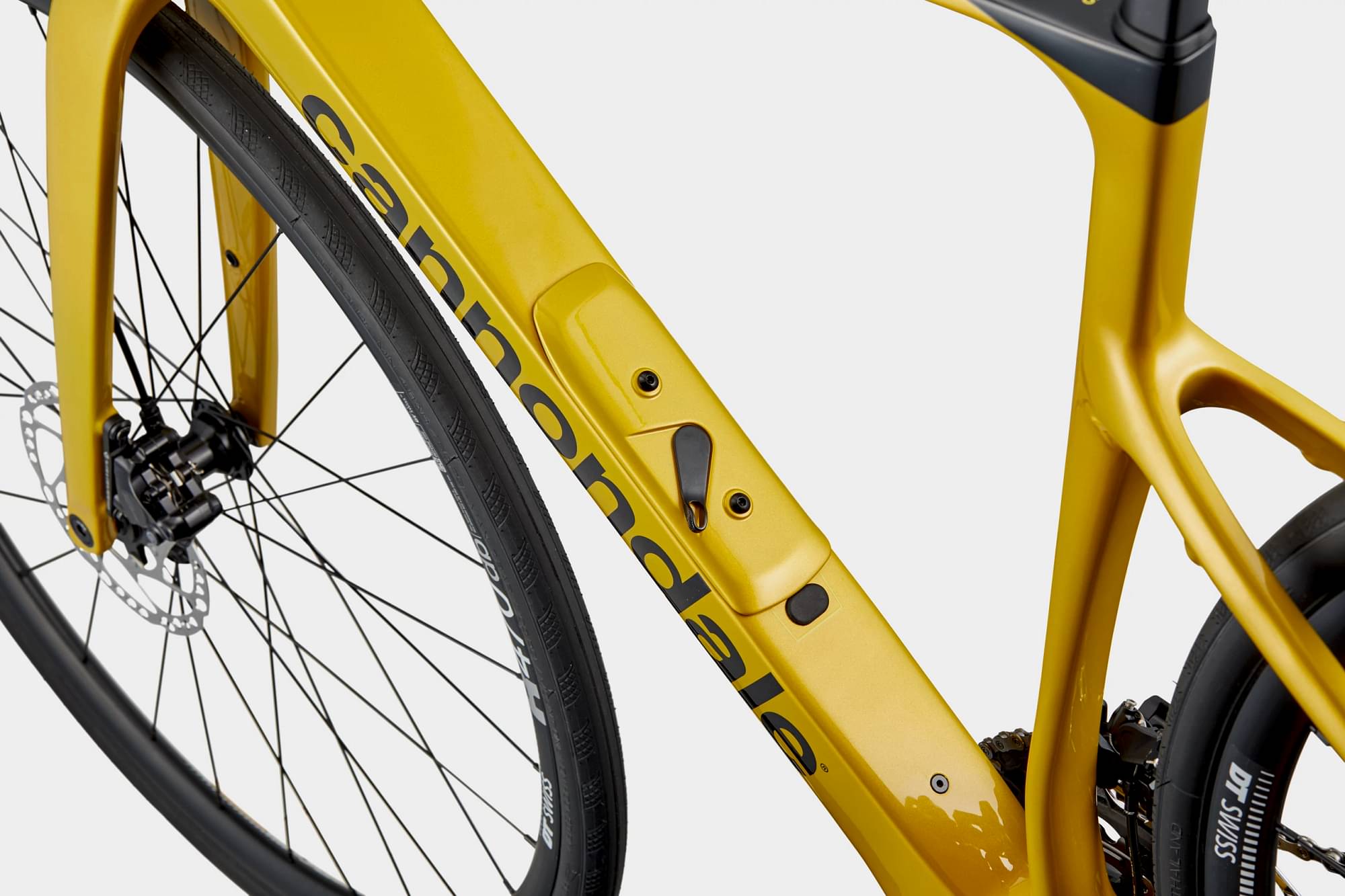

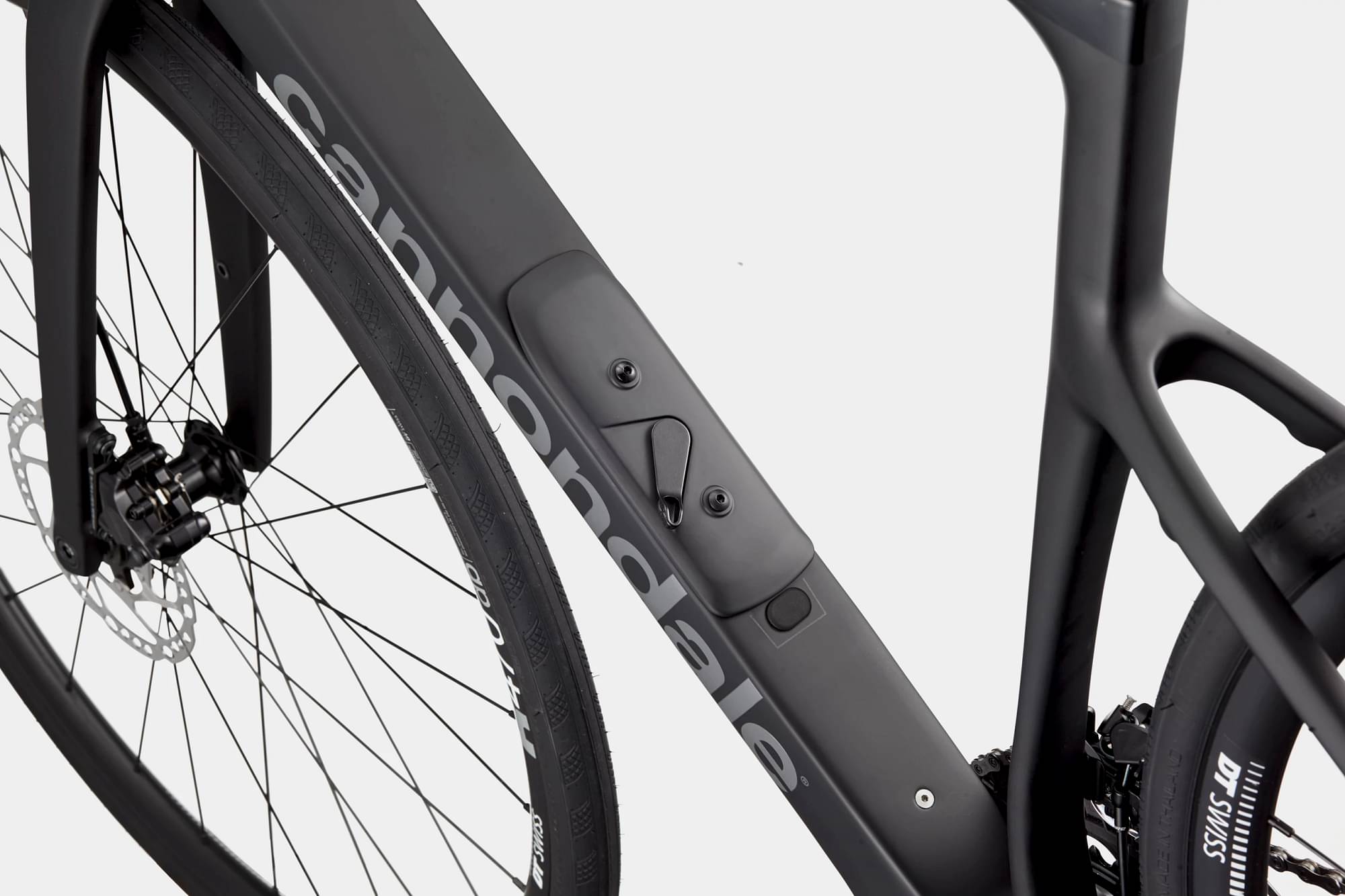

Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
Suspension Fork
Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
Drivetrain

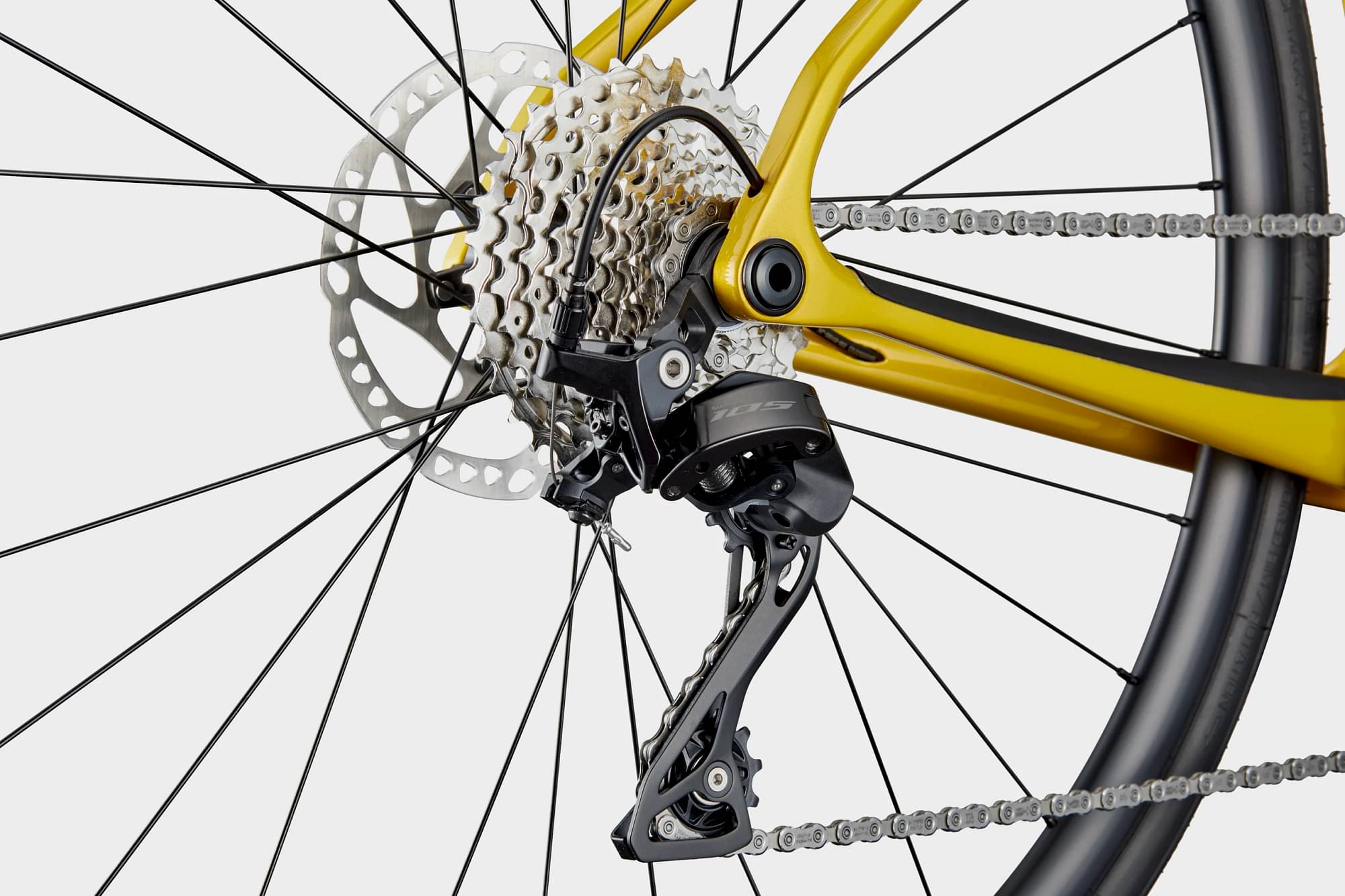

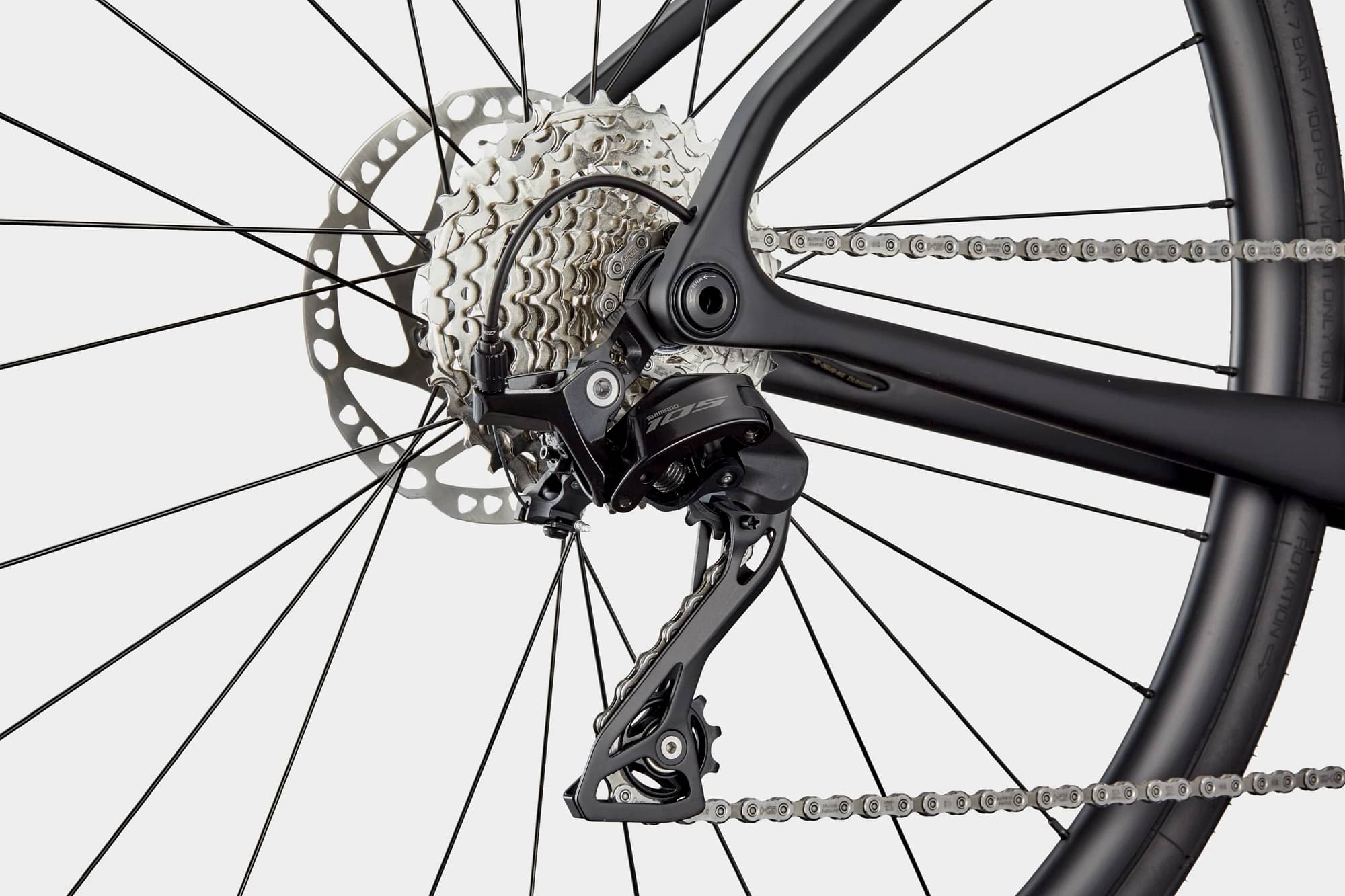

Rear Derailleur
Shimano 105 7100
Front Derailleur
Shimano 105 7100, braze-on
Shift Levers
Shimano 105 7100, 12-speed
Cassette
Shimano 105 7100, 11-36, 12-speed

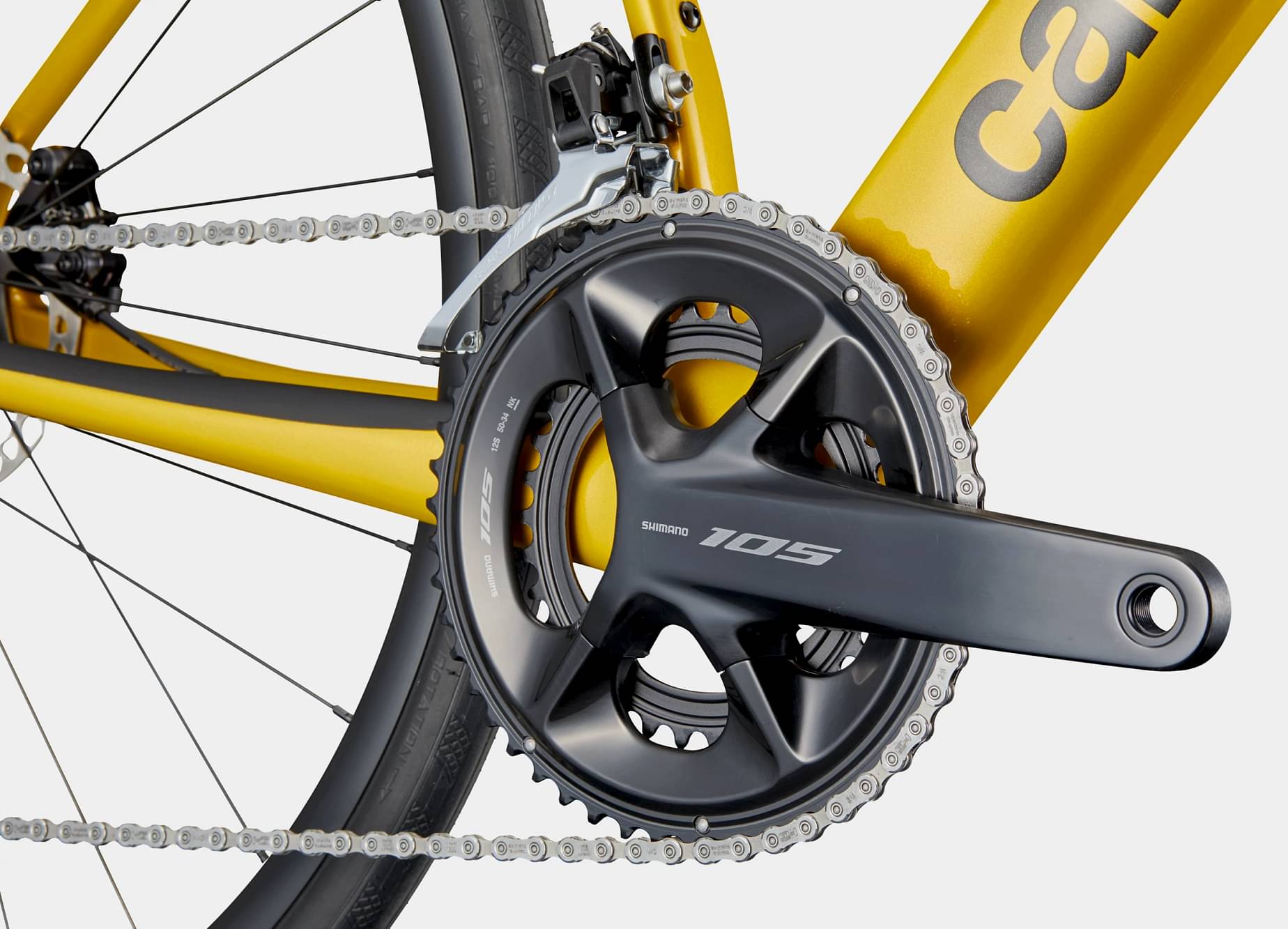

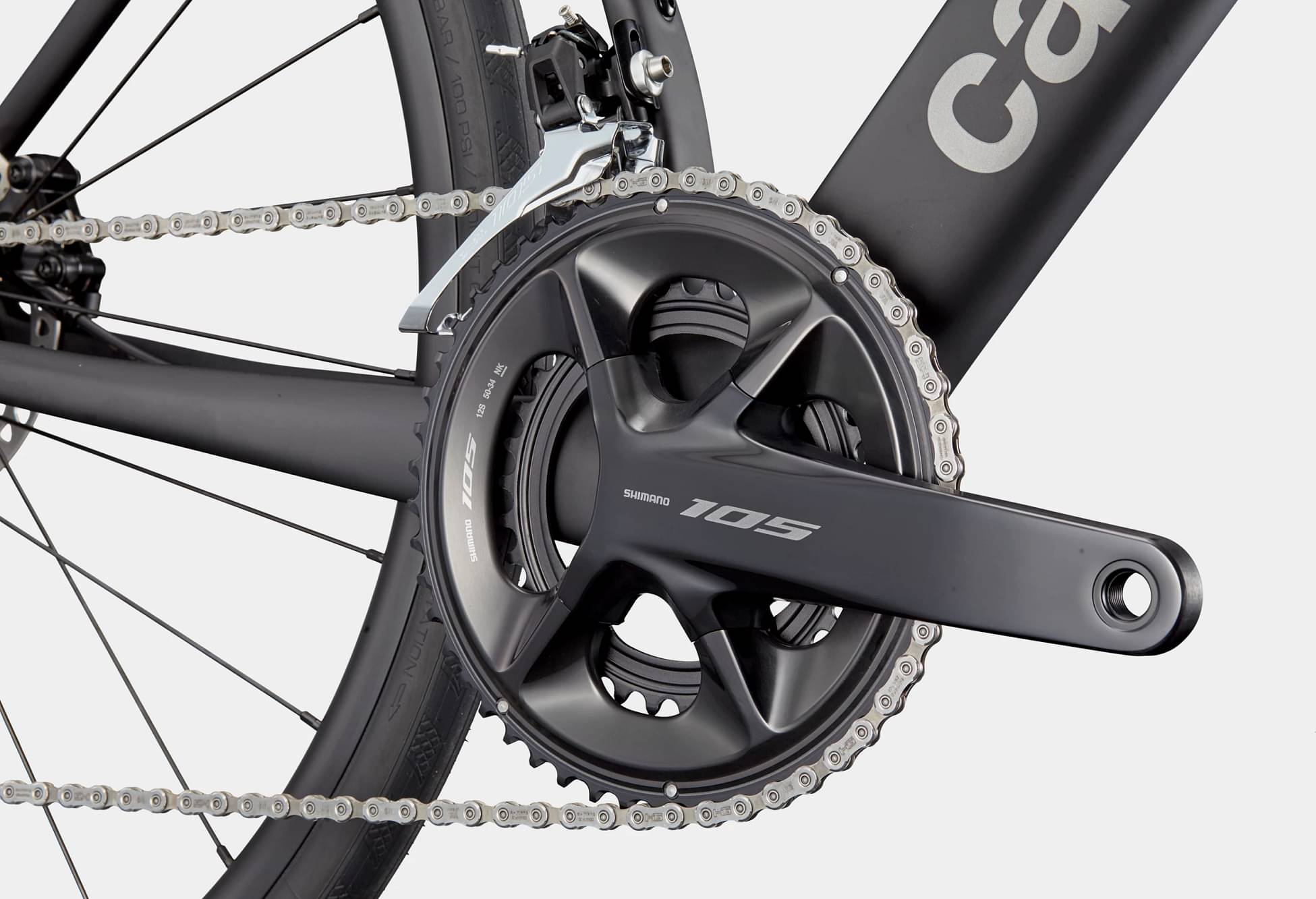

Crank
Shimano 105 7100, BSA, 50/35
Bottom Bracket
Shimano BSA 68
Chain
Shimano 105 7100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock
Rear Hub
(F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock
Rims
DT Swiss R470 DB, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro Pro V, 700x32c
Brakes
Brakes
Shimano 105 7170 hydraulic disc, 160/160 RT64 centerlock rotors
Brake Levers
Shimano 105 7120 hydraulic disc
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, -6°
Handlebar
Vision Trimax Compact TT Alloy
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/2"
Seat
Saddle
Fizik Terra Argo X7, 150mm
Seatpost
HollowGram 27, Alloy, 2 bolt clamp, 330mm, 15mm offset
Fit data

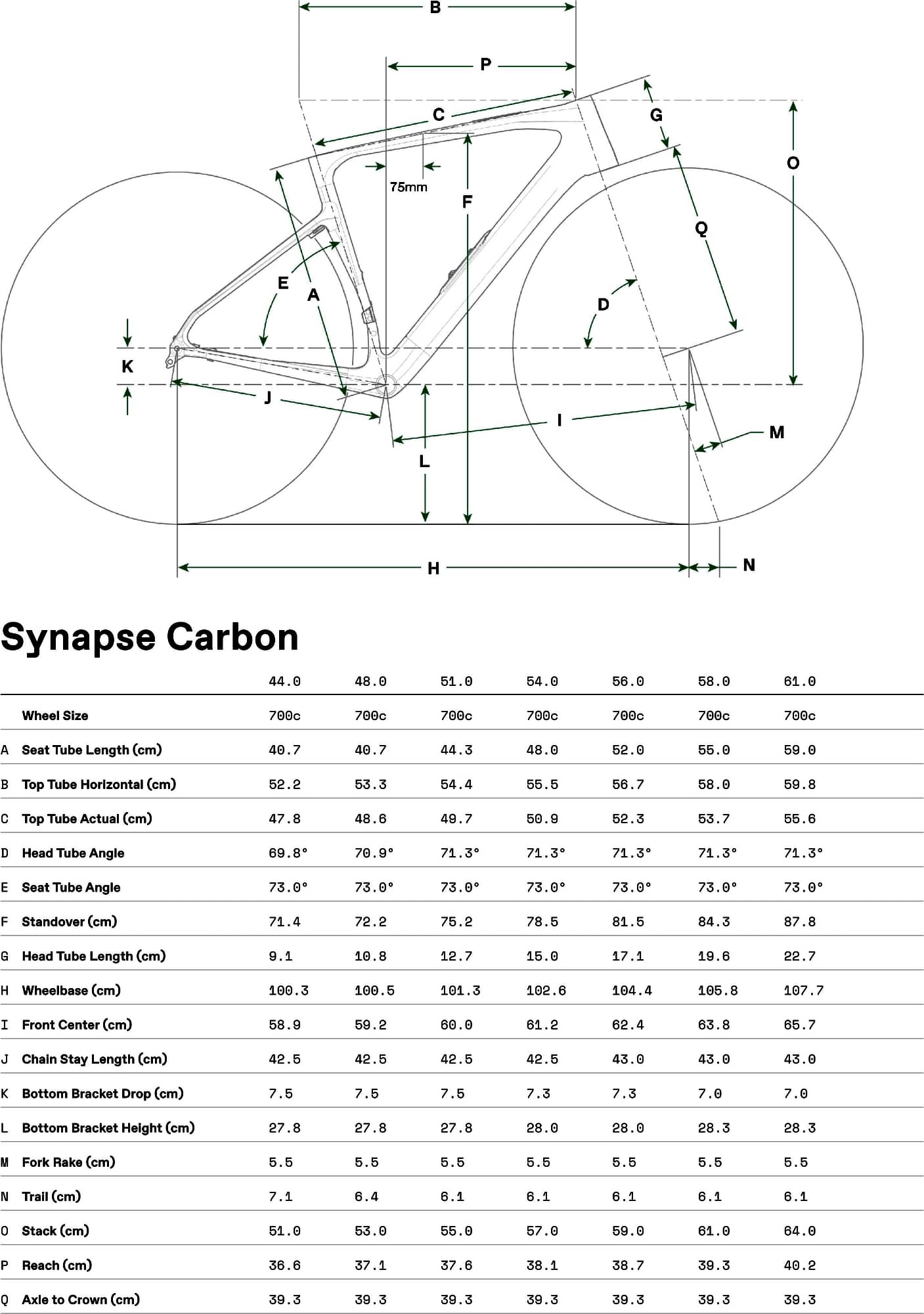

Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 162 cm | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
