Cannondale Synapse LAB71 SmartSense 2025
2025 Road
Estimate price |
16,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Drivetrain 1 × 13 Electronic -
Brakes SRAM RED Hydraulic Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

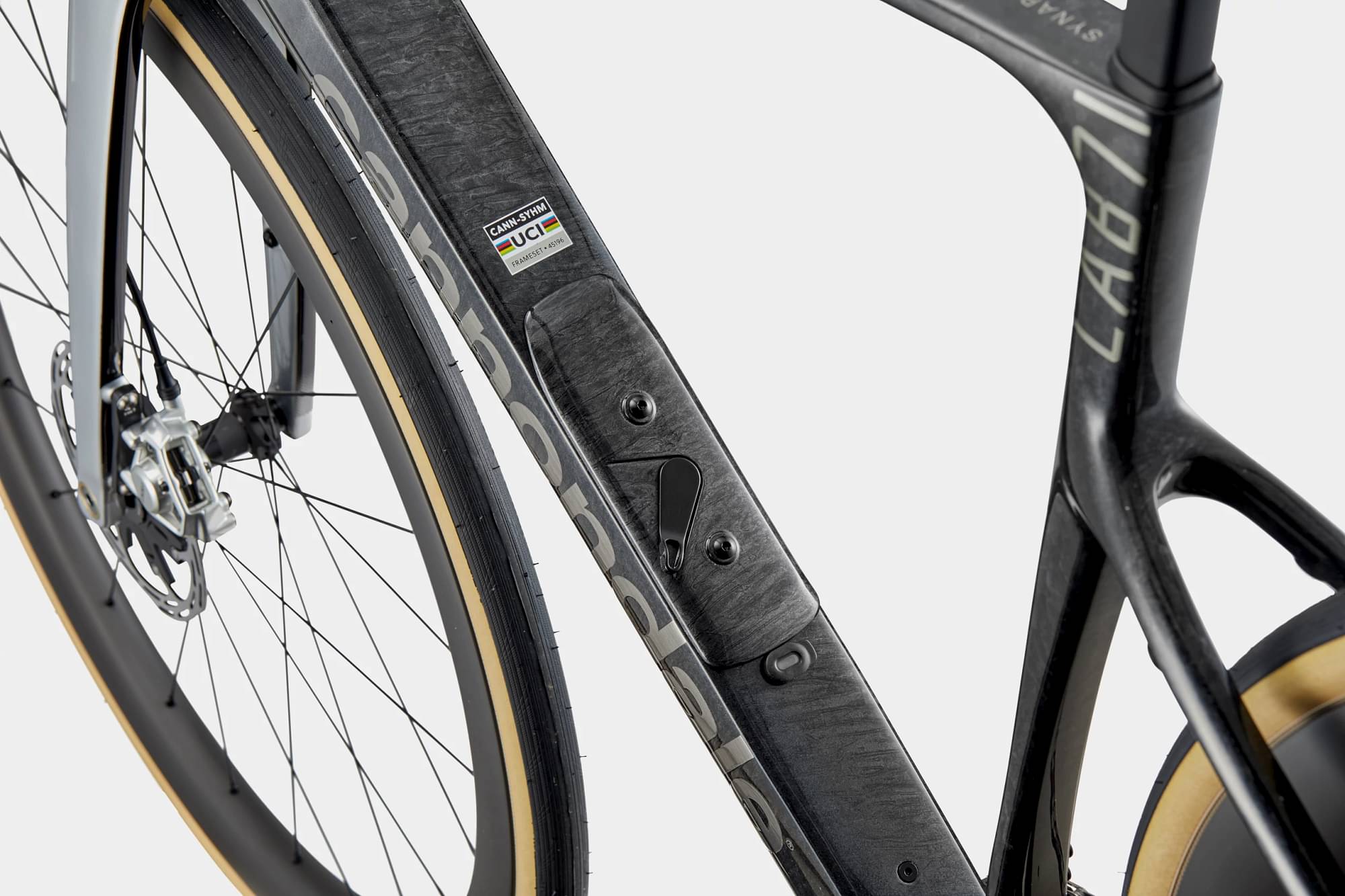

LAB71 Synapse Hi-MOD Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 equipped, fender mounts
Suspension Fork
Lab71 Synapse Hi-MOD Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
Drivetrain

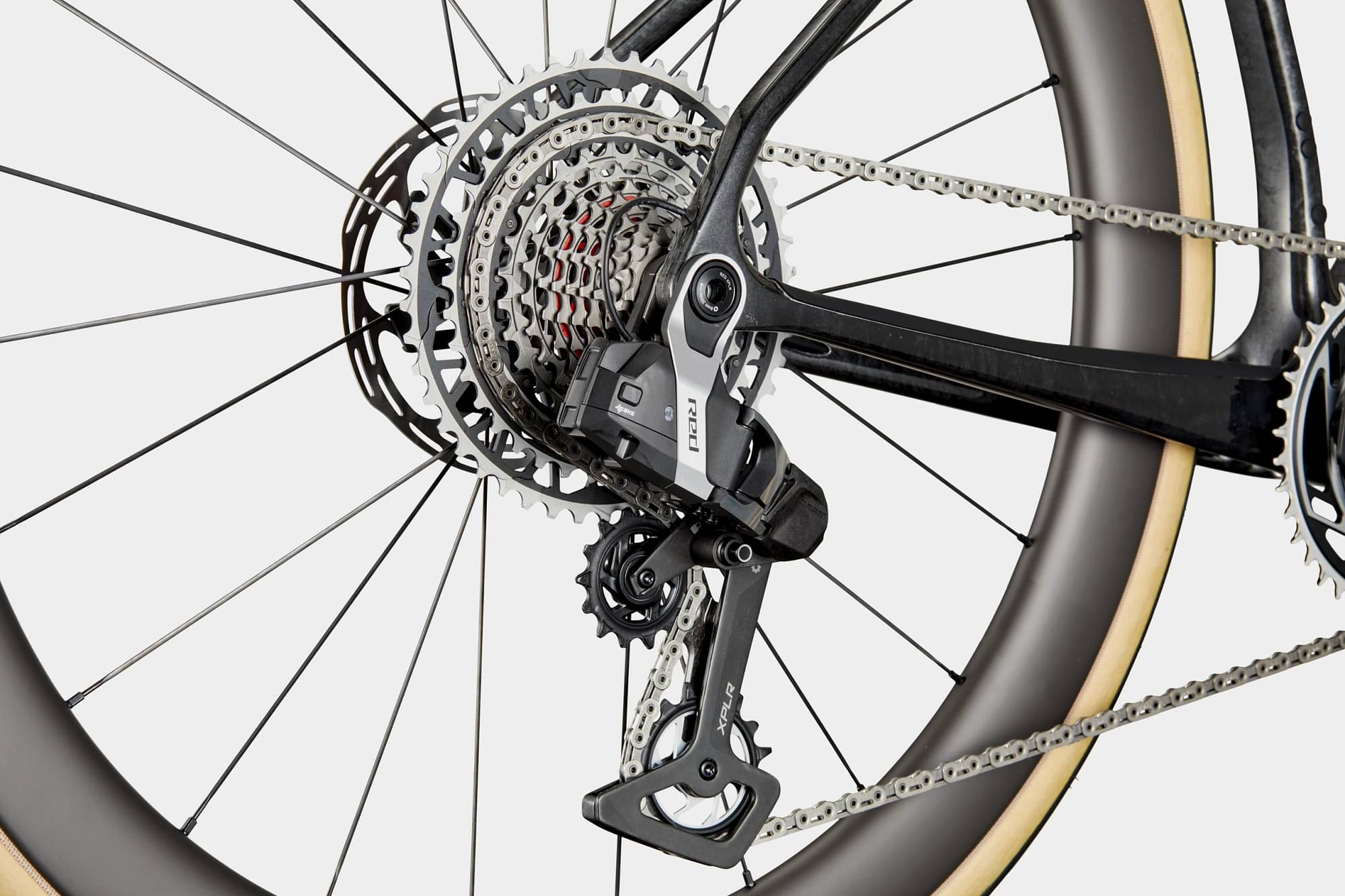

Rear Derailleur
SRAM RED XPLR AXS, 13-speed
Shift Levers
SRAM RED AXS, 13-speed
Cassette
SRAM XPLR XG-1391, 10-46, 13-speed

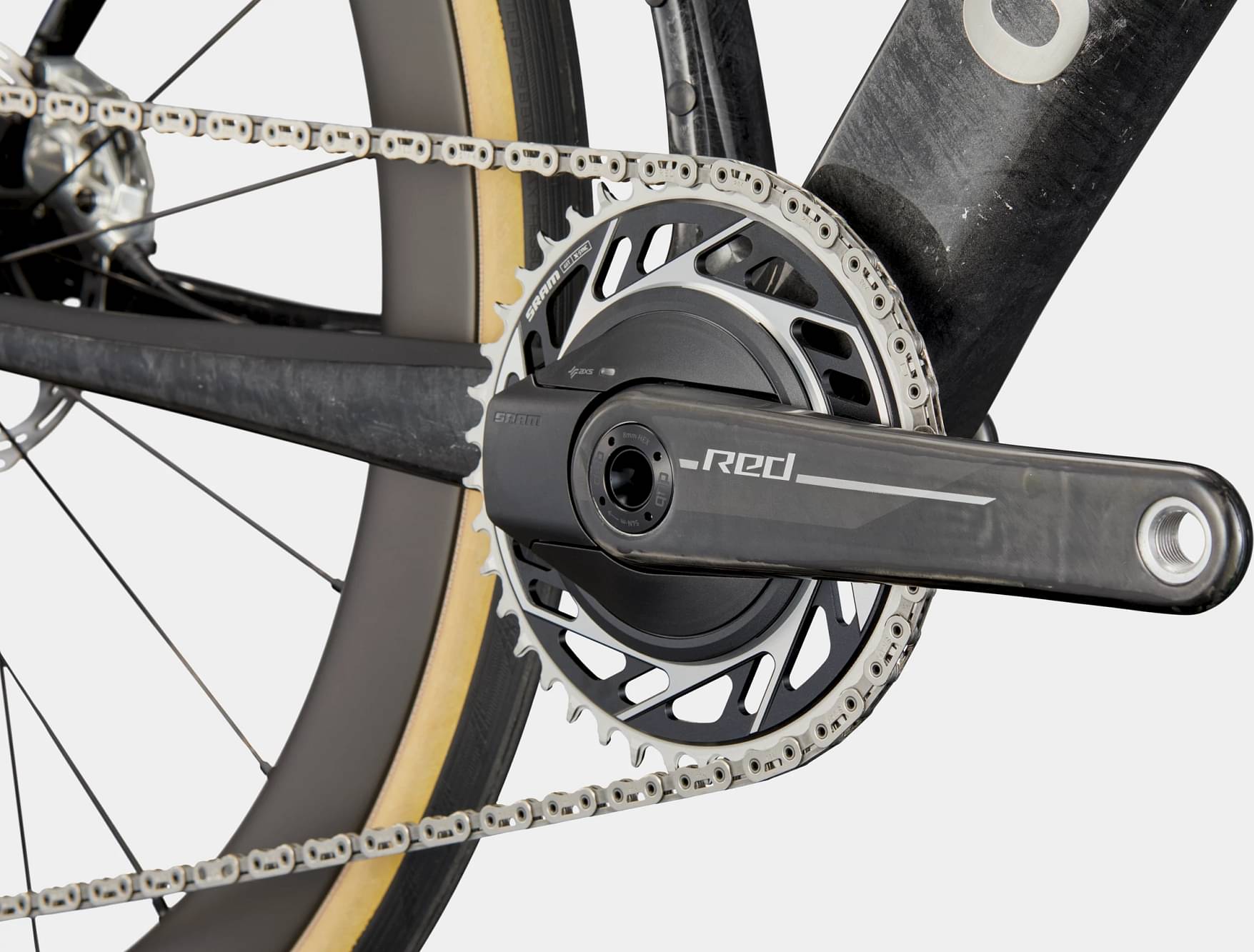

Crank
SRAM RED AXS Power Meter, 44T
Bottom Bracket
CeramicSpeed BSA for SRAM, Coated Version
Chain
SRAM RED, 13-speed
Pedals
Not included
Wheels
Front Hub
(F) DT Swiss 180, 12x100mm centerlock / (R) DT Swiss 180, 12x142mm centerlock
Rear Hub
(F) DT Swiss 180, 12x100mm centerlock / (R) DT Swiss 180, 12x142mm centerlock
Rims
Reserve 42 | 49 Turbulent Aero, 24h, tubeless ready
Spokes
Sapim CX-Ray Aero straight pull
Tires
Vittoria Corsa PRO Control, 700x32c, tubeless ready
Brakes
Brakes
RED AXS hydraulic disc Brake, 160/160mm Paceline X centerlock rotors
Brake Levers
SRAM RED AXS hydraulic disc

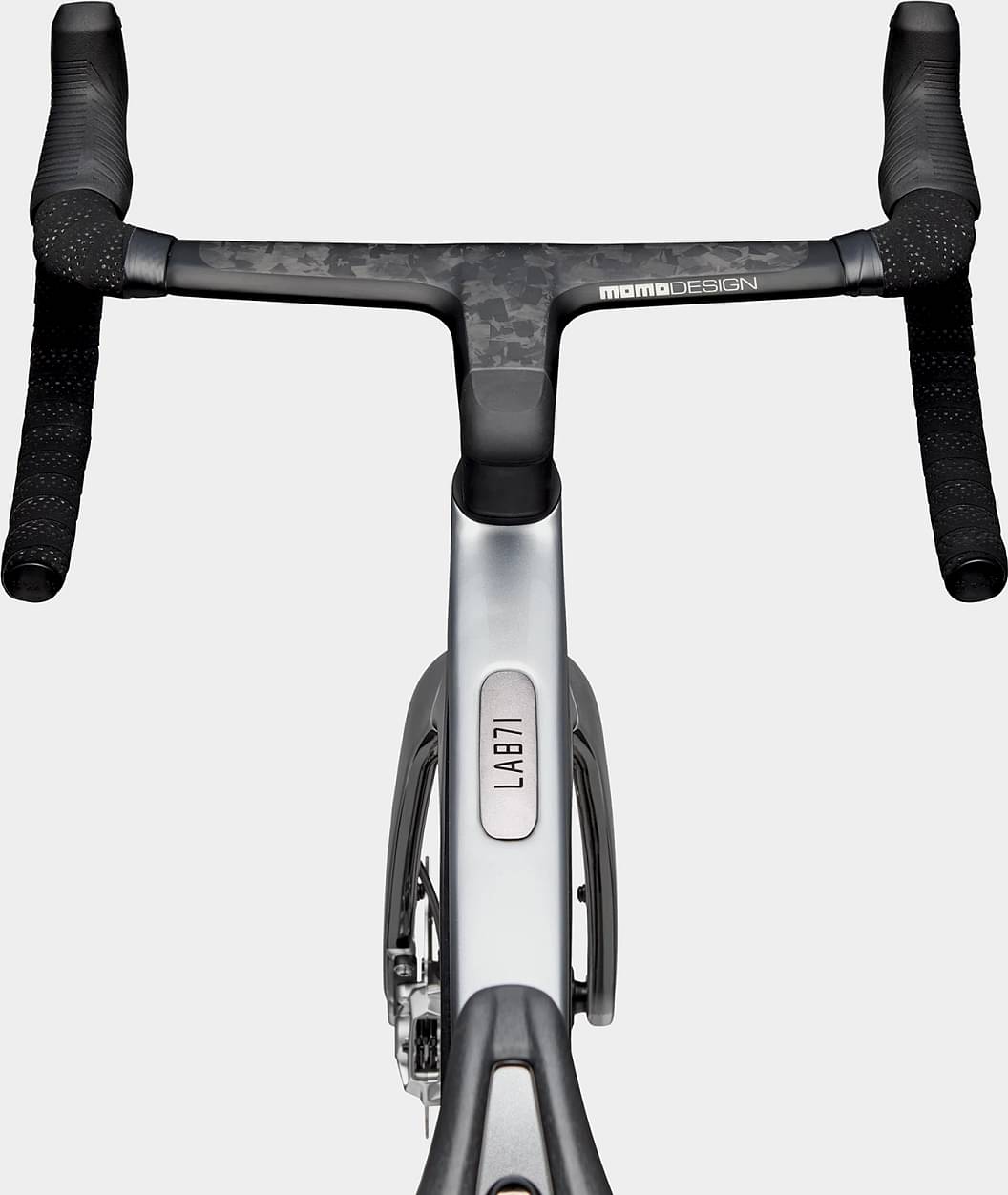

Cockpit
Stem
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Handlebar
Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
Grips
Fizik Tempo Bondcush Soft, 3mm
Headset
Integrated, 1-1/8" - 1-1/2"
Seat
Saddle
Fizik Vento Argo 00 Carbon, 140mm
Seatpost
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)

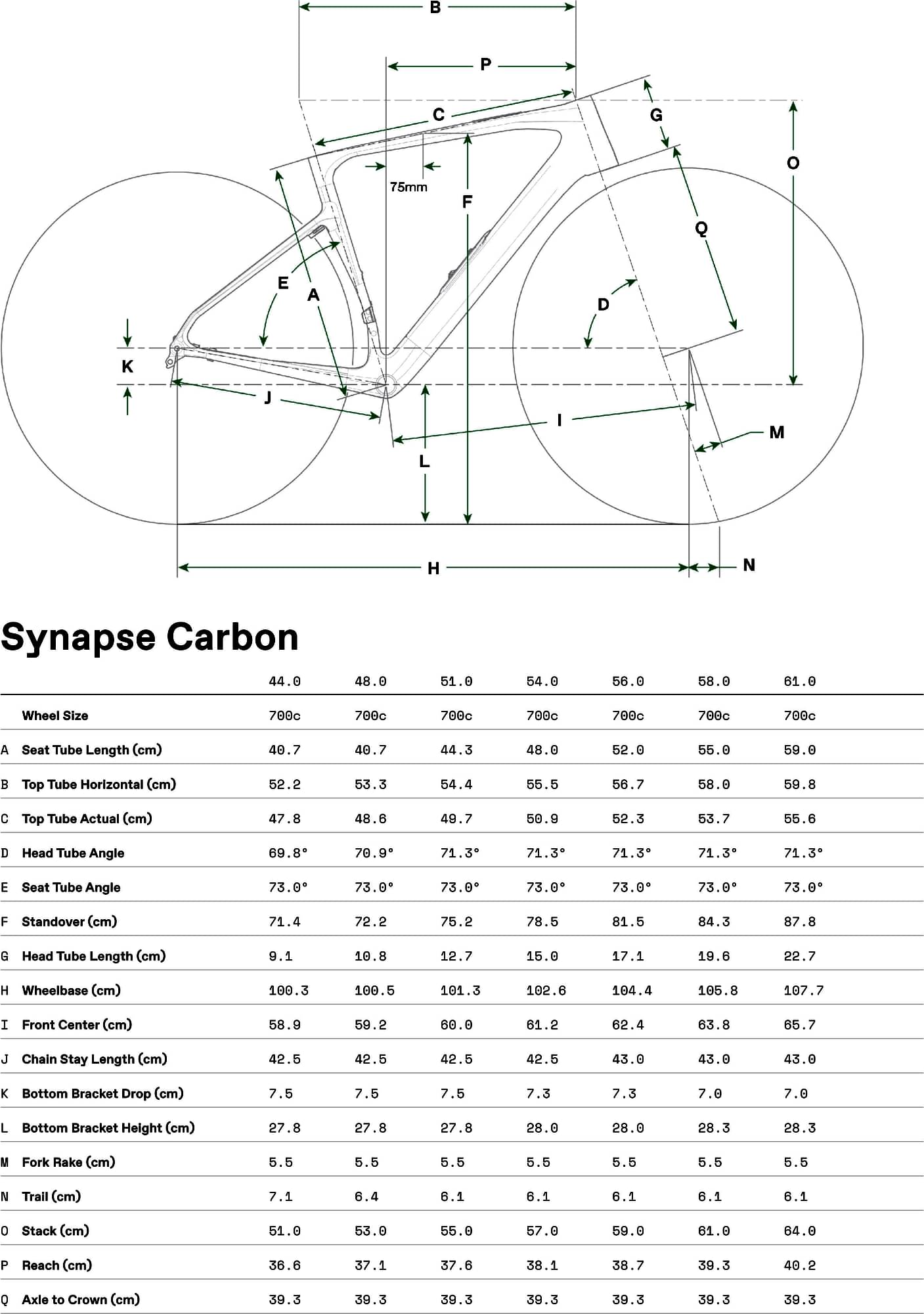

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm |
