Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
48cm
157cm - 167cm
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
175cm - 185cm
58cm
182cm - 193cm
61cm
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, BB30, internal cable routing, flat mount, 130x9mm QR
Suspension Fork
BallisTec Full Carbon, integrated crown race, SAVE, 12x100mm thru-axle, internal routing
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra, braze-on
Shift Levers
Shimano Tiagra, 10-speed
Cassette
Shimano Tiagra, 11-34, 10-speed
Crank
FSA Omega ME Alloy, 50/34
Bottom Bracket
FSA Cartridge
Chain
KMC X10EL, 10-speed
Pedals
Wellgo w/ Clip and Strap
Wheels
Front Hub
Formula CRX-512, 12x100mm
Rear Hub
Formula DC-1422 QR
Rims
RD 3.0, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Zaffiro, 700x30c
Brakes
Brakes
Promax Decoder R mechanical disc, 160/160mm rotors
Brake Levers
Shimano Tiagra
Cockpit
Stem
Cannondale 4, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 4, 6061 alloy, Compact
Grips
Cannondale Bar Tape, 3.5mm
Headset
FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8"
Seat
Saddle
Cannondale Stage Ergo
Seatpost
Cannondale 4, 6061 Alloy, 25.4x300mm (48-51), 350mm (54-56), 400mm (58-61)
Fit data

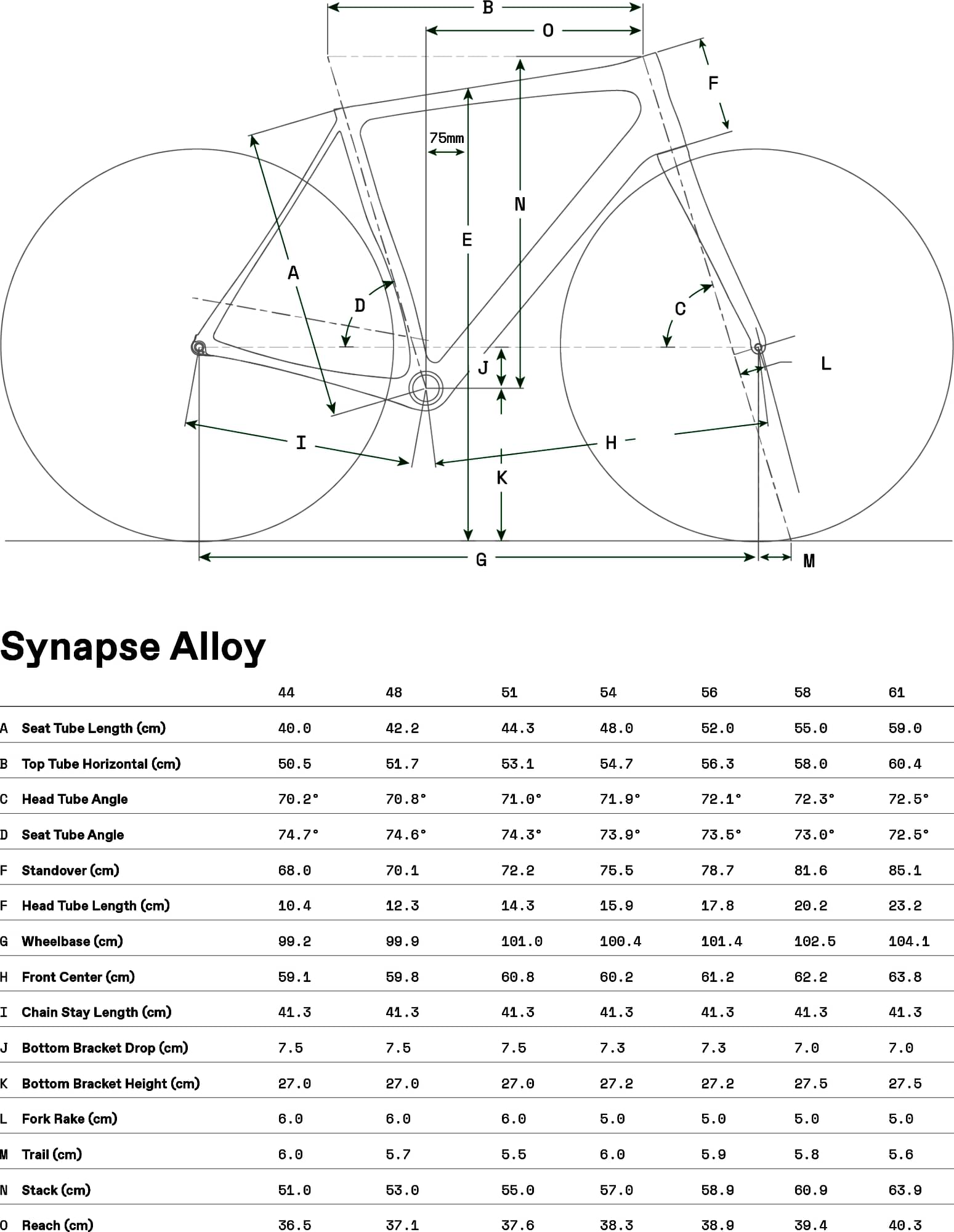

Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.463 mm | 1.488 mm | 1.514 mm | 1.546 mm | 1.586 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 272 mm | 272 mm | 275 mm | 275 mm |
| Front Center | 598 mm | 608 mm | 602 mm | 612 mm | 622 mm | 638 mm |
| Rake | 60 mm | 60 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 57 mm | 55 mm | 60 mm | 59 mm | 58 mm | 56 mm |
| Stack | 530 mm | 550 mm | 570 mm | 589 mm | 609 mm | 639 mm |
| Reach | 371 mm | 376 mm | 383 mm | 389 mm | 394 mm | 403 mm |
| Top Tube Length | 517 mm | 531 mm | 547 mm | 563 mm | 580 mm | 604 mm |
| Seat Tube Angle | 74.6 ° | 74.3 ° | 73.9 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 422 mm | 443 mm | 480 mm | 520 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.9 ° | 72.1 ° | 72.3 ° | 72.5 ° |
| Head Tube Length | 123 mm | 143 mm | 159 mm | 178 mm | 202 mm | 232 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 999 mm | 1010 mm | 1004 mm | 1014 mm | 1025 mm | 1041 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 701 mm | 722 mm | 755 mm | 787 mm | 816 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 170 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 180 cm | 185 cm | 193 cm | 203 cm |
