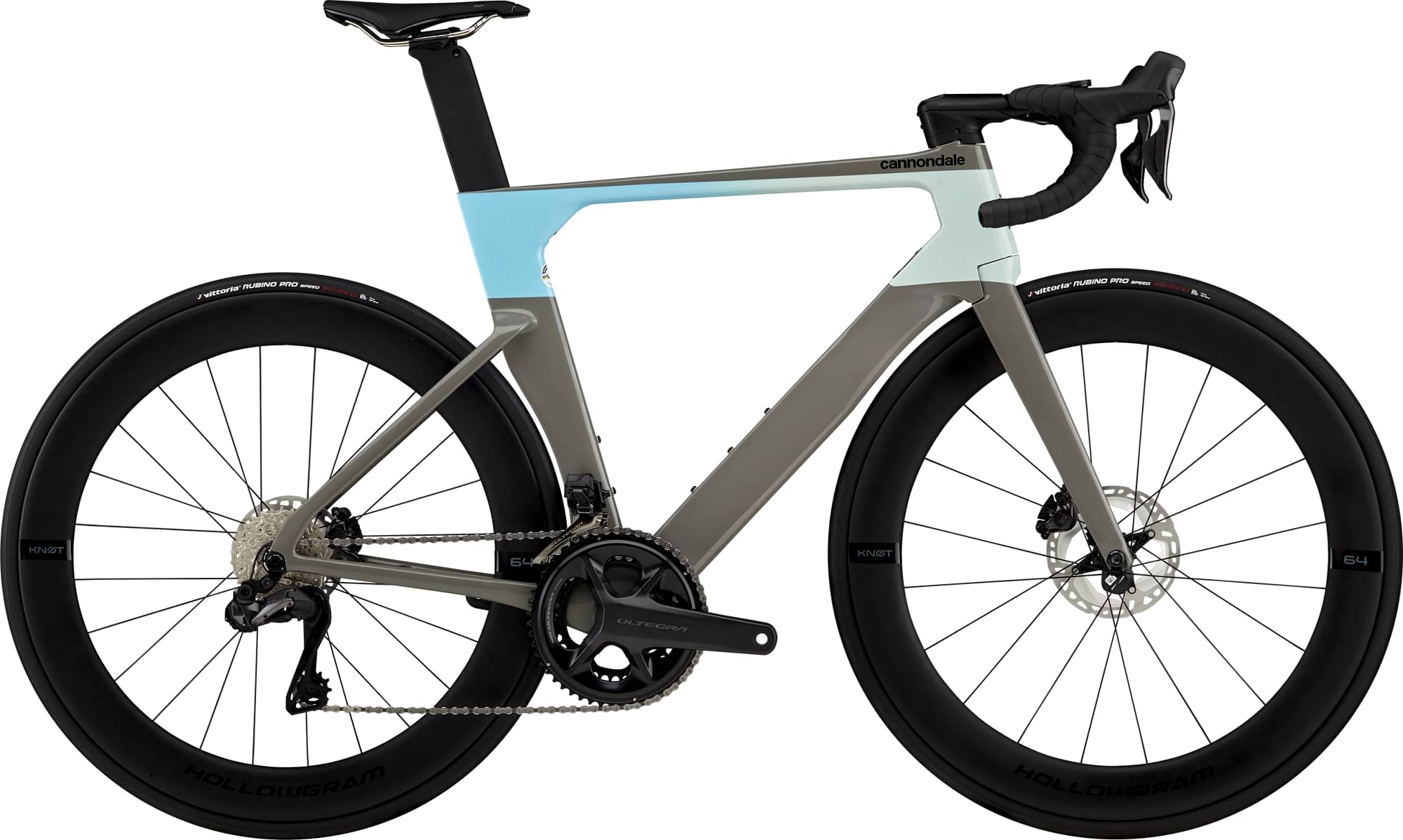

Cannondale SystemSix Hi-MOD Ultegra Di2 2024
2024 Road
Estimate price |
11,375$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
51cm
165cm - 175cm
54cm
170cm - 180cm
56cm
177cm - 188cm
58cm
182cm - 193cm
60cm
188cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SystemSix Hi-MOD Carbon, integrated cable routing w/ Switchplate, SAVE, PF30a, flat mount disc, 12x142 Speed Release thru-axle
Suspension Fork
SystemSix Hi-MOD Carbon, 1-1/8" - 1-1/4" steerer, 12x100mm Speed Release thru-axle, flat mount disc, 55mm offset (47-51cm) 45mm offset (54-62cm)
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Front Derailleur
Shimano Ultegra Di2 R8150
Shift Levers
Shimano Ultegra Di2 R8170, 2x12
Cassette
Shimano Ultegra R8100, 11-30, 12-speed
Crank
Shimano Ultegra Di2 R8100, 52/36
Bottom Bracket
FSA PF30A to 24mm Reducer
Chain
Shimano Ultegra, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 350 internals
Rear Hub
(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss 350 internals
Rims
HollowGram 64 KNØT, Carbon, 20h front, 24h rear, 64mm deep, 21mm inner width, tubeless ready
Spokes
HollowGram, 2.0/1.8/2.0, straight-pull
Tires
Vittoria Rubino Pro Speed, 700x25c
Brakes
Brakes
Shimano Ultegra Di2 R8170 hydraulic disc, 160/140mm MT800 rotors
Brake Levers
Shimano Ultegra Di2 R8170 hydraulic disc
Cockpit
Stem
HollowGram KNØT, Alloy w/ cable cover, -17°
Handlebar
HollowGram KNØT SystemBar, Carbon, 8 deg. pitch adjust
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1-1/4"
Seat
Saddle
Fizik Tempo Argo R5, 150mm width, S-Alloy rails
Seatpost
HollowGram 60 KNØT Carbon, 330mm
Fit data

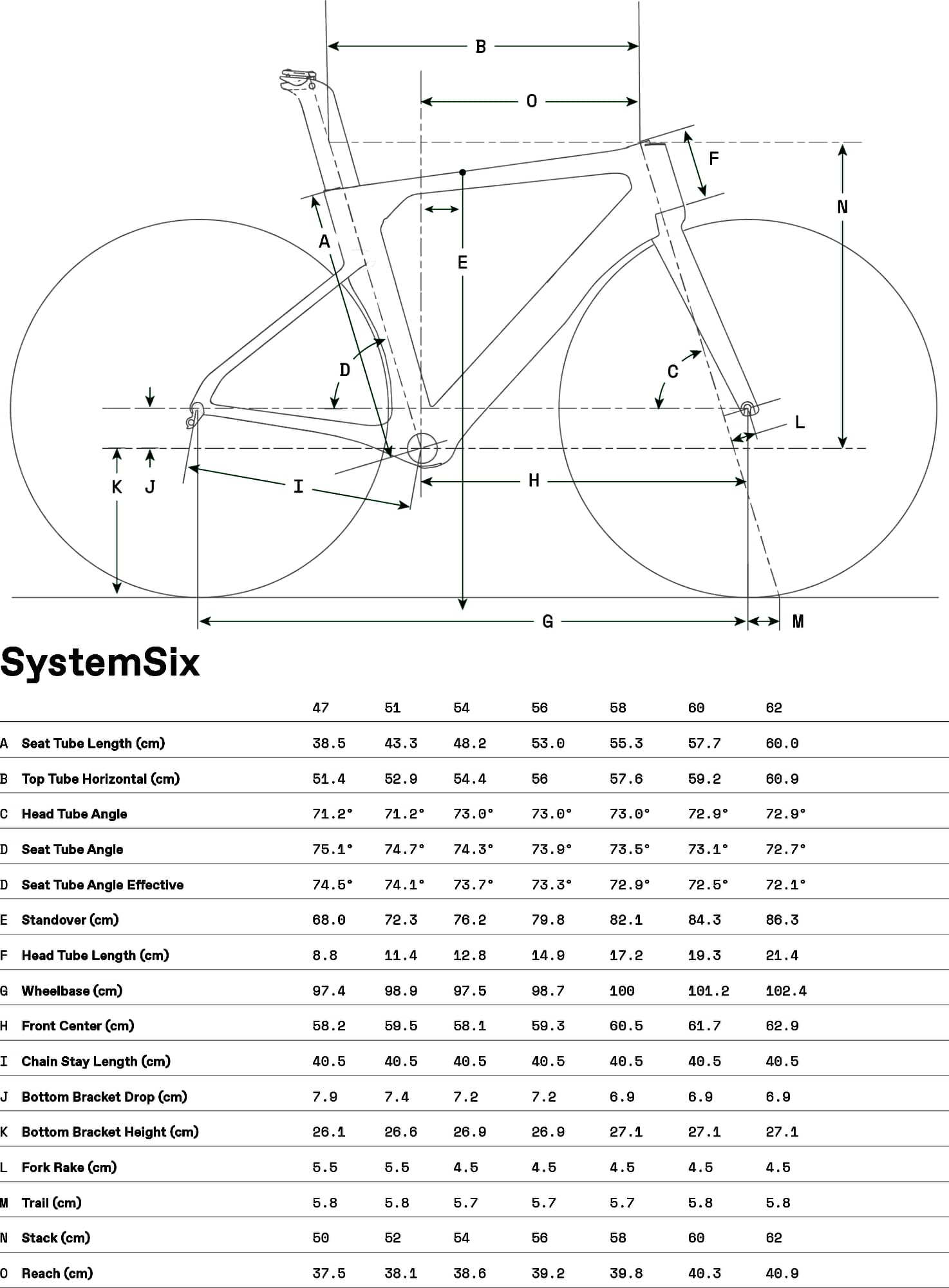

Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.365 mm | 1.399 mm | 1.429 mm | 1.457 mm | 1.489 mm |
| Bottom Bracket Height | 266 mm | 269 mm | 269 mm | 271 mm | 271 mm |
| Front Center | 595 mm | 581 mm | 593 mm | 605 mm | 617 mm |
| Rake | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 58 mm | 57 mm | 57 mm | 57 mm | 58 mm |
| Stack | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Reach | 381 mm | 386 mm | 392 mm | 398 mm | 403 mm |
| Top Tube Length | 529 mm | 544 mm | 560 mm | 576 mm | 592 mm |
| Seat Tube Angle | 74.1 ° | 73.7 ° | 73.3 ° | 72.9 ° | 72.5 ° |
| Seat Tube Length | 433 mm | 482 mm | 530 mm | 553 mm | 577 mm |
| Head Tube Angle | 71.2 ° | 73 ° | 73 ° | 73 ° | 72.9 ° |
| Head Tube Length | 114 mm | 128 mm | 149 mm | 172 mm | 193 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 989 mm | 975 mm | 987 mm | 1000 mm | 1012 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 723 mm | 762 mm | 798 mm | 821 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 170 cm | 177 cm | 182 cm | 188 cm |
| Rider Max Height | 175 cm | 180 cm | 188 cm | 193 cm | 198 cm |
