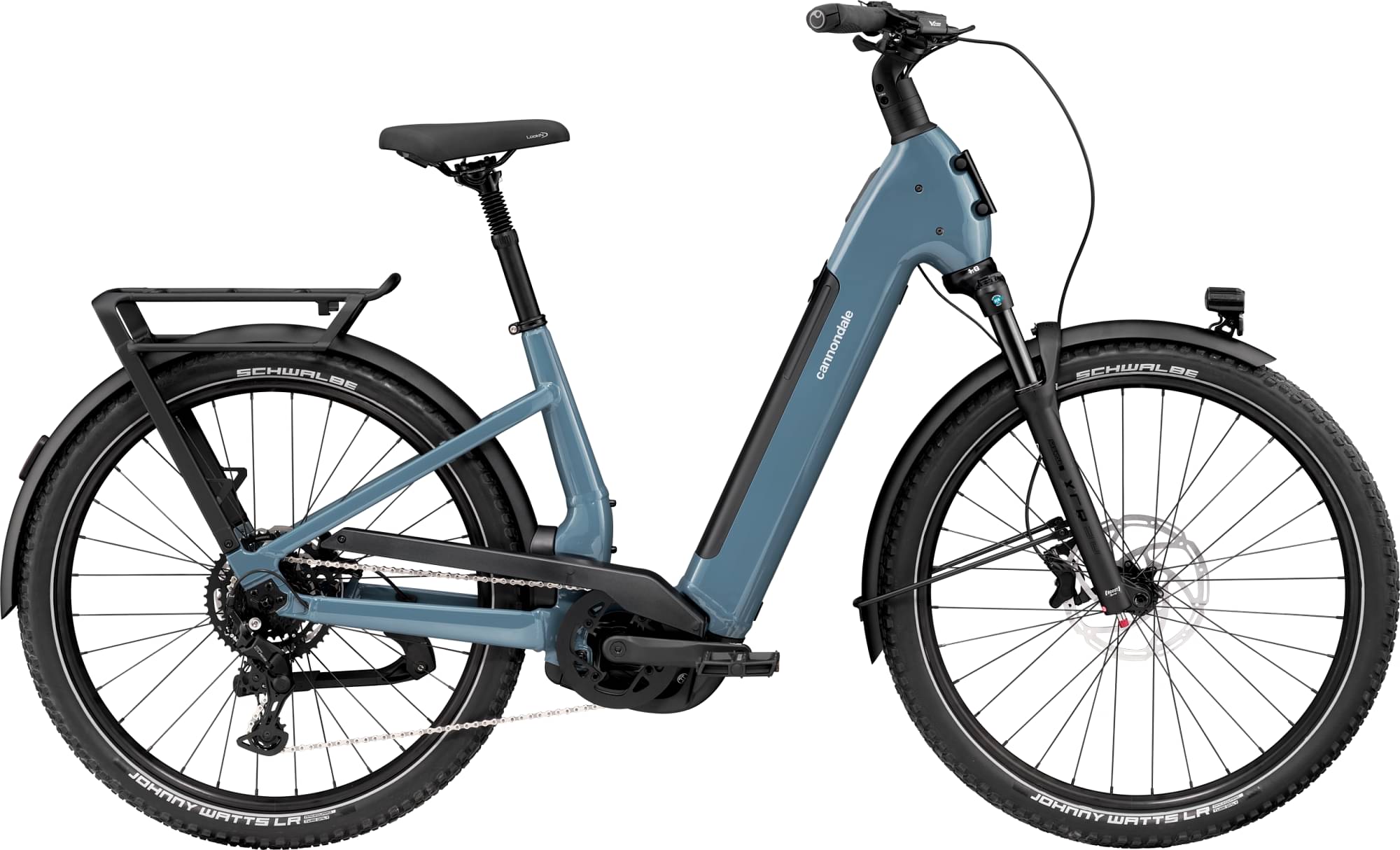

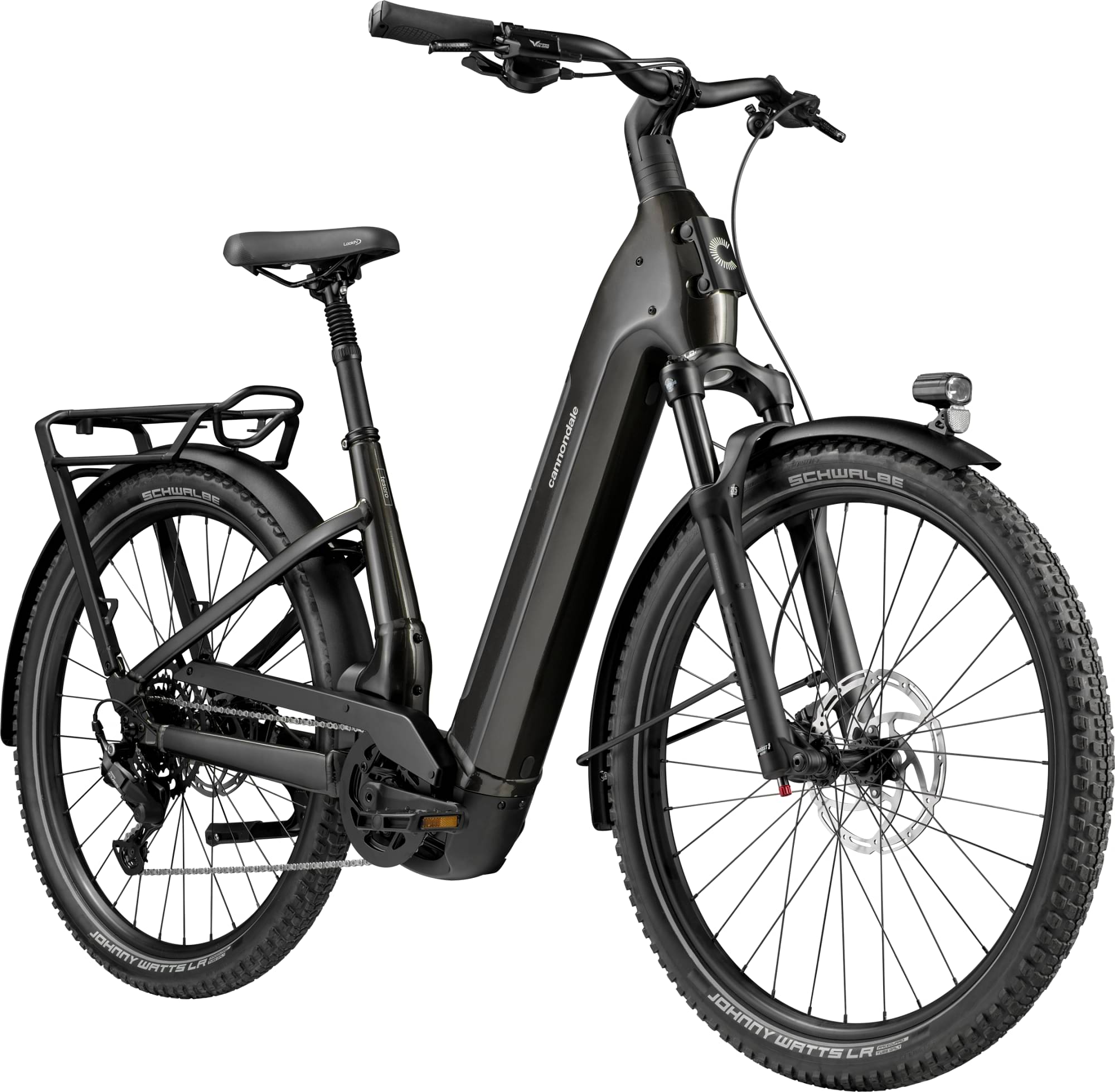

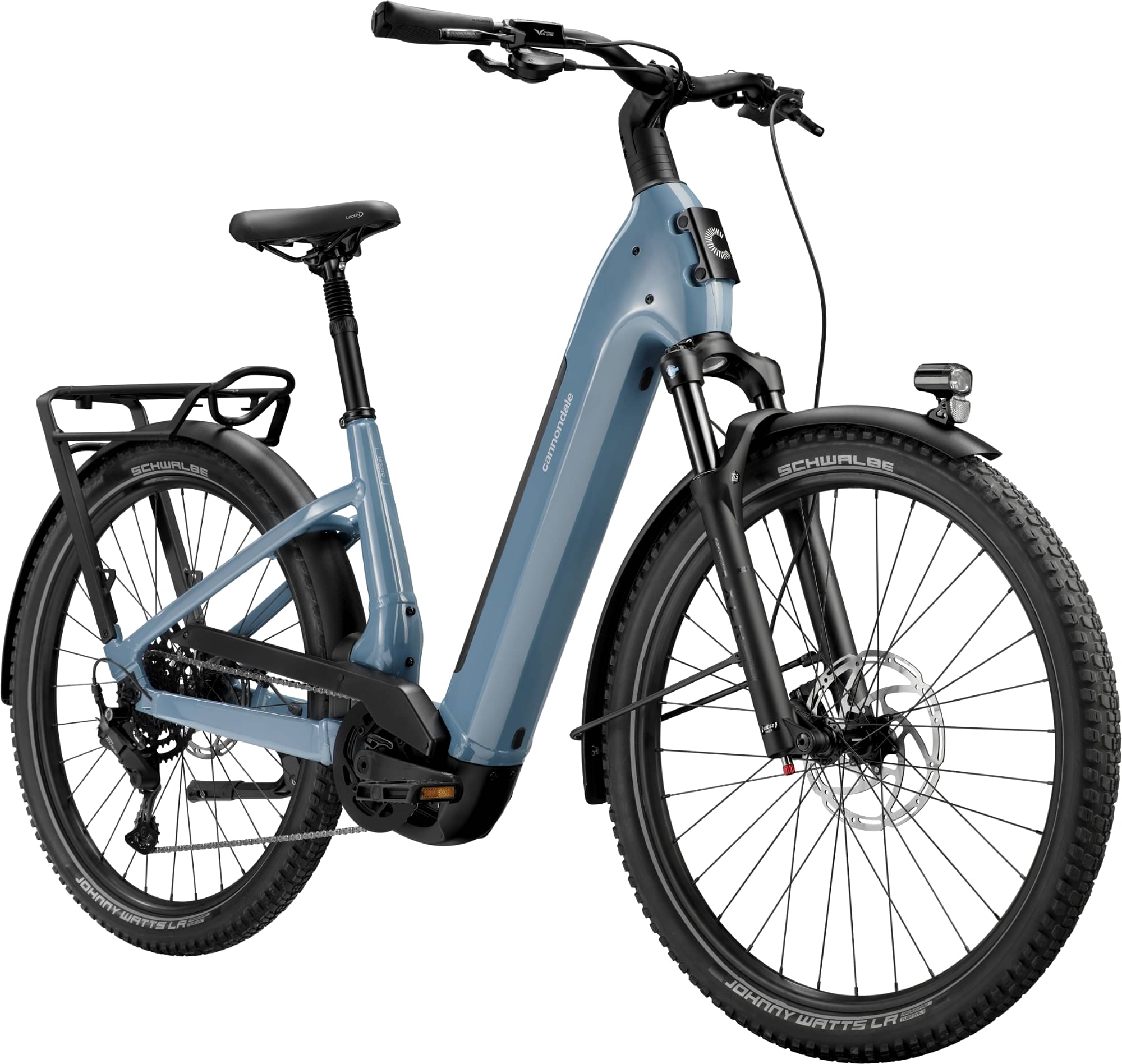

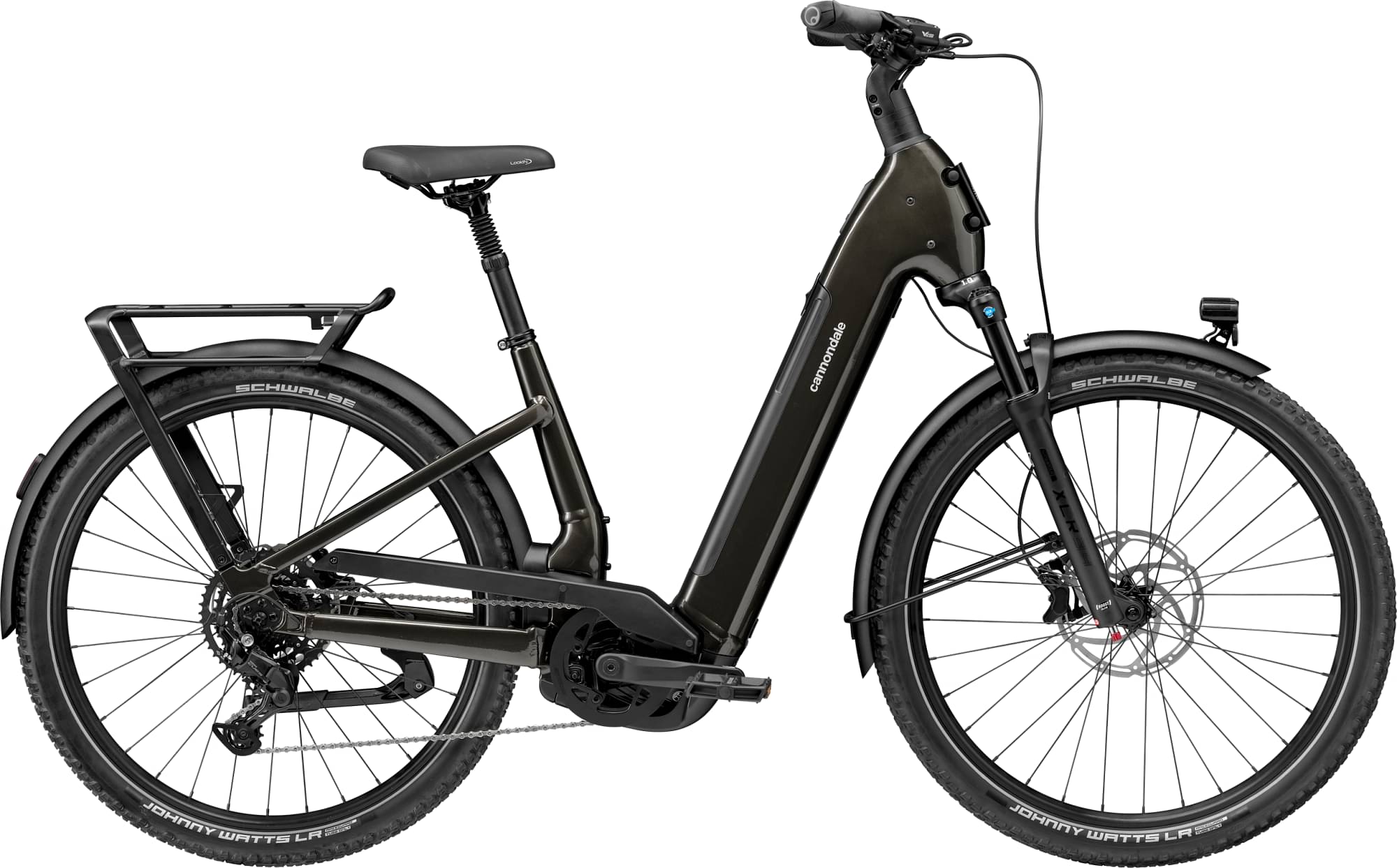

Cannondale Tesoro 2 Low Step-Thru 2025
2025 E-bike
Estimate price |
5,118$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 600Wh -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
169cm - 185cm
LG
175cm - 190cm
XL
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

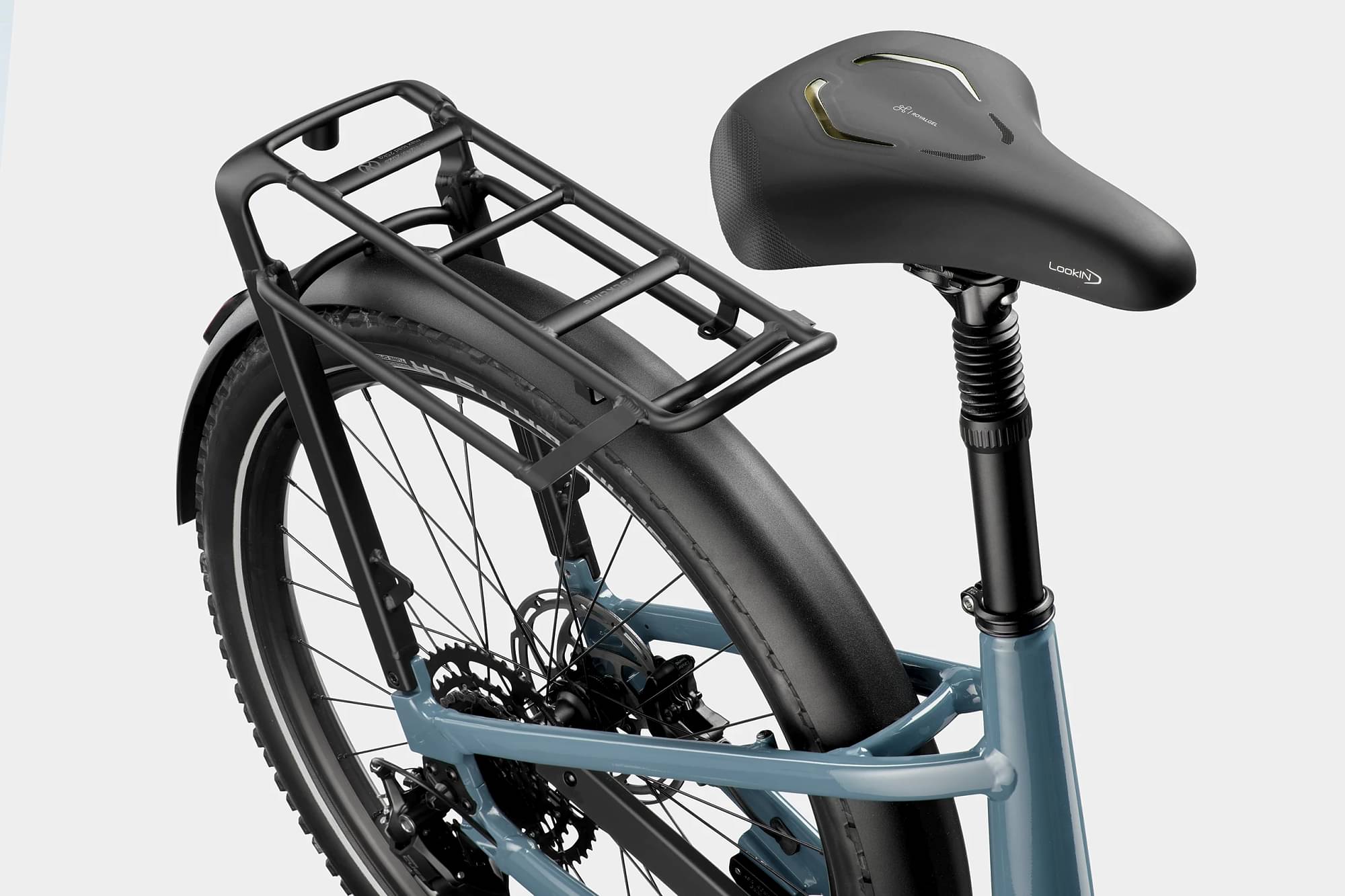

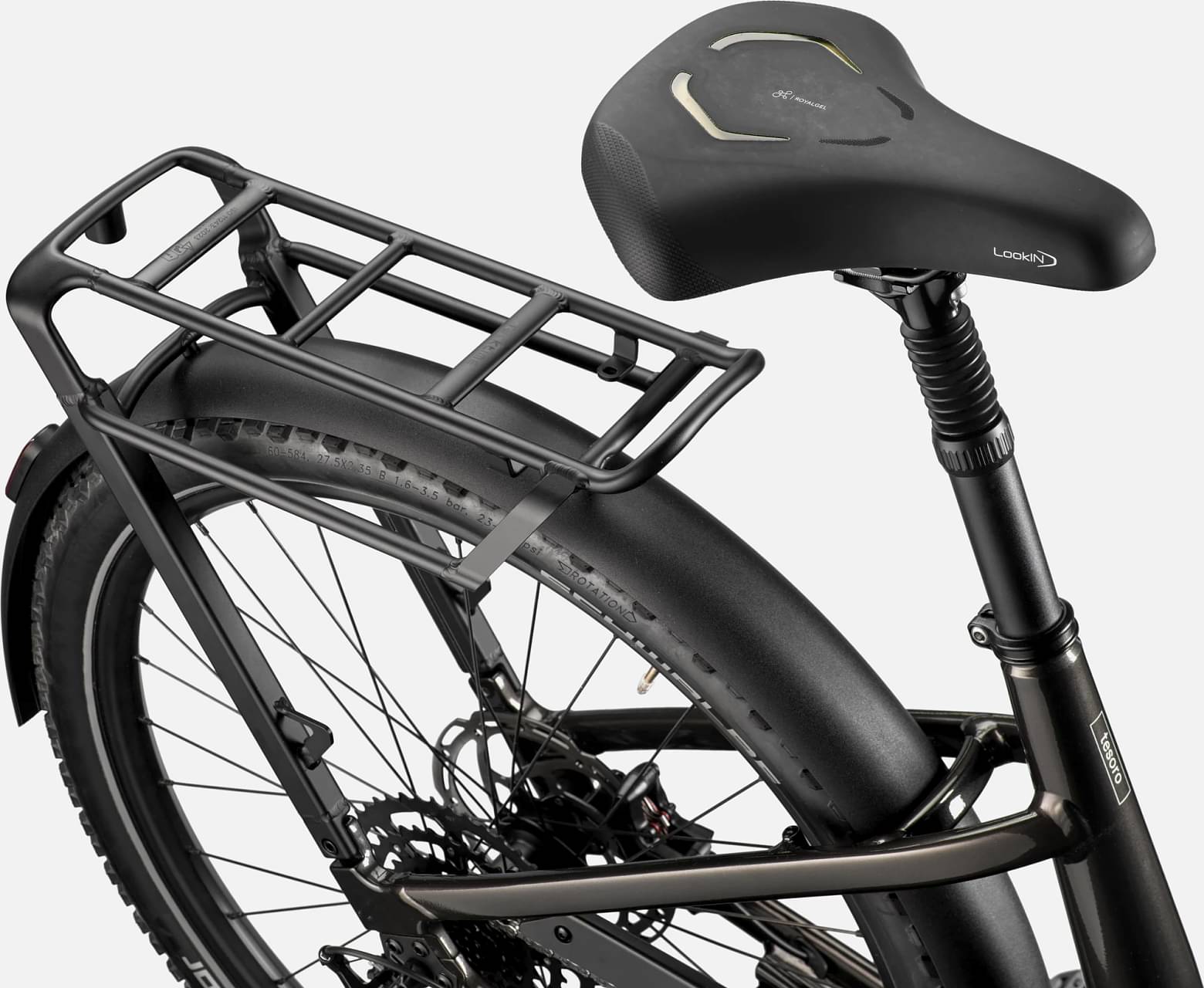

Tesoro, low step-thru, SmartForm C1 Alloy, removable 600Wh downtube battery, tapered headtube, internal cable routing, 135mm QR hub spacing, post mount disc brake, motor protection, integrated RackLock rack and fender - RackTime SnapIt 2.0 and child seat compatible
Suspension Fork
SR Suntour Mobie XCR34, 100mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Drivetrain

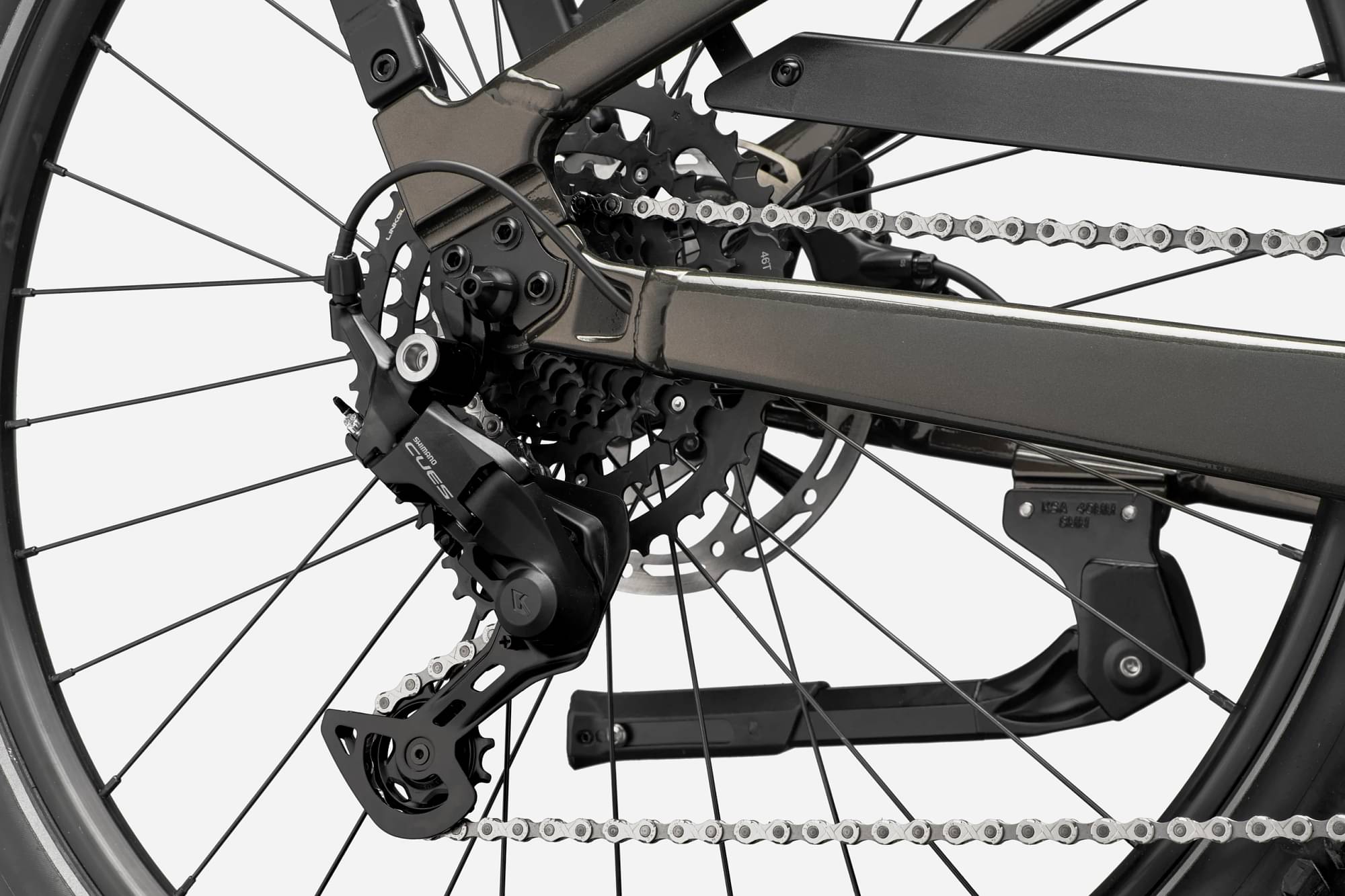

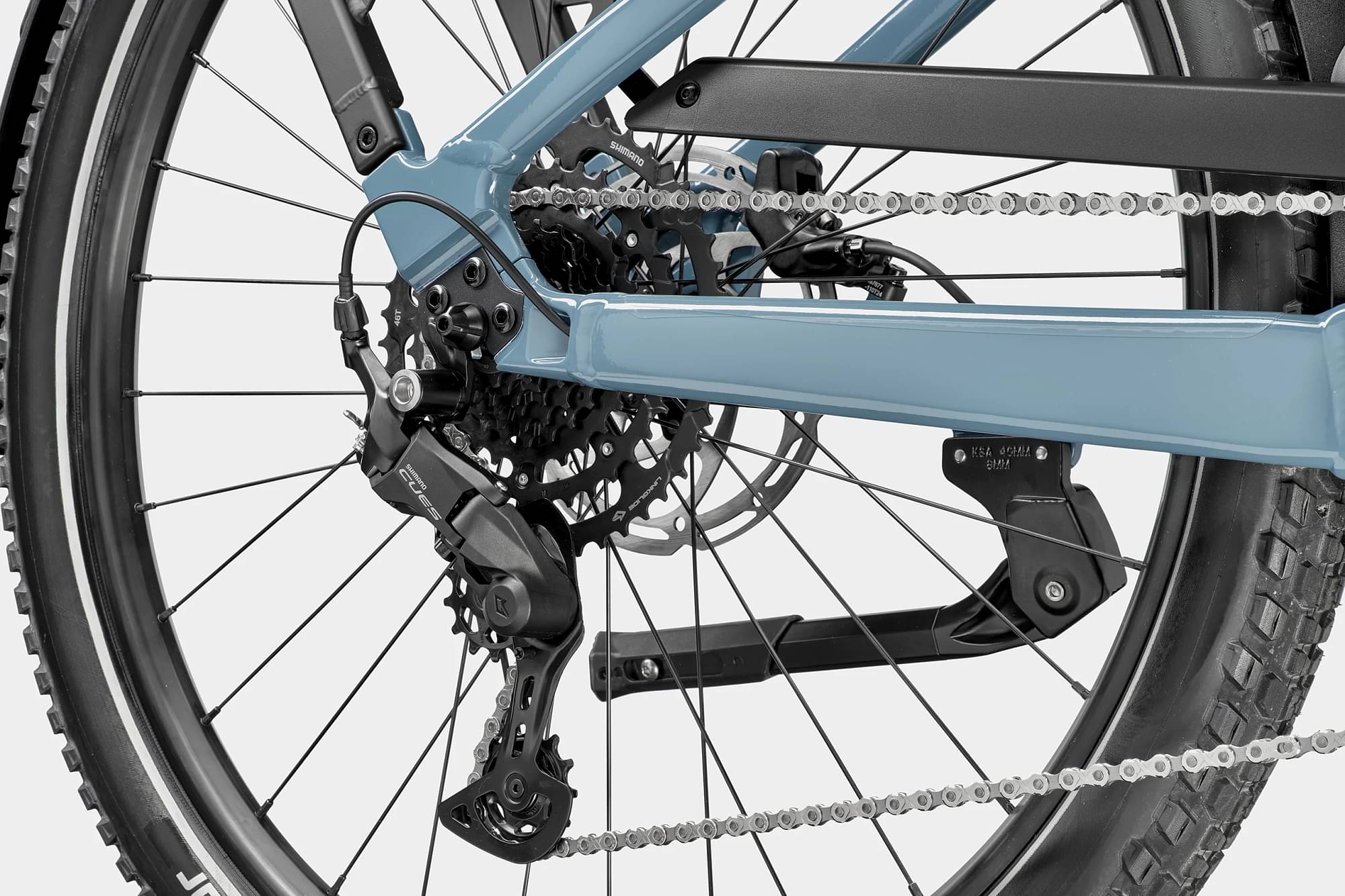

Rear Derailleur
Shimano CUES U6000
Shift Levers
Shimano CUES U6000, trigger style, 10-speed
Cassette
Shimano CUES LG400, 11-43, 10-speed
Crank
FSA Bosch E-bike, 38T
Bottom Bracket
Bosch, press-fit
Chain
KMC e500
Pedals
Cannondale Urban Platform
Wheels
Front Hub
Shimano TC500, 15x110mm thru-axle
Rear Hub
Shimano HB-TX505, 135x9mm, QR
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Spokes
Stainless Steel, 14g
Tires
Schwalbe Johnny Watts LR, 27.5x2.35" 60-584 (SM, MD), 29x2.35" 60-622 (LG, XL)
Brakes
Brakes
Tektro T535 4-piston hydraulic disc, 203/180mm TR rotors
Brake Levers
Tektro M535 hydraulic disc
Cockpit
Stem
Cannondale Urban w/ Intellimount, Alloy, 31.8mm clamp, 60mm, +30°, Acros ICR, w/ SP Connect SPC+ Stem Mount
Handlebar
Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
Grips
Ergon GC10
Headset
Acros integrated cable routing, 1.8" sealed bearings with tapered reducers
Seat
Saddle
Selle Royal Essenza
Seatpost
Linear Suspension Seatpost, 31.6, 350mm
Motor & Battery

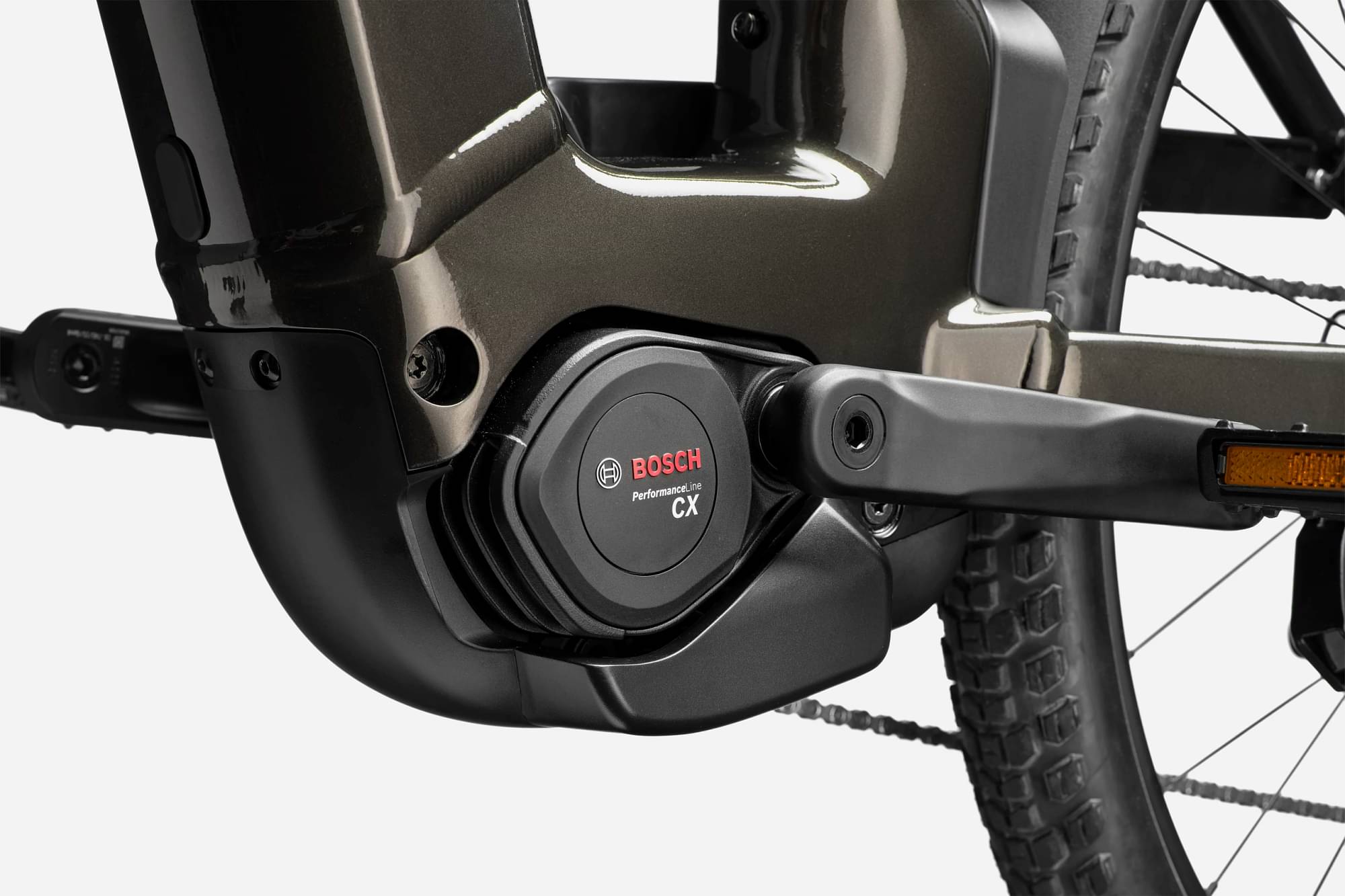

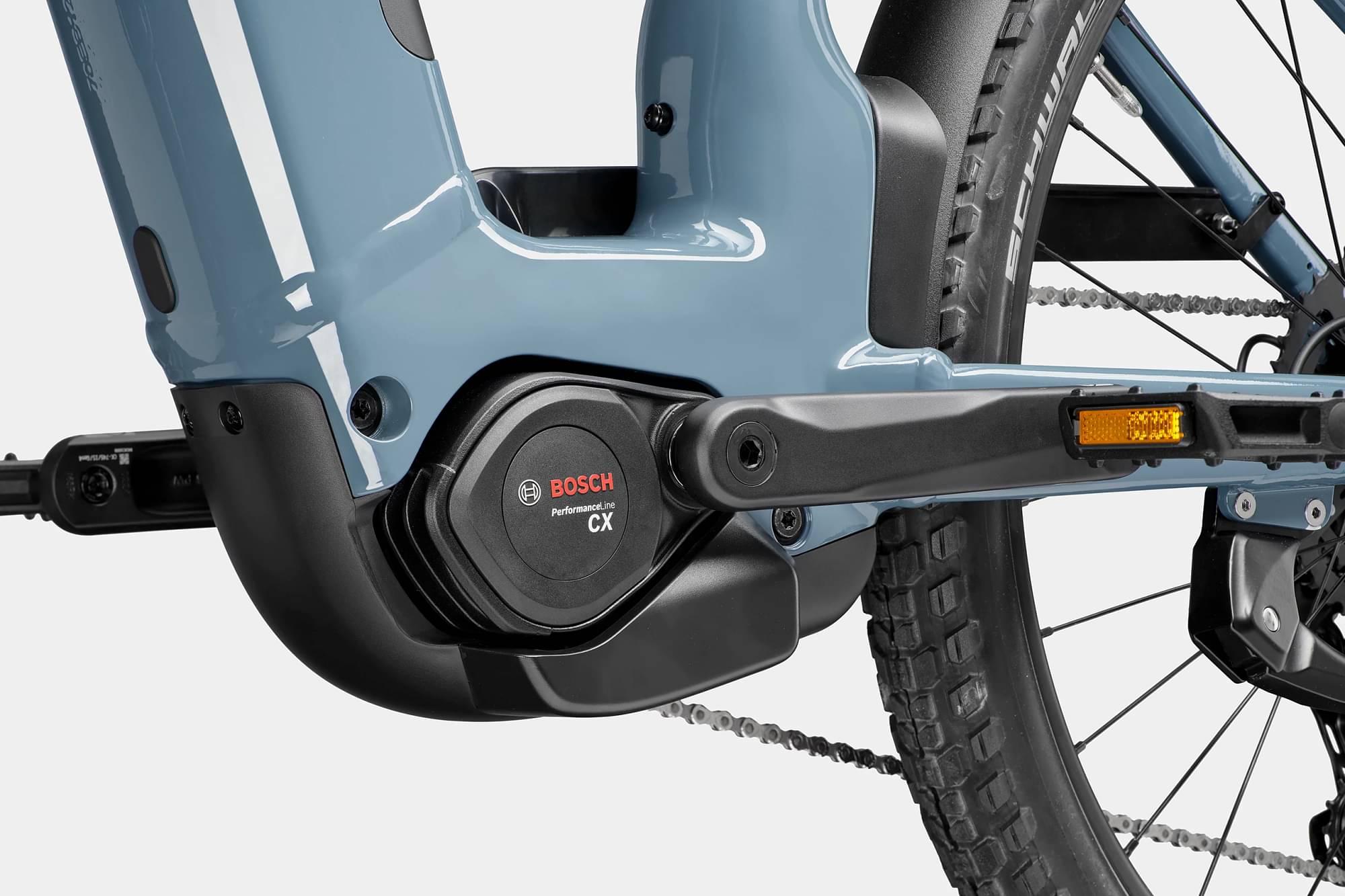

Motor
Bosch Performance Line CX 250W MY25
Battery
Bosch PowerTube, 600Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 169 cm | 175 cm | 180 cm |
| Rider Max Height | 172 cm | 185 cm | 190 cm | 200 cm |
