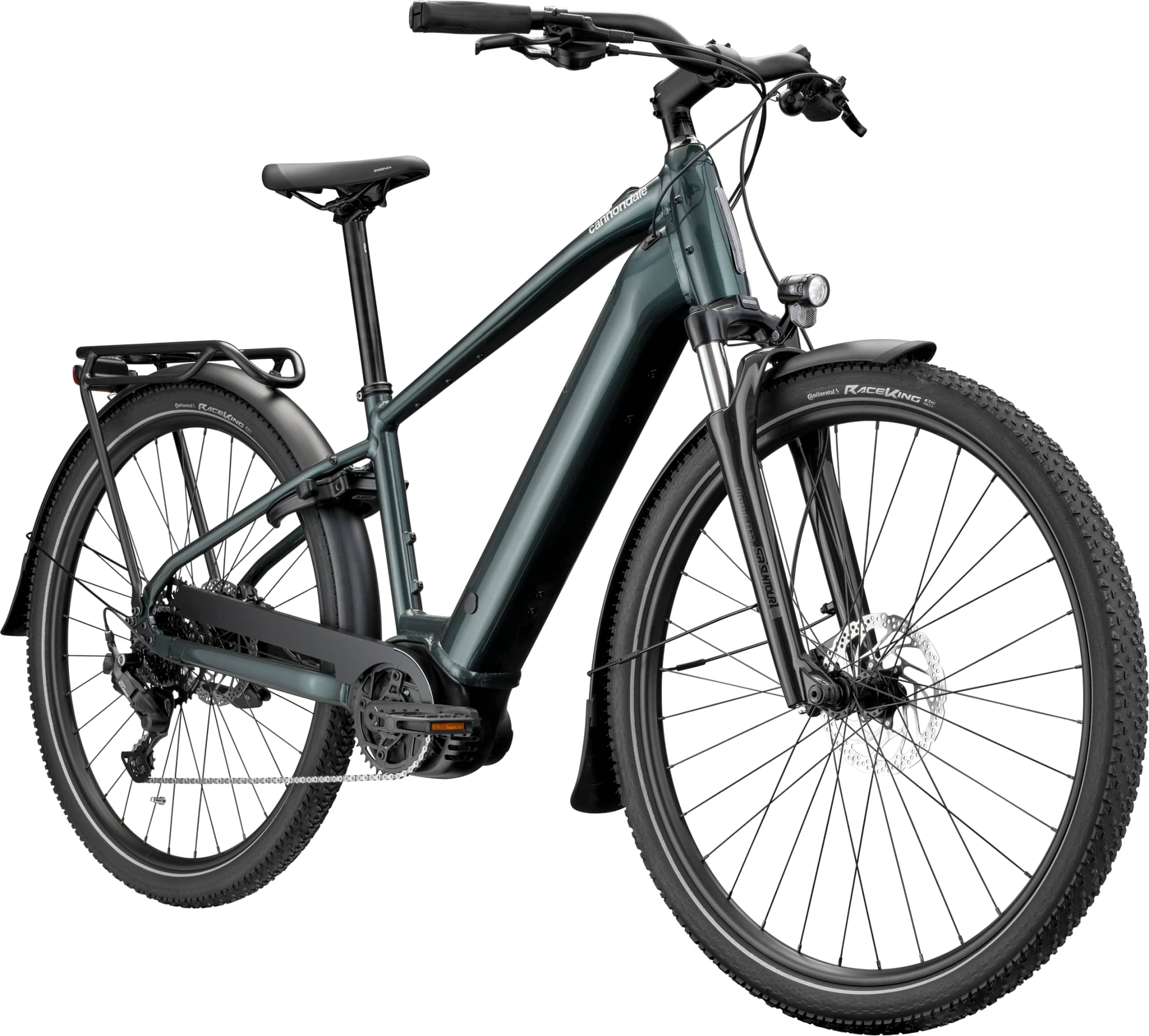

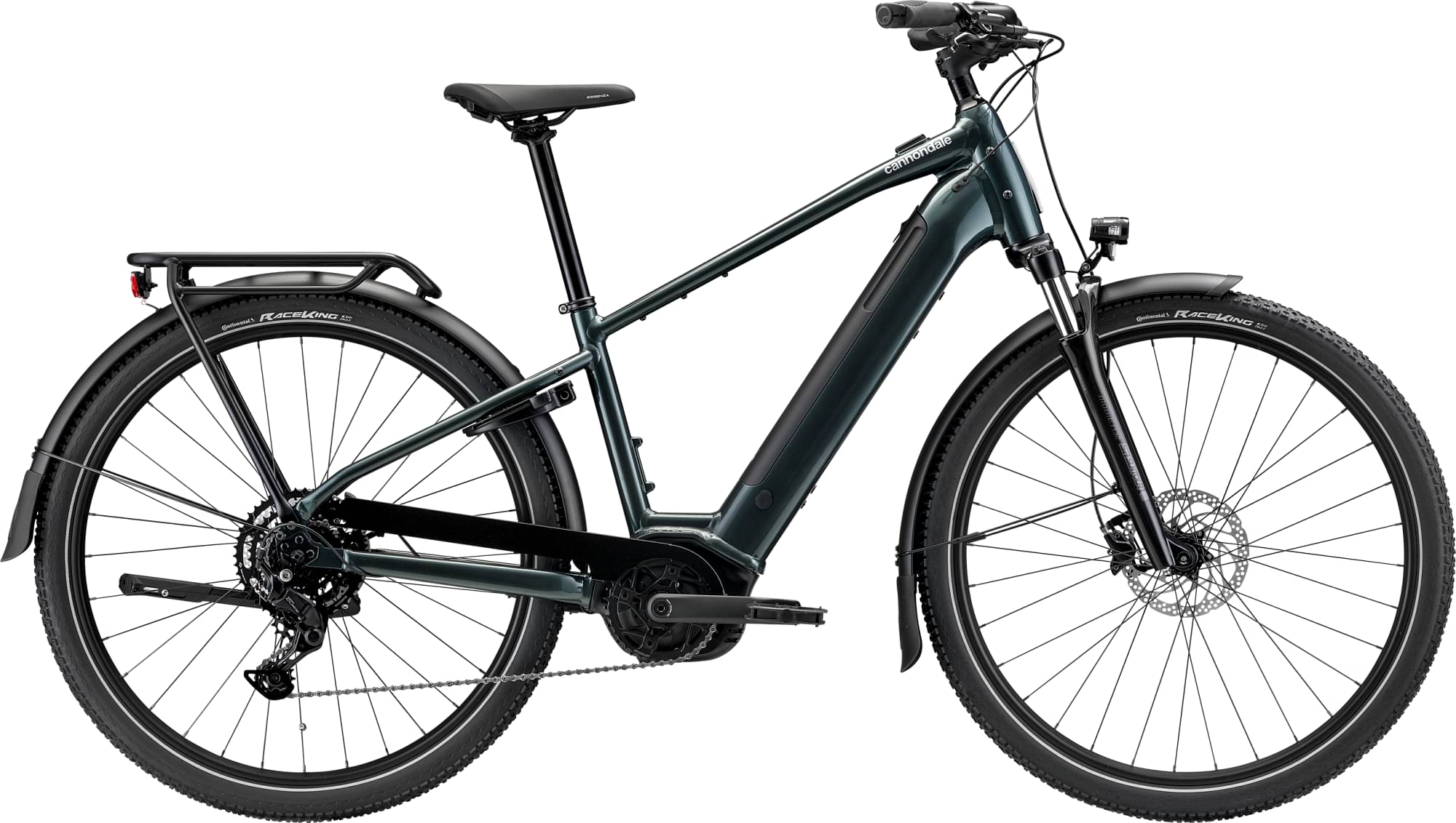

Cannondale Tesoro 3+ 2025
2025 E-bike
Estimate price |
4,420$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
169cm - 185cm
LG
175cm - 190cm
XL
180cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tesoro, SmartForm C2 Alloy, removable 625Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Suspension Fork
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Drivetrain
Rear Derailleur
Shimano CUES U4000
Shift Levers
Shimano CUES U6000, trigger style, 9-speed
Cassette
Shimano CUES LG300, 11-46, 9-speed
Crank
FSA Bosch E-bike
Bottom Bracket
Bosch, press-fit
Chain
KMC e500
Pedals
Cannondale Urban Platform
Wheels
Front Hub
(F) Shimano TC500, 15x100mm thru-axle / (R) Shimano R600 centerlock, 32H, QR
Rear Hub
(F) Shimano TC500, 15x100mm thru-axle / (R) Shimano R600 centerlock, 32H, QR
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Spokes
Stainless Steel, 14g
Tires
Continental Race King, 27.5x2.2" 55-584 (SM), 29x2.2" 55-622 (MD-LG)
Brakes
Brakes
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, 70mm, +6°, w/ SP Connect SPC+ Stem Mount
Handlebar
Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
Grips
Ergon GC10
Headset
Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Seat
Saddle
Selle Royal Essenza
Seatpost
Cannondale 4, 6061 Alloy, 31.6, 300 (SM), 350mm (MD), 400mm (XL)
Motor & Battery
Motor
Bosch Performance Line, Smart System, 25 km/h
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 169 cm | 175 cm | 180 cm |
| Rider Max Height | 172 cm | 185 cm | 190 cm | 200 cm |
