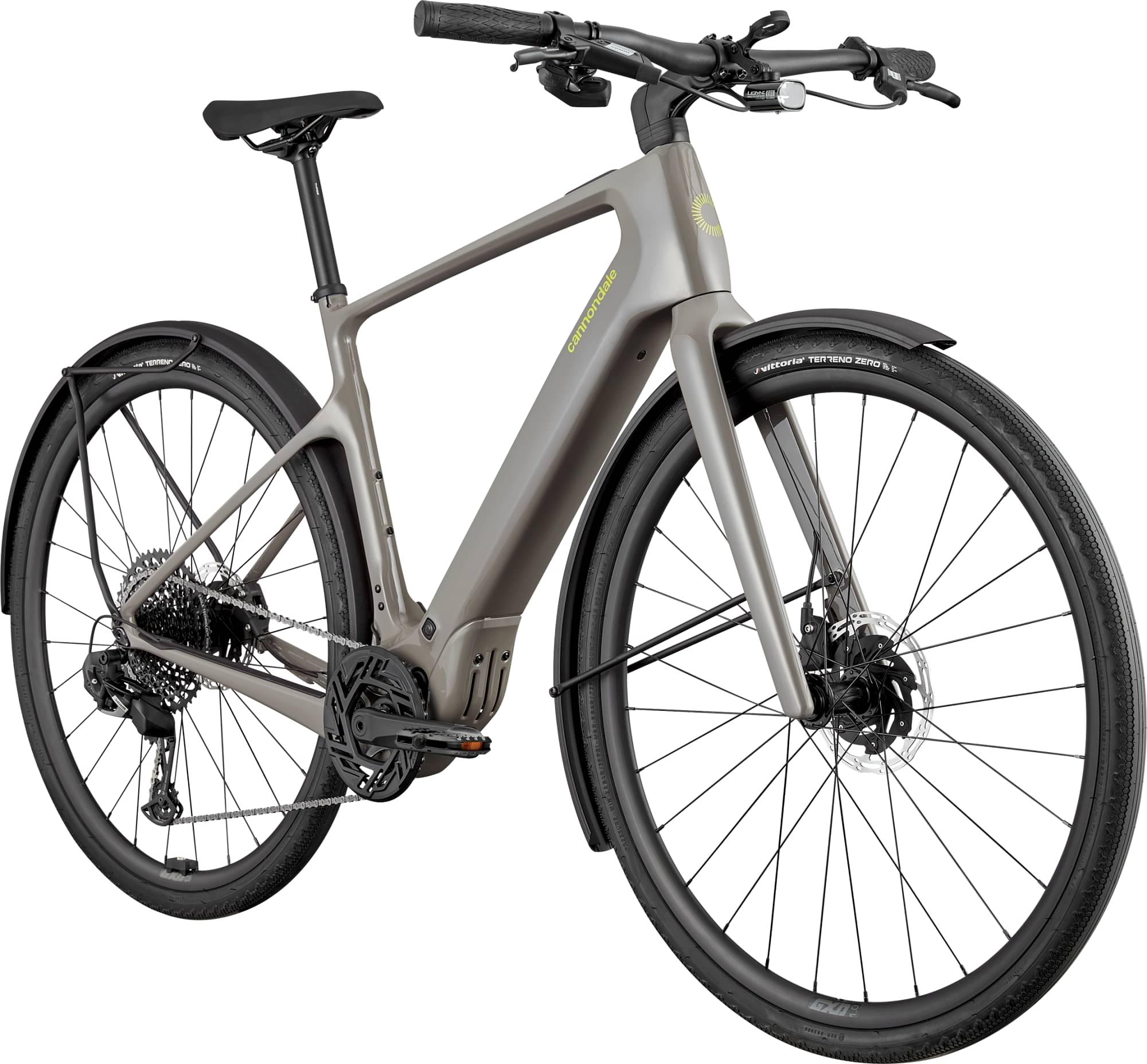

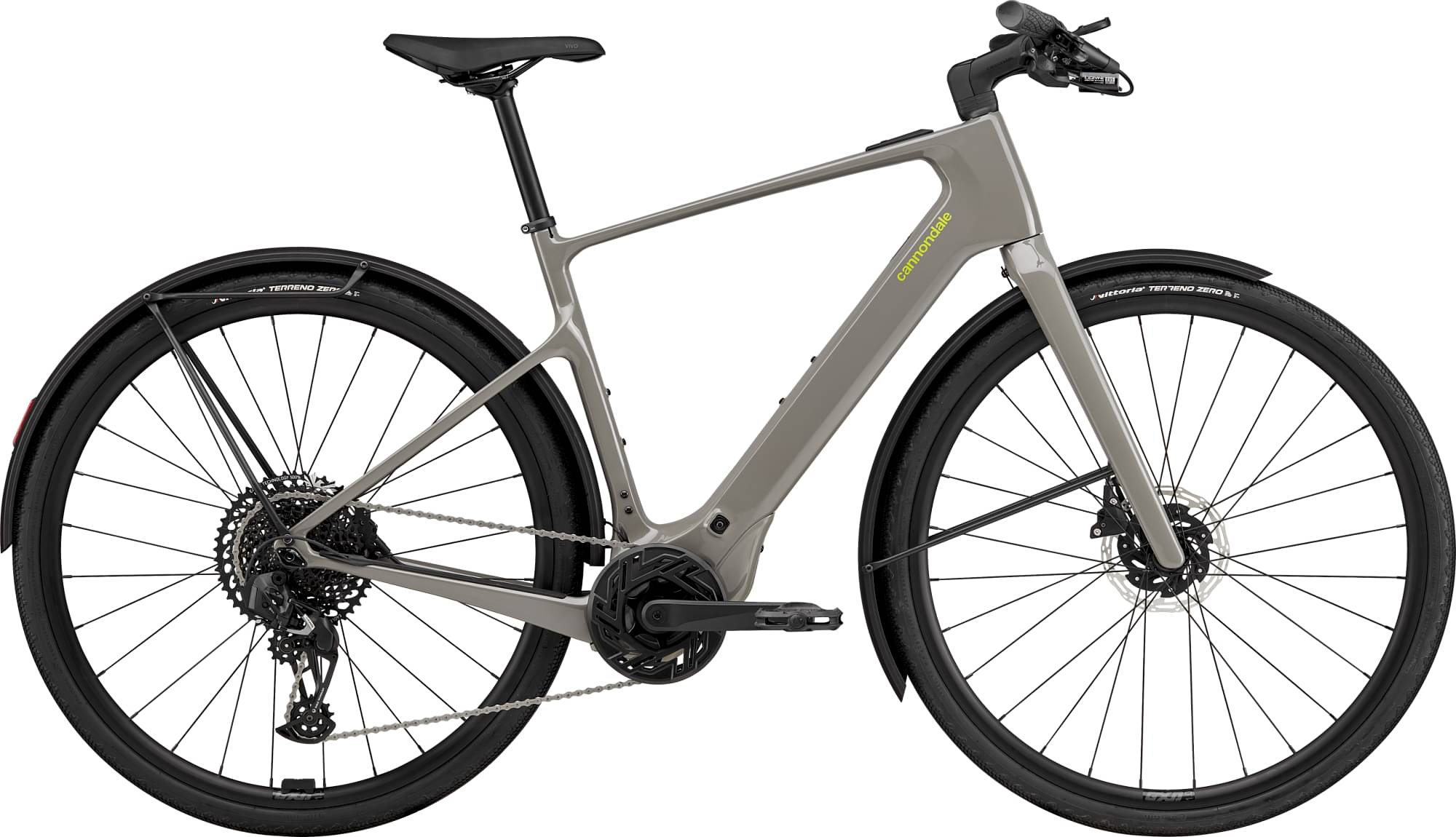

Cannondale Tesoro Carbon 1 2024
2024 E-bike
Estimate price |
6,863$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS, GX Eagle AXS -
Suspension Rigid -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch Compact Powertube 400Wh -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 170cm
SM
165cm - 177cm
MD
174cm - 187cm
LG
184cm - 192cm
XL
189cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tesoro Carbon, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, removable kickstand mount (40mm Pletscher-style)
Suspension Fork
Tesoro Carbon, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle
Drivetrain
Rear Derailleur
SRAM X1 Eagle AXS wireless electronic
Shift Levers
SRAM GX Eagle AXS Controller, wireless
Cassette
SRAM Eagle X-GLIDE 1275, 10-50, 12-speed
Crank
FSA Bosch E-Bike, SRAM Direct Mount, 38T
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle, 12-speed
Pedals
Cannondale Urban Platform
Wheels
Front Hub
(F) Formula sealed cartridge bearing, 12x110mm thru-axle / (R) Formula sealed cartridge bearing 12x148mm thru-axle
Rear Hub
(F) Formula sealed cartridge bearing, 12x110mm thru-axle / (R) Formula sealed cartridge bearing 12x148mm thru-axle
Rims
Cannondale GXD10, alloy double-wall rim, 28h
Spokes
Stainless Steel, 14g
Tires
Vittoria Terreno Zero, 700x35c
Brakes
Brakes
SRAM S-300, 160/160mm CenterLine X rotors
Brake Levers
SRAM S-300 hydraulic disc
Cockpit
Stem
Cannondale C1 Conceal, Alloy, 31.8, +6°
Handlebar
6061 Alloy, 31.8mm, 700mm, 7° rise
Grips
Ergo Lock-on Grips
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Selle Royal Vivo Active Ergo
Seatpost
Cannondale 3, 6061 Alloy, 27.2x400mm
Motor & Battery
Motor
Bosch Performance Line Sprint, 28mph
Battery
Bosch Compact Powertube 400Wh
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 174 cm | 184 cm | 189 cm |
| Rider Max Height | 170 cm | 177 cm | 187 cm | 192 cm | 205 cm |
