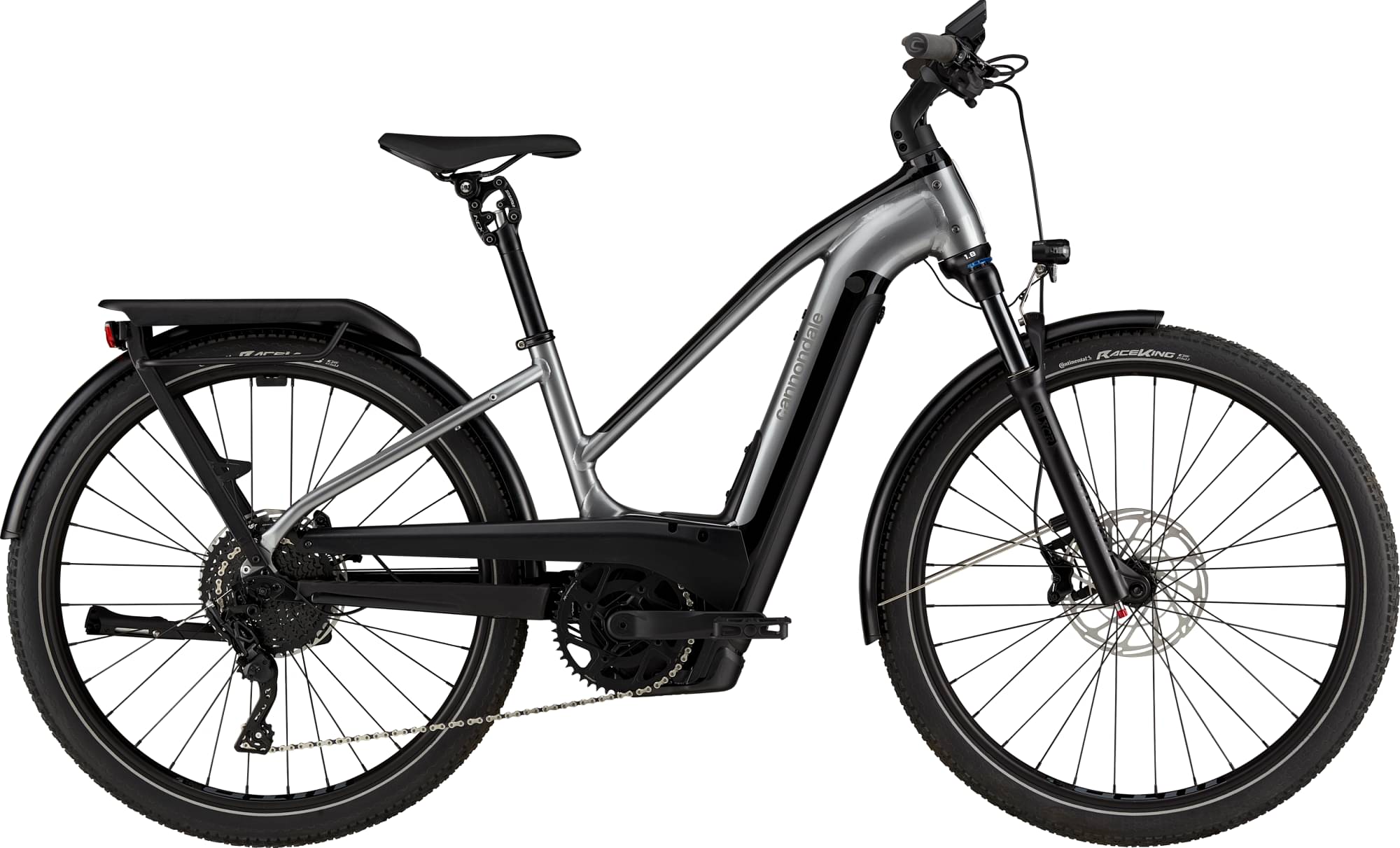

Cannondale Tesoro Neo X 1 StepThru 2024
2024 E-bike
Estimate price |
4,600$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset microSHIFT XLE -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tesoro Neo X Step-Thru, SmartForm C1 Alloy, removable downtube battery, dual battery compatible, fully internal cable routing, 135x9mm, belt-compatible dropout, flatmount disc, headtube waterbottle mounts, integrated daytime running light, HDT child seat/cargo mount compatible
Suspension Fork
SR Suntour XCR34, 100mm, coil, boost spacing, offset - 44mm (S) / 51mm (M, L)
Drivetrain
Rear Derailleur
microSHIFT XLE, medium cage
Shift Levers
microSHIFT XLE Xpress Shifter, 11-speed
Cassette
microSHIFT H-Series, 11-46, 11-speed
Crank
Bosch Gen4, 46T
Bottom Bracket
Bosch, press-fit
Chain
KMC X11, 11-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano R600, 32H, QR
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Continental Race King 29x2.2" 55-622 (M,L) / 27.5x2.2" 55-584 (S)
Brakes
Brakes
Riderever Attack-XU, 4-piston hydraulic disc, 203/203 rotors
Brake Levers
Riderever Attack-XU hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 70mm, integrated cable routing
Handlebar
Cannondale Trekking
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Integrated Sealed Bearing, Tapered, internal cable routing
Seat
Saddle
Fizik Vivo Active Ergo
Seatpost
Parallelogram Suspension Seatpost, 31.6, 25mm Setback, 50mm Travel, 300mm (SM), 350mm (MD), 400mm (LG)
Motor & Battery
Motor
Bosch Performance Line Speed (28 mph)
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Fit data

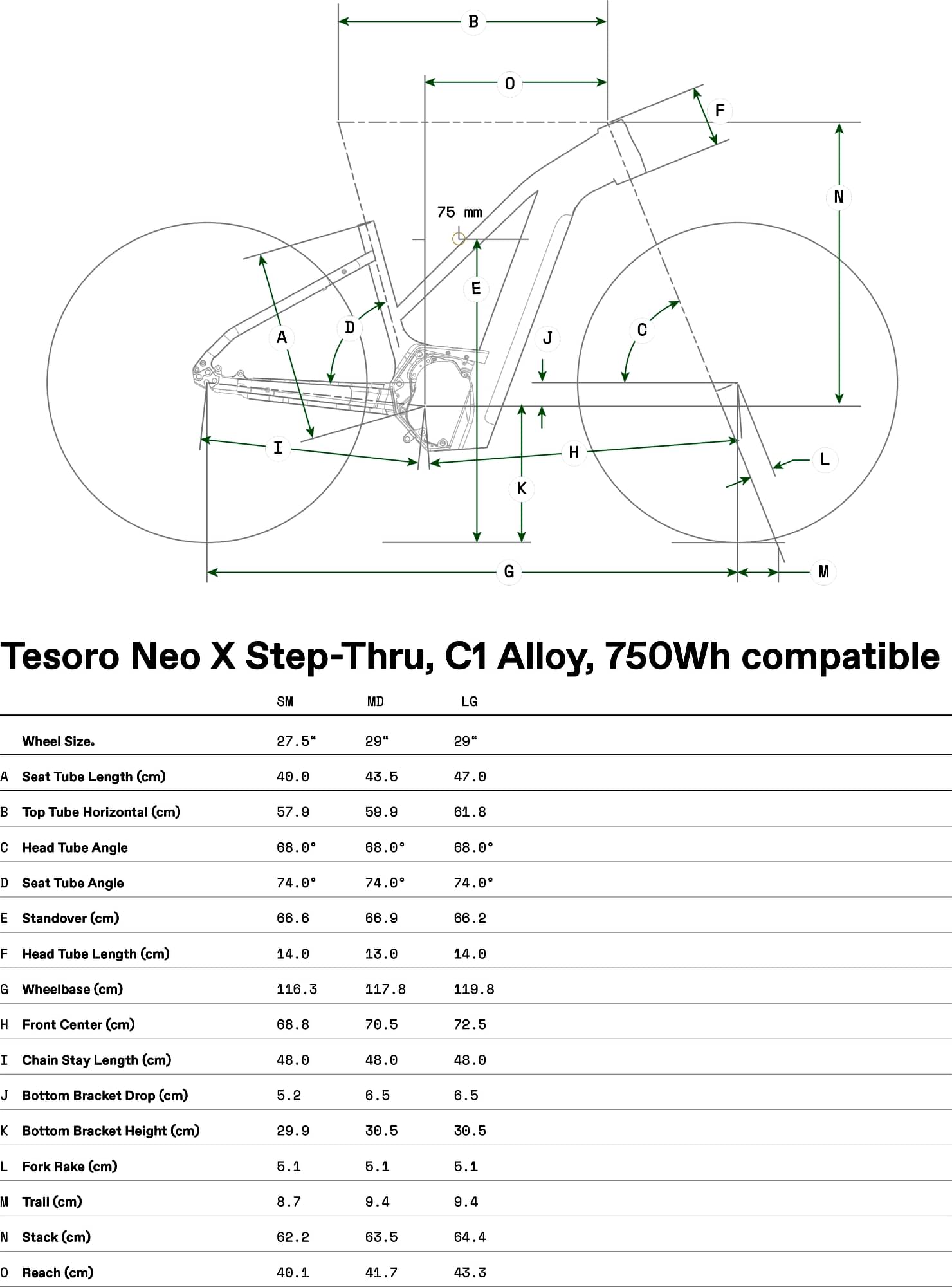

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 165 cm | 175 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm |
