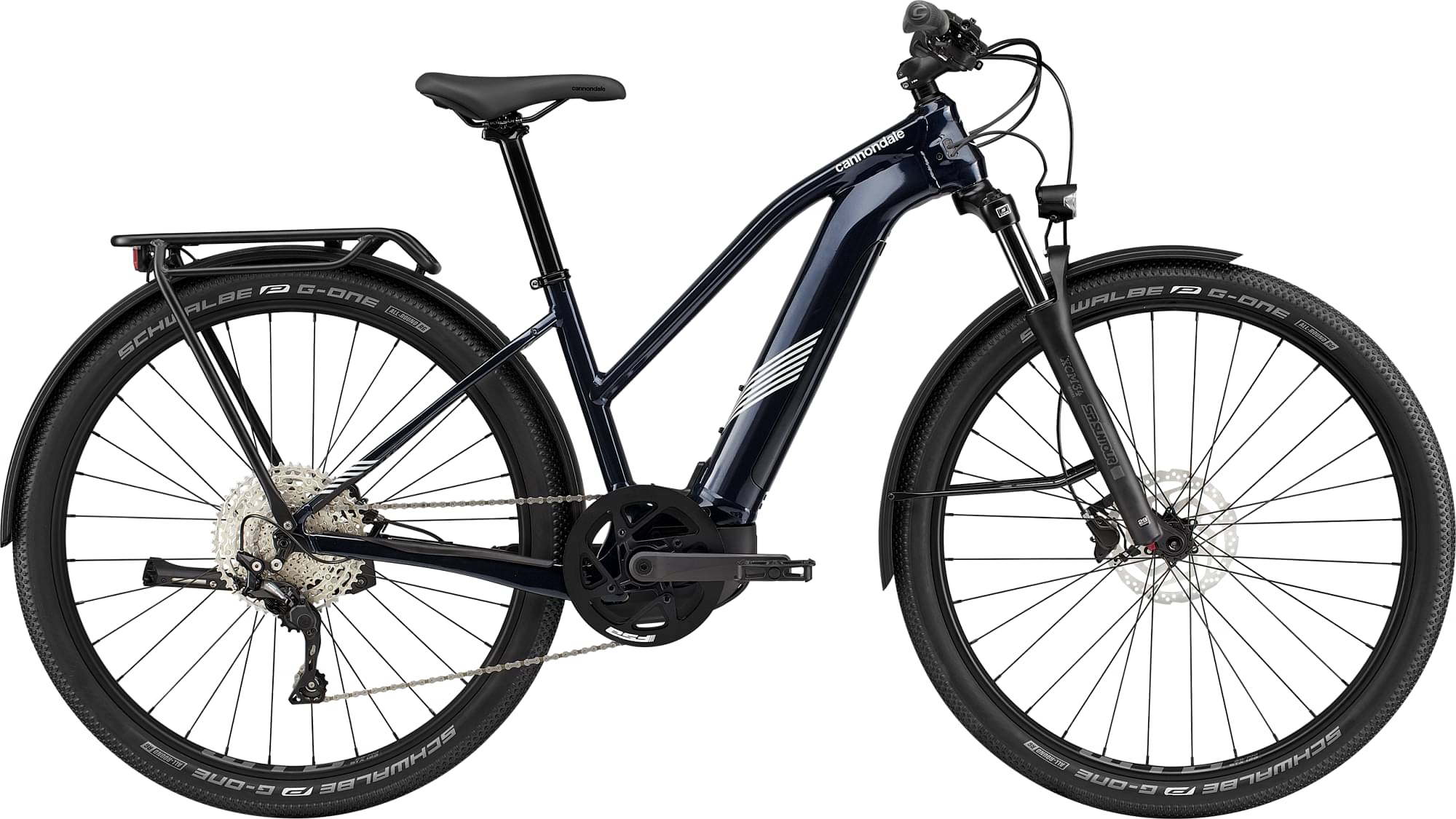

Cannondale Tesoro Neo X 2 Remixte 2024
2024 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset microSHIFT XLE -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Remixte Step-Thru, SmartForm C1 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, rack/fendor mount, lock mount
Suspension Fork
SR Suntour XCM 34 Boost, 100mm, 15x110, Coil, 51mm offset
Drivetrain
Rear Derailleur
microSHIFT XLE, medium cage
Shift Levers
microSHIFT XLE Xpress Shifter, 11-speed
Cassette
microSHIFT H-Series, 11-46, 11-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 46T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
KMC X11, 11-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i25 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Schwalbe G-One Allround Performance, 29x2.25", RaceGuard, tubeless ready
Brakes
Brakes
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Handlebar
Cannondale 3, 6061 double-butted, 20mm rise, 9° back, 720mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo Touring
Seatpost
Cannondale 4, 6061 Alloy, 31.6
Motor & Battery
Motor
Bosch Performance Line Speed 250W (28mph)
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 2A
Fit data

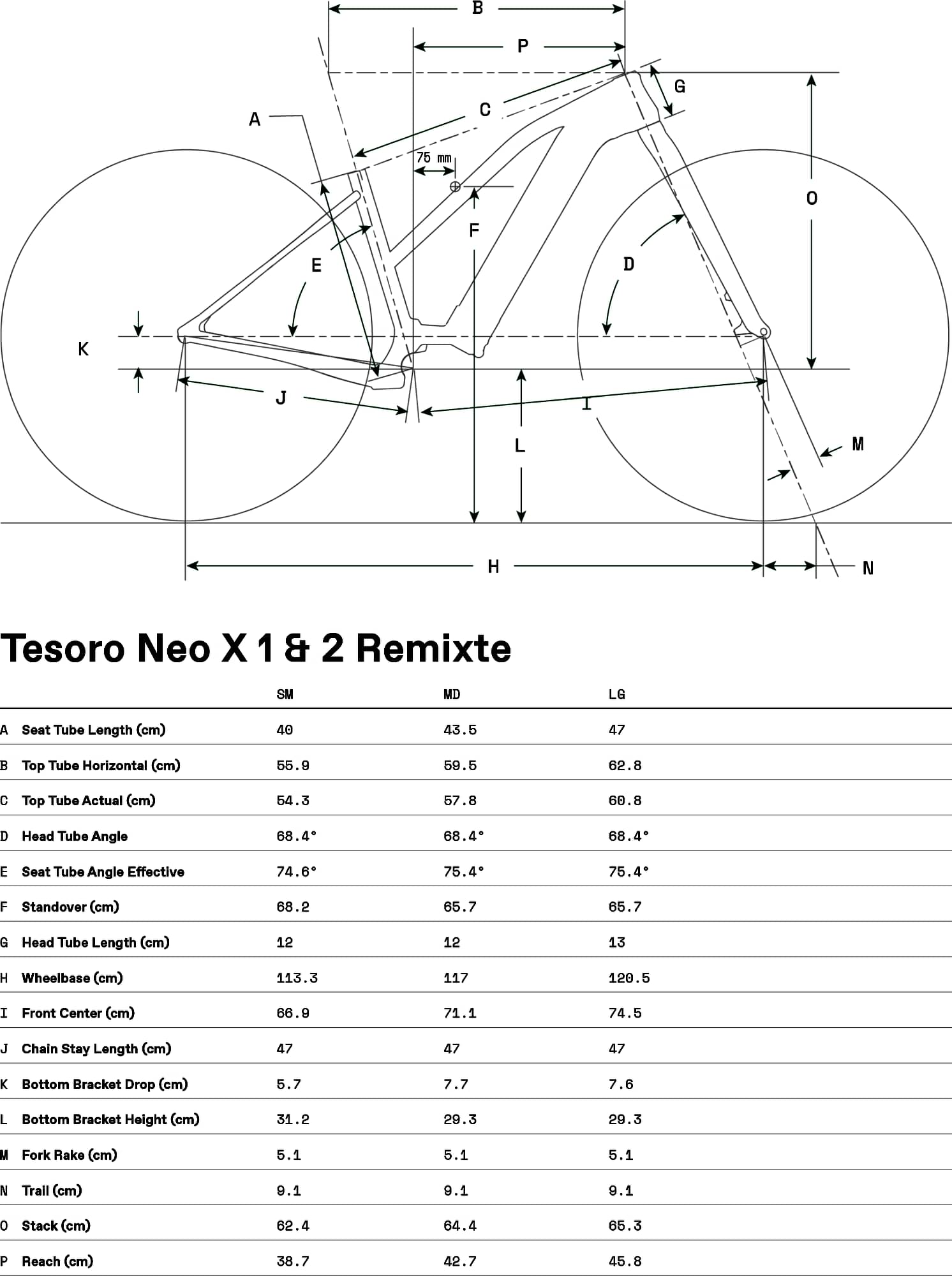

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 181 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm |
