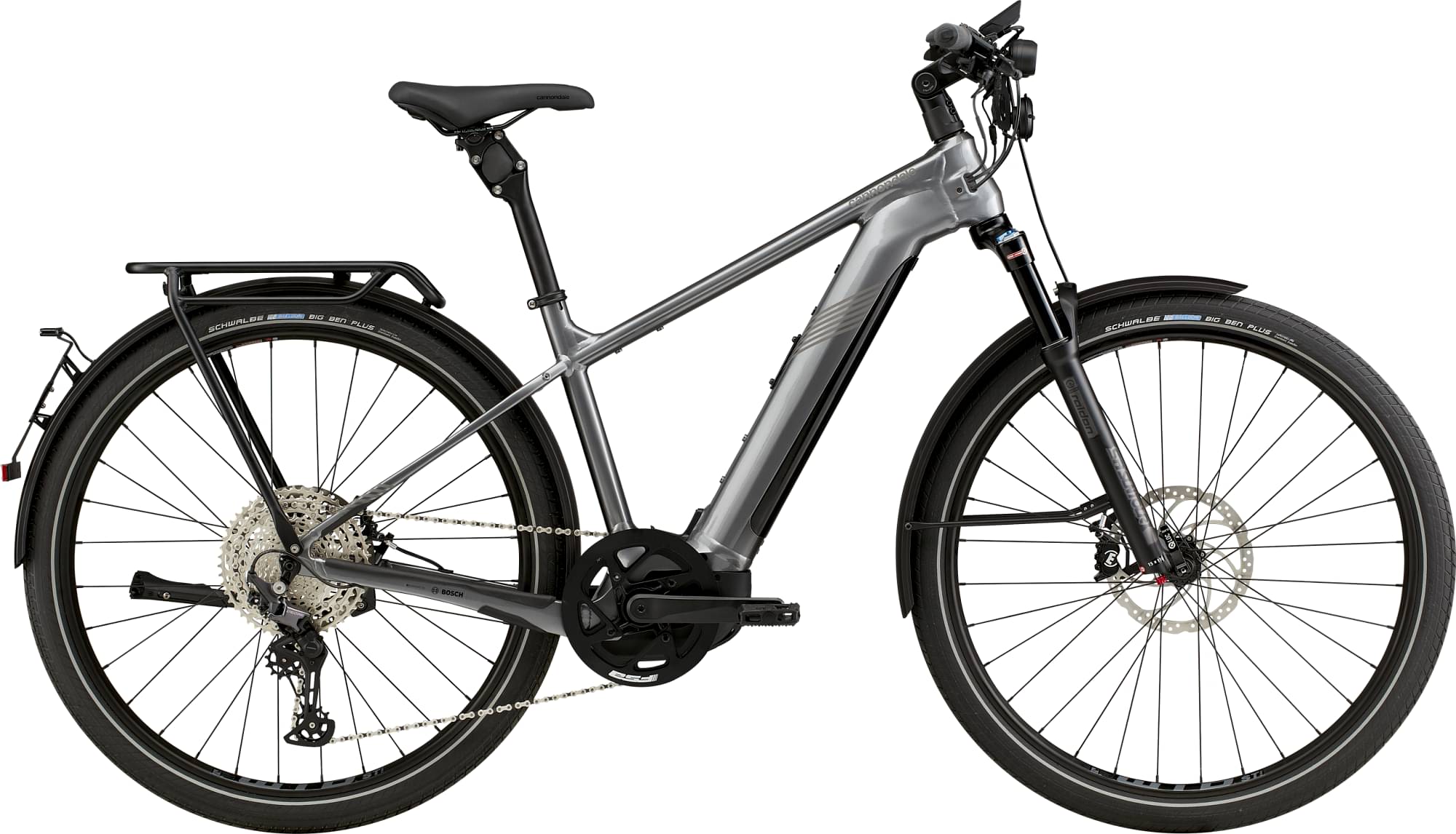

Cannondale Tesoro Neo X Speed 2024
2024 E-bike
Estimate price |
4,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
XL
193cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, integrated speed sensor, KickFlip hidden kickstand mount, motor protection, rack/fendor mount, lock mount
Suspension Fork
SR Suntour Raidon 34, 100mm, 15x110, 46mm offset
Drivetrain
Rear Derailleur
Shimano Deore
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 10-51, 12-speed
Crank
FSA Bosch E-Bike w/ custom Ai offset, 46T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
KMC X12, 12-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
Shimano MT400, 15x110mm thru-axle
Rear Hub
Shimano MT510, 12x148mm thru-axle
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion 2.0
Tires
Schwalbe Big Ben Plus Performance, Green Guard, Snake Skin, 55-622 – 28x2.15"
Brakes
Brakes
Magura MT5 hydraulic disc, 203/203mm Storm rotors
Brake Levers
Magura MTnext "e" w/ brake light switch
Cockpit
Stem
Cannondale Adjustable, A-headset, 31.8mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-On
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo Touring
Seatpost
Parallelogram Suspension Seatpost, 31.6
Motor & Battery
Motor
Bosch Performance Line Speed 250W (28mph)
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 181 cm | 193 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm | 203 cm |
