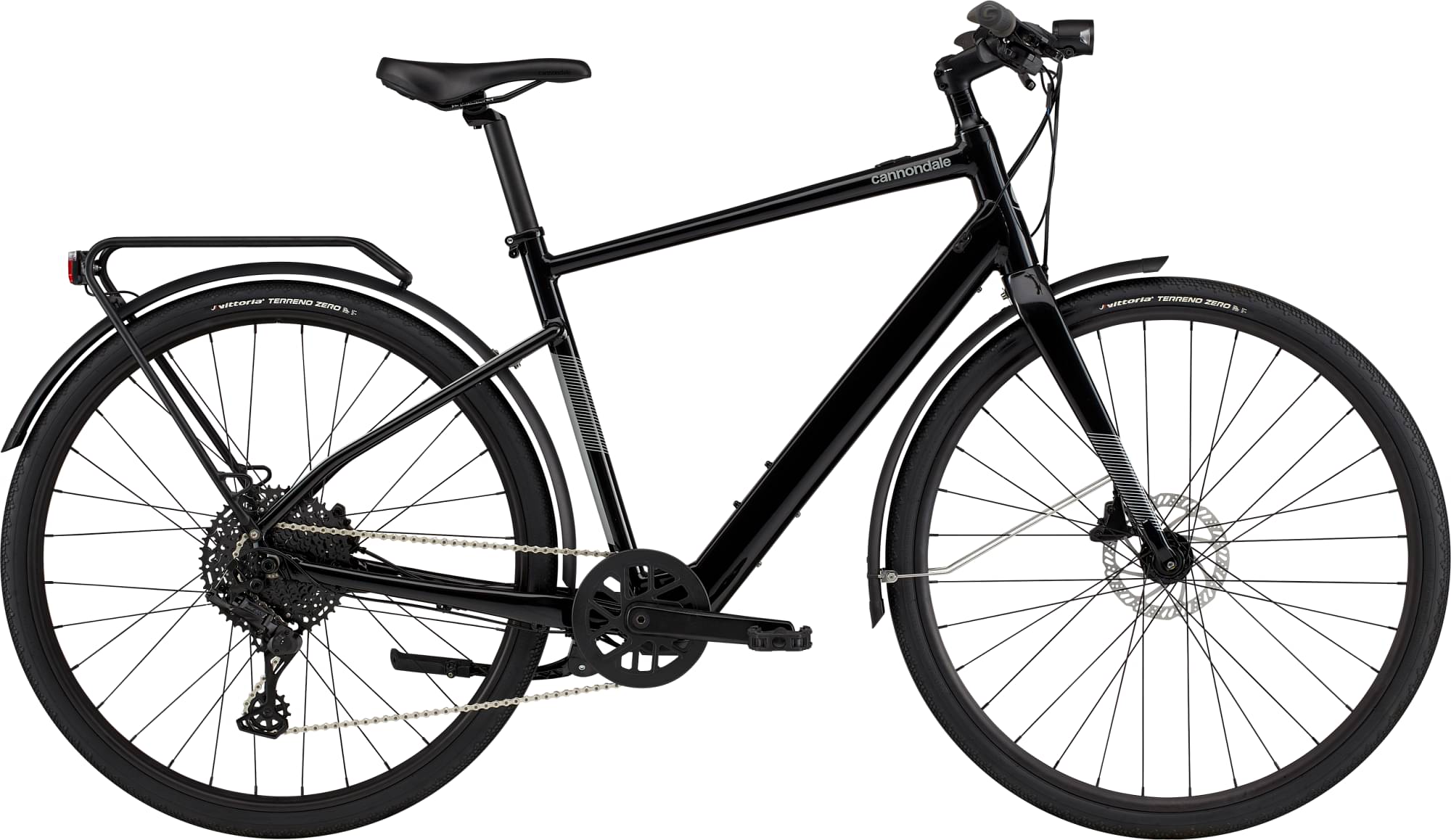

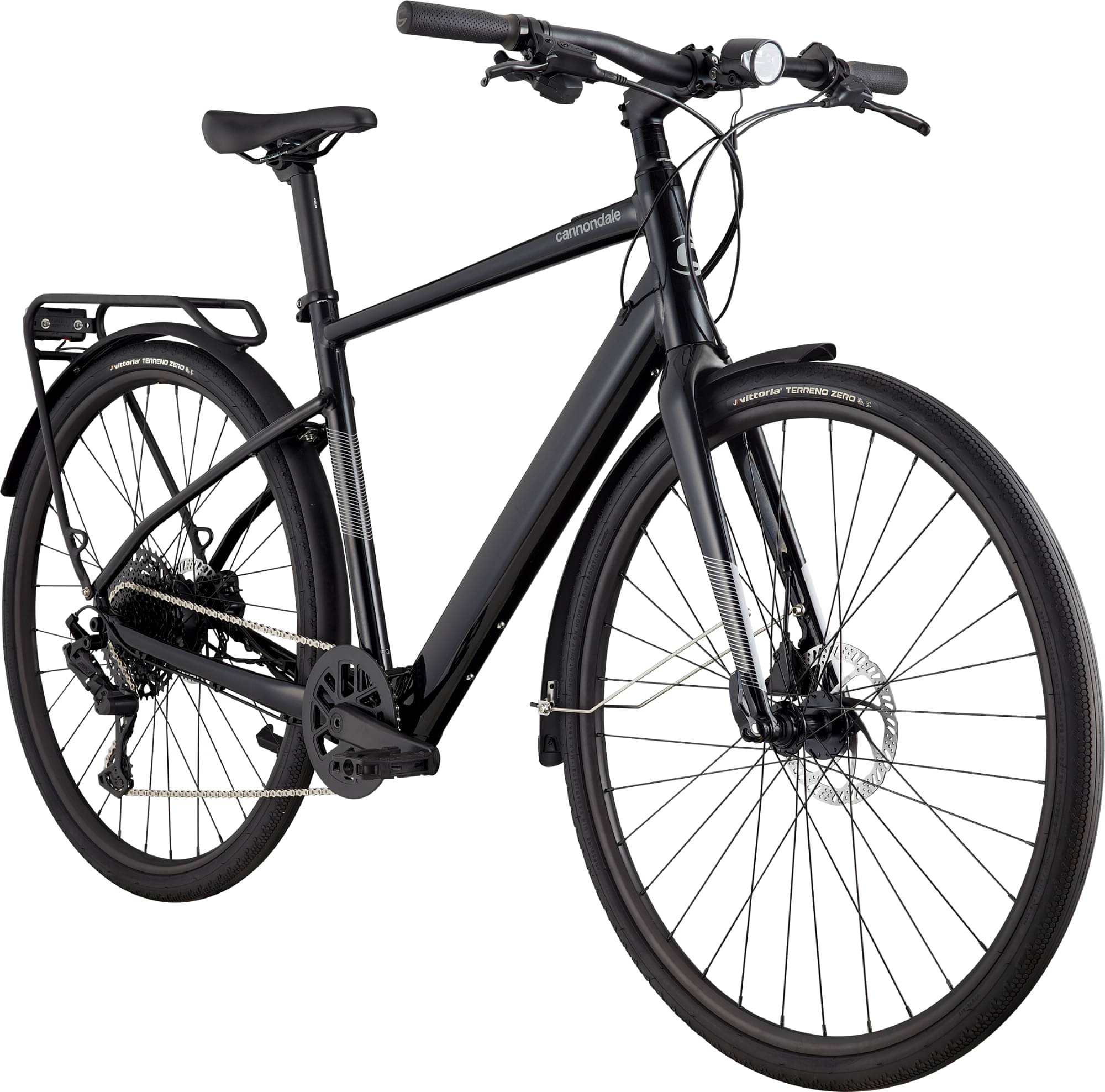

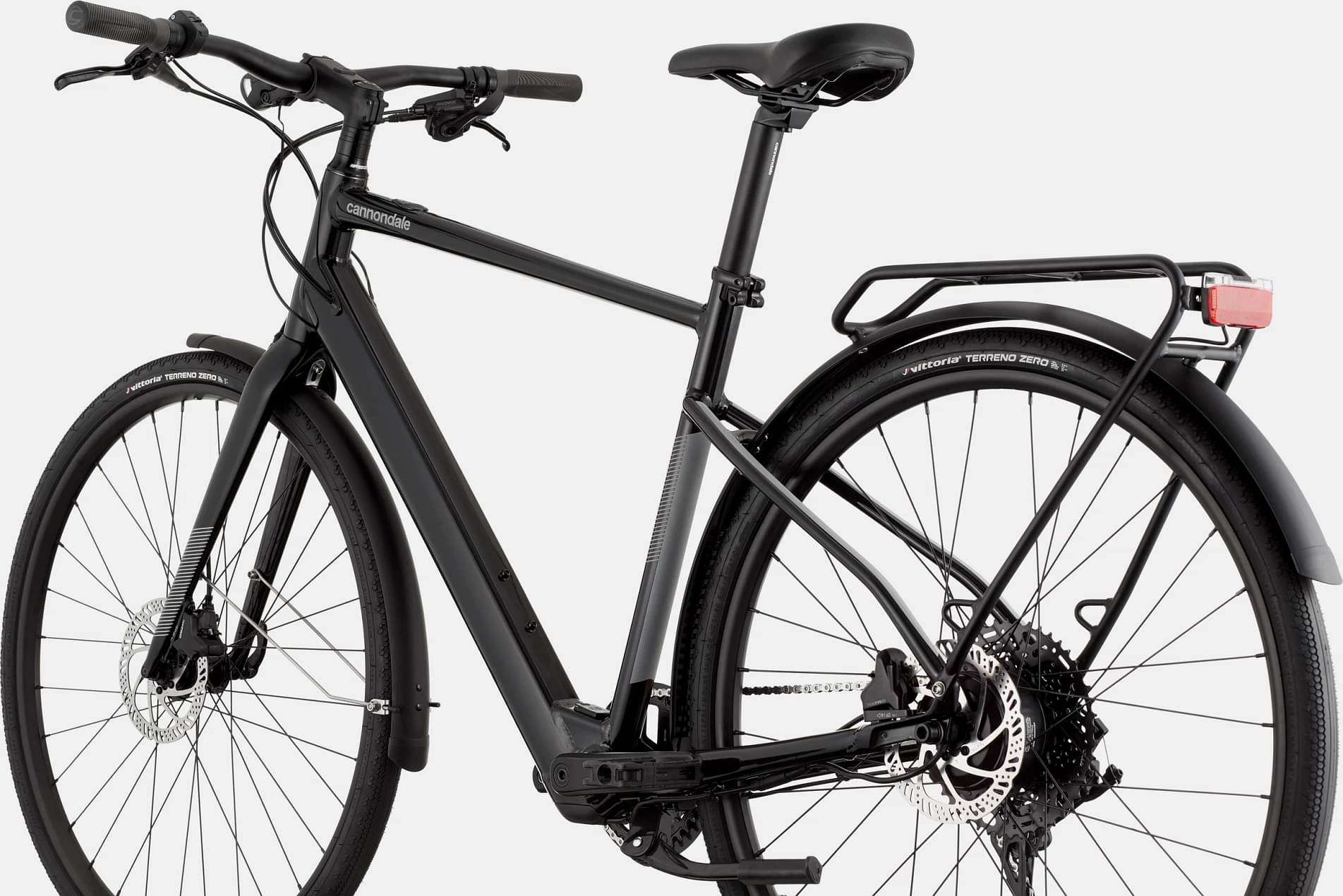

Cannondale Tesoro SL EQ 2024
2024 E-bike
Estimate price |
2,981$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent X -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Mahle X35, 250Wh internal downtube battery -
Drivetrain 1 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, Internal battery, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
Suspension Fork
Full carbon, 12x100mm thru-axle, 1-1/4" to 1-1/8" tapered steerer, flat mount disc, fender mounts, 360° reflectivity
Drivetrain

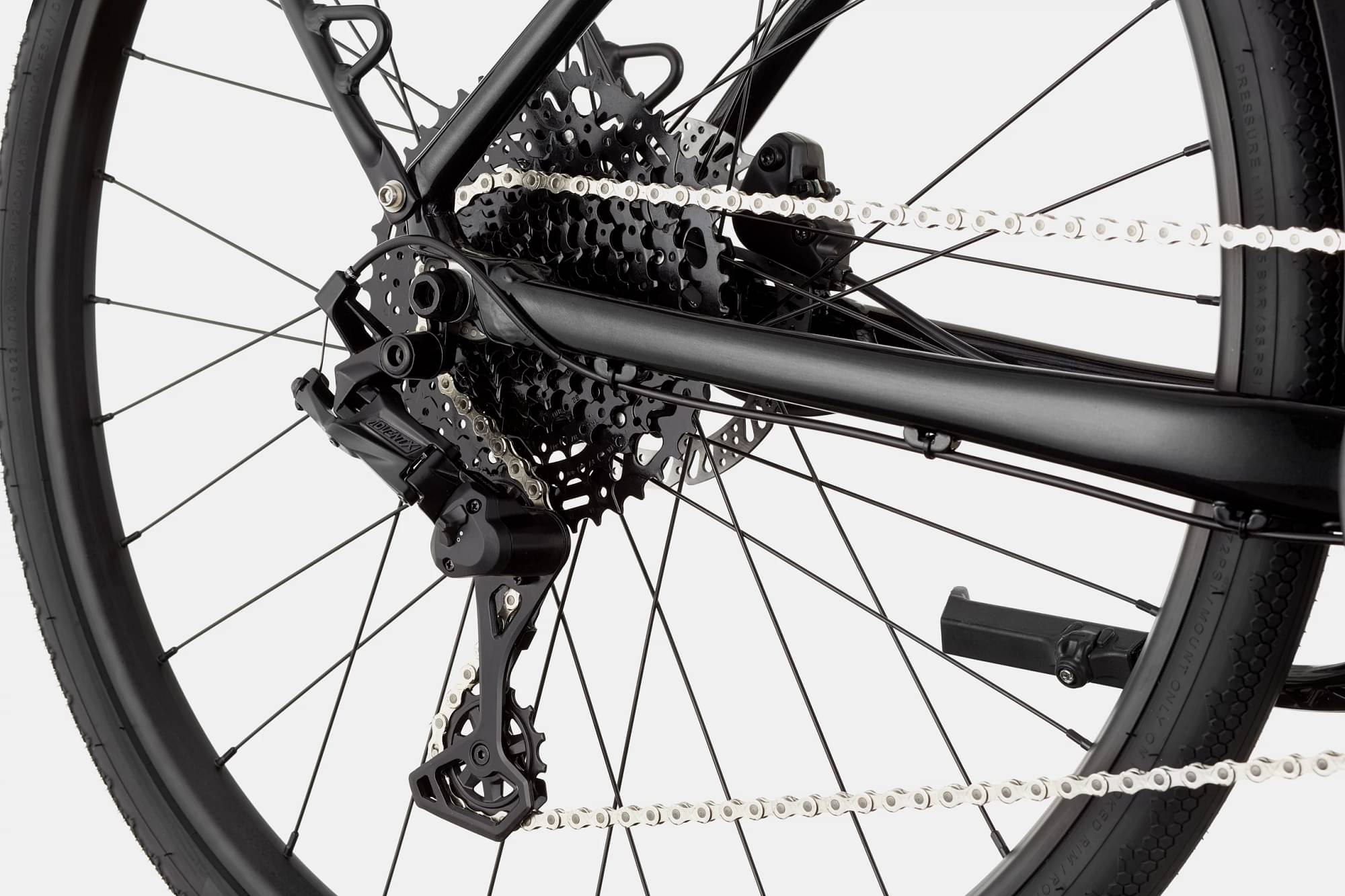

Rear Derailleur
microSHIFT Advent X
Shift Levers
microSHIFT Advent X, 10-Speed
Cassette
microSHIFT, 11-48, 10-speed

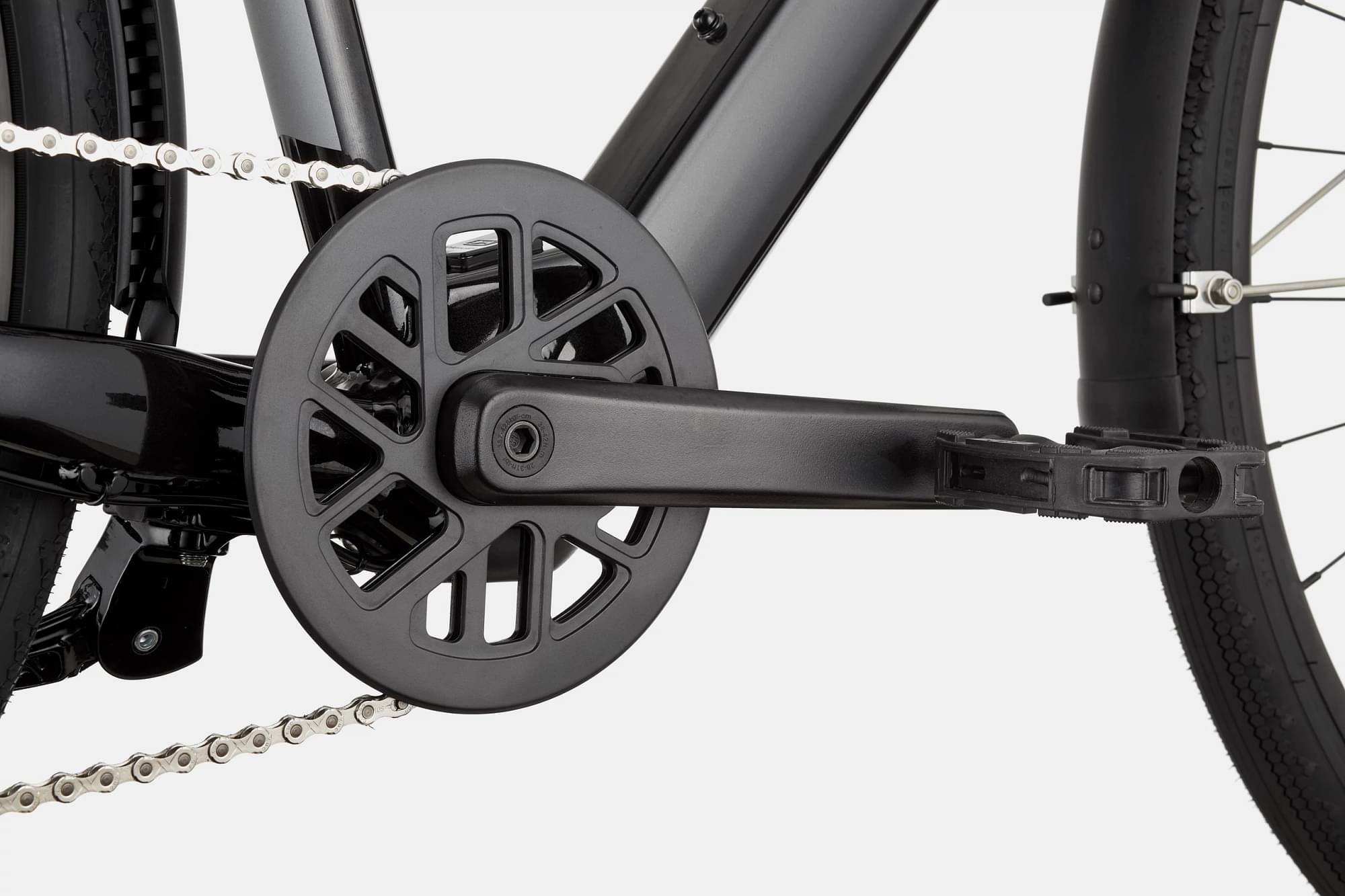

Crank
Prowheel, 38T
Bottom Bracket
Cartridge, square taper
Chain
KMC E10T, 10-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
(F) Alloy, 15x100mm thru-axle / (R) Mahle x35
Rear Hub
(F) Alloy, 15x100mm thru-axle / (R) Mahle x35
Rims
Shining, 32 hole
Spokes
Stainless Steel (F) 14g / (R) 13g
Tires
Vittoria Terreno Zero, 700x35c
Brakes
Brakes
Tektro M275 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8, 6°

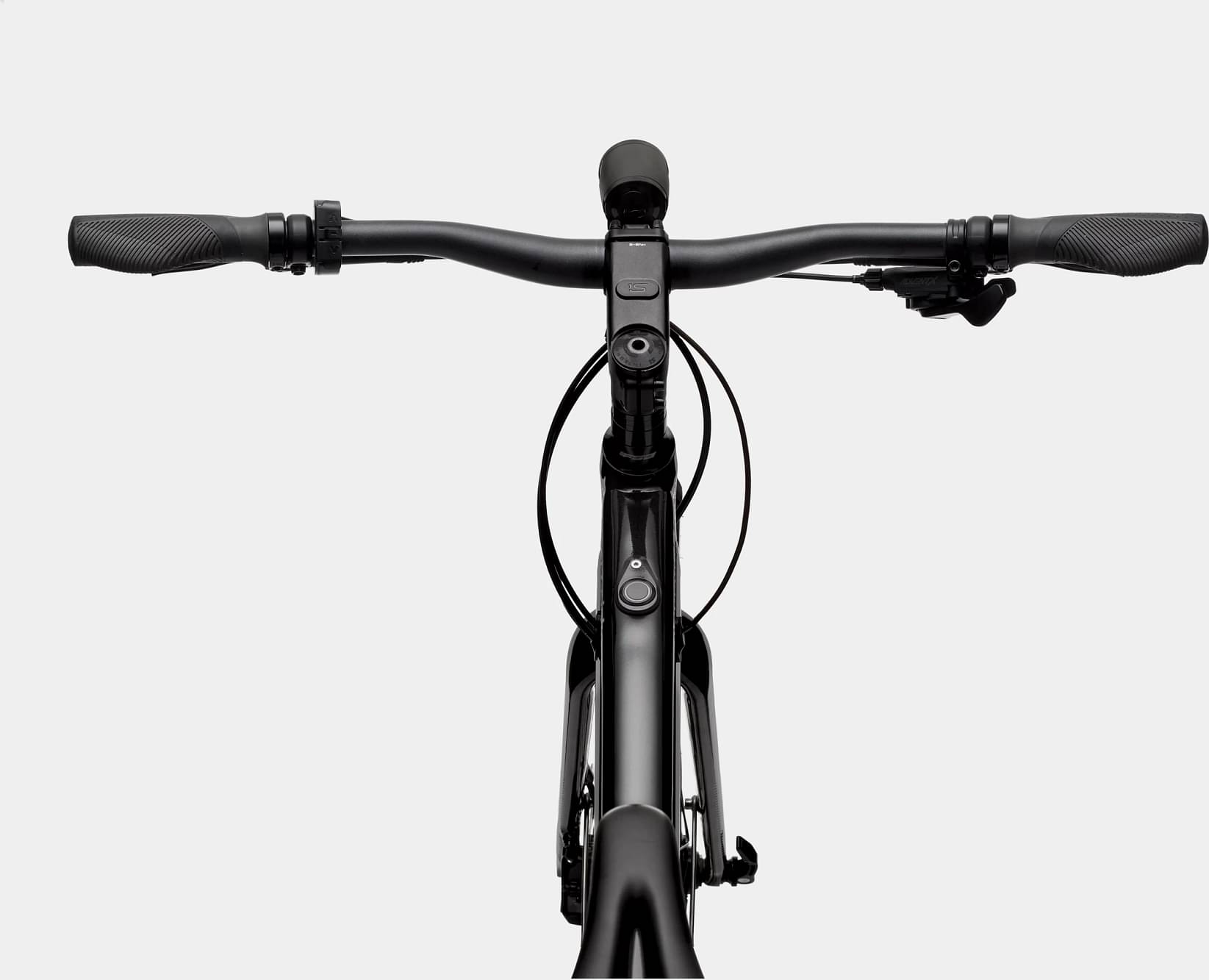

Handlebar
Cannondale Riser, 6061 Alloy, 18mm rise, 8° back, 4° up, 680mm
Grips
Cannondale Fitness Ergo Double Density
Headset
FSA Sealed Bearing, integrated, 1-1/4"-1-1/8"
Seat
Saddle
Cannondale Fitness Ergo Double Density
Seatpost
6061 Alloy, 31.6x350mm
Motor & Battery
Motor
Mahle X35 250W rear hub motor
Battery
Mahle X35, 250Wh internal downtube battery
Charger
Mahle X35, 2A
Fit data

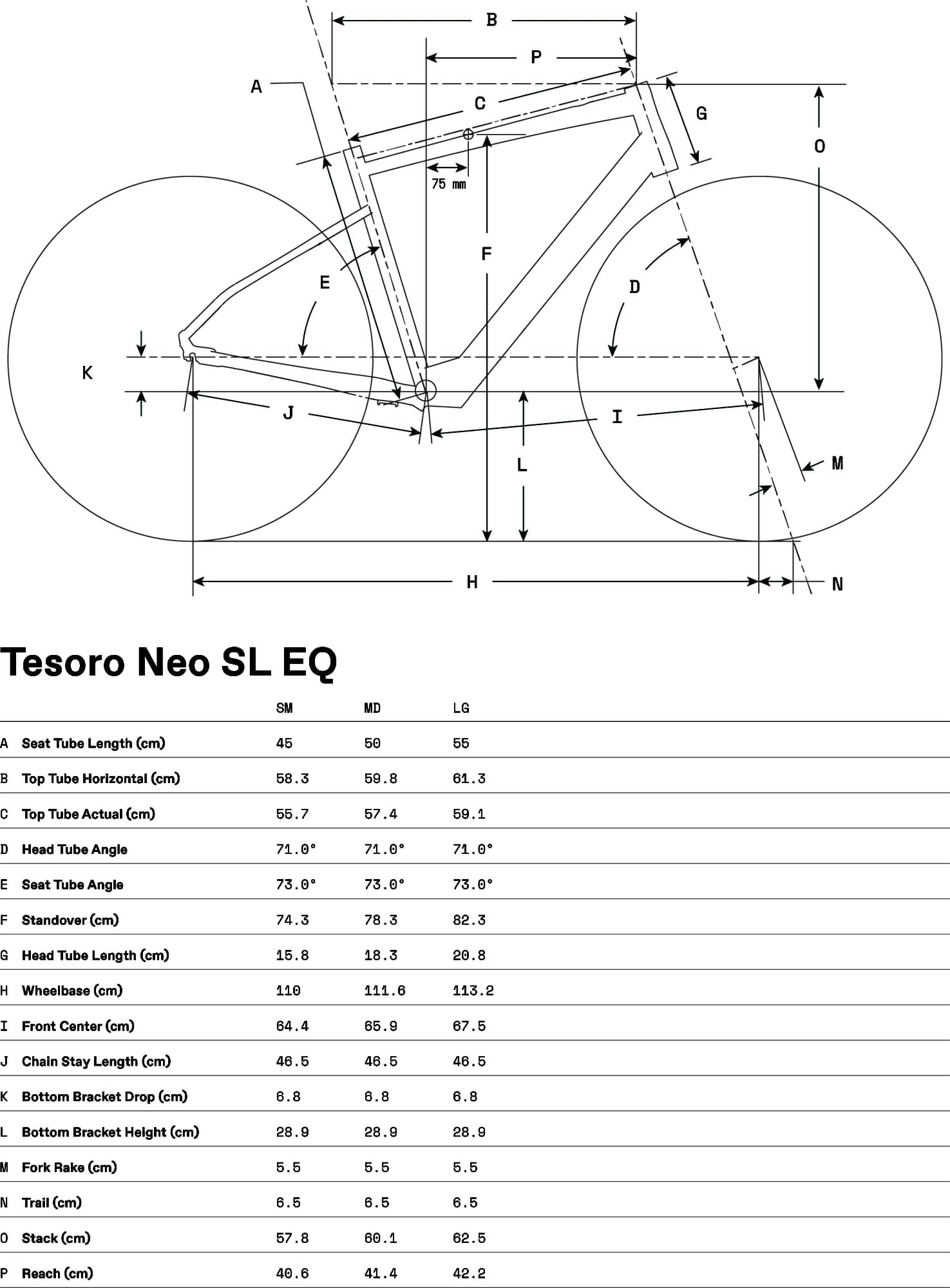

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 181 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm |
