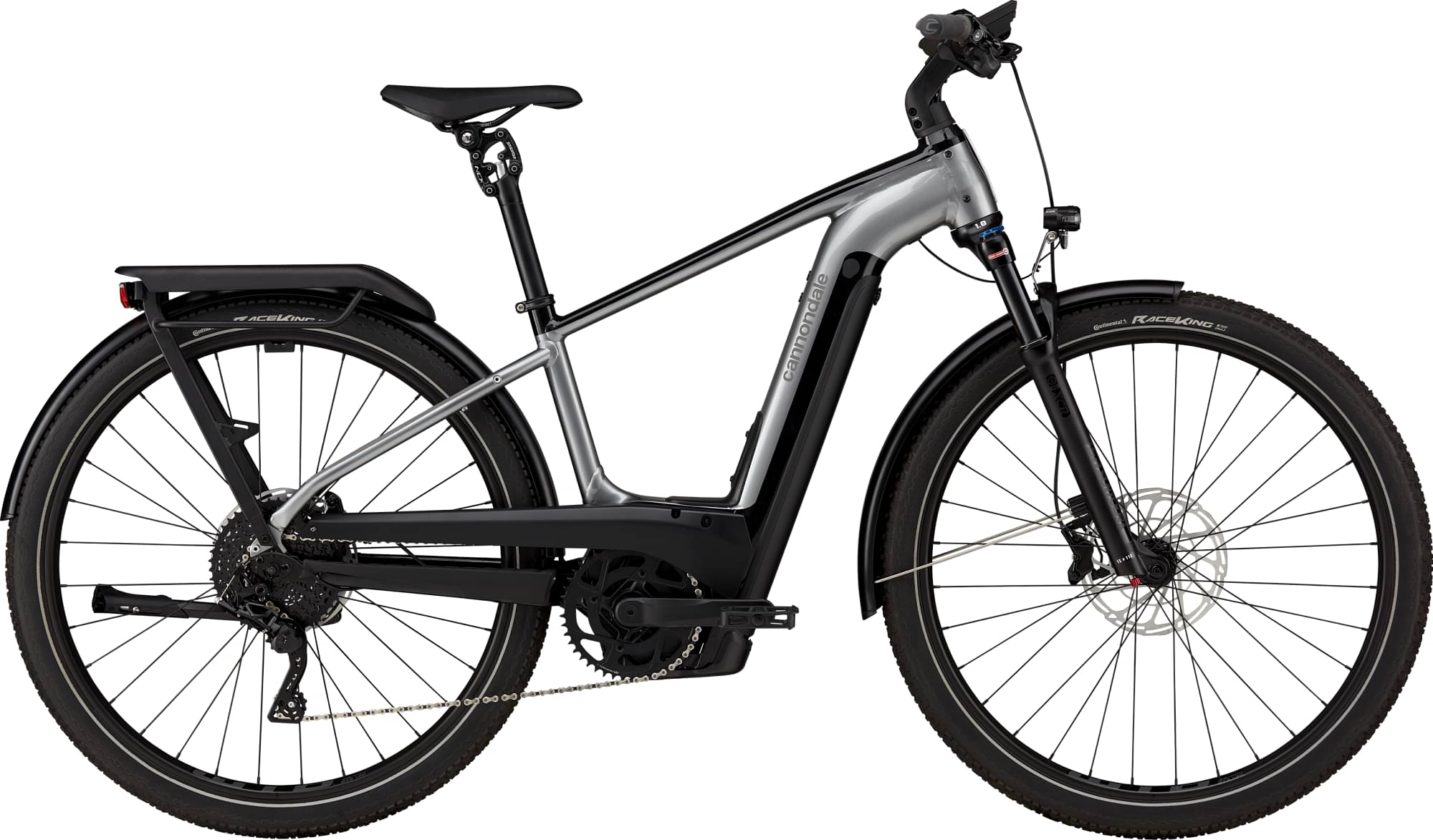

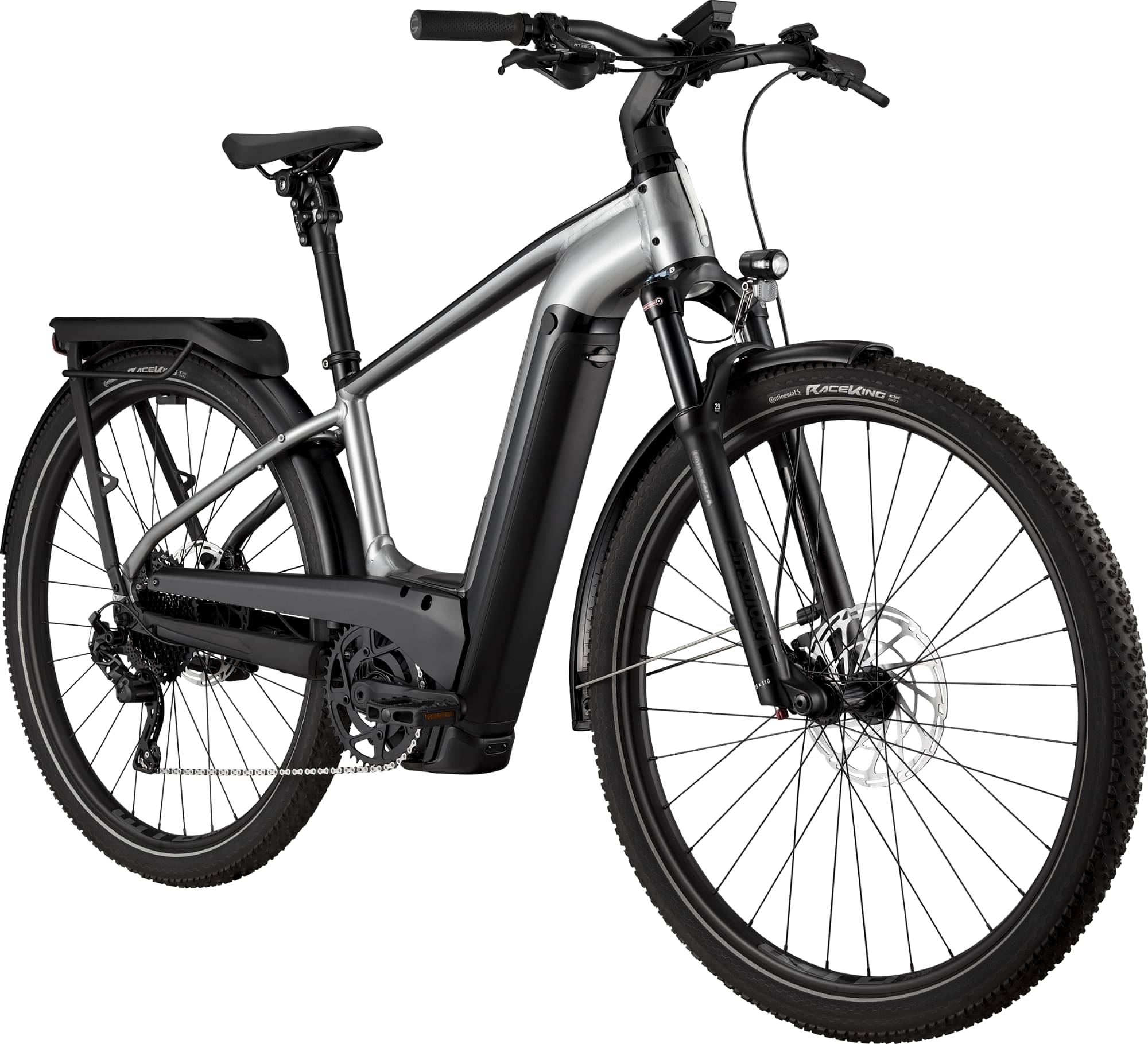

Cannondale Tesoro X 1 2024
2024 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset microSHIFT XLE -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
XL
193cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tesoro X, SmartForm C1 Alloy, removable downtube battery, dual battery compatible, fully internal cable routing, 135x9mm, belt-compatible dropout, flatmount disc, headtube waterbottle mounts, integrated daytime running light, HDT child seat/cargo mount compatible
Suspension Fork
SR Suntour XCR34, 100mm, coil, boost spacing, offset - 44mm (S) / 51mm (M, L)

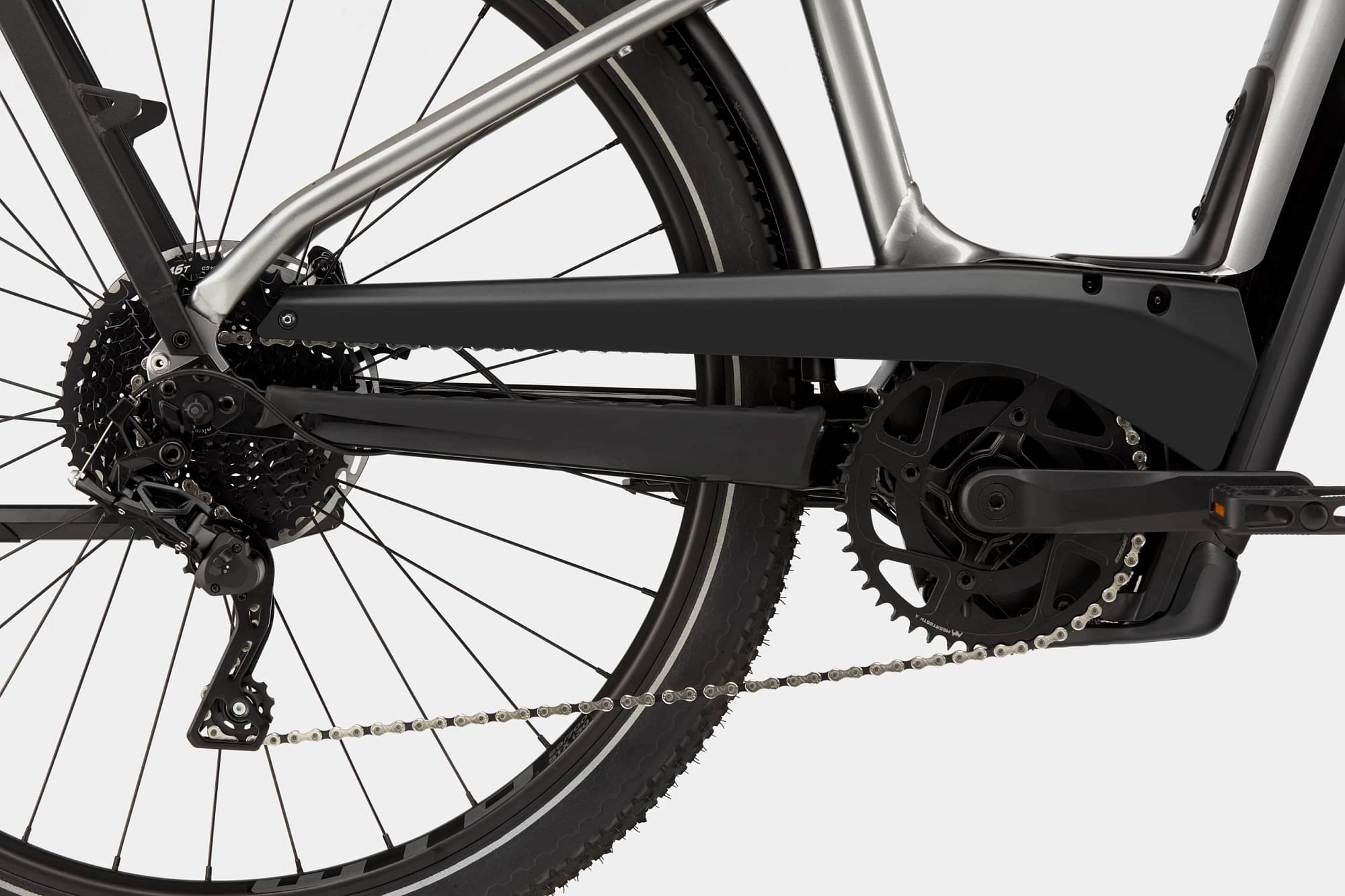

Drivetrain
Rear Derailleur
microSHIFT XLE11
Shift Levers
microSHIFT XLE11, 11-speed
Cassette
microSHIFT H-Series, 11-46, 11-speed
Crank
FSA Bosch E-Bike, 46T
Bottom Bracket
Bosch, press-fit
Chain
KMC X11, 11-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
(F) Formula CL-811, 15x110mm centerlock / (R) Formula CL-26, 135QR centerlock
Rear Hub
(F) Formula CL-811, 15x110mm centerlock / (R) Formula CL-26, 135QR centerlock
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Continental Race King 29x2.2" 55-622 (M,L) / 27.5x2.2" 55-584 (S)
Brakes
Brakes
Riderever Attack-XU, 4-piston hydraulic disc, 203/203 rotors
Brake Levers
Riderever Attack-XU hydraulic disc

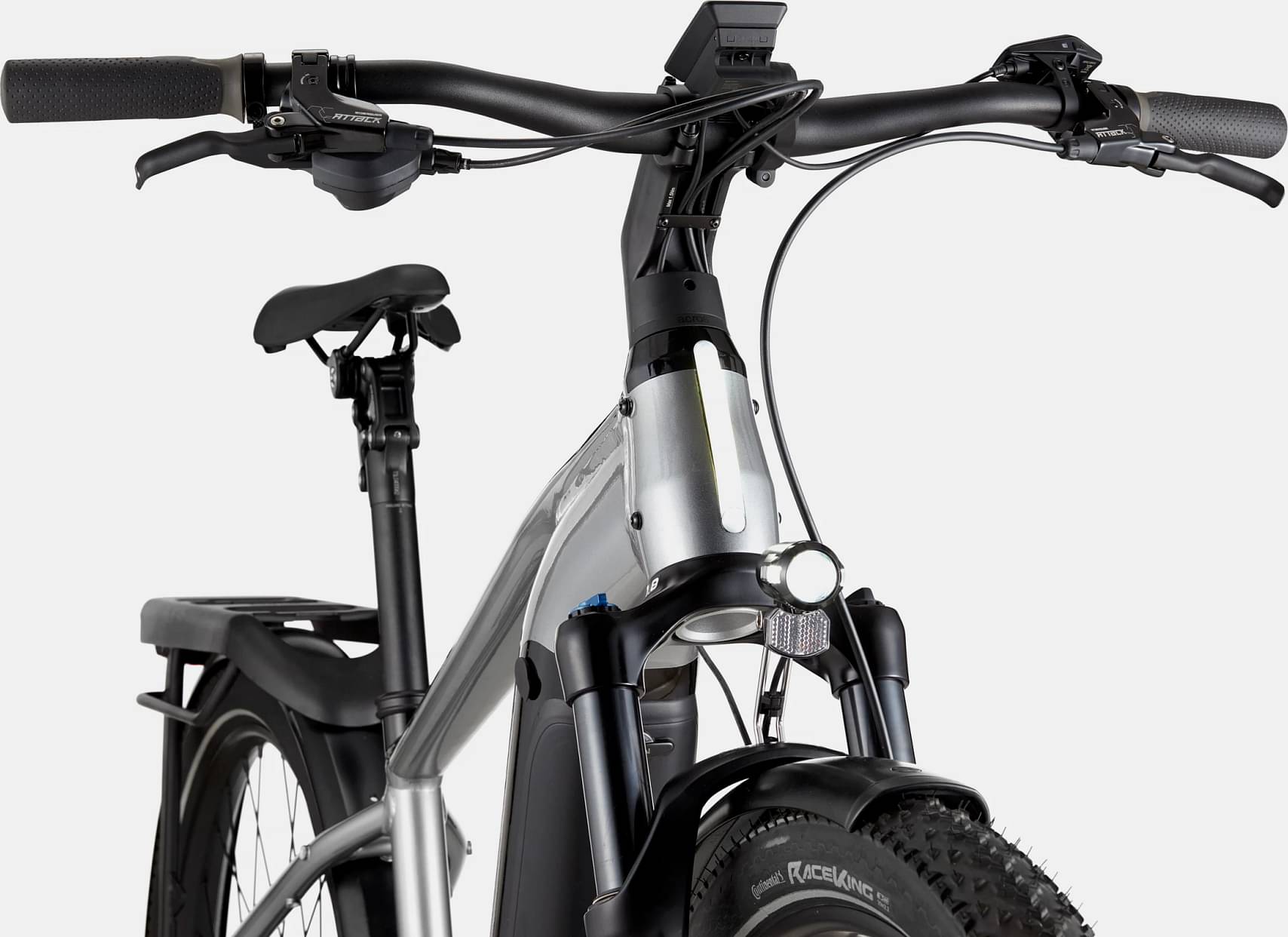

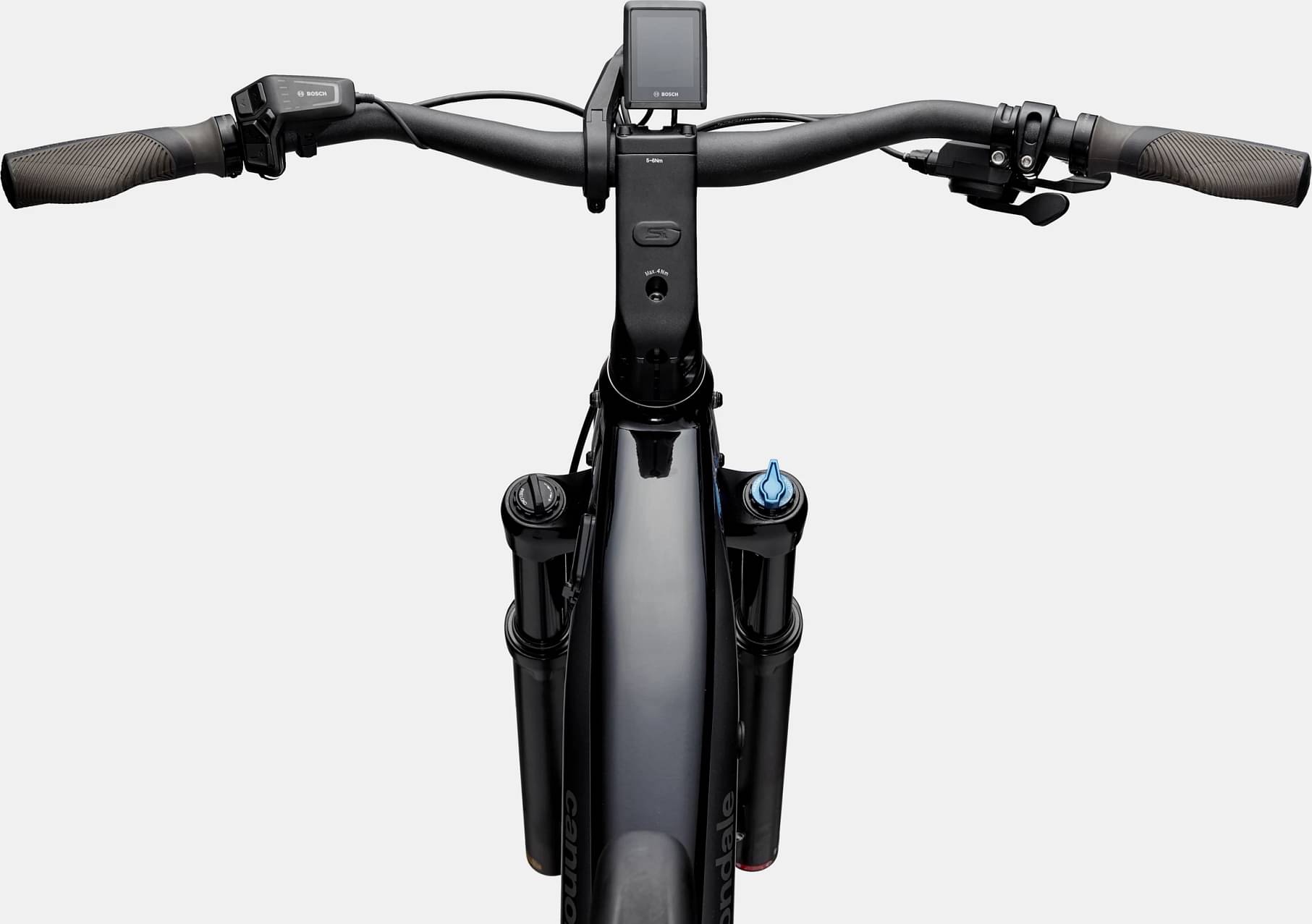

Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 70mm, integrated cable routing
Handlebar
Cannondale Trekking, 31.8mm
Grips
Cannondale Comfort
Headset
Integrated Sealed Bearing, Tapered

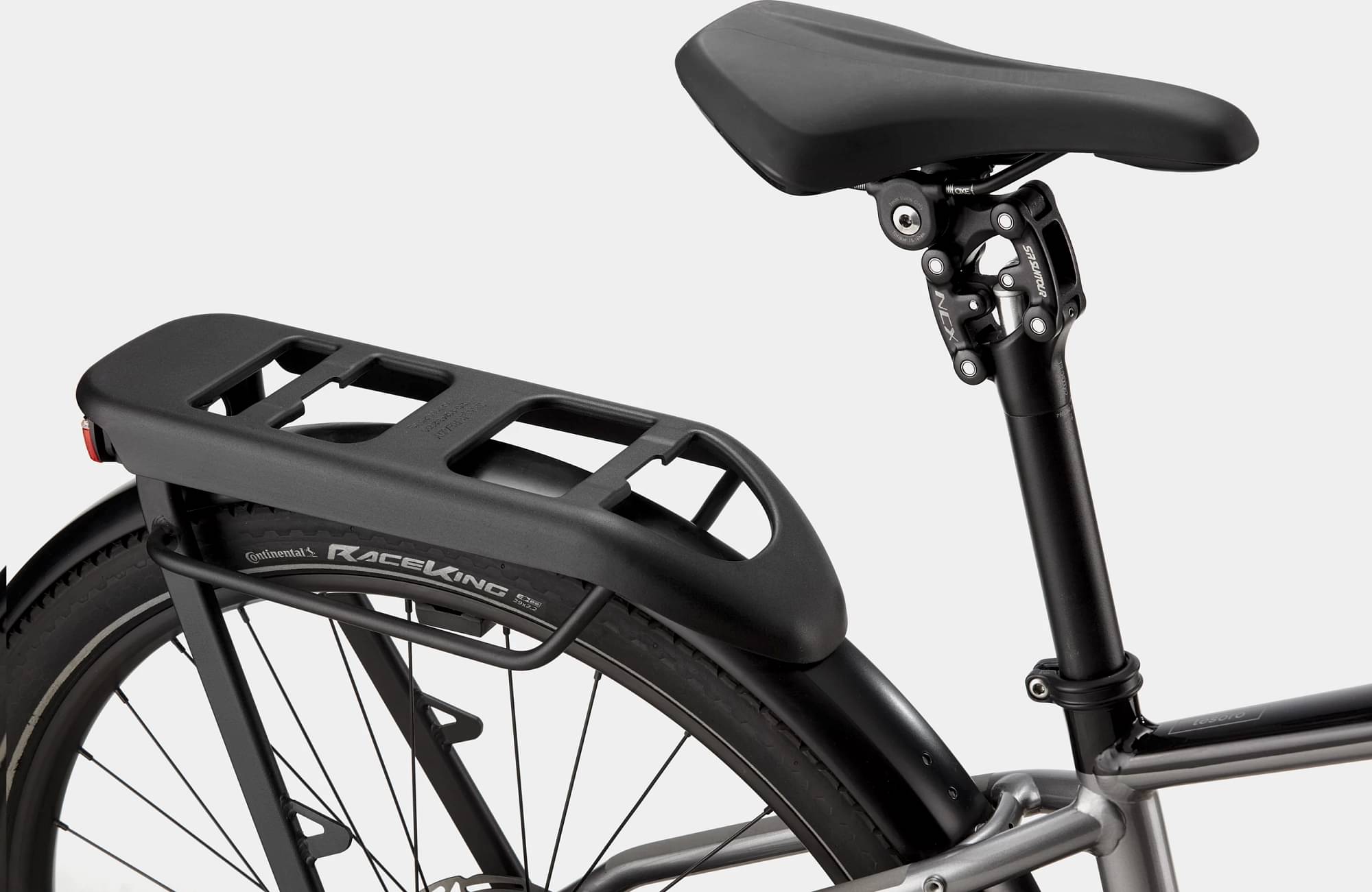

Seat
Saddle
Fizik Vivo Active Ergo
Seatpost
Parallelogram Suspension Seatpost, 31.6, 25mm Setback, 50mm Travel, 300mm (SM), 350mm (MD), 400mm (LG, XL)

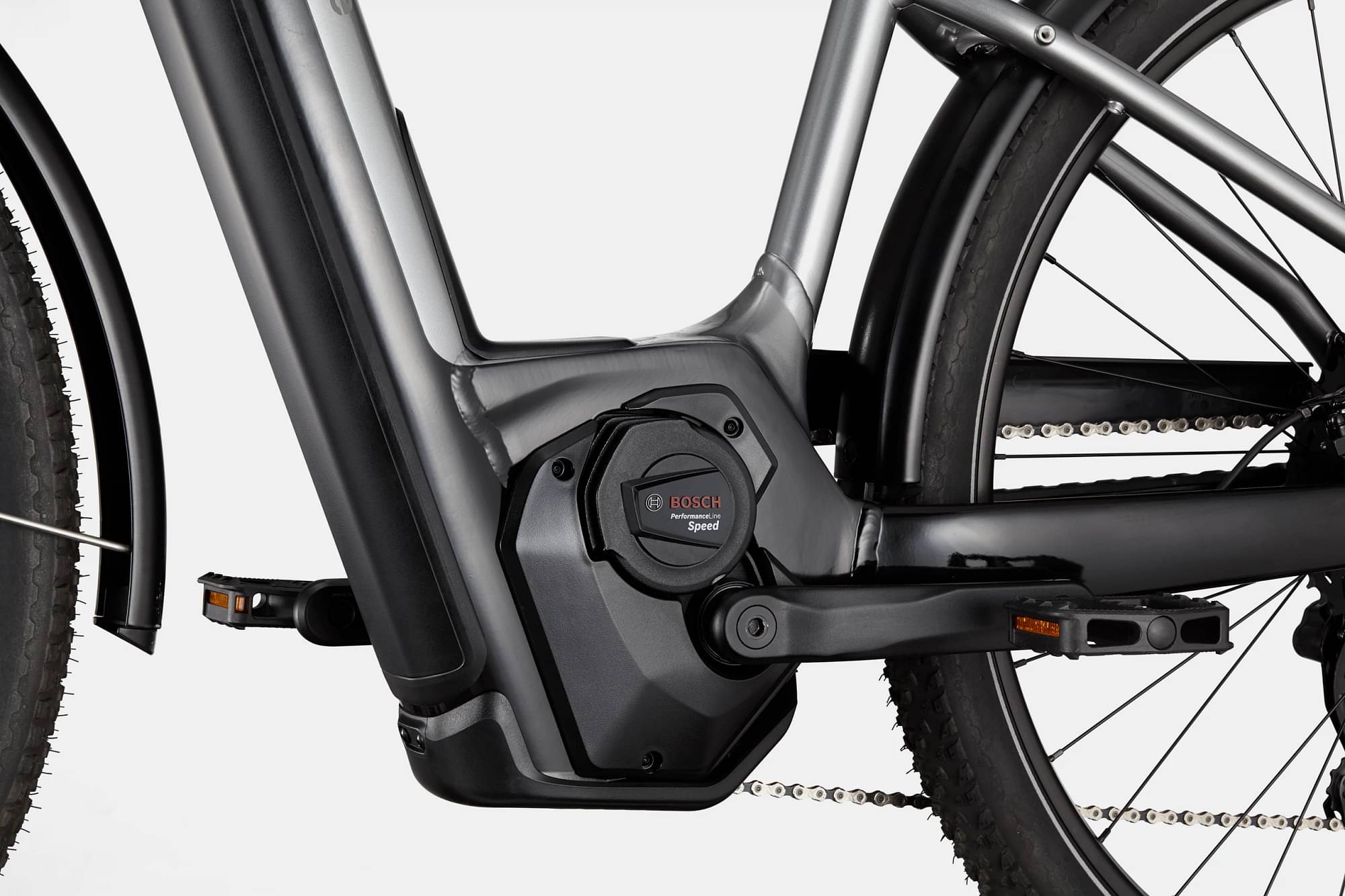

Motor & Battery
Motor
Bosch Performance Line Speed, 250W (28 mph)
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Fit data

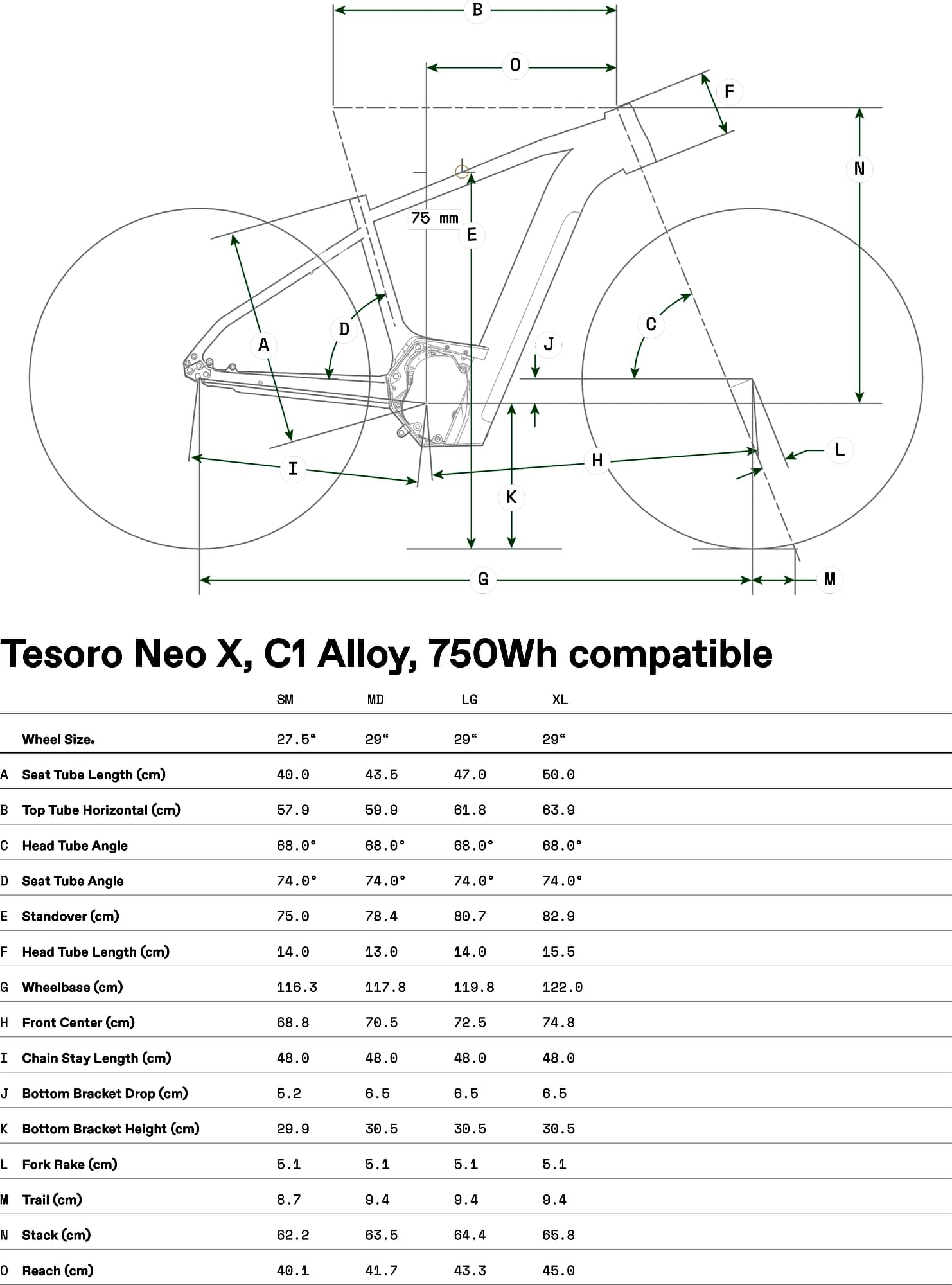

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 181 cm | 193 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm | 203 cm |
