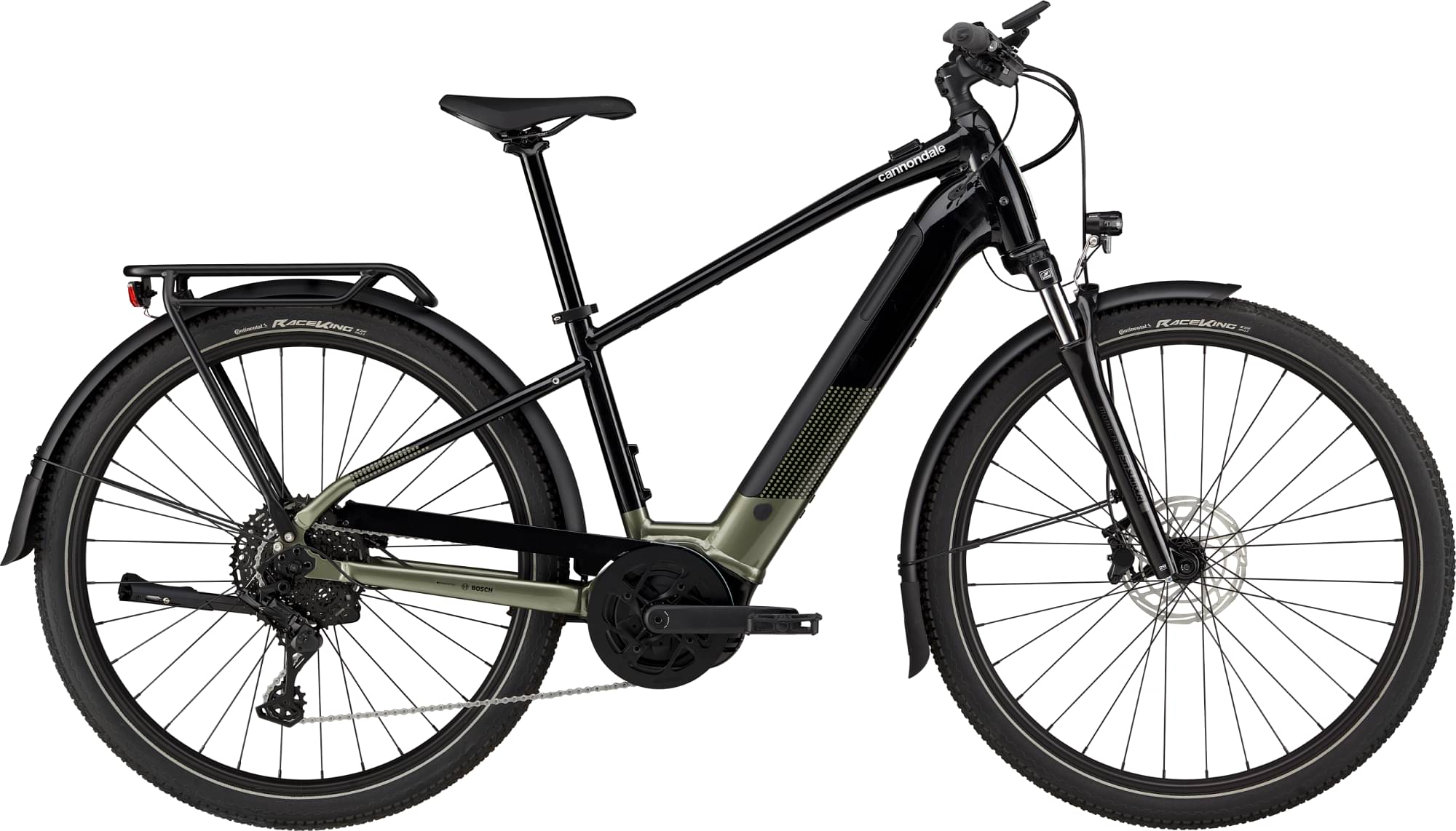

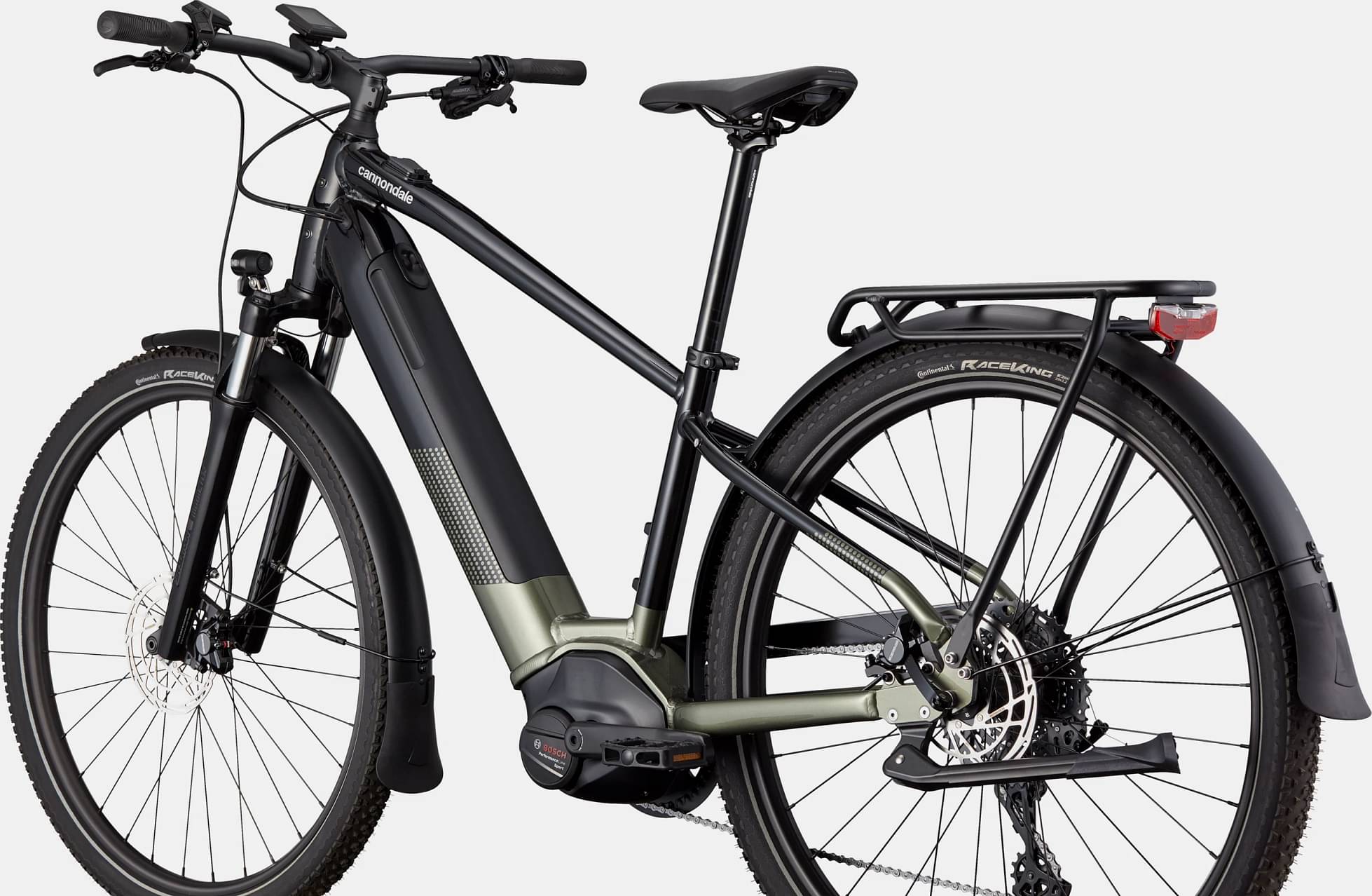

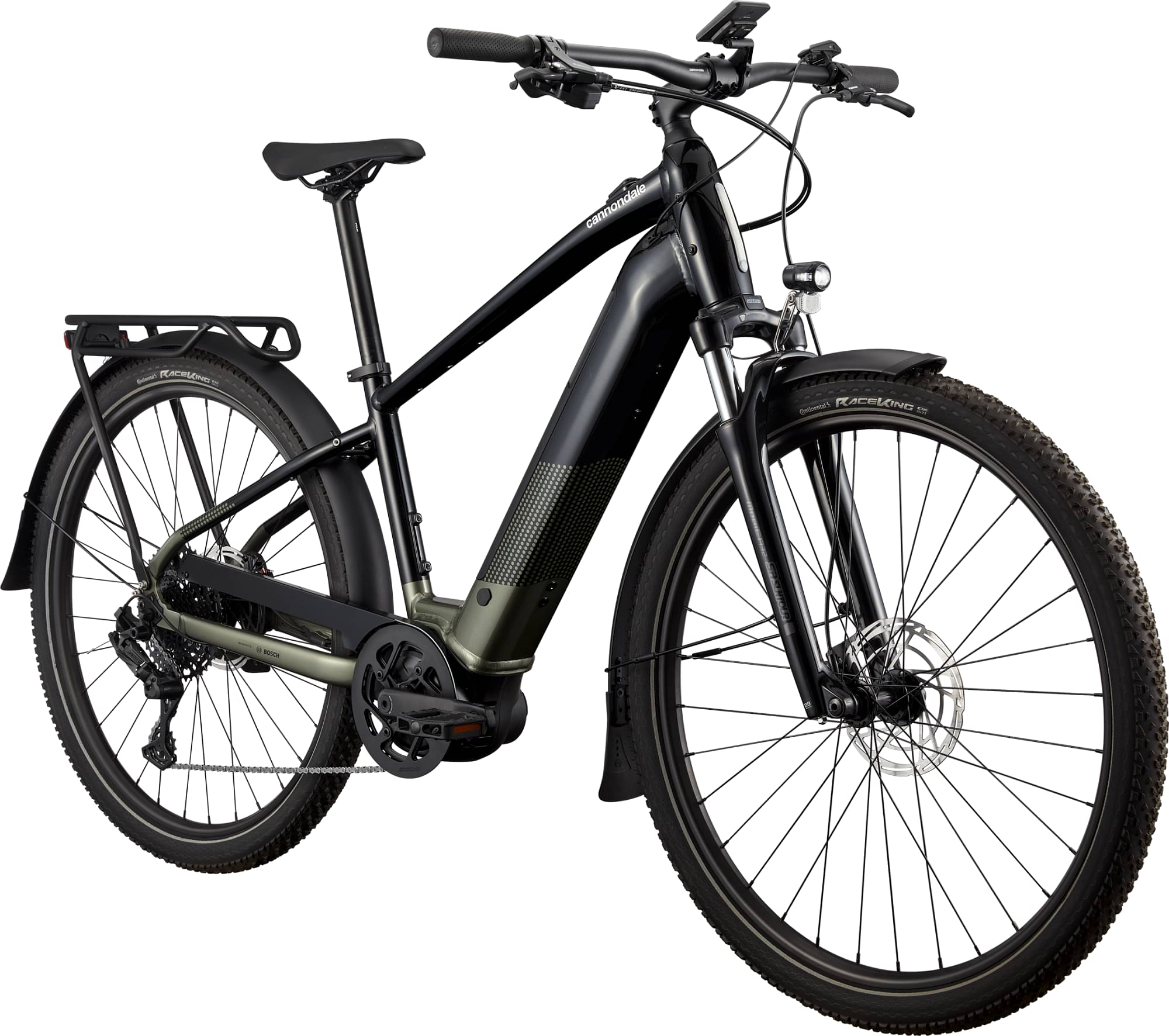

Cannondale Tesoro X 2 2024
2024 E-bike
Estimate price |
3,784$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
XL
193cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Suspension Fork
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Drivetrain

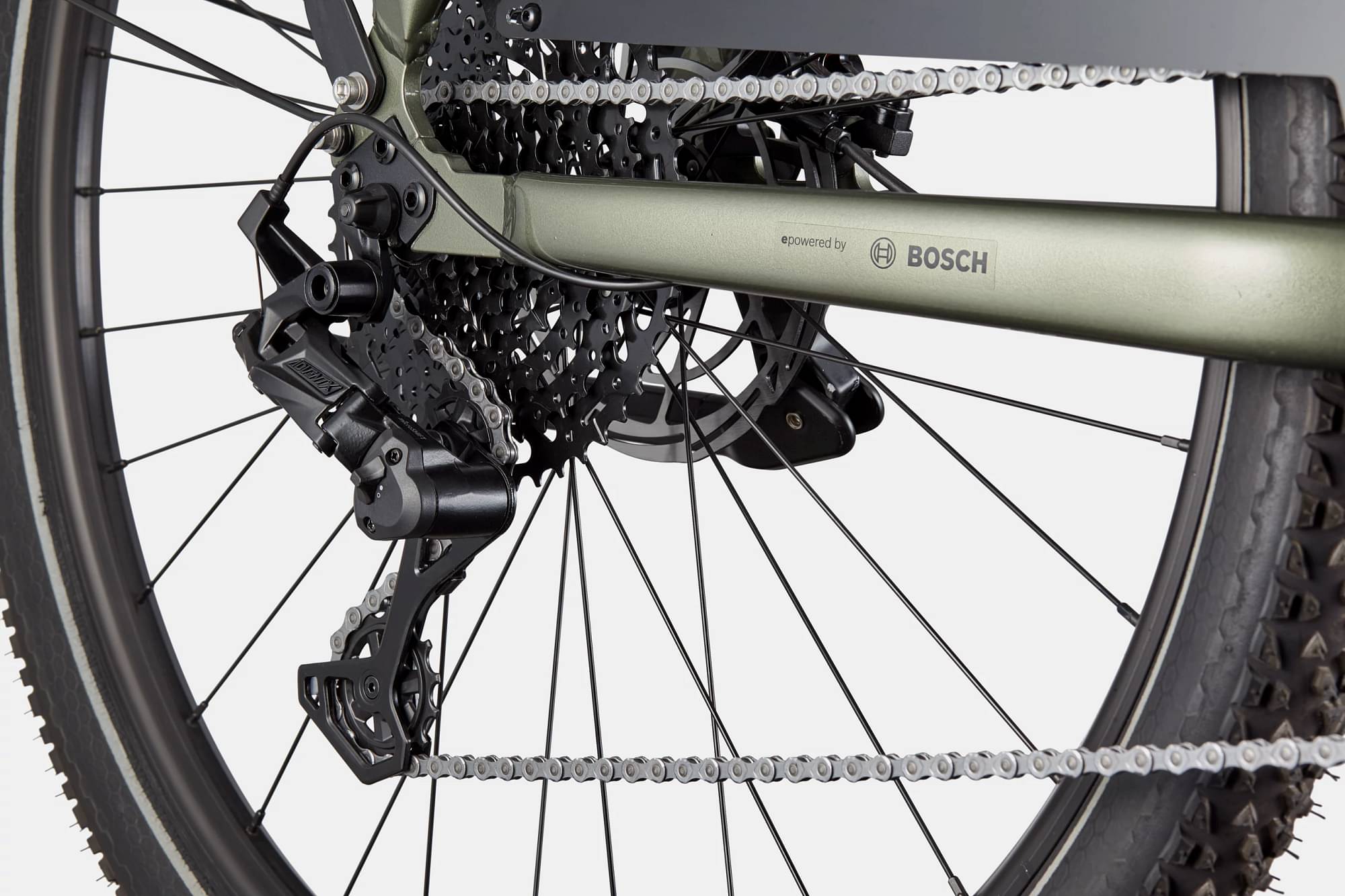

Rear Derailleur
microSHIFT Advent X, 10-speed
Shift Levers
microSHIFT Advent X Trail Trigger Pro, 10-speed
Cassette
microSHIFT EH104, 11-48, 10-speed
Crank
FSA for Bosch
Bottom Bracket
Bosch, press-fit
Chain
KMC E10S, EPT anti-rust, 10-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
(F) Formula CL-71, 15x100mm centerlock / (R) Formula CL-26, 135QR centerlock
Rear Hub
(F) Formula CL-71, 15x100mm centerlock / (R) Formula CL-26, 135QR centerlock
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Spokes
Stainless Steel, 14g
Tires
Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG)
Brakes
Brakes
Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors
Brake Levers
Riderever Attack-U-OE, hydraulic disc

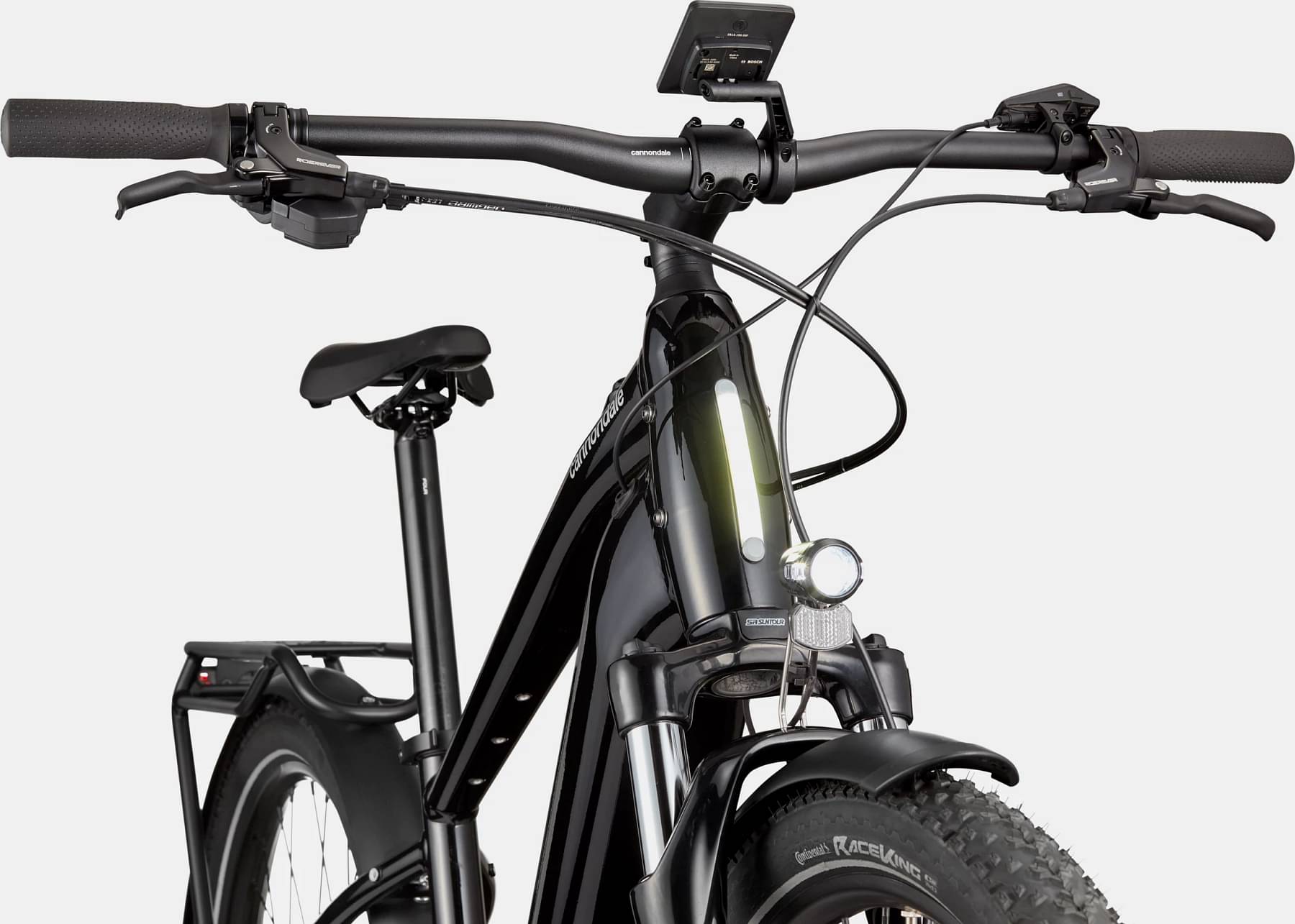

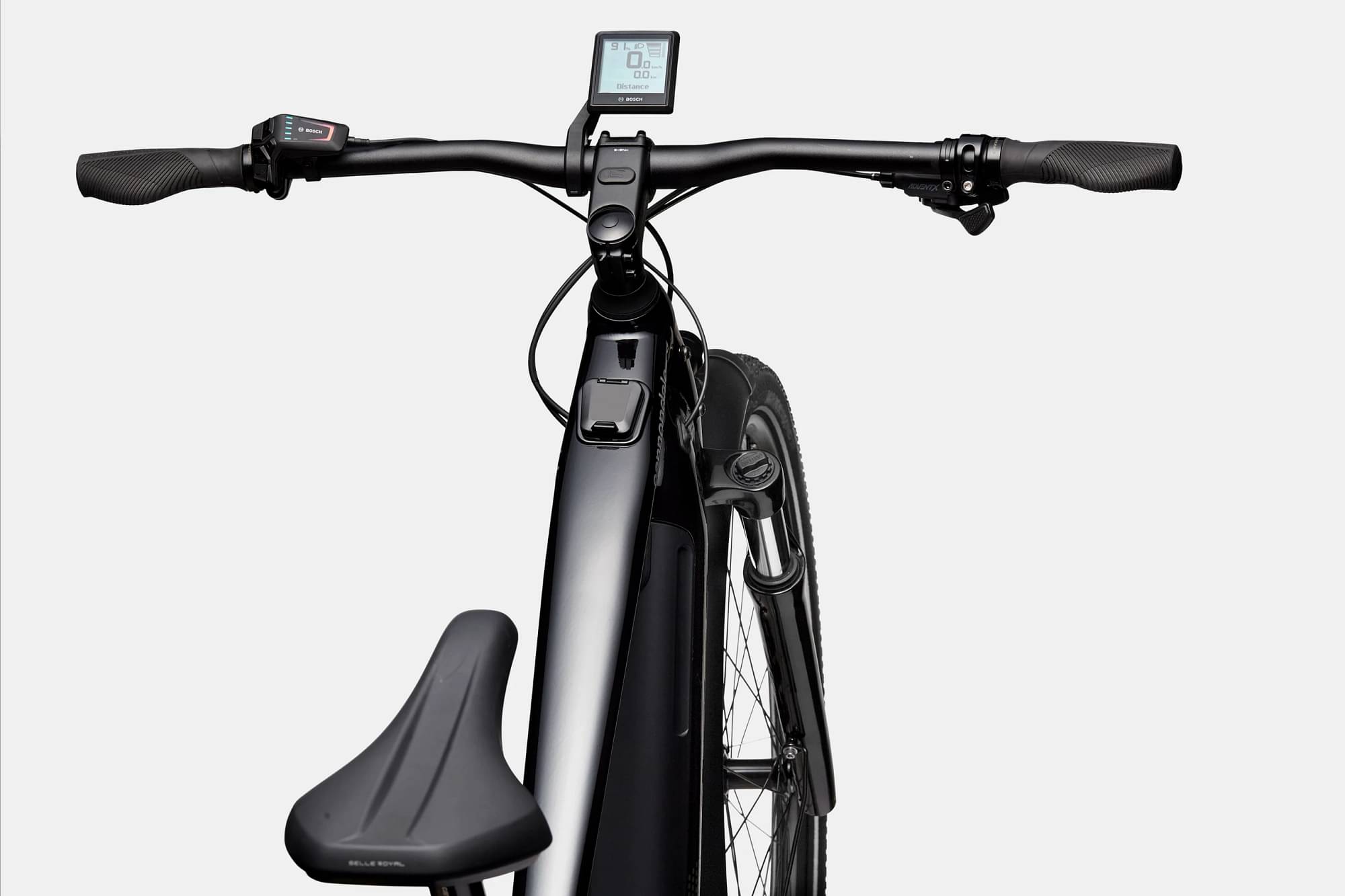

Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Seat
Saddle
Fizik Essenza Moderate
Seatpost
Cannondale 3, 6061 Alloy, 31.6
Motor & Battery

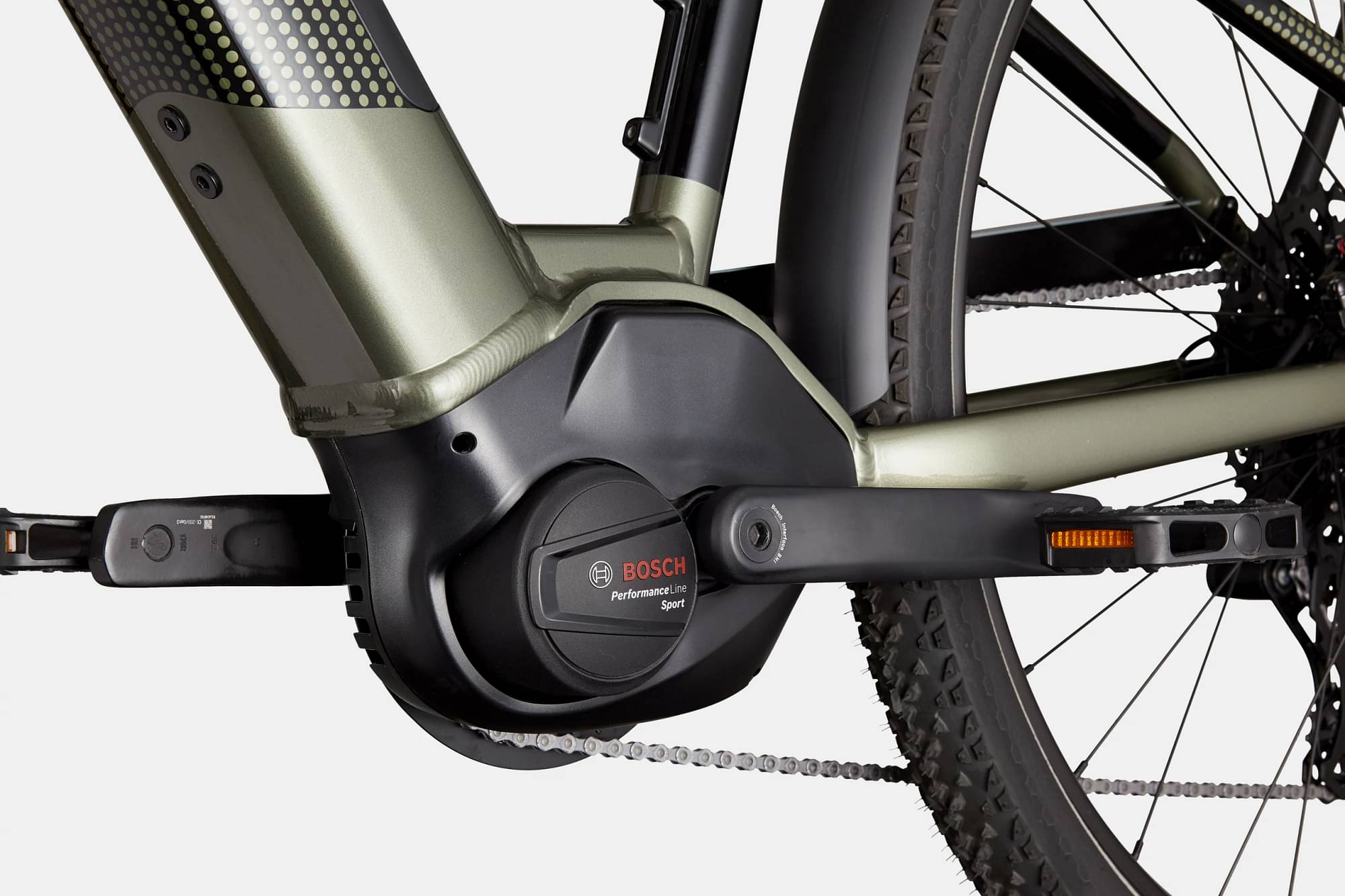

Motor
Bosch Performance Line Sport (28 mph)
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A
Fit data

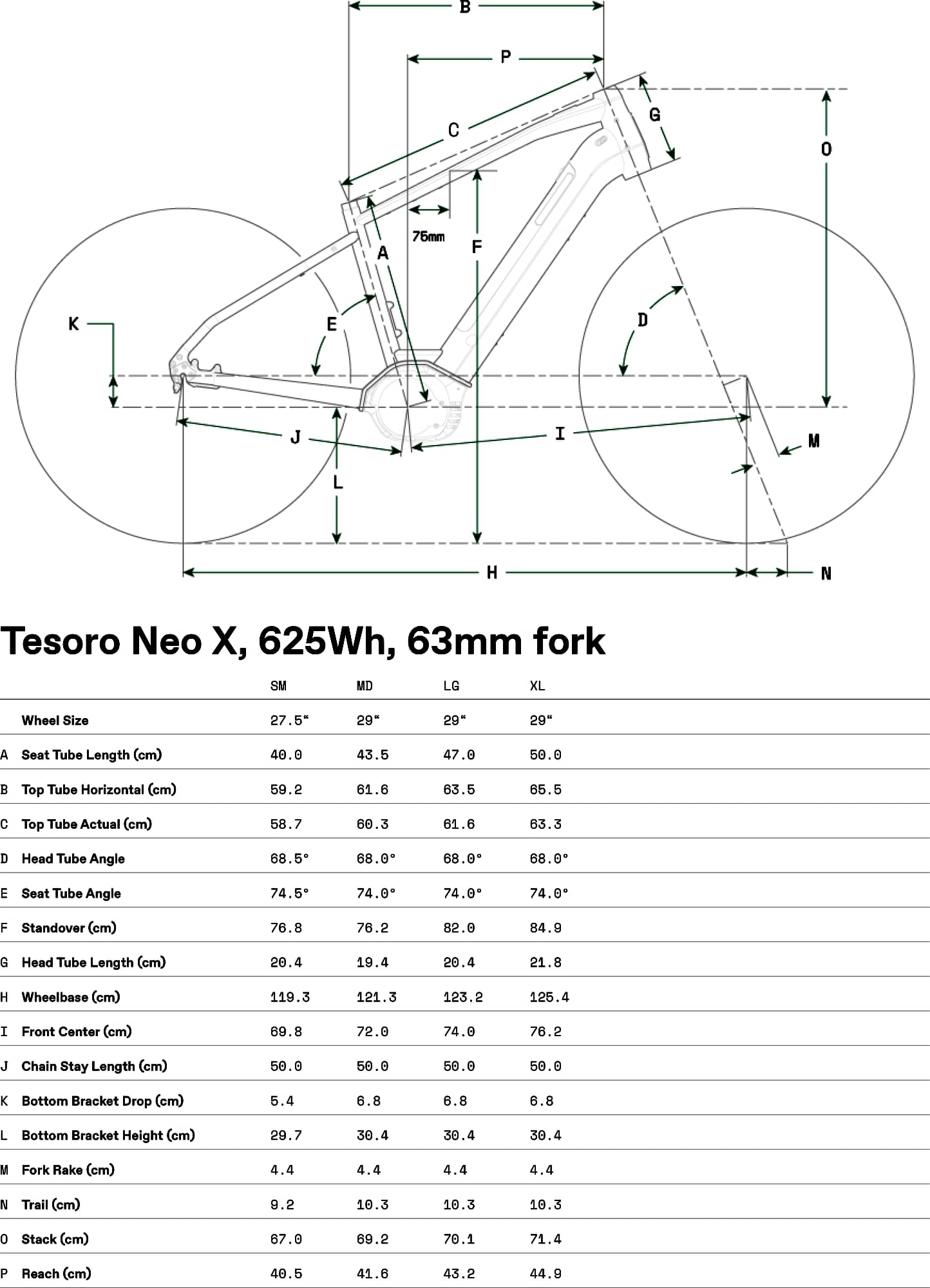

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.601 mm | 1.463 mm | 1.412 mm | 1.359 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 682 mm | 719 mm | 813 mm | 847 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 629 mm | 629 mm | 637 mm | 644 mm |
| Reach | 393 mm | 430 mm | 451 mm | 474 mm |
| Top Tube Length | 580 mm | 617 mm | 640 mm | 665 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 128 mm | 128 mm | 136 mm | 144 mm |
| Chainstay Length | 479 mm | 479 mm | 479 mm | 479 mm |
| Wheelbase | 1155 mm | 1192 mm | 1216 mm | 1242 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 746 mm | 775 mm | 813 mm | 847 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 170 cm | 181 cm | 193 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm | 203 cm |
