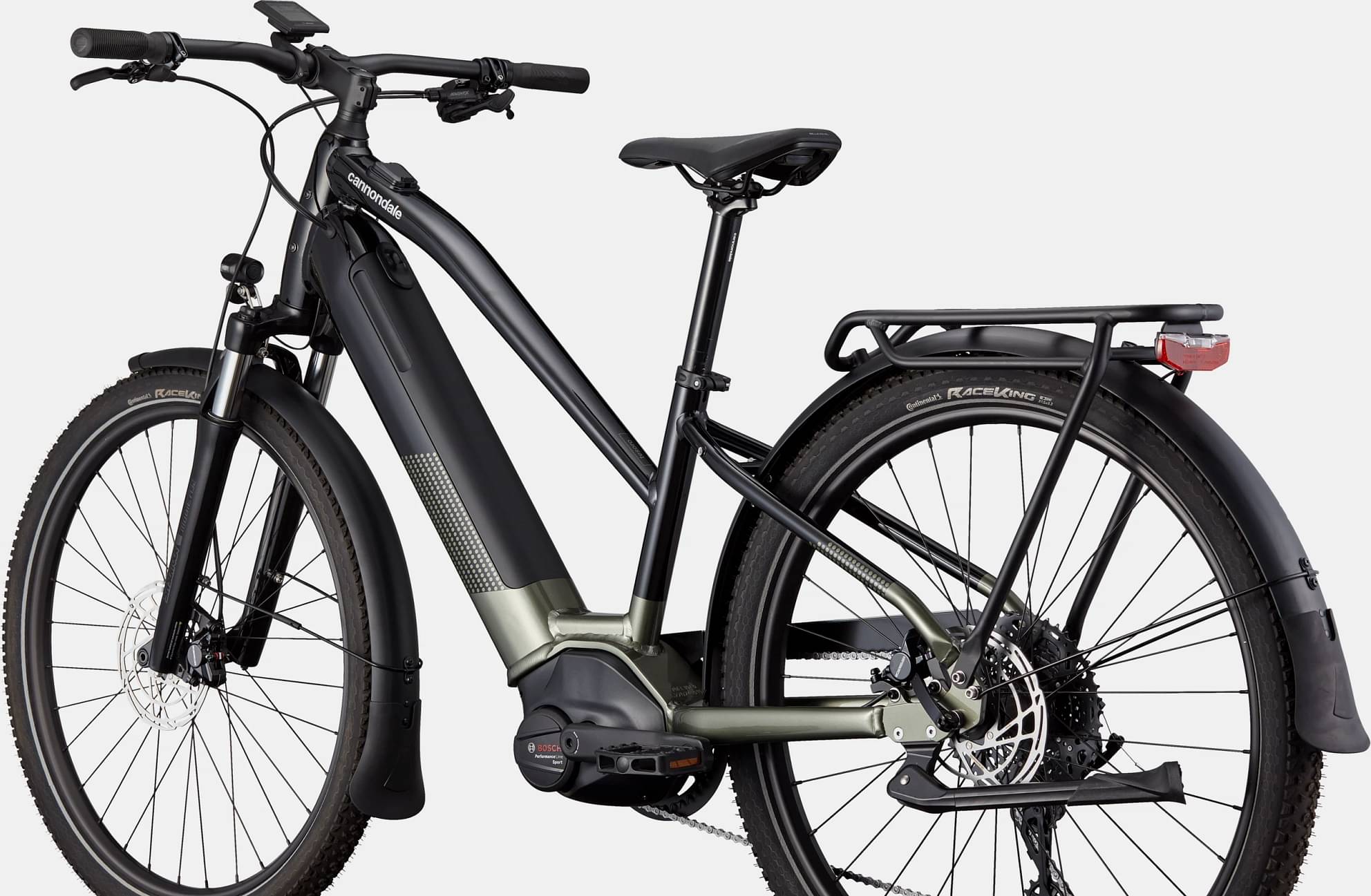

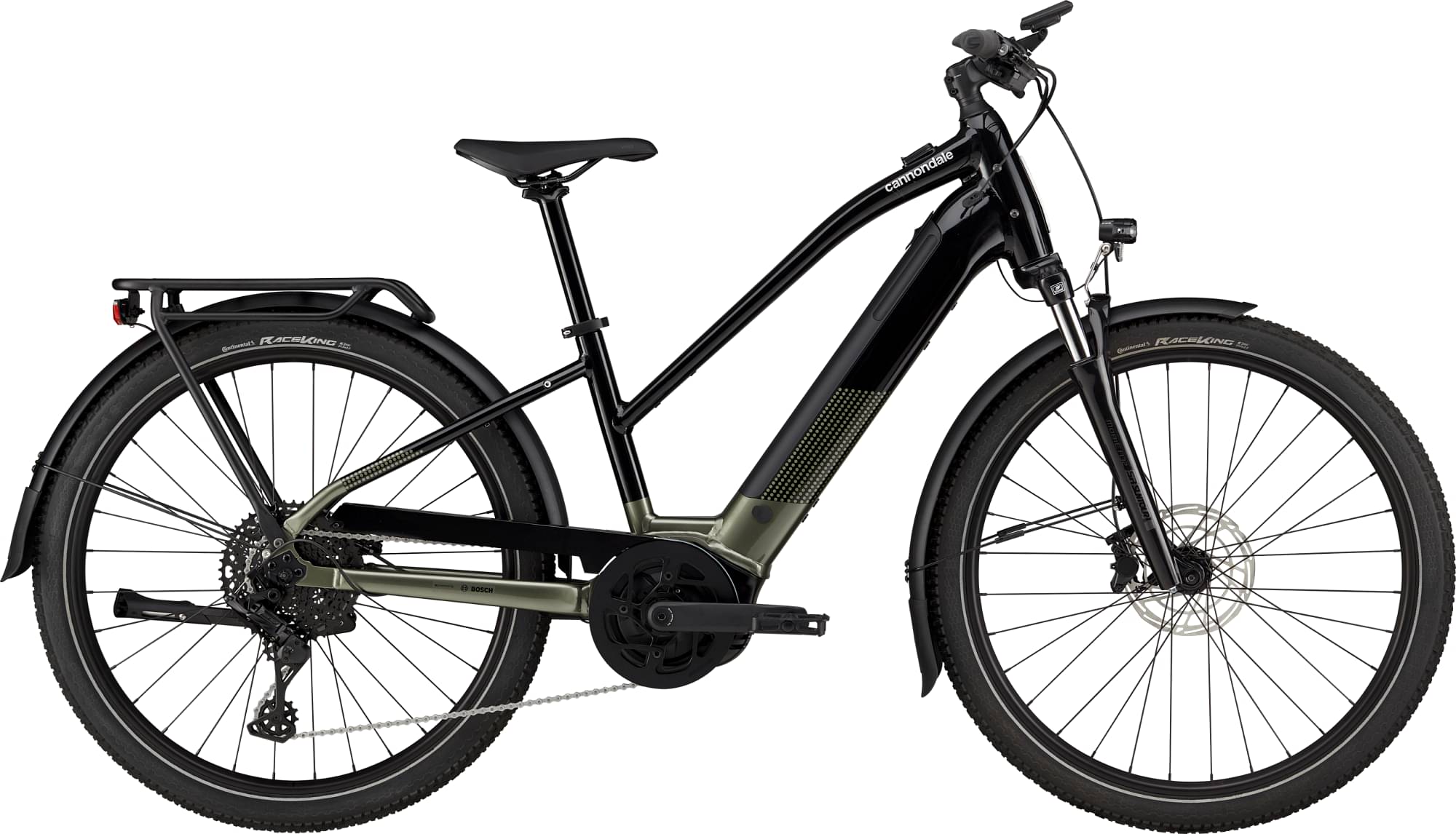

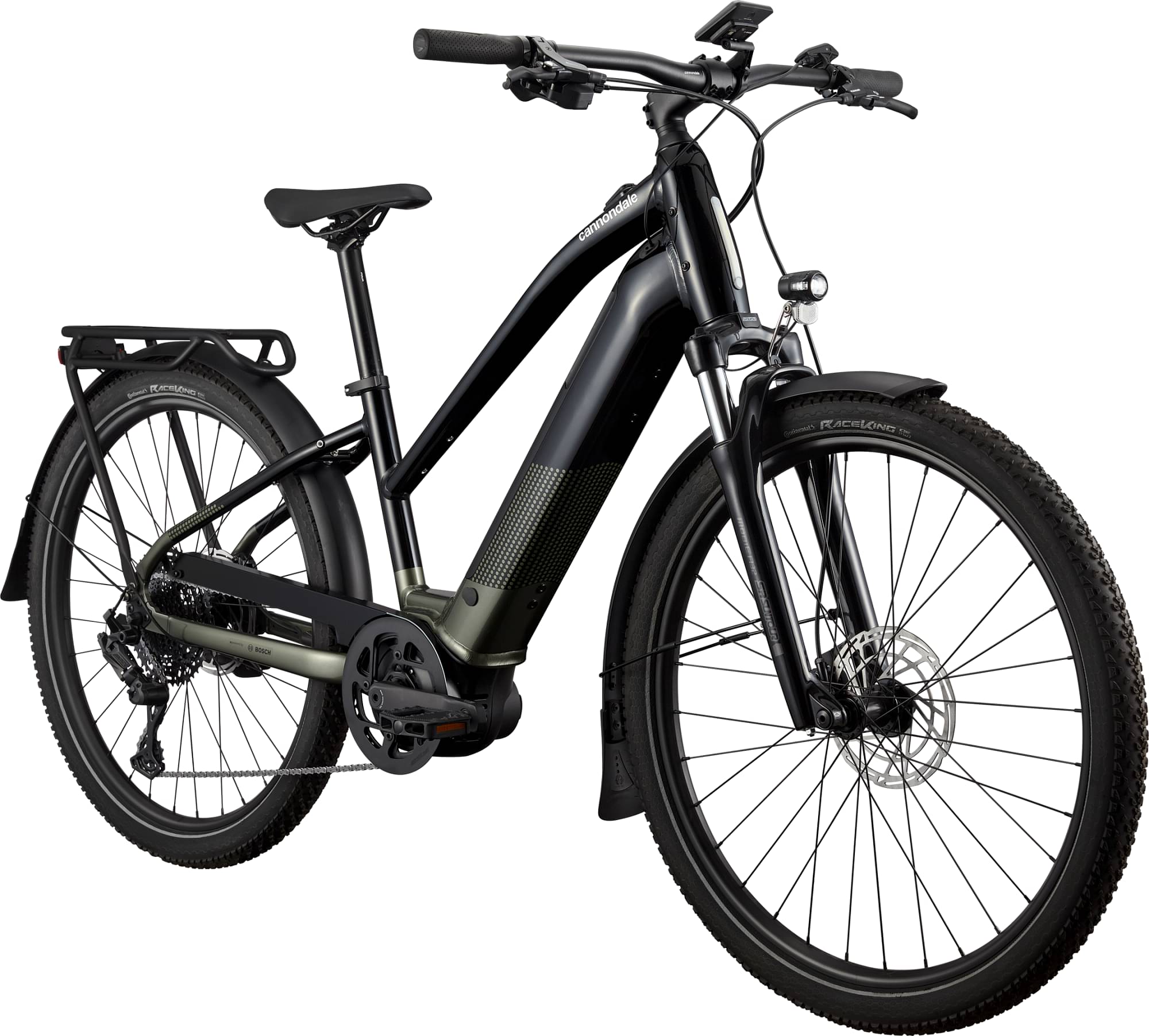

Cannondale Tesoro X 2 StepThru 2024
2024 E-bike
Estimate price |
3,838$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube, 625Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, step-thru, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Suspension Fork
SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Drivetrain

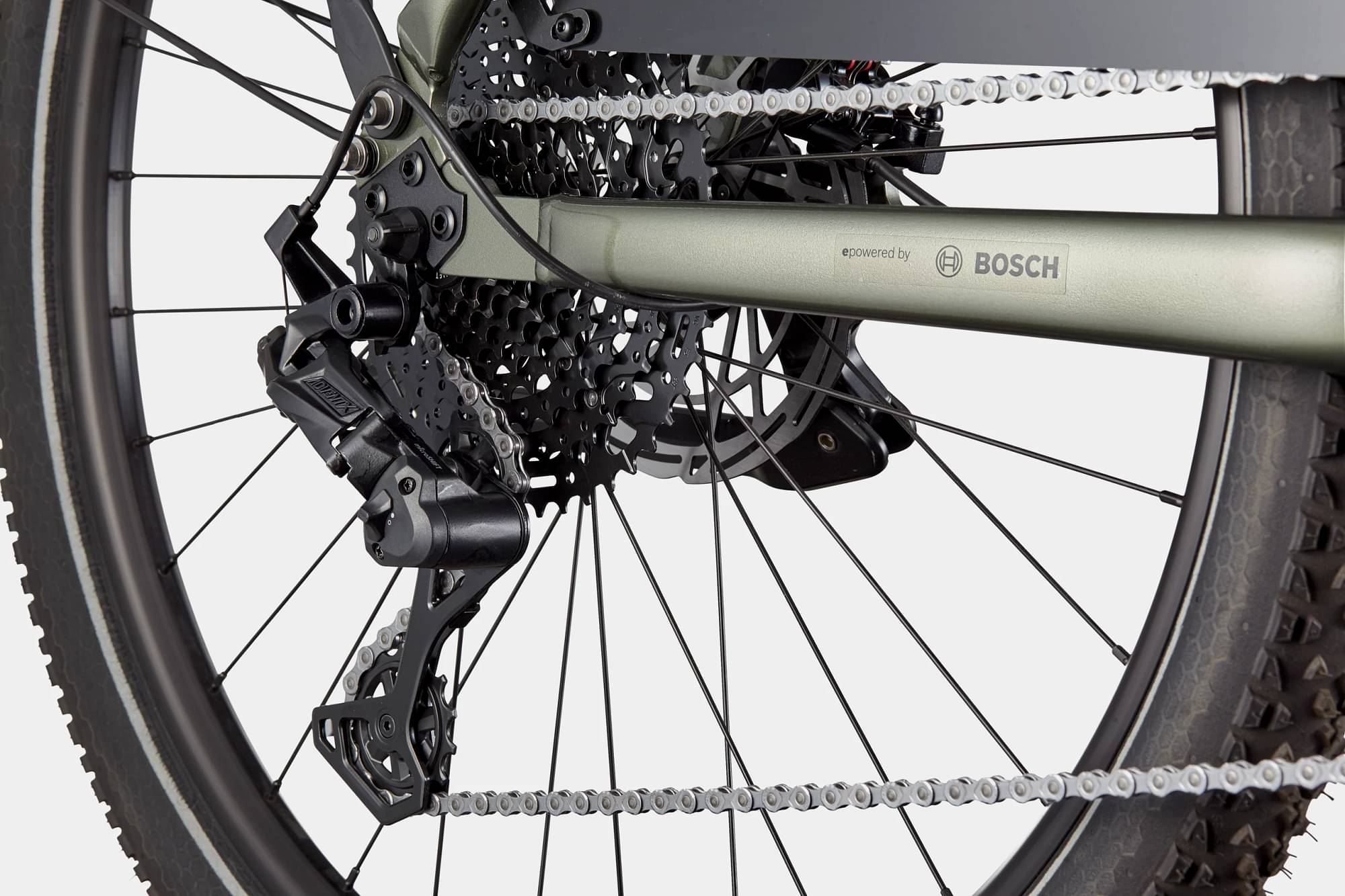

Rear Derailleur
microSHIFT Advent X, 10-speed
Shift Levers
microSHIFT Advent X Trail Trigger Pro, 10-speed
Cassette
microSHIFT EH104, 11-48, 10-speed
Crank
FSA for Bosch
Bottom Bracket
Bosch, press-fit
Chain
KMC E10S, EPT anti-rust, 10-speed
Pedals
Cannondale Fitness
Wheels
Front Hub
(F) Formula CL-71, 15x100mm centerlock / (R) Formula CL-26, 135QR centerlock
Rear Hub
(F) Formula CL-71, 15x100mm centerlock / (R) Formula CL-26, 135QR centerlock
Rims
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Spokes
Stainless Steel, 14g
Tires
Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG)
Brakes
Brakes
Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180 rotors
Brake Levers
Riderever Attack-U-OE, hydraulic disc

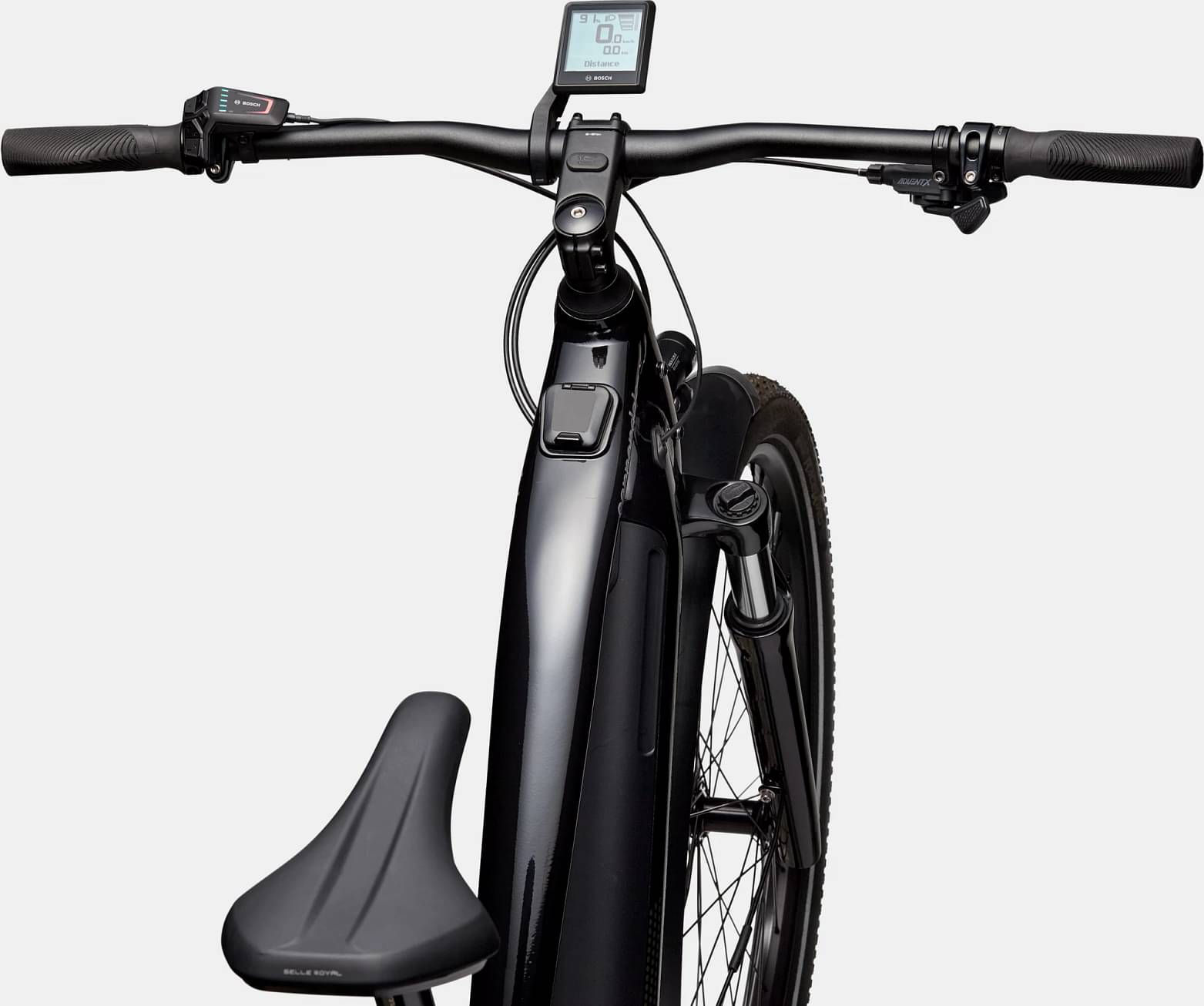

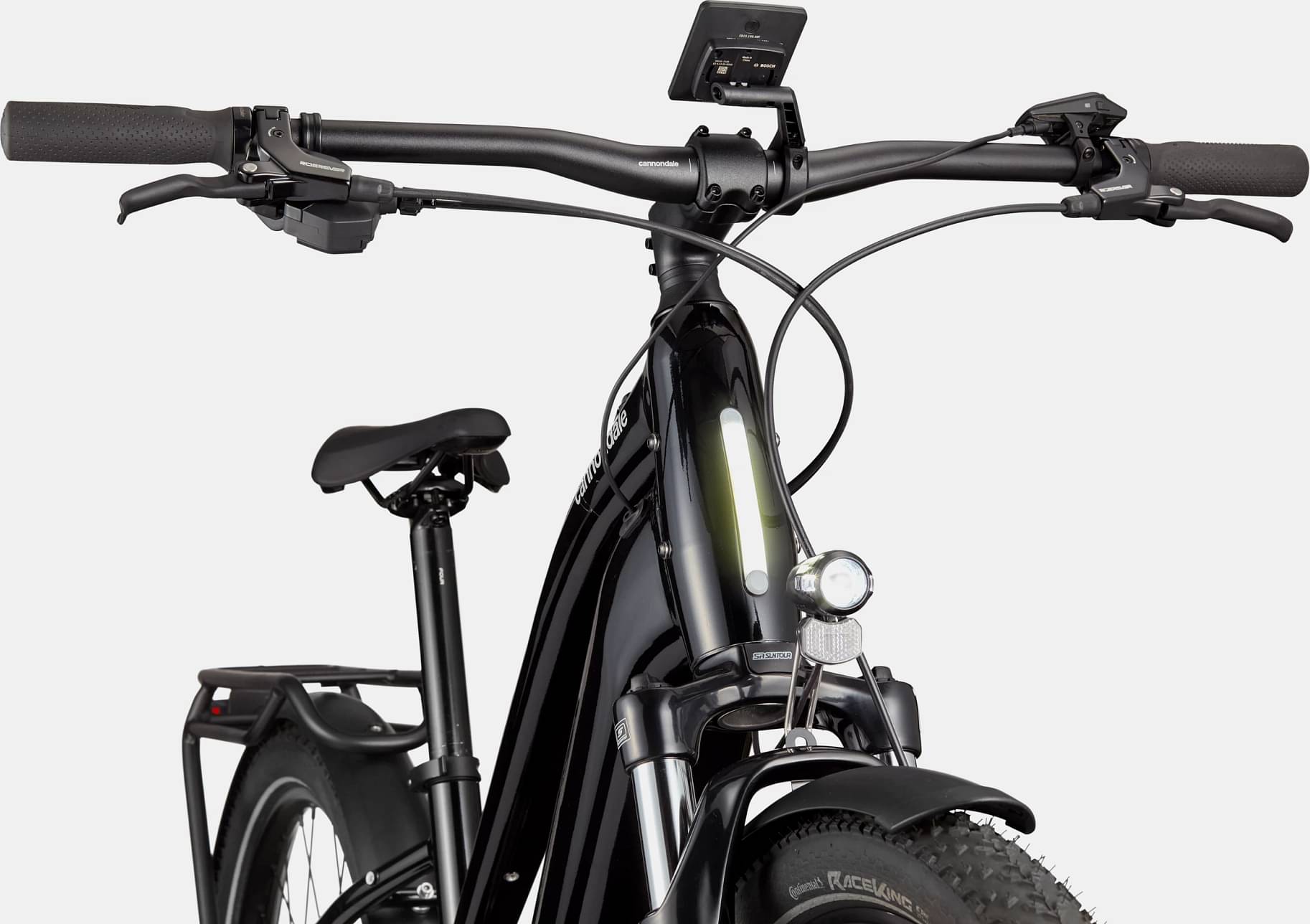

Cockpit
Stem
Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Seat
Saddle
Fizik Essenza Moderate
Seatpost
Cannondale 3, 6061 Alloy, 31.6
Motor & Battery

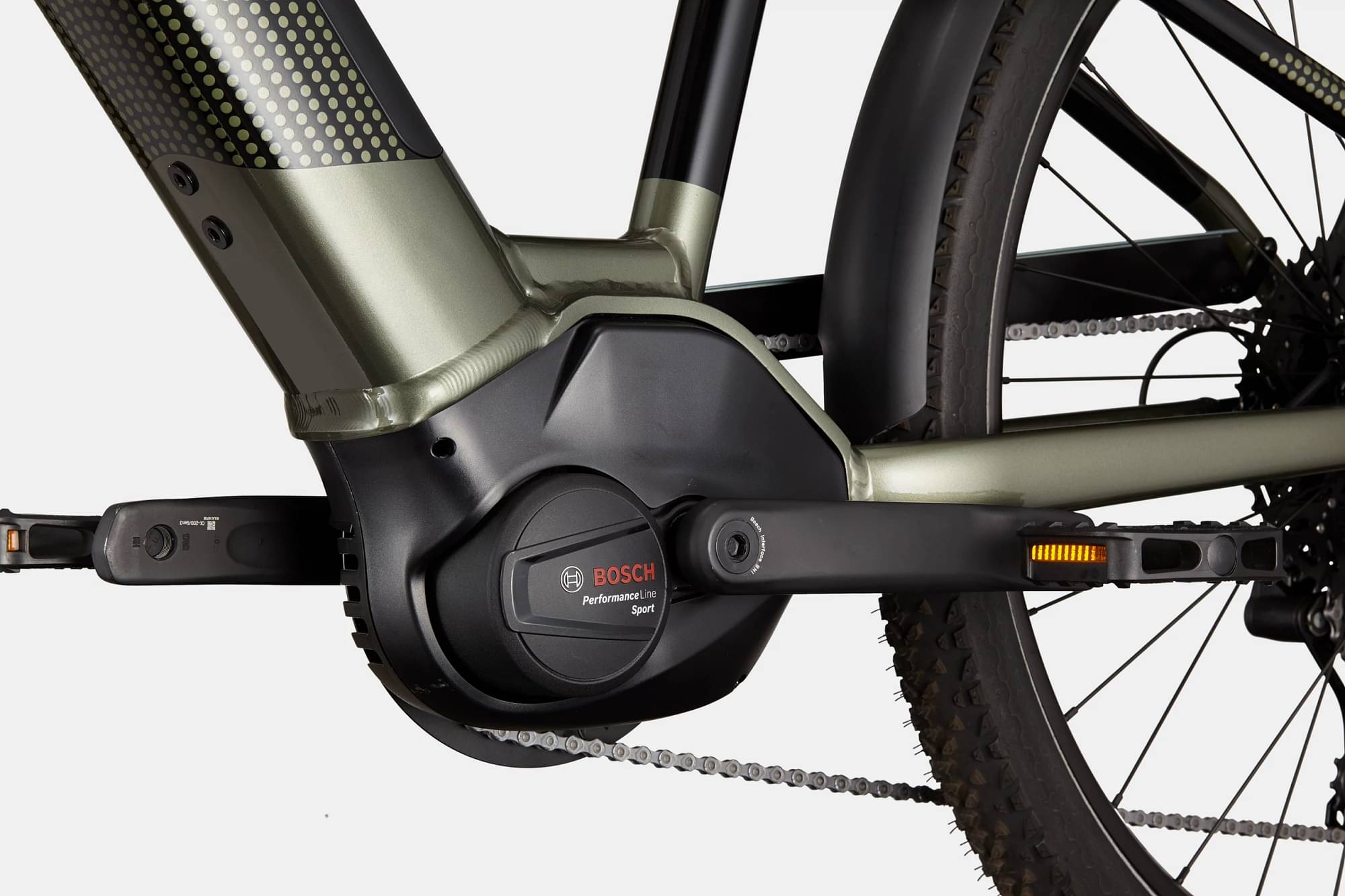

Motor
Bosch Performance Line Sport (28 mph)
Battery
Bosch PowerTube, 625Wh
Charger
Bosch 4A
Fit data

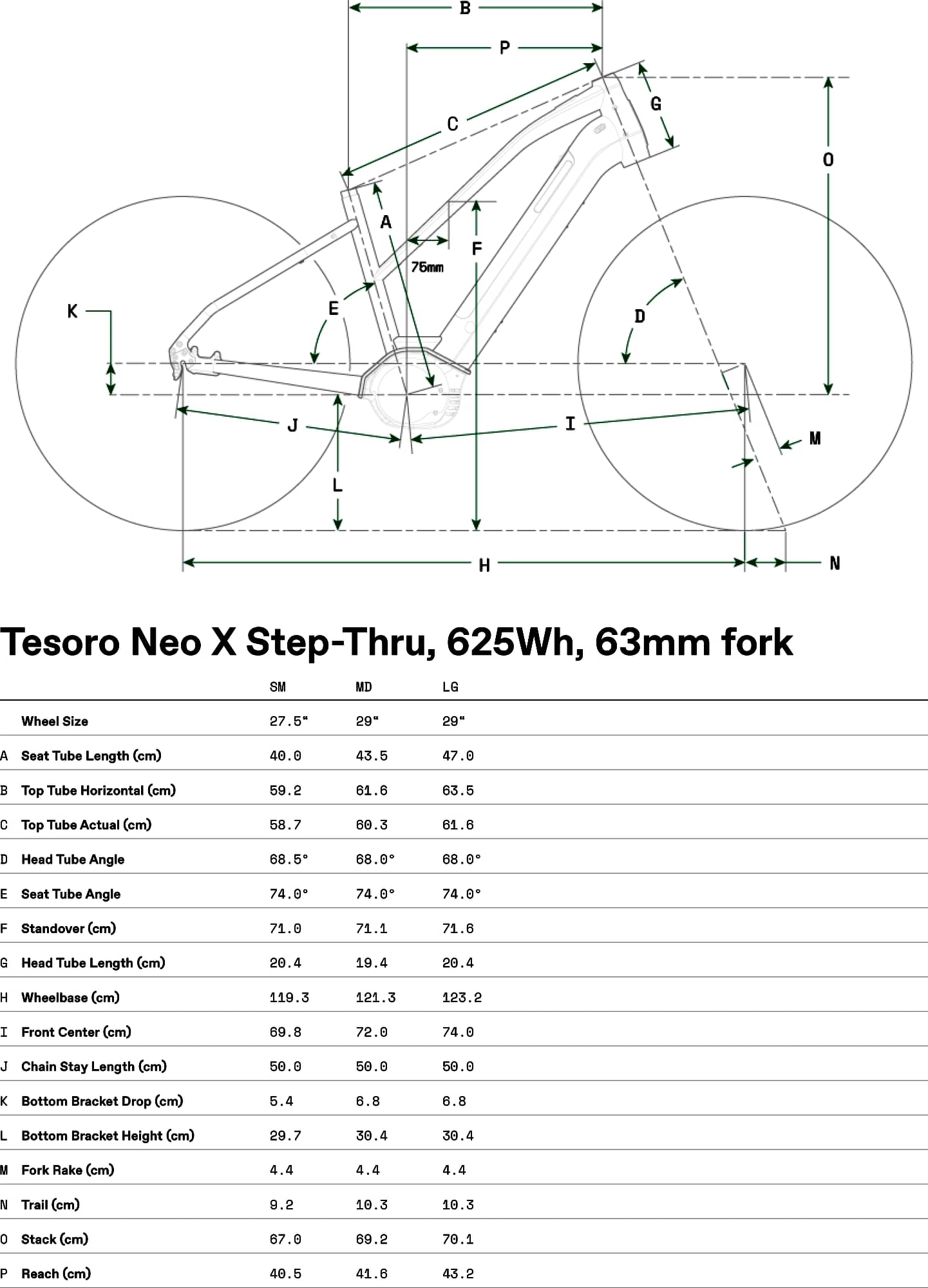

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 165 cm | 175 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm |
