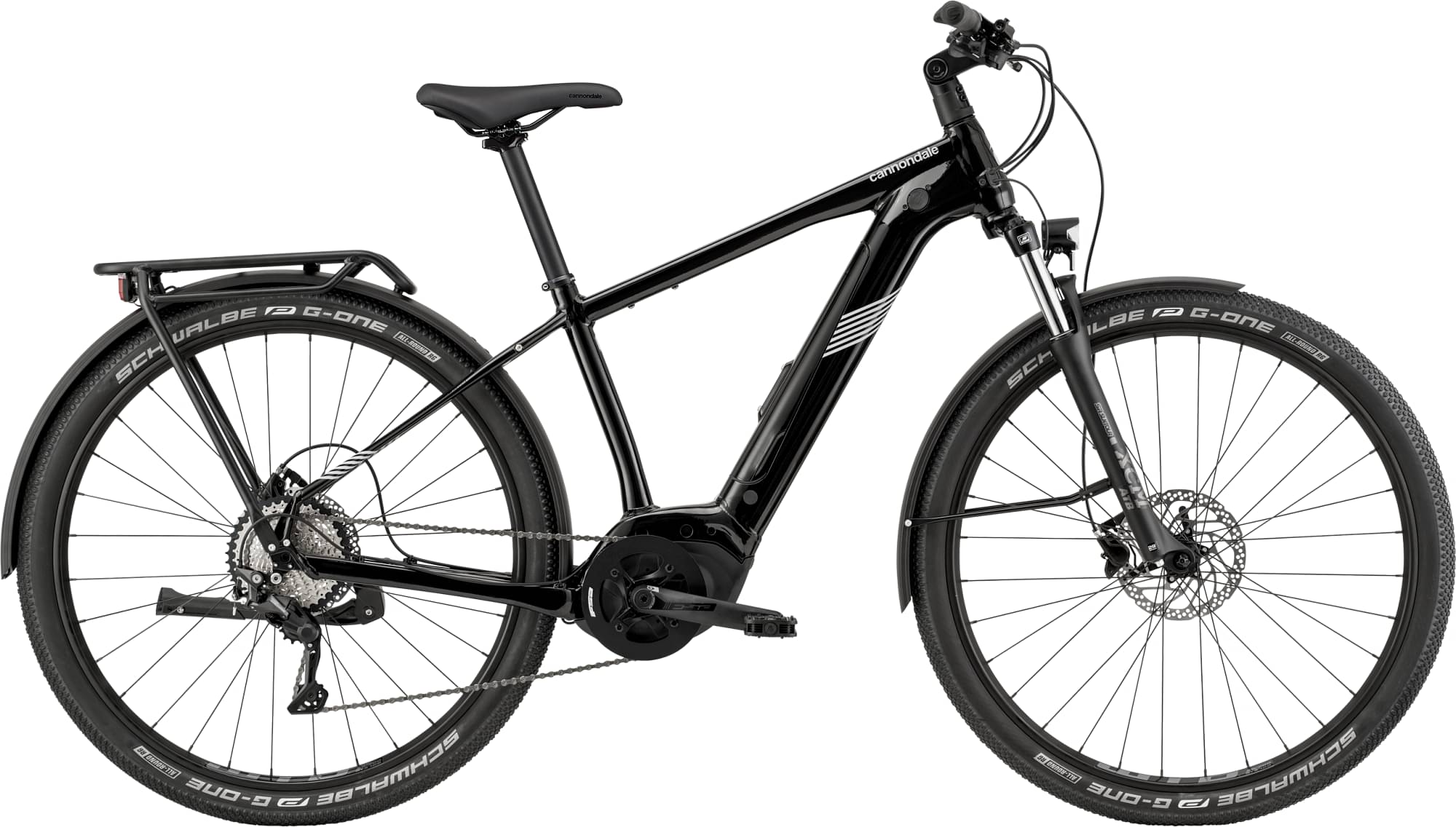

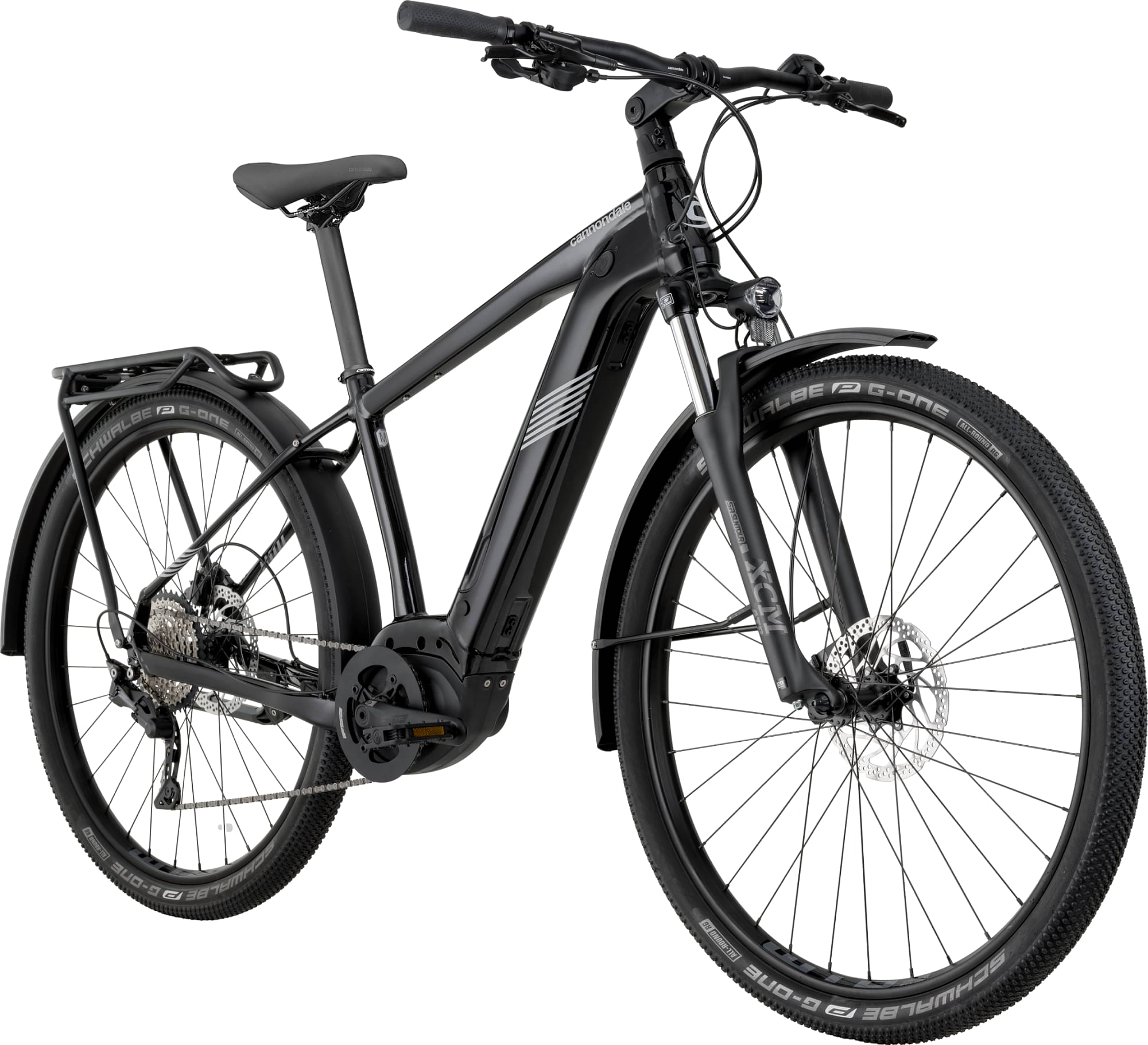

Cannondale Tesoro X 3 2021
2021 E-bike
Estimate price |
4,071$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio, Acera -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
XL
193cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, motor protection, rack/fendor mount, lock mount
Suspension Fork
SR Suntour XCM ATB, 100mm, Coil, 46mm offset
Drivetrain
Rear Derailleur
Shimano Alivio
Shift Levers
Shimano Acera, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
FSA Bosch E-Bike, 38T
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG93, 9-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano TX55 QR
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
Schwalbe G-One Allround Performance, 29x2.25", RaceGuard, tubeless ready
Brakes
Brakes
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale Adjustable, A-headset, 31.8mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-On
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo Touring
Seatpost
Cannondale 4, 6061 Alloy, 31.6
Motor & Battery
Motor
Bosch Performance Line 250W
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 4A
Fit data

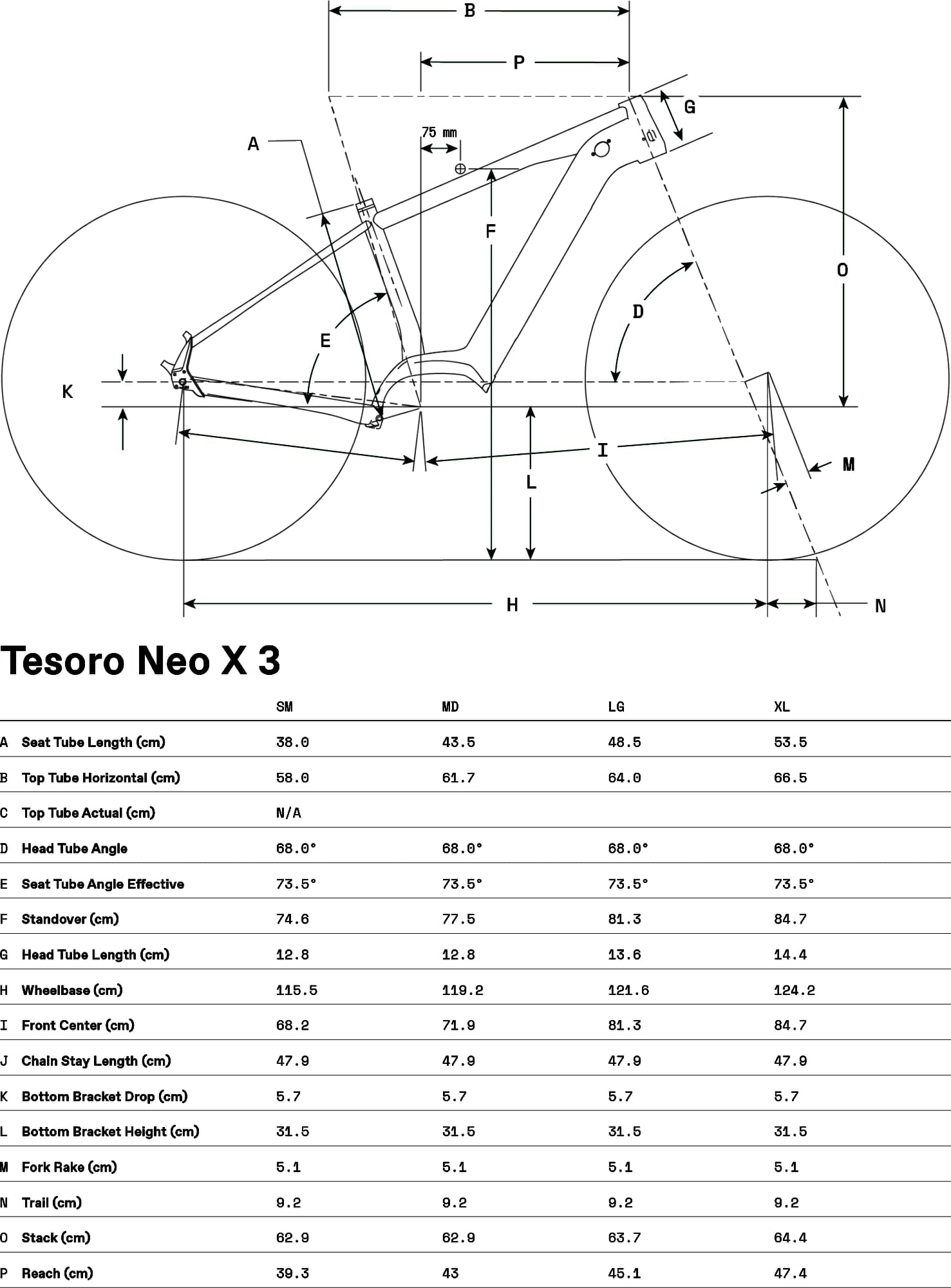

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 181 cm | 193 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm | 203 cm |
