Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Shimano GRX 400 Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 165cm
SM
160cm - 175cm
MD
170cm - 185cm
LG
177cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

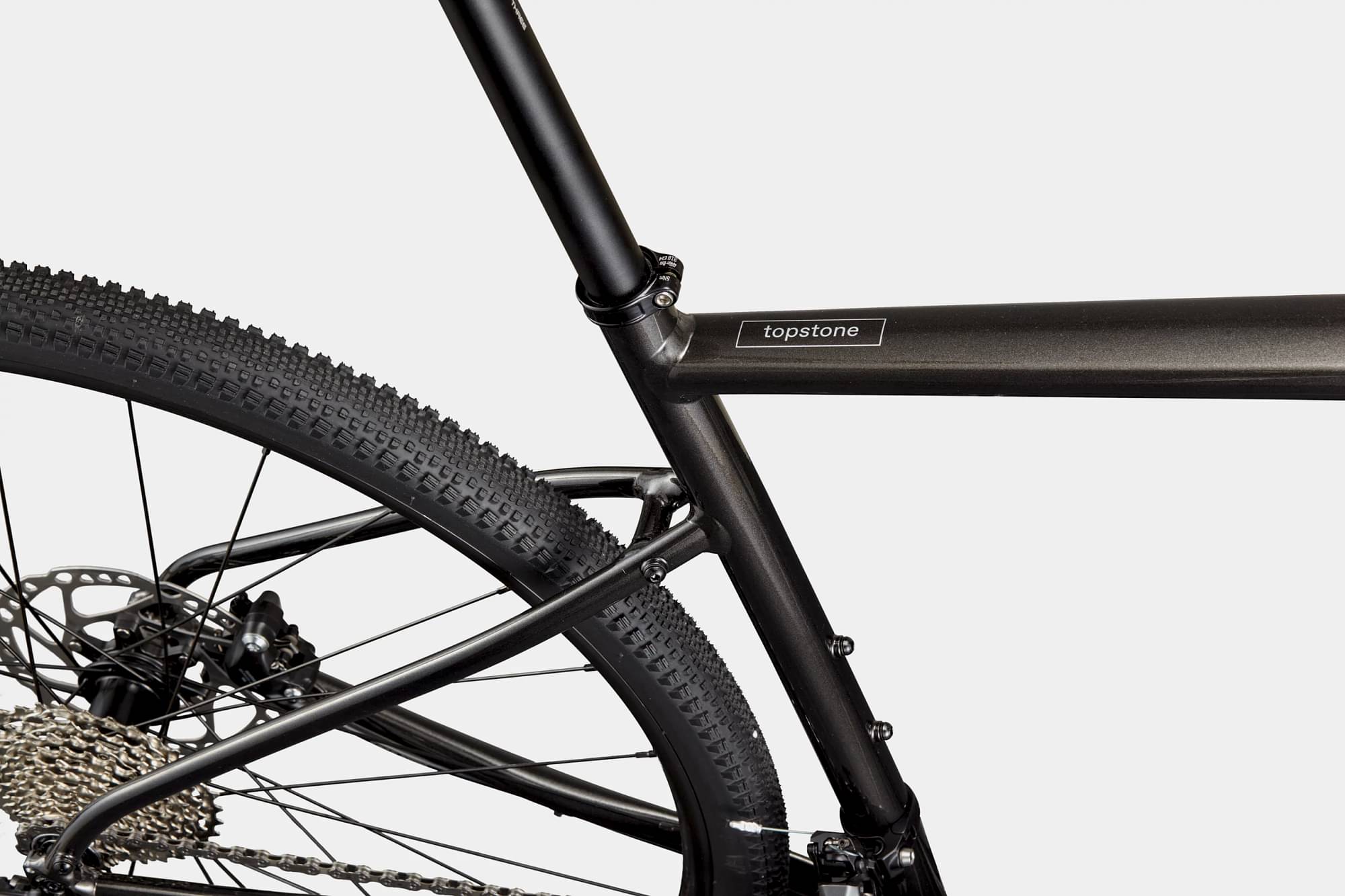

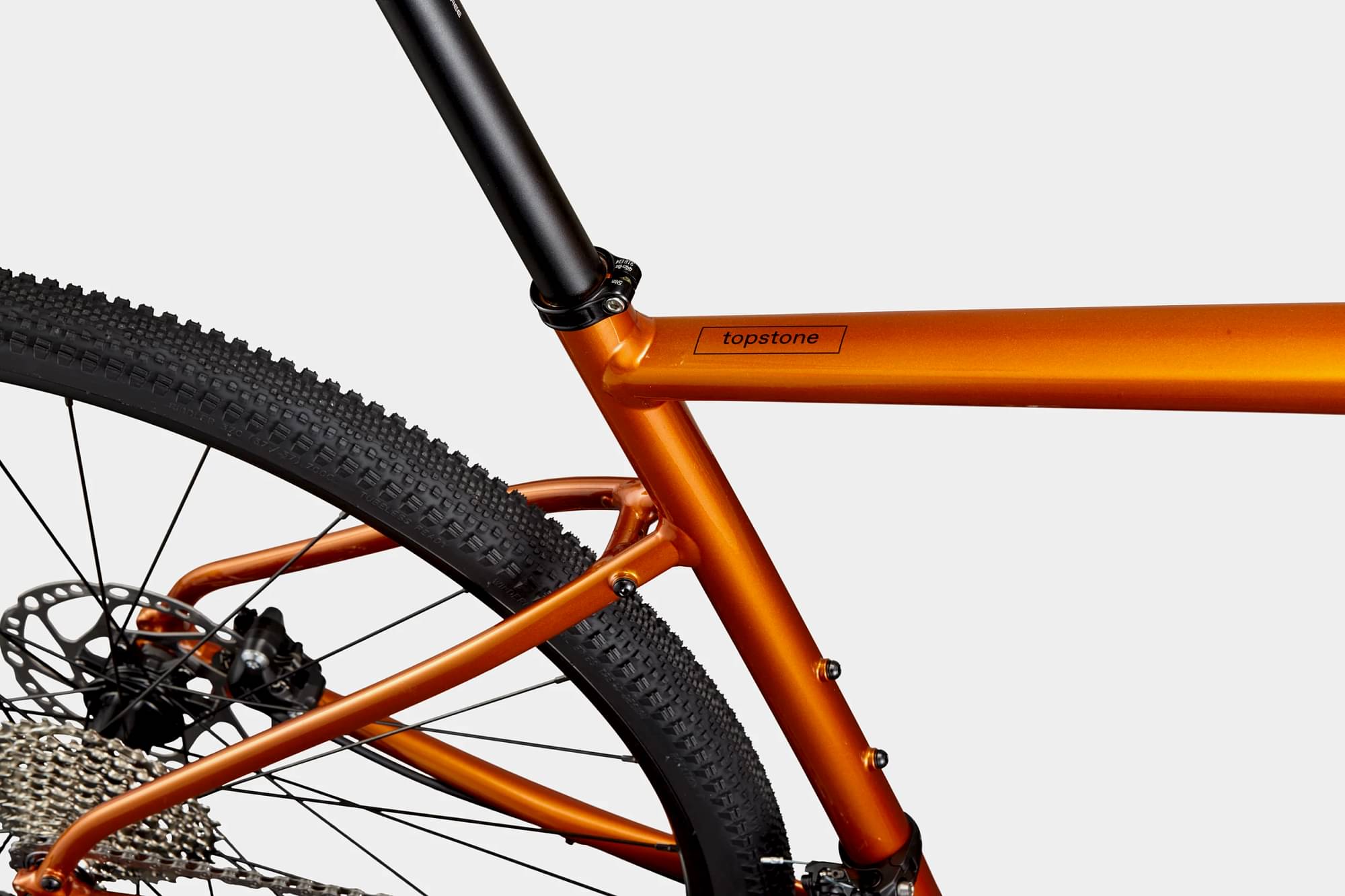

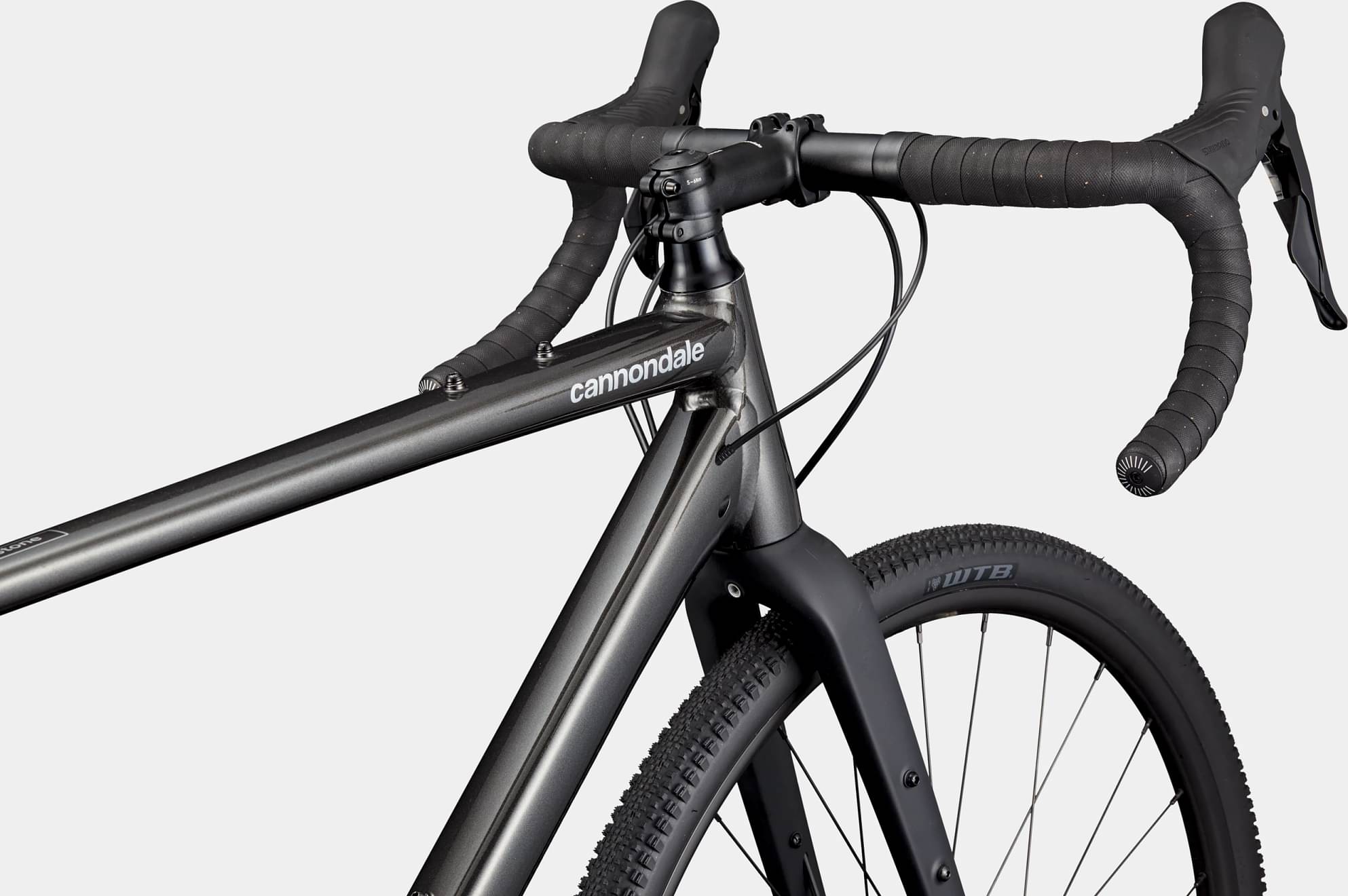

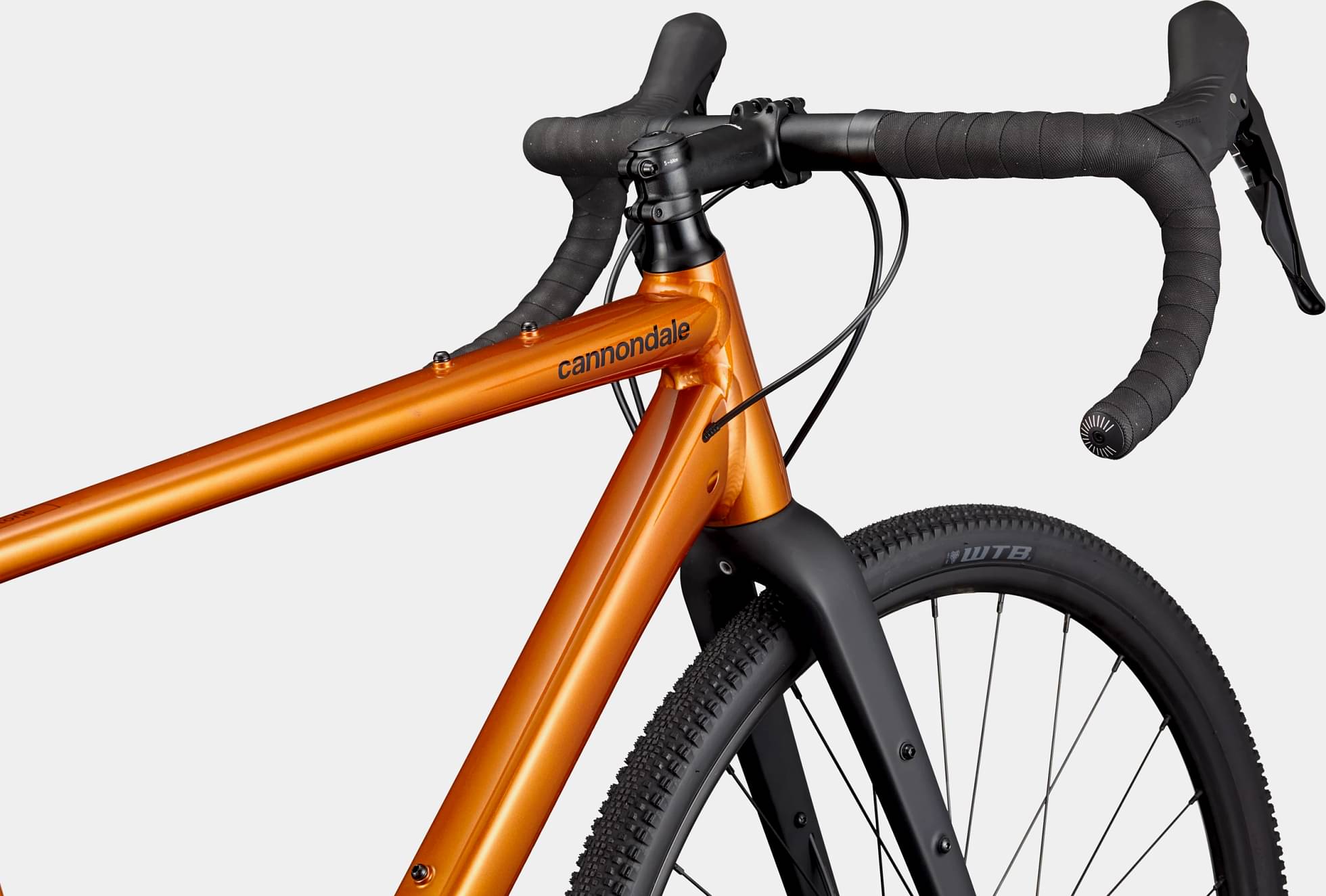

Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts
Suspension Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts
Drivetrain
Rear Derailleur
Shimano GRX 820, Shadow RD+
Front Derailleur
Shimano GRX 820

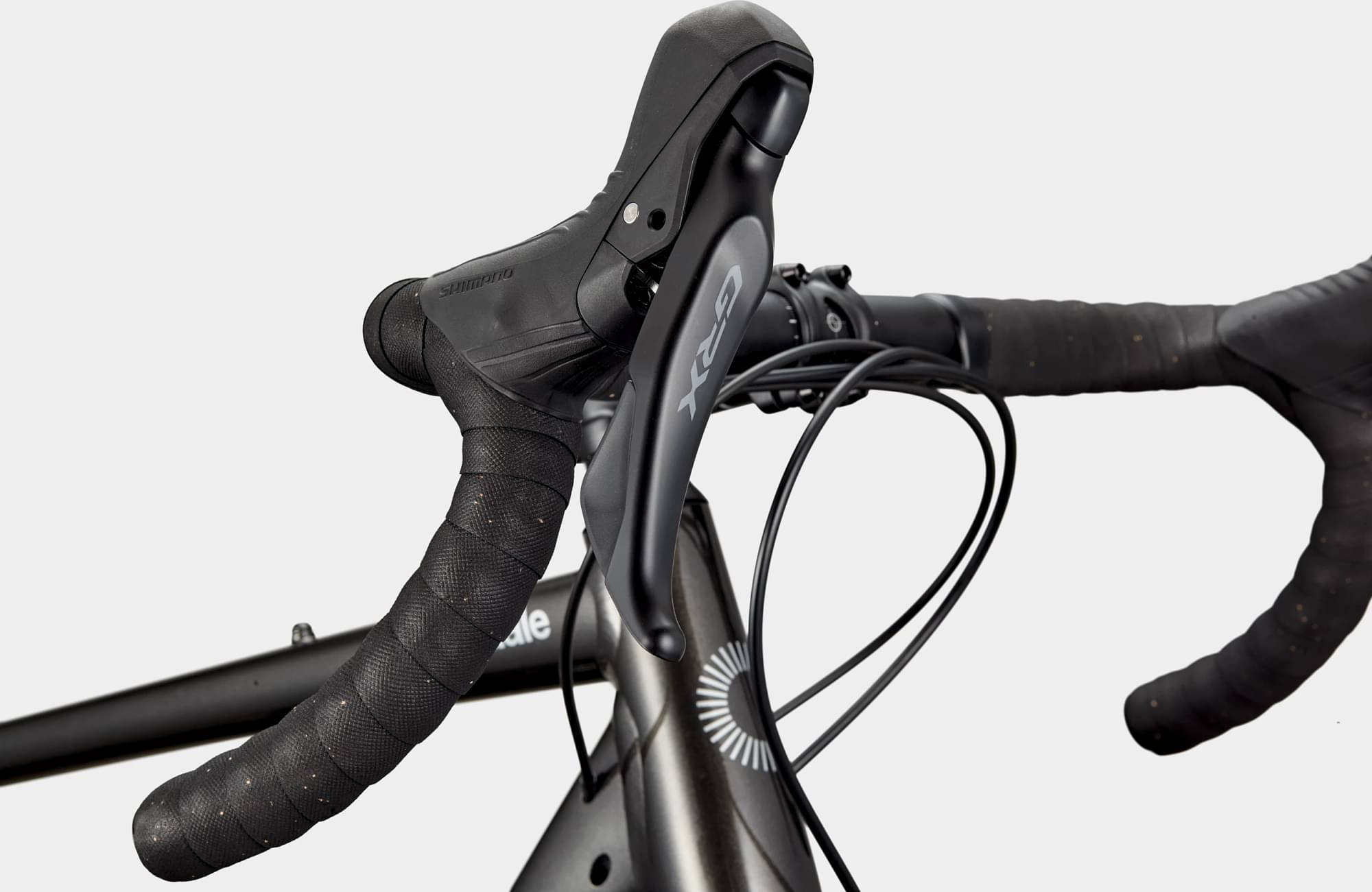

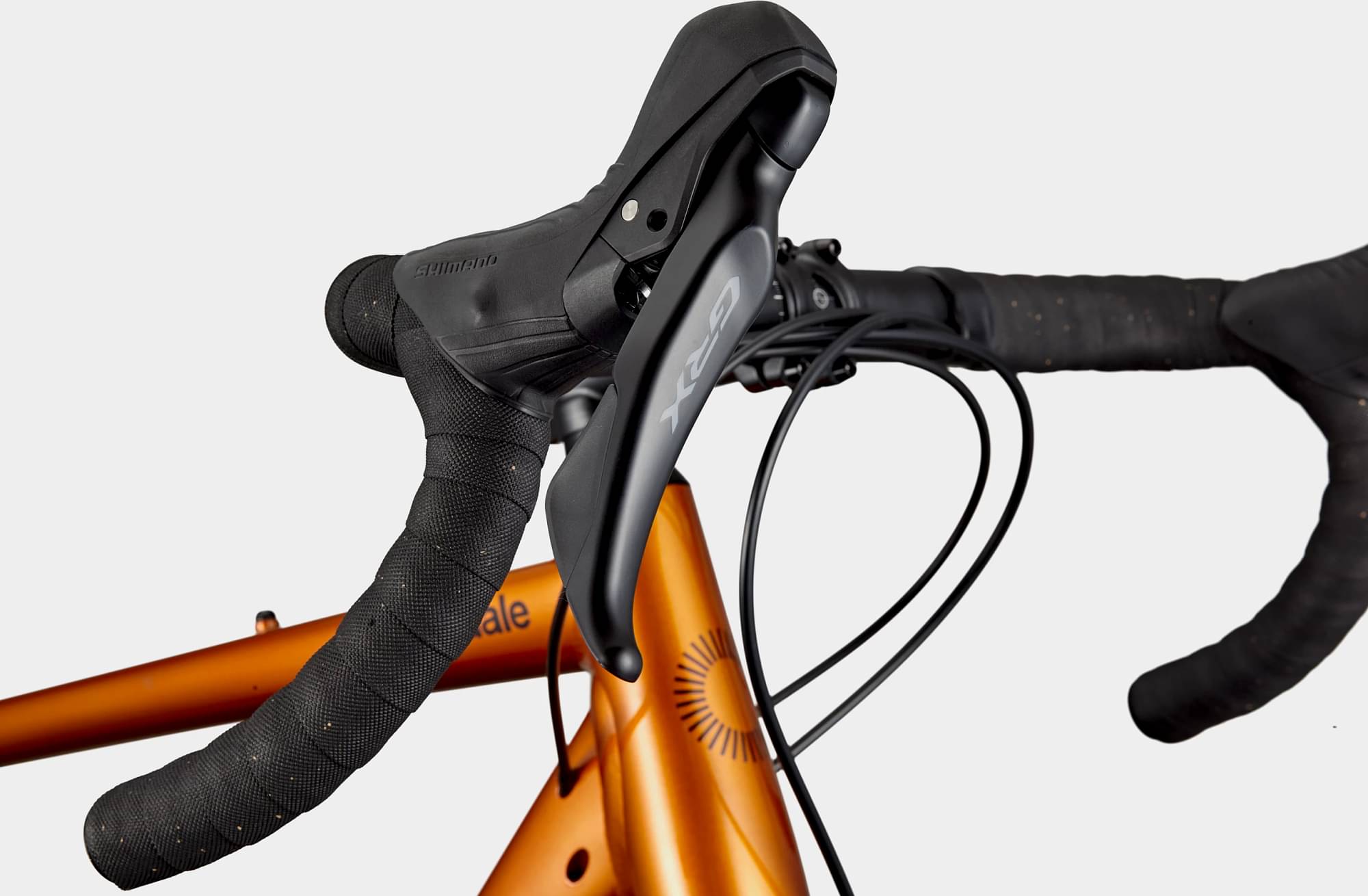

Shift Levers
Shimano GRX 600, 12-speed
Cassette
Shimano HG R7100, 11-34, 12-speed

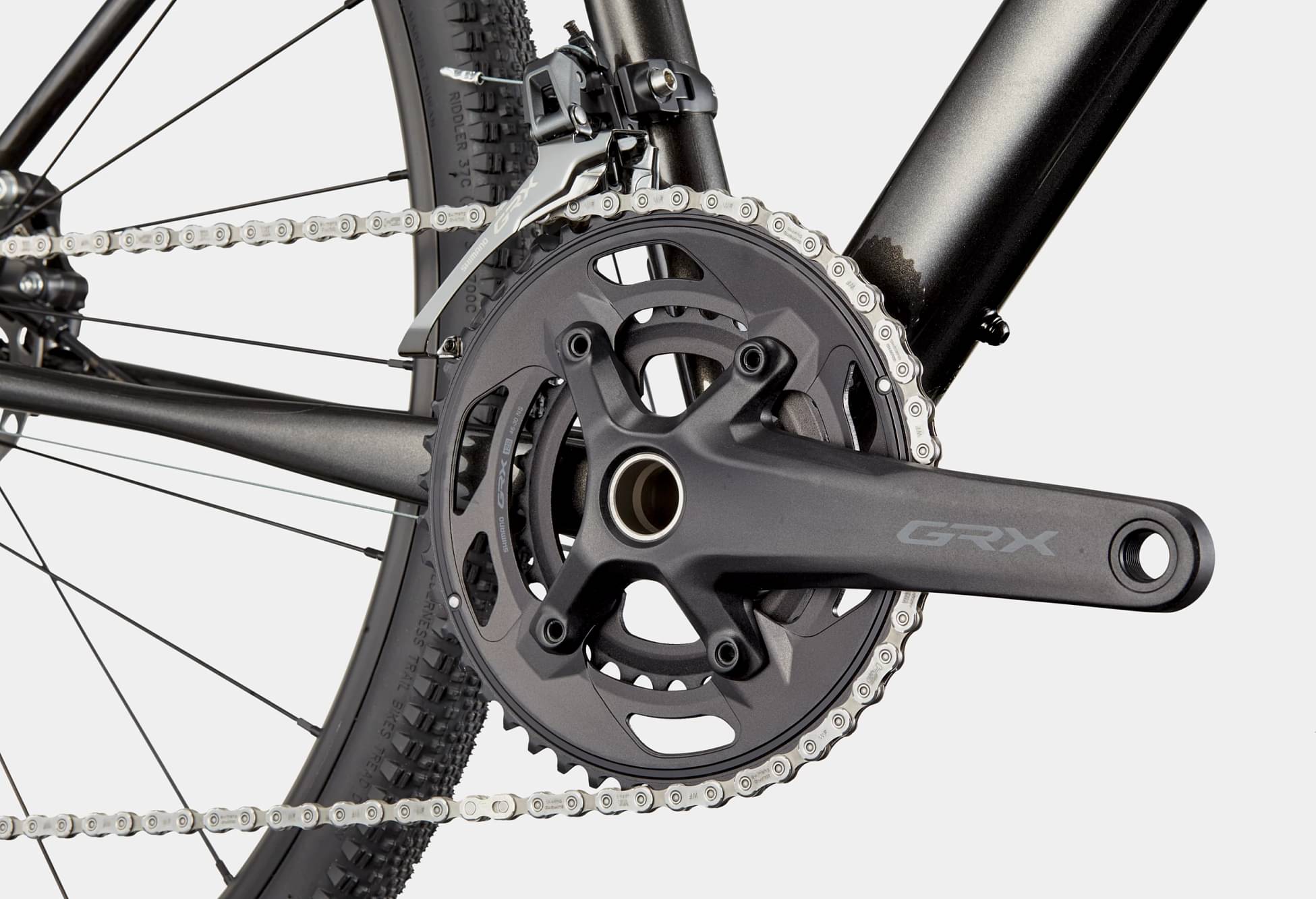

Crank

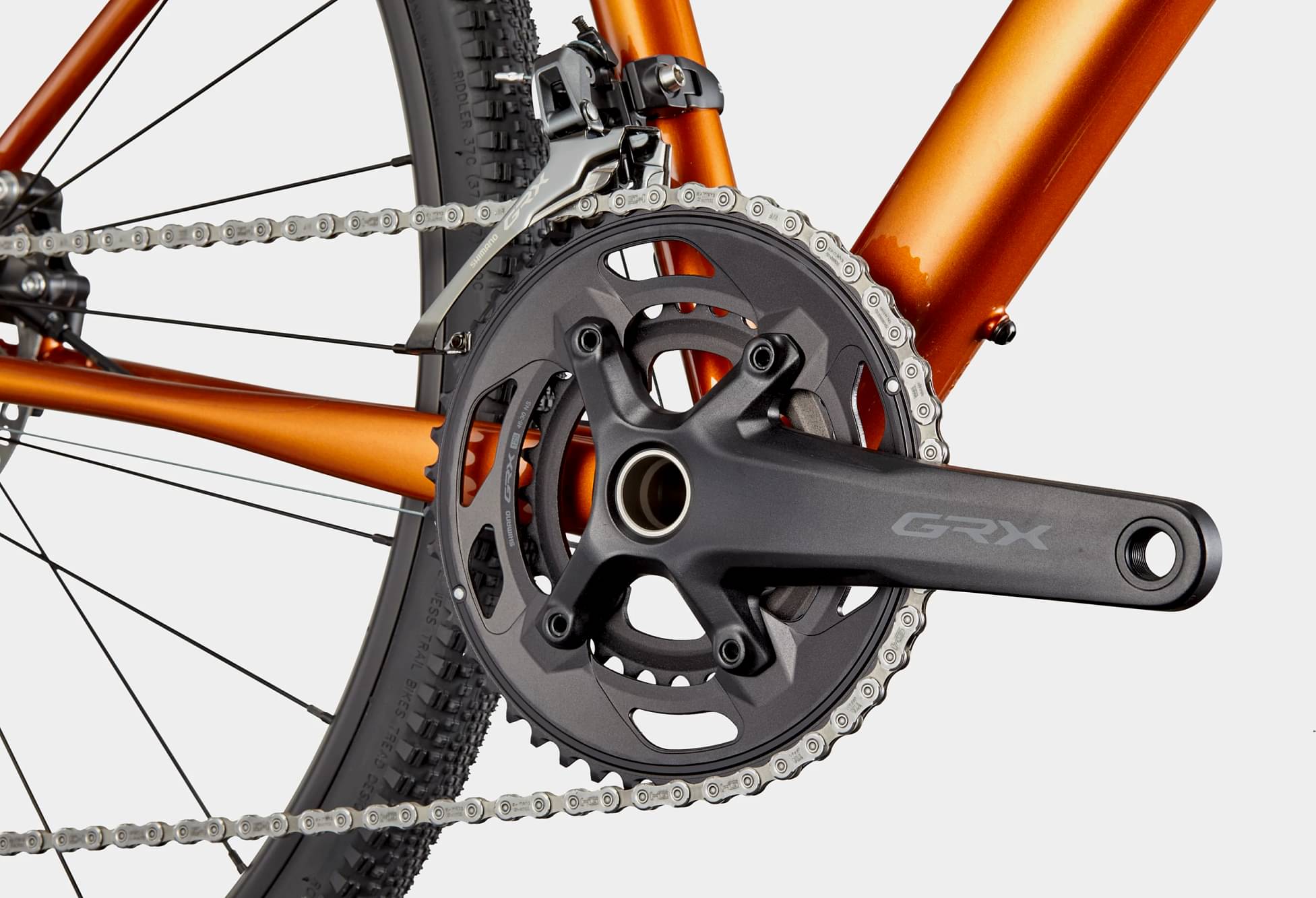

Shimano GRX 600, 46/30
Bottom Bracket
Shimano BSA 68
Chain
Shimano HG M7100, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rear Hub
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler TCS Light, 700x37c, tubeless ready
Brakes
Brakes
Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano GRX 600 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°

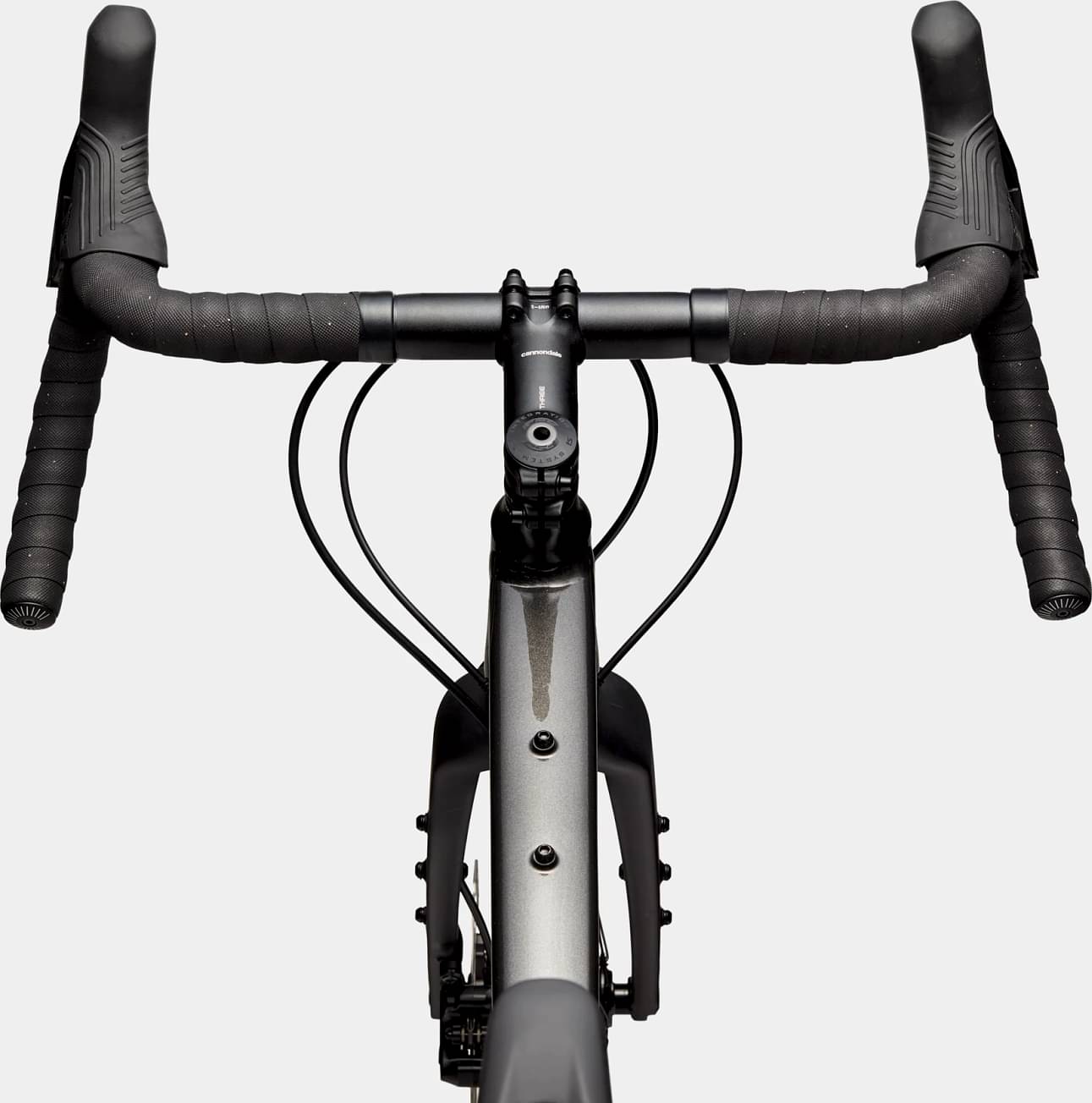

Handlebar

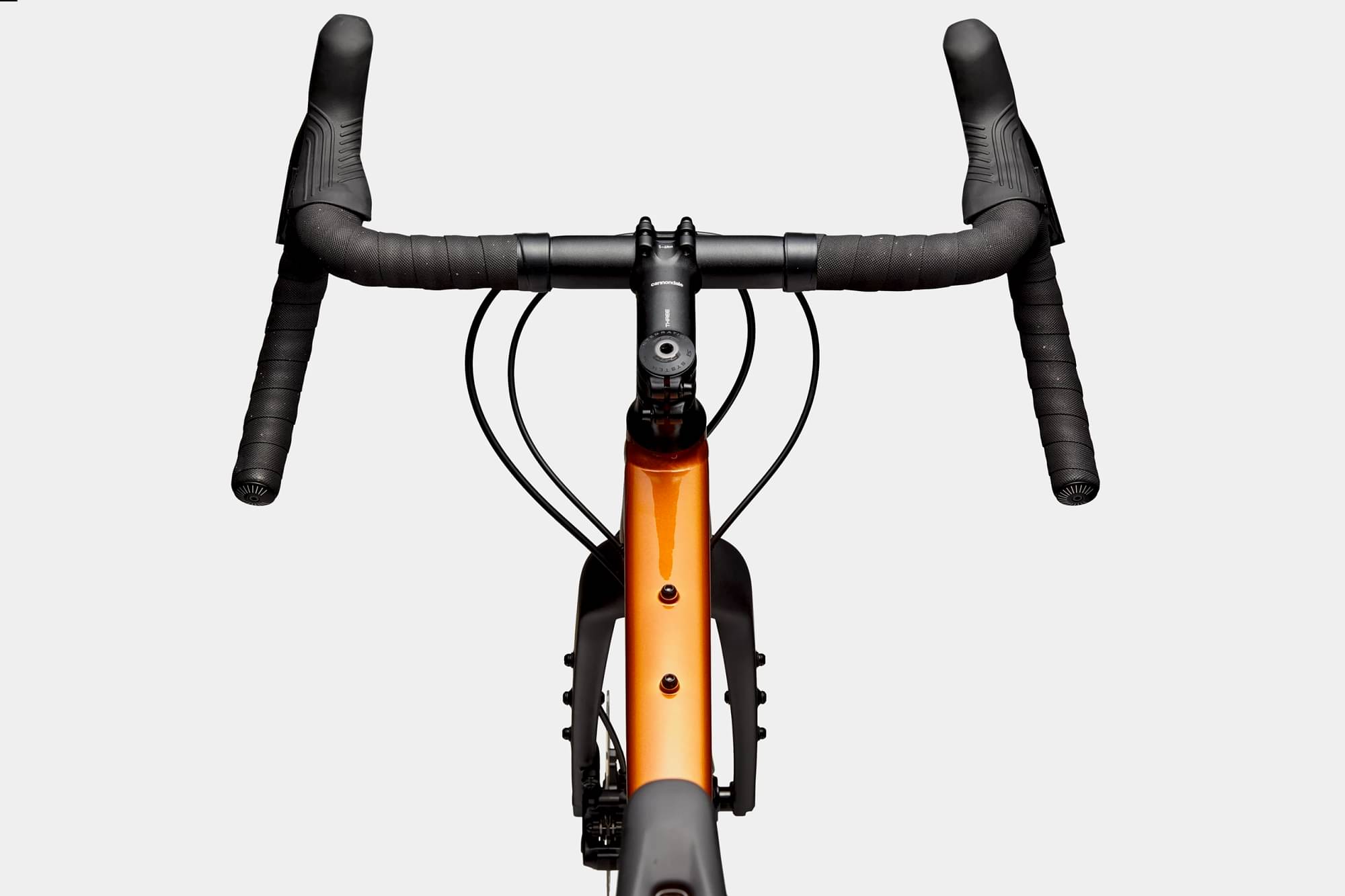

Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Fit data

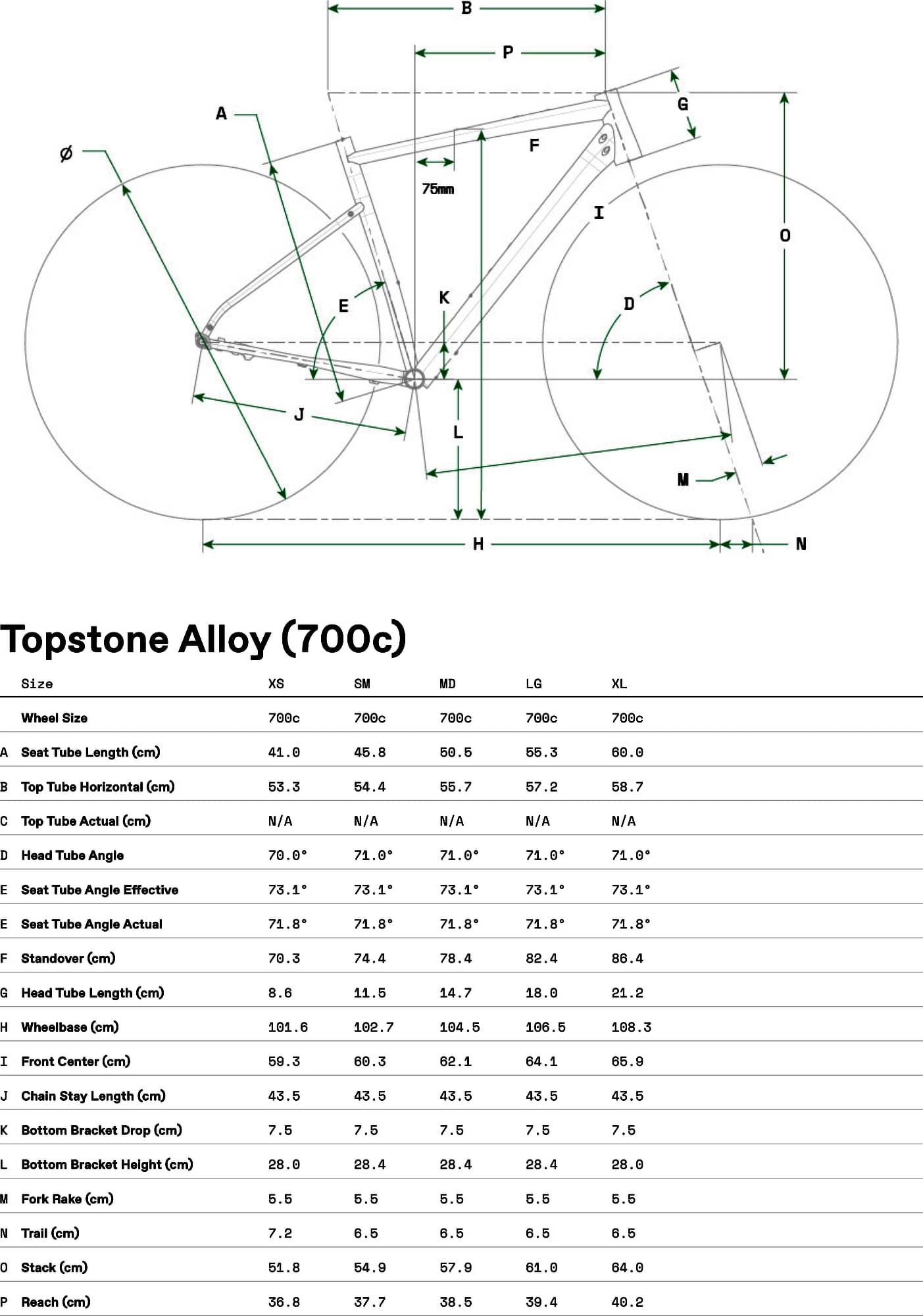

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 160 cm | 170 cm | 177 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
