Bike details
Overview
Key information split into simple groups.

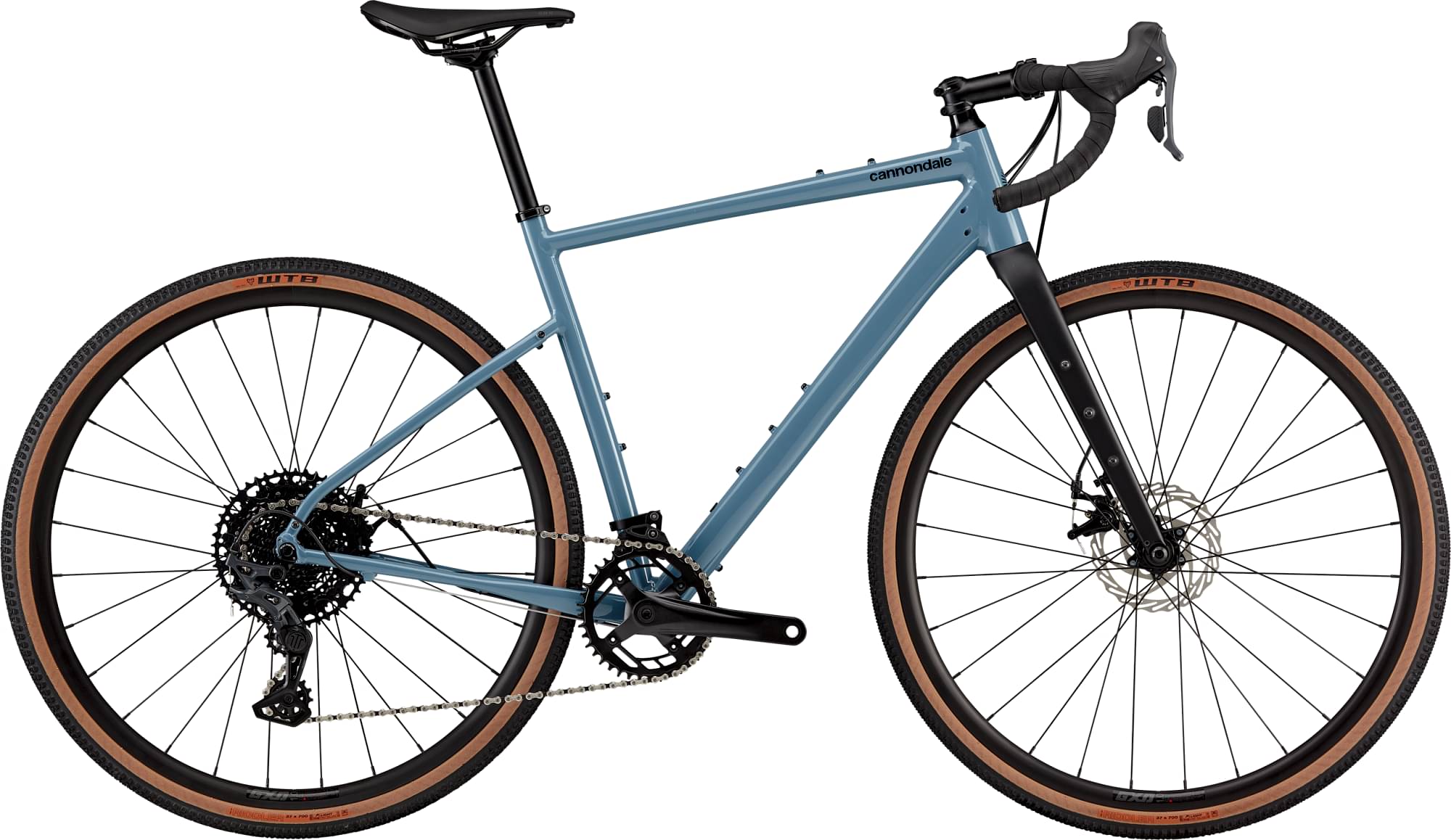

Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Sword -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Promax Mechanical Disc
Sizing
Recommended size guide.
XS
147cm - 165cm
SM
160cm - 175cm
MD
170cm - 185cm
LG
177cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components

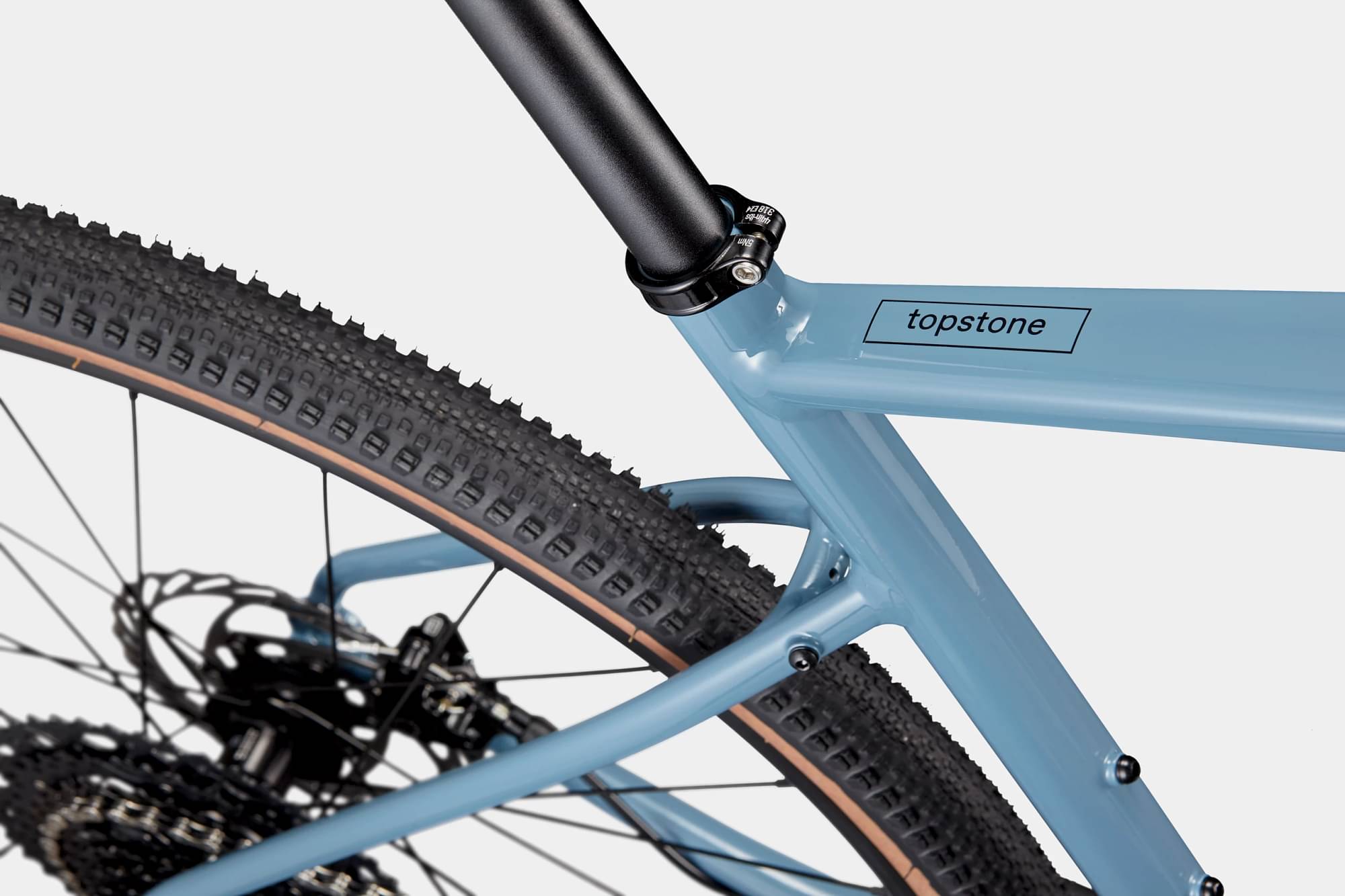

Frame
Frame
Topstone, lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts
Suspension Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Drivetrain

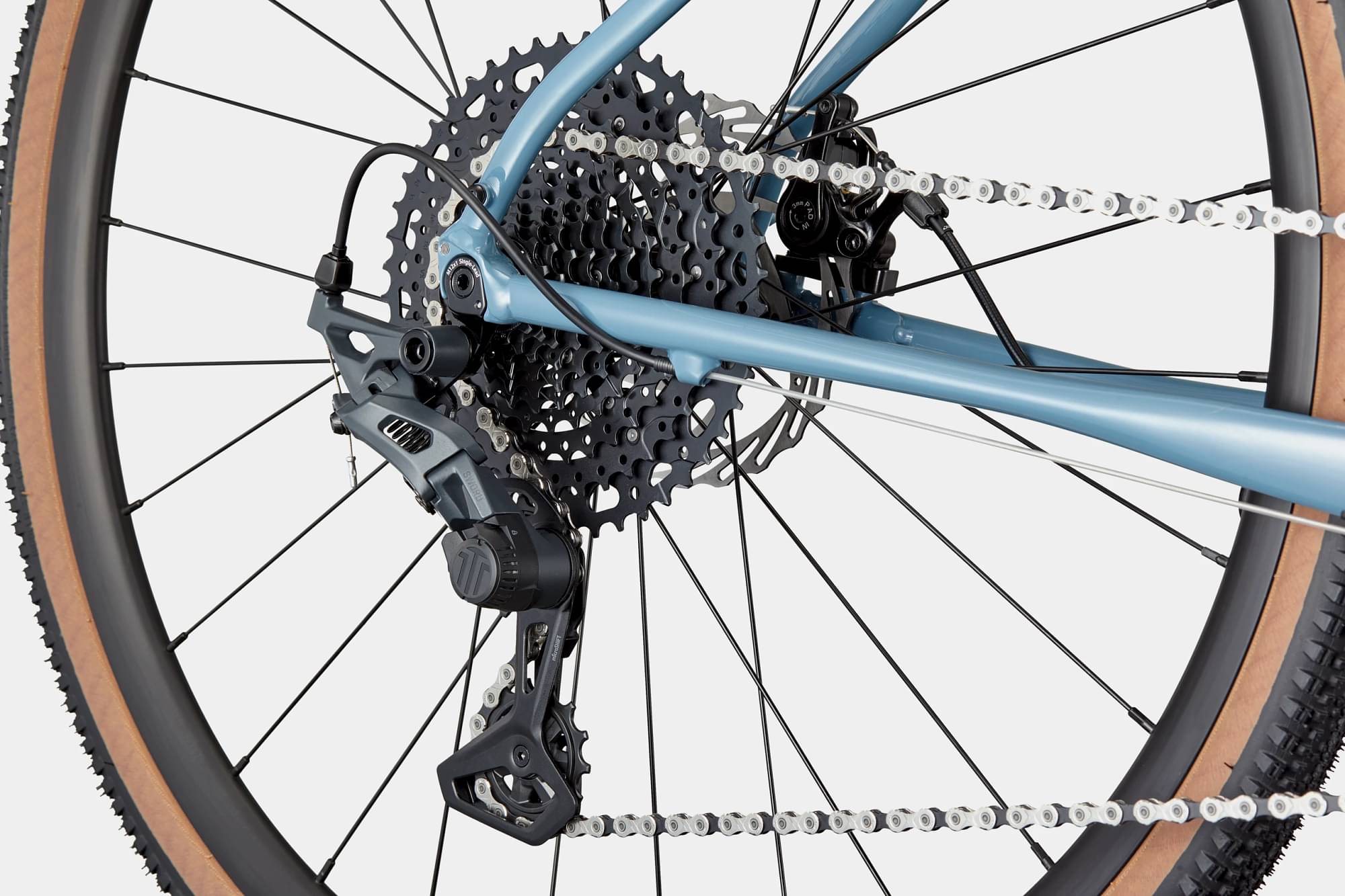

Rear Derailleur
microSHIFT Sword

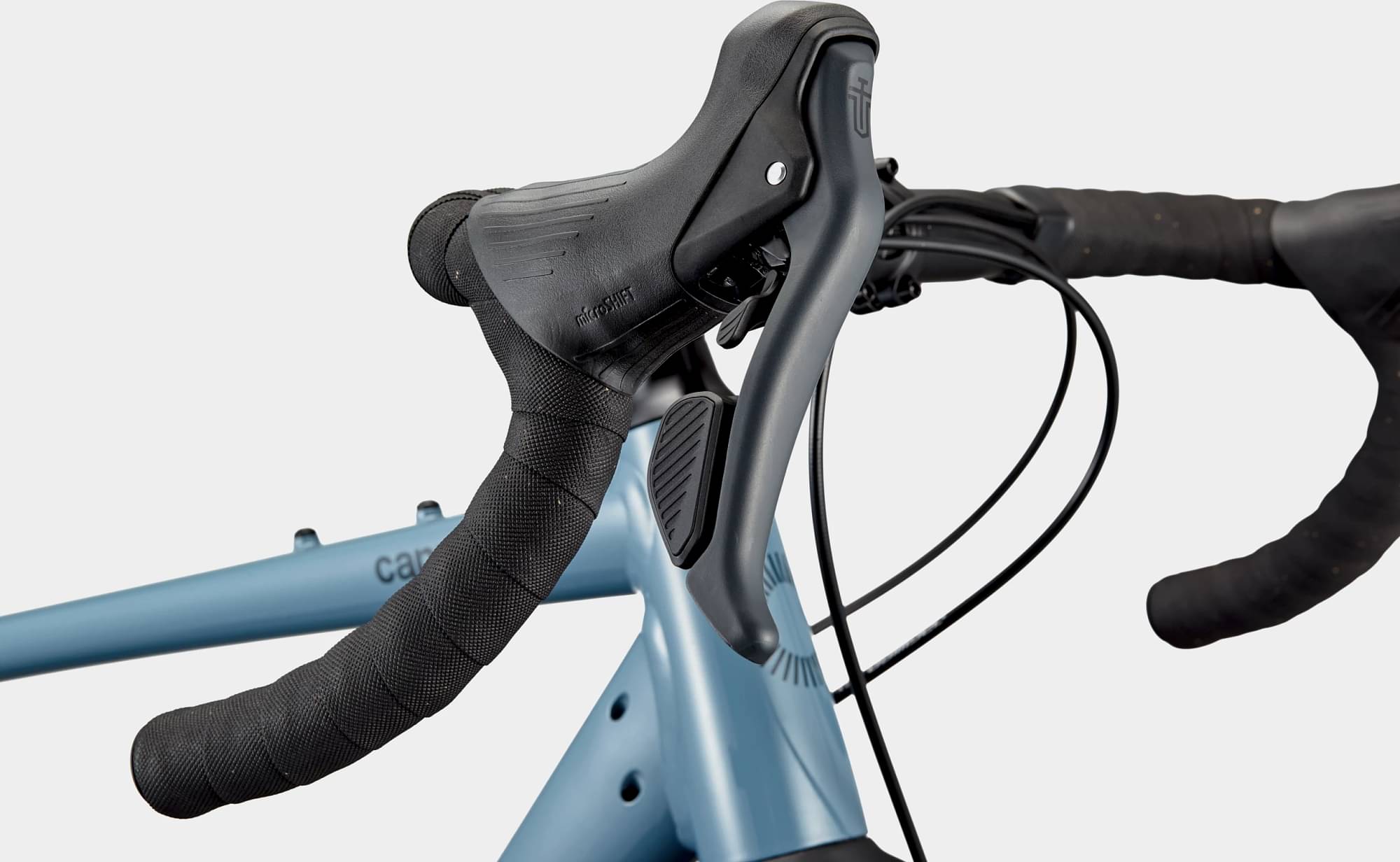

Shift Levers
microSHIFT Sword, 10-speed
Cassette
microSHIFT, 11-48, 10-speed
Crank
Prowheel Charm, 40T
Bottom Bracket
FSA cartridge, square taper
Chain
KMC X10, 10-speed
Pedals
Not included
Wheels
Front Hub
Shimano TC500, 12x100mm centerlock
Rear Hub
Shimano TC500, 12x142mm centerlock
Rims
GXD 1.0, 28h, 23mm internal width, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler TCS Light, 700x37c, tubeless ready
Brakes
Brakes
Promax Decoder R mechanical disc, 160/160mm centerlock rotors
Brake Levers
microSHIFT Sword

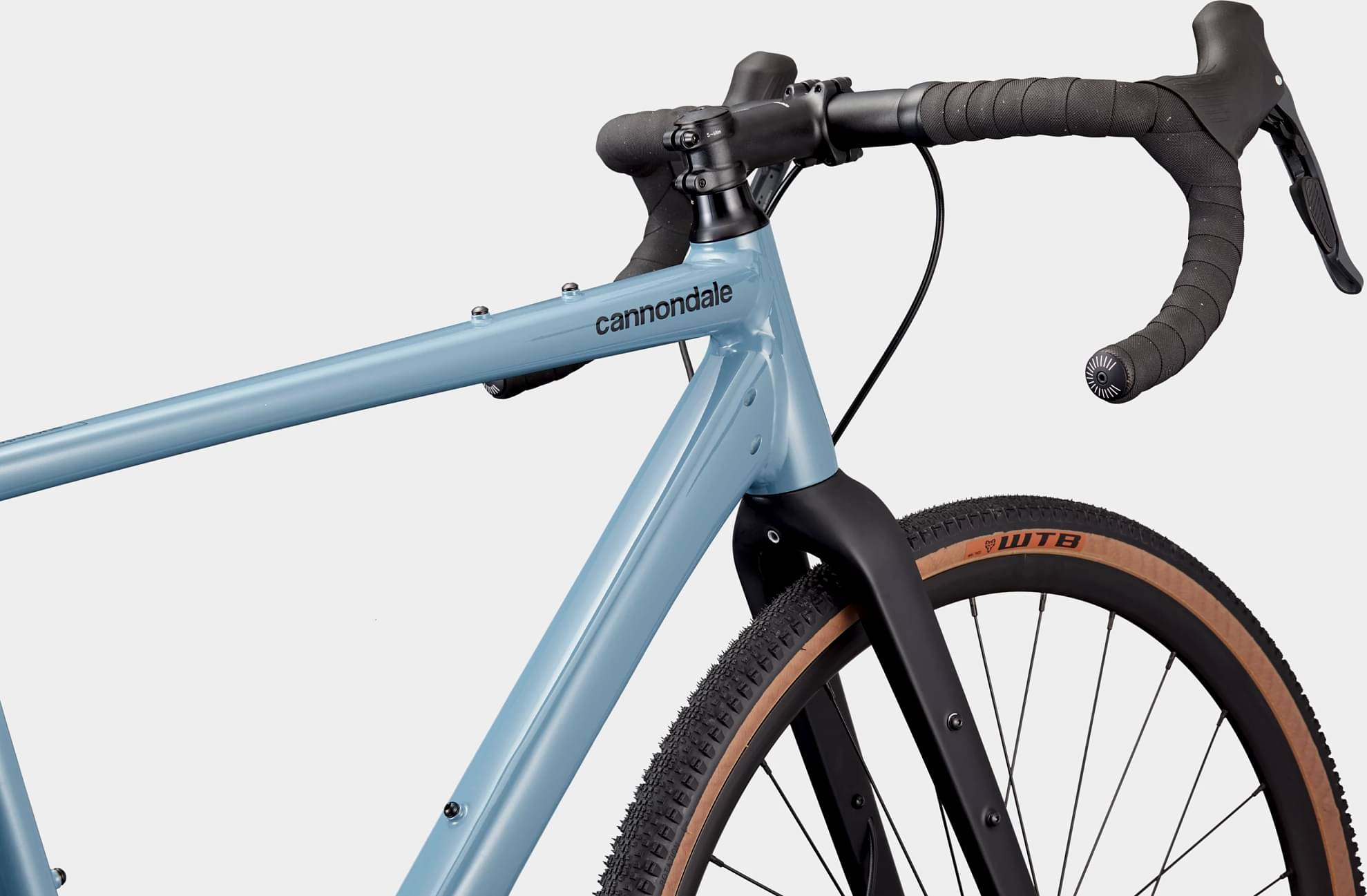

Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°

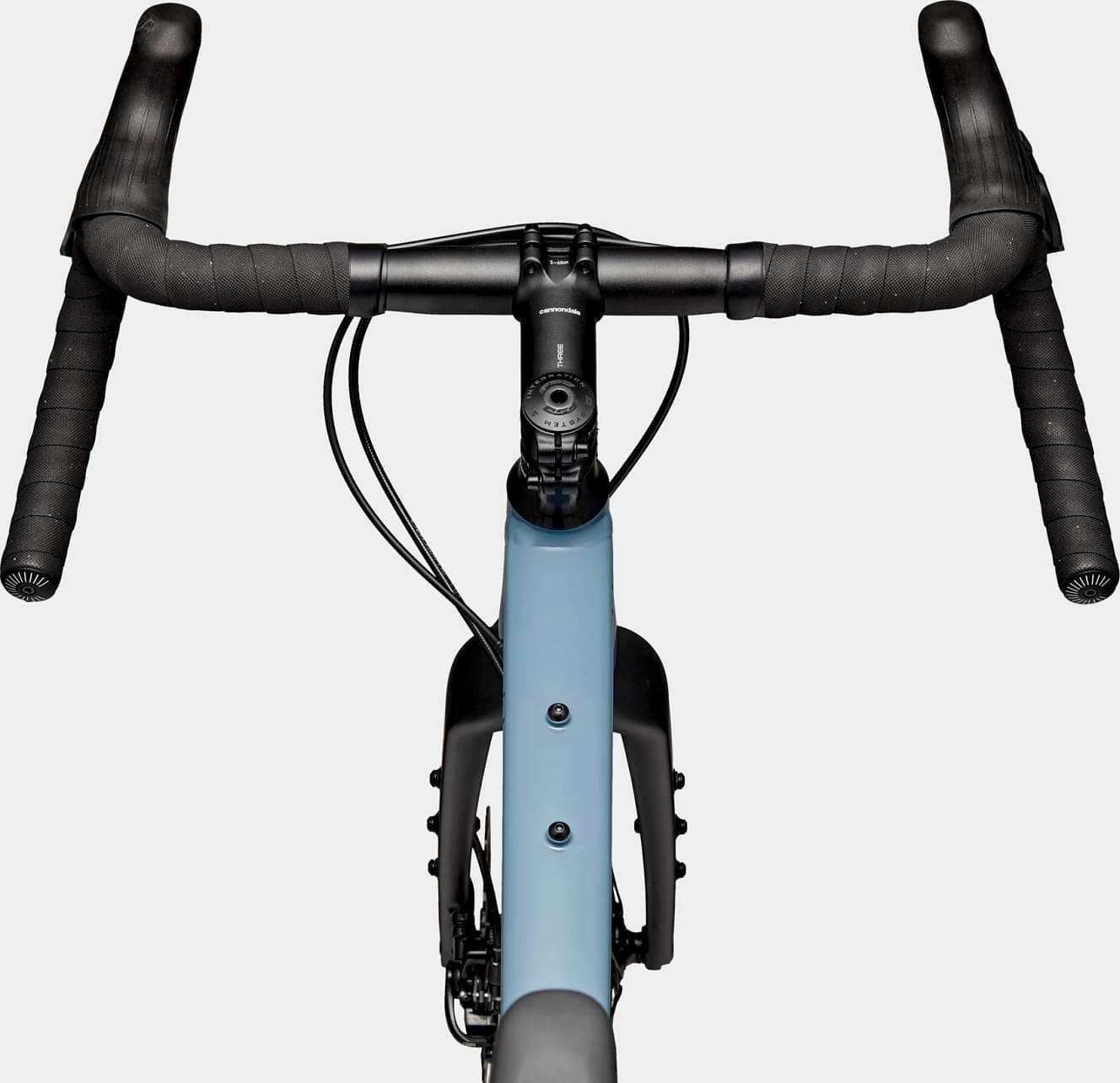

Handlebar
Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Grips
Cannondale KnurlCork, 2.7mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Selle Royal SRX Open
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Fit data

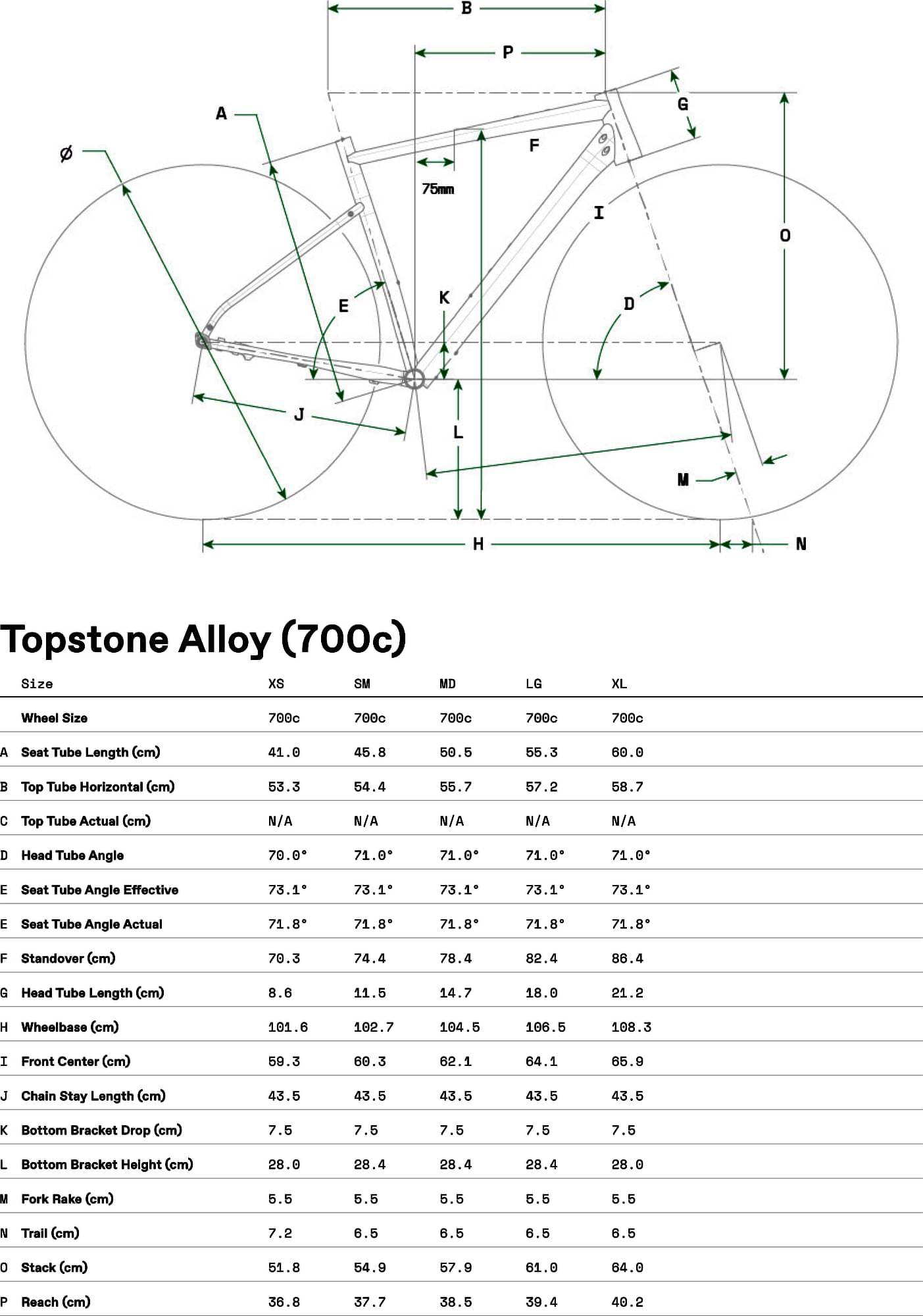

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 160 cm | 170 cm | 177 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
