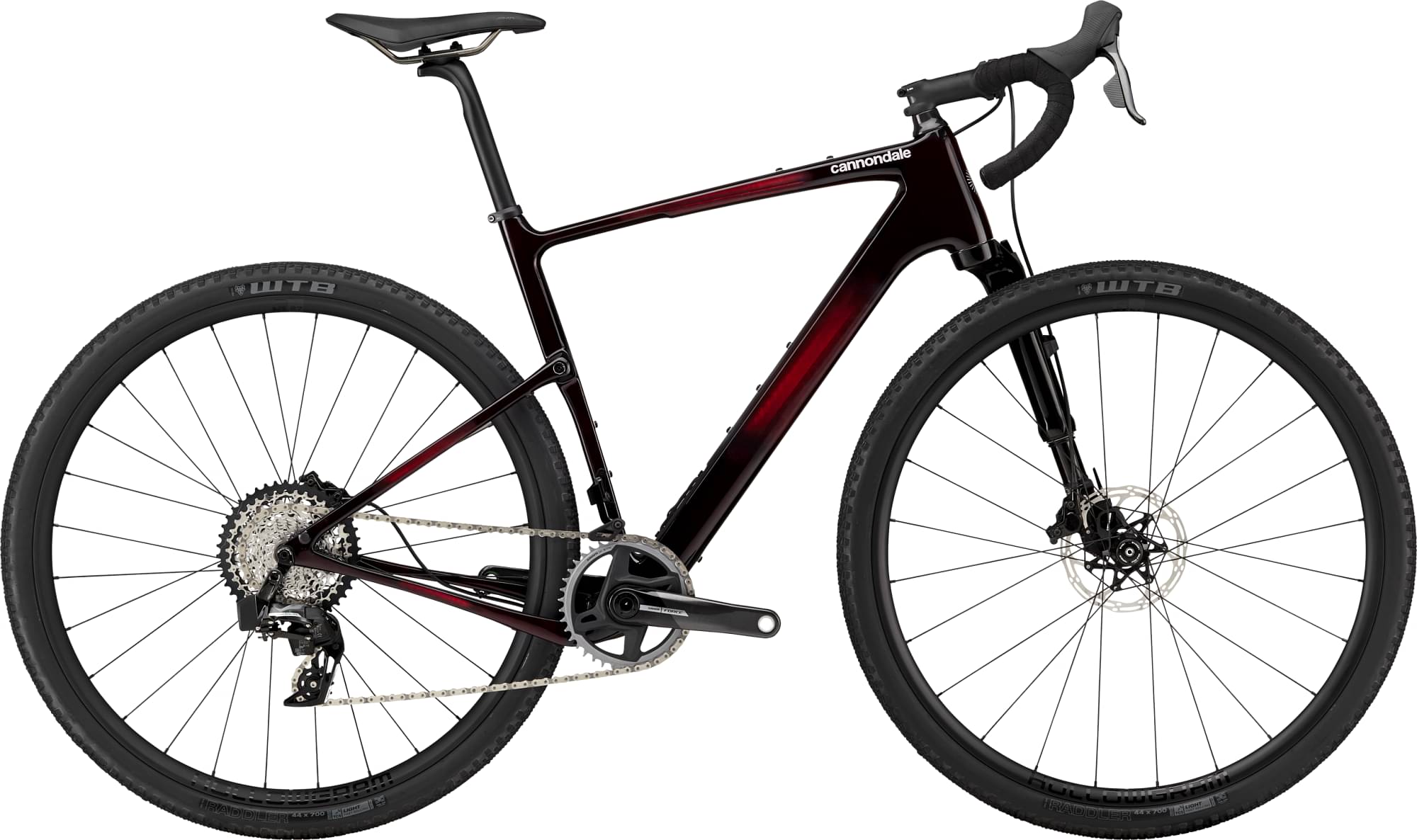

Cannondale Topstone Carbon 1 Lefty 2024
2024 Road
Estimate price |
8,945$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 30mm -
Fork Cannondale Lefty Oliver Carbon
-
Groupset Force, Force XPLR eTap -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 165cm
SM
160cm - 175cm
MD
170cm - 185cm
LG
177cm - 193cm
XL
182cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Suspension Fork
Lefty Oliver Carbon, 30mm travel, lockout, Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 700c, 55mm offset
Drivetrain
Rear Derailleur
SRAM Force eTap AXS XPLR
Shift Levers
SRAM Force eTap AXS, 12-speed
Cassette
SRAM XG-1271 XPLR, 10-44, 12-speed
Crank
SRAM Force Direct Mount, 40T
Bottom Bracket
SRAM DUB BSA Road 68 Wide
Chain
SRAM Force, 12-speed
Pedals
Not included
Wheels
Front Hub
(F) HollowGram, Lefty, centerlock / (R) HollowGram 12x142mm w/ DT Swiss 350 internals, centerlock
Rear Hub
(F) HollowGram, Lefty, centerlock / (R) HollowGram 12x142mm w/ DT Swiss 350 internals, centerlock
Rims
HollowGram G-S 27 Carbon, 700c, 27mm internal width, 21mm deep, 28h, hookless, tubeless compatible
Spokes
Formula Grand Forza, double butted
Tires
WTB Raddler TCS Light, 700x44c, tubeless ready (Europe/UK - Vittoria Mezcal III 700x44c ANT tubeless compatible)
Brakes
Brakes
SRAM Force eTap AXS hydraulic disc, 160/160mm CenterLine rotors
Brake Levers
SRAM Force eTap AXS
Cockpit
Stem
Cannondale 1, 7050 Alloy, -7°
Handlebar
Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop
Grips
Fizik Solocush Soft, 3mm
Headset
Integrated, Carbon, 1-1/8" - 1-1/2"
Seat
Saddle
Fizik Terra Argo X3, kium rails
Seatpost
SAVE Carbon, 27.2x350mm (XS-L), 400mm (XL)
Fit data

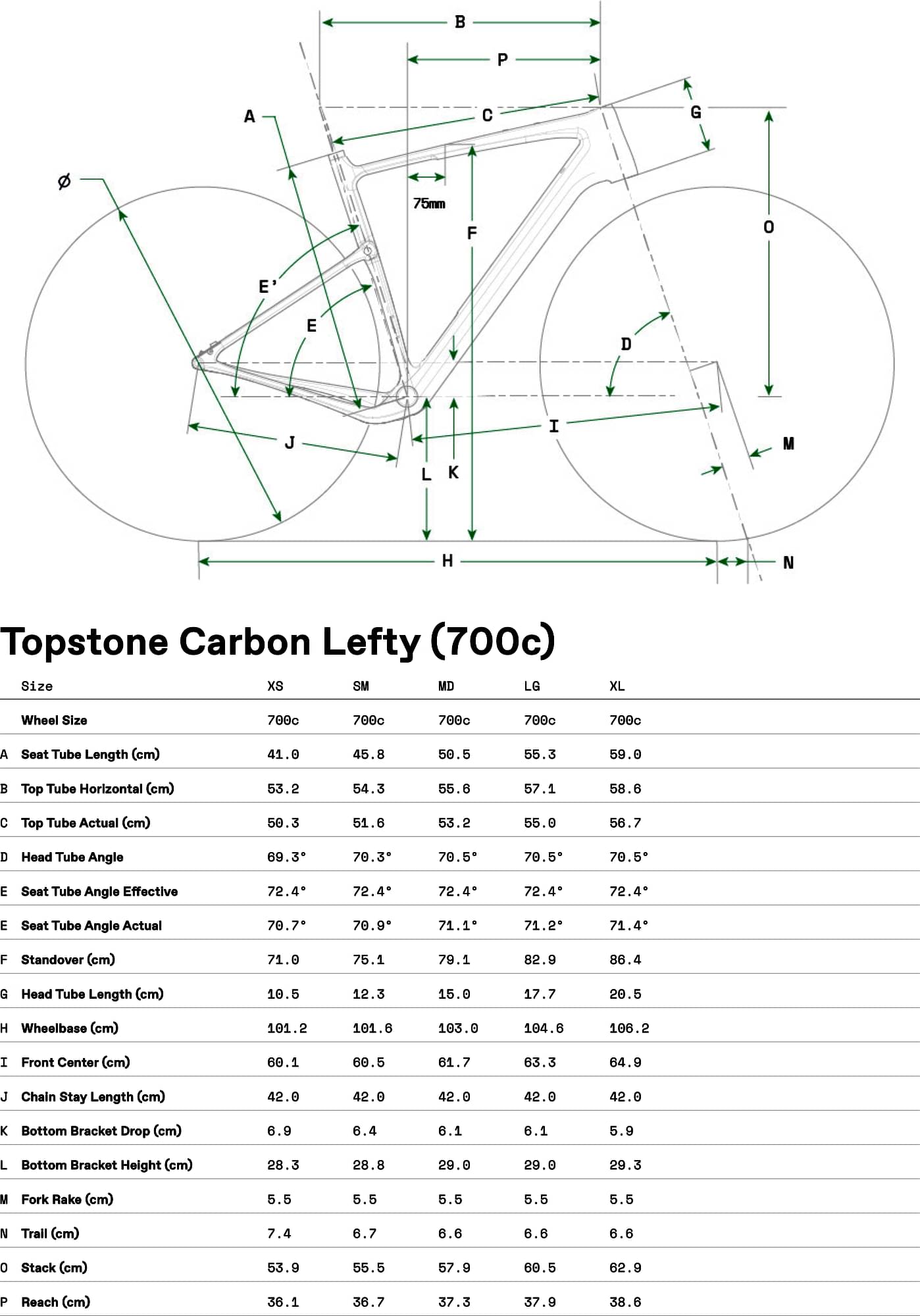

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 160 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
