Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, BallisTec Carbon, Kingpin suspension system, Proportional Response size-specific construction, Directline internal cable routing, BB30-83 Ai, 142x12 Speed Release thru-axle, flat-mount disc, removable fender bridge, multiple gear/bottle mounts, dropper post compatible
Suspension Fork
All-New, BallisTec Carbon, 55mm OutFront offset, SAVE, 1-1/8" to 1.5" steerer, integrated crown race, Directline internal routing, 12x100mm Speed Release thru-axle, flat mount disc, gear/rack/fender mounts
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105 hydraulic disc, 2x11
Cassette
Shimano 105, 11-34, 11-speed
Crank
Cannondale 1, BB30a, FSA rings, 46/30
Bottom Bracket
Cannondale Alloy PressFit30
Chain
KMC X11, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula CL-712, 12x100mm centerlock
Rear Hub
Formula RXC-400
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g (Ai Offset Dish - rear)
Tires
WTB Riddler TCS Light, 700x37c, tubeless ready
Brakes
Brakes
Shimano 105 hydraulic disc, 160/160mm RT30 rotors
Brake Levers
Shimano 105 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 3, 6061 alloy, 27.2x350mm
Fit data

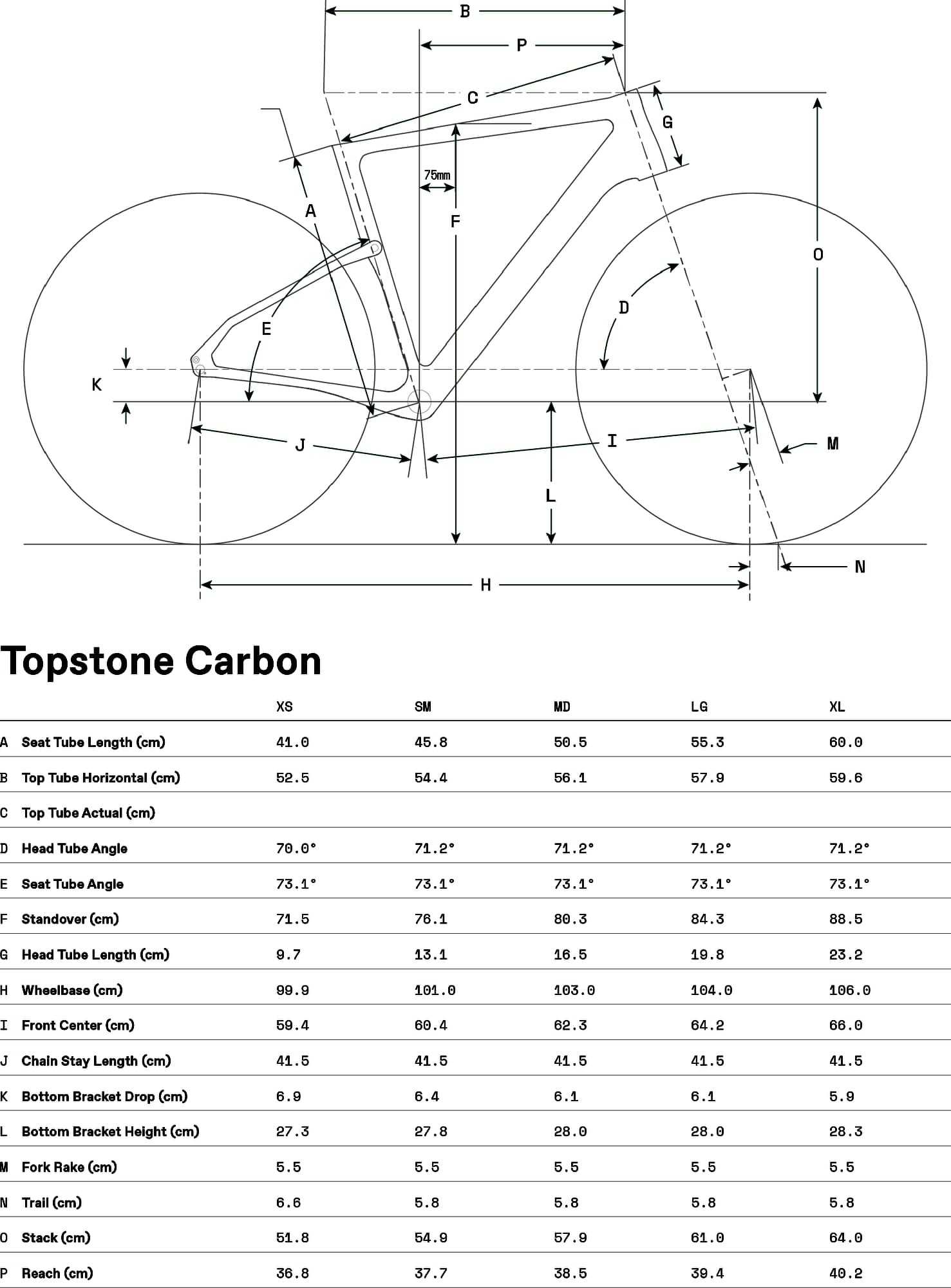

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.456 mm | 1.504 mm | 1.548 mm | 1.592 mm |
| Bottom Bracket Height | 273 mm | 278 mm | 280 mm | 280 mm | 283 mm |
| Front Center | 594 mm | 604 mm | 623 mm | 642 mm | 660 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 518 mm | 549 mm | 579 mm | 610 mm | 640 mm |
| Reach | 368 mm | 377 mm | 385 mm | 394 mm | 402 mm |
| Top Tube Length | 525 mm | 544 mm | 561 mm | 579 mm | 596 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71.2 ° | 71.2 ° | 71.2 ° | 71.2 ° |
| Head Tube Length | 97 mm | 131 mm | 165 mm | 198 mm | 232 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 999 mm | 1010 mm | 1030 mm | 1040 mm | 1060 mm |
| Bottom Bracket Drop | 69 mm | 64 mm | 61 mm | 61 mm | 59 mm |
| Standover Height | 715 mm | 761 mm | 803 mm | 843 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
